tire size
28 inch

gear shifter
Shimano SORA

weight
8.8kg

frame material
carbon
Lightweight. Aerodynamic. Race-Ready.

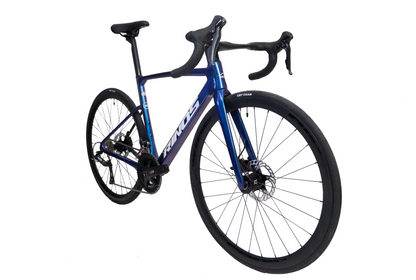

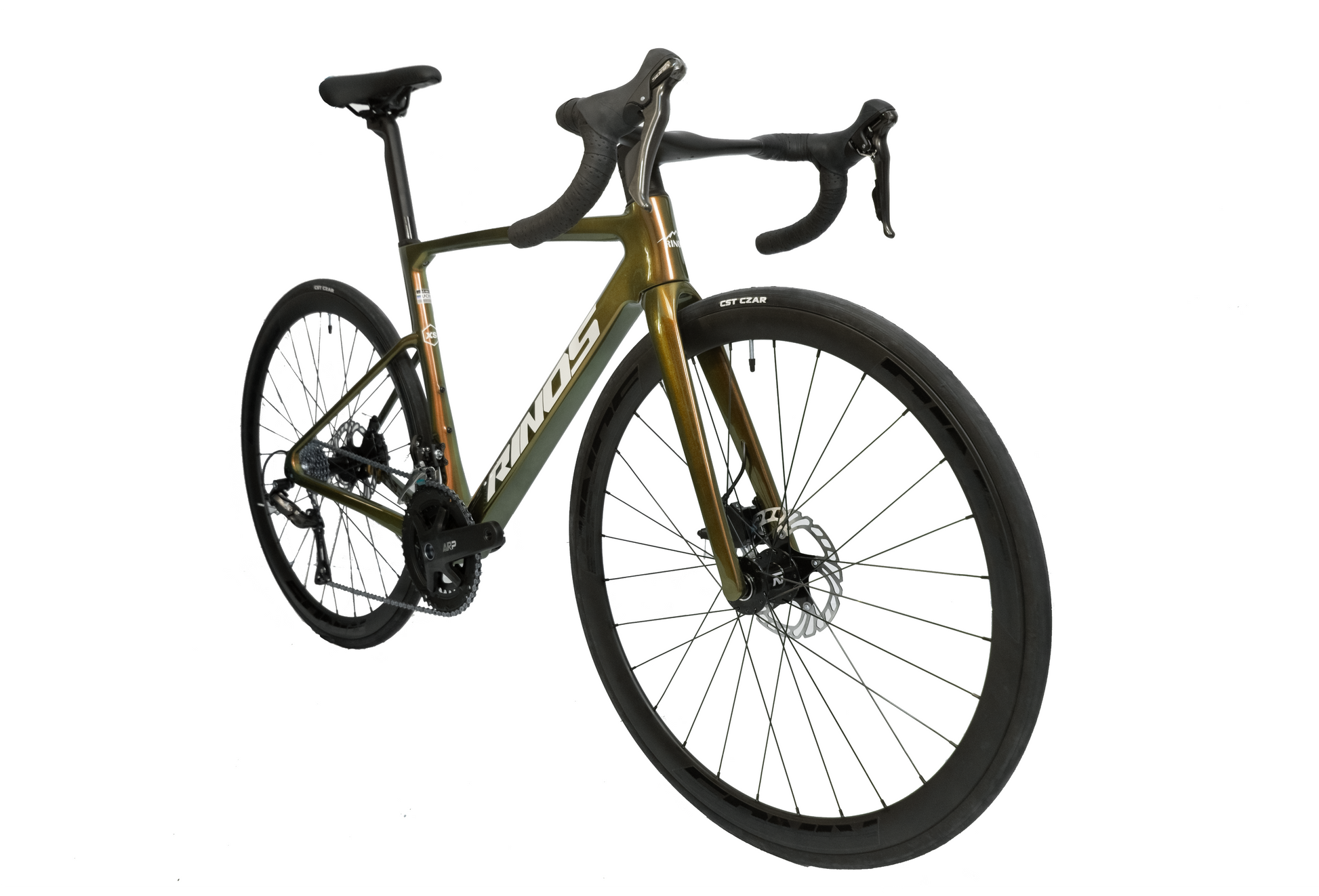

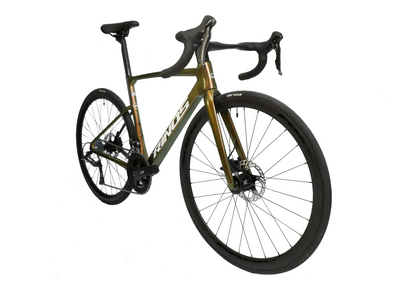

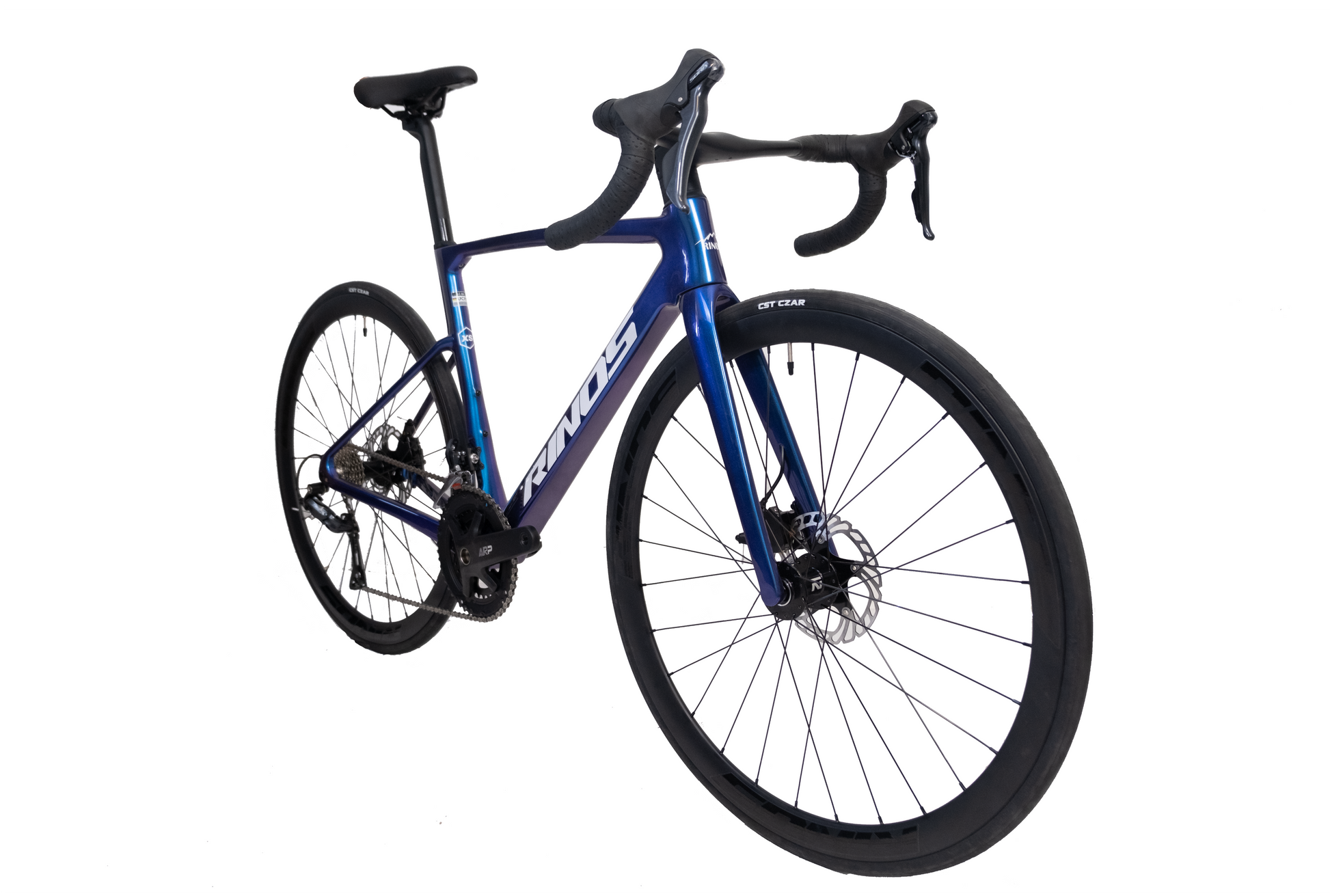

The Odin 1.0 is a high-performance carbon road bike built for riders who want to step up without breaking the bank. UCI-compliant and equipped with Shimano Sora 2x9-speed components, this bike is as ready for race day as it is for weekend rides.
🔧 Key Features:
-

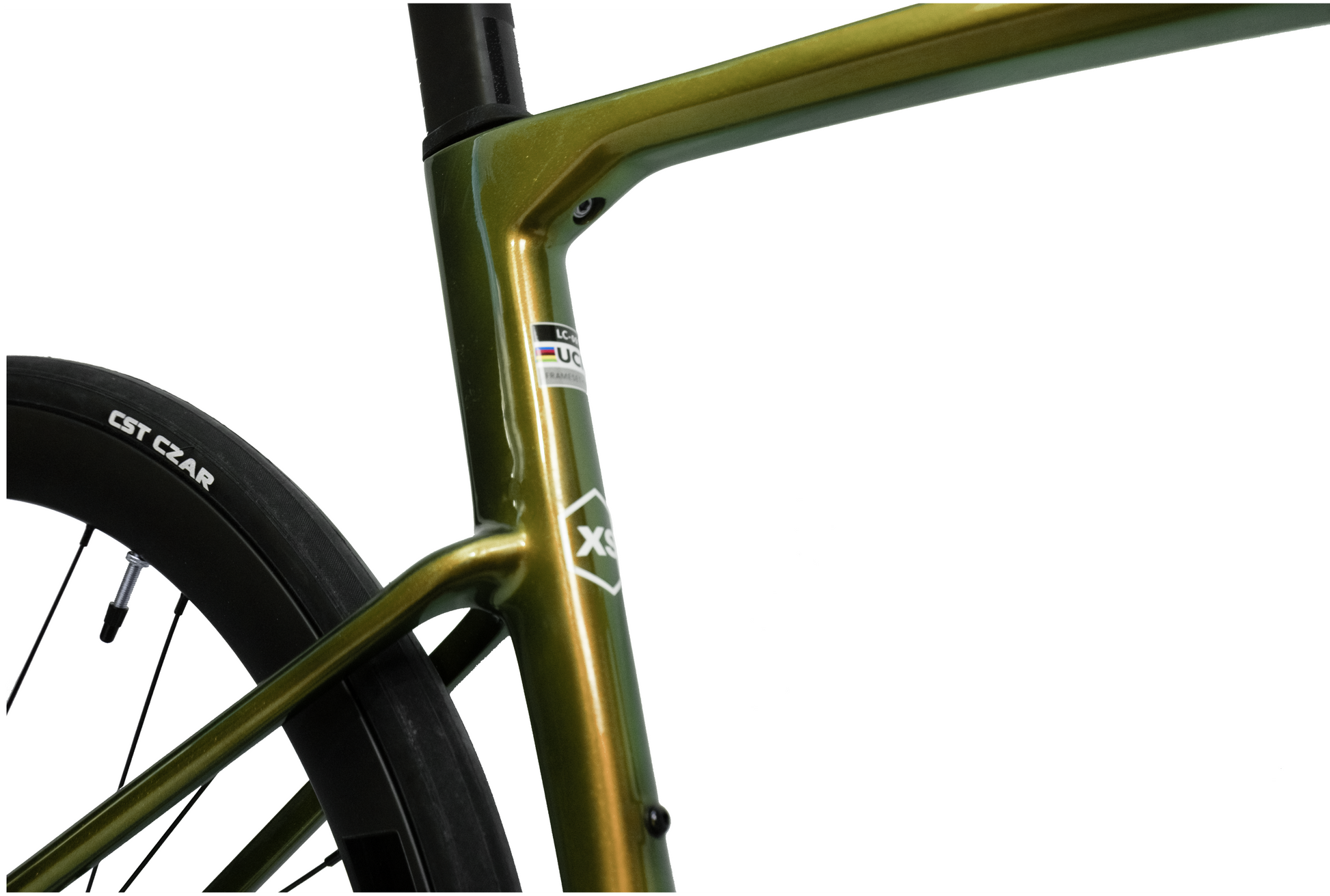

UCI Certified: Approved for racing under international standards.
-

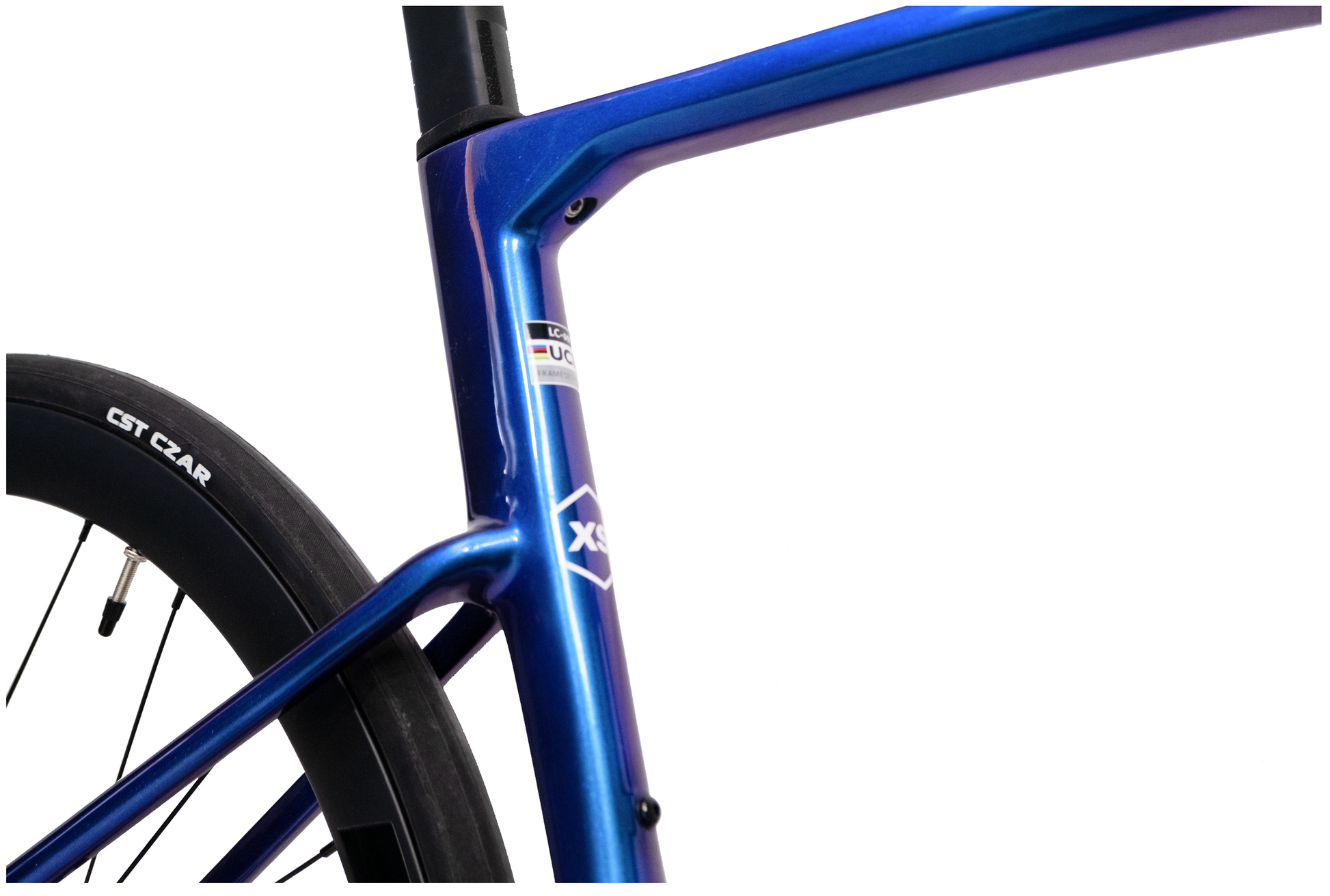

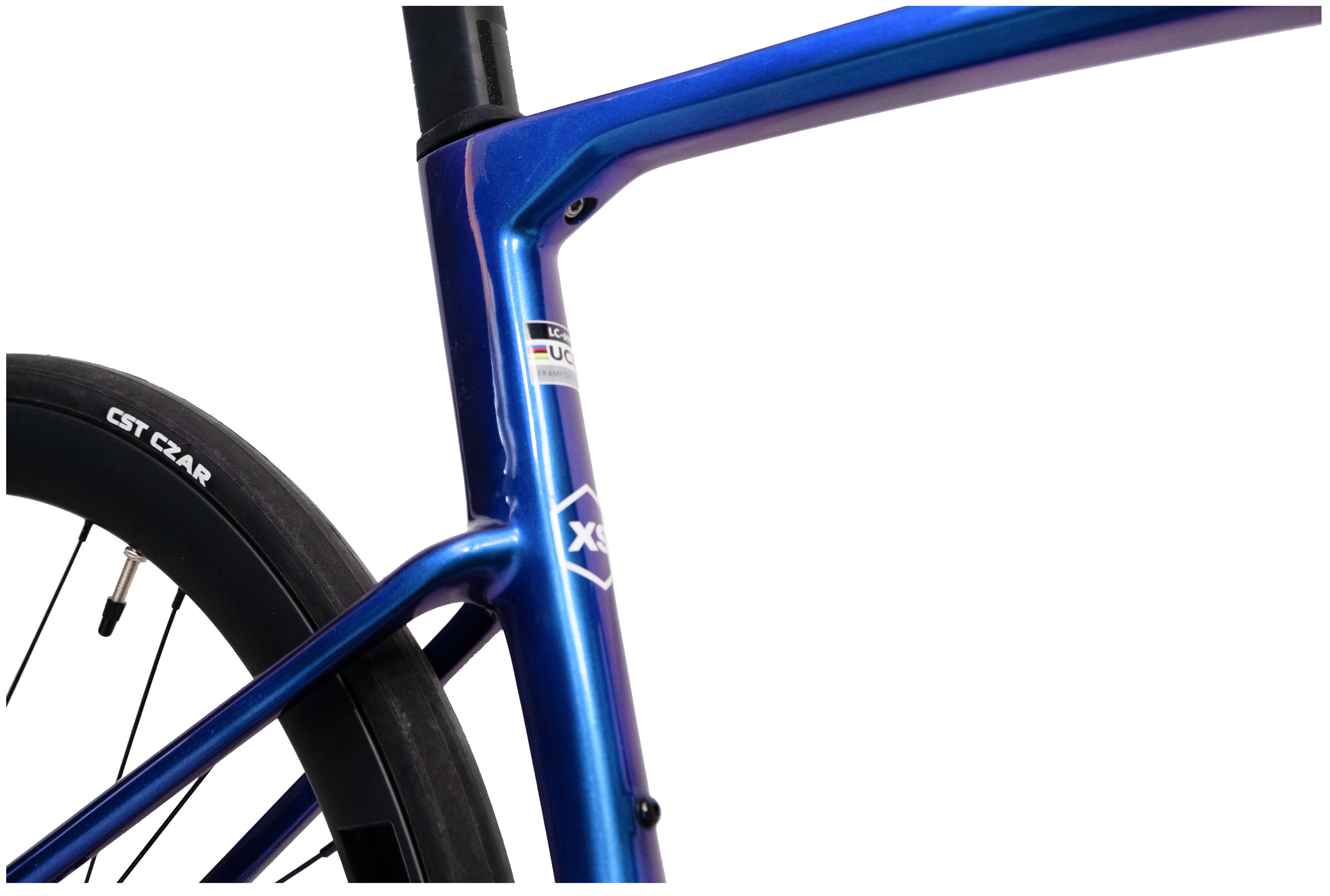

Full Carbon Frame, Fork & Seatpost: Lightweight Toray T800 carbon construction for stiffness, comfort, and performance.
-

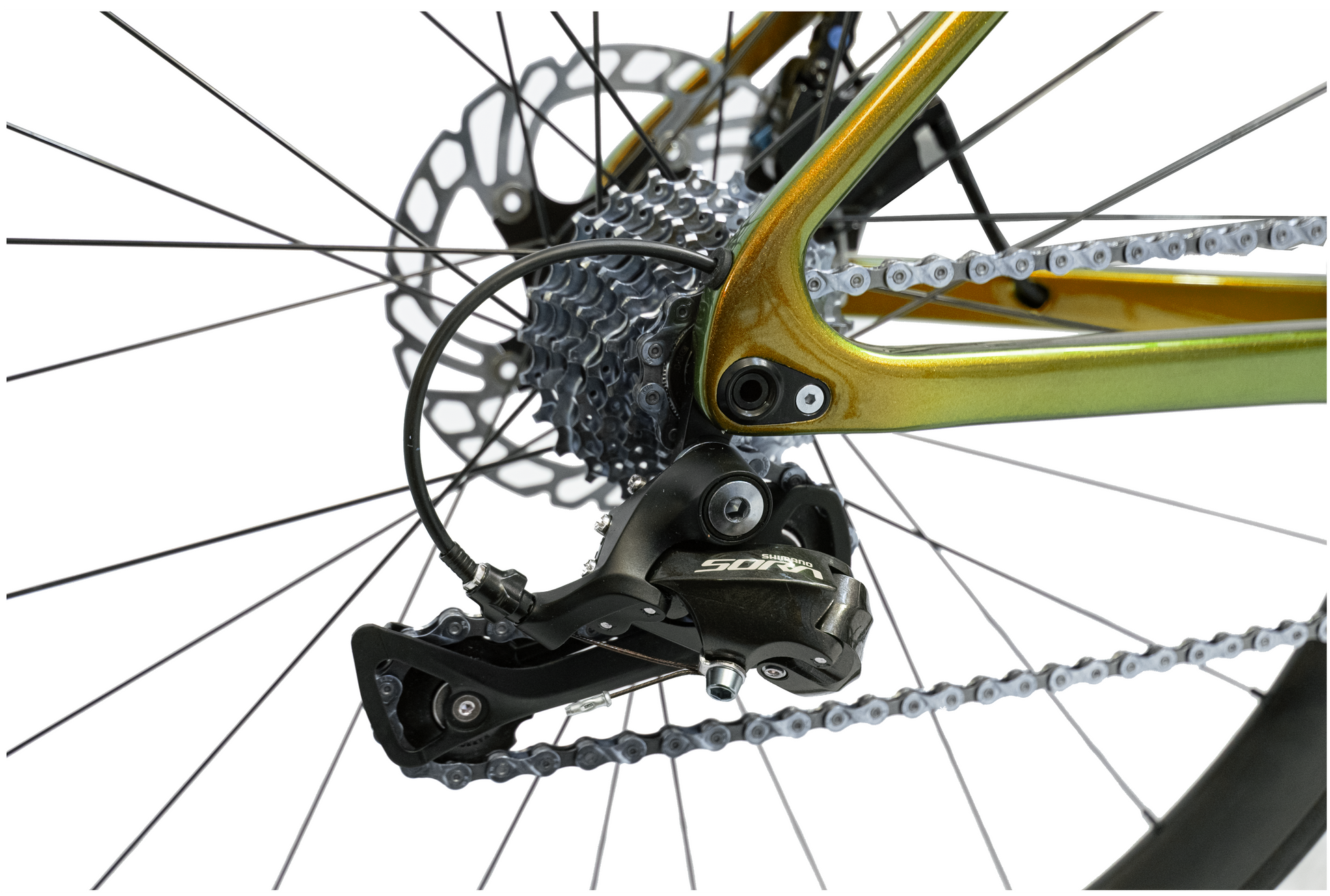

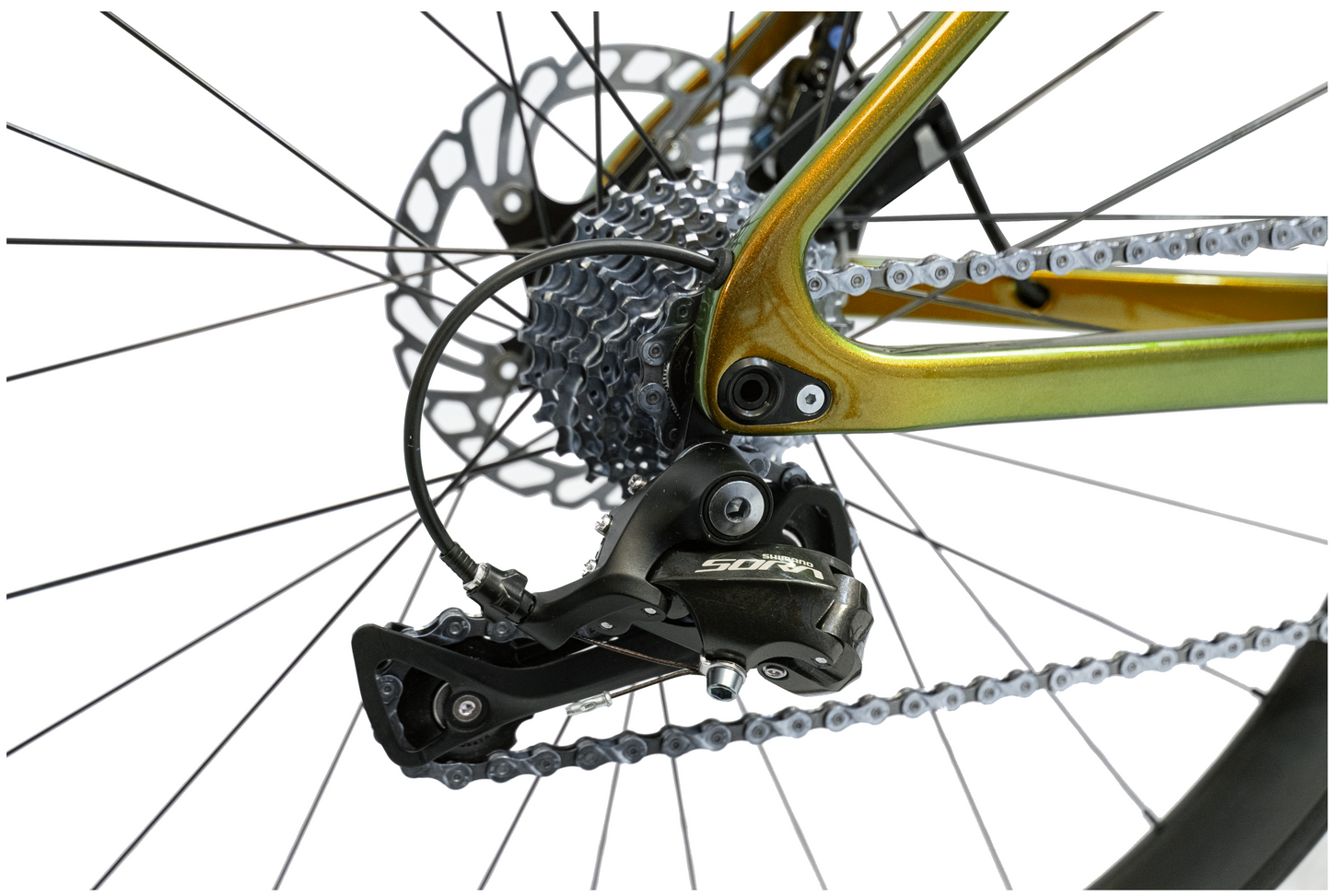

Shimano Sora R3000 (2x9-speed): Smooth, reliable shifting and proven quality.
-
Disc Brakes: Confident braking in all conditions.
-

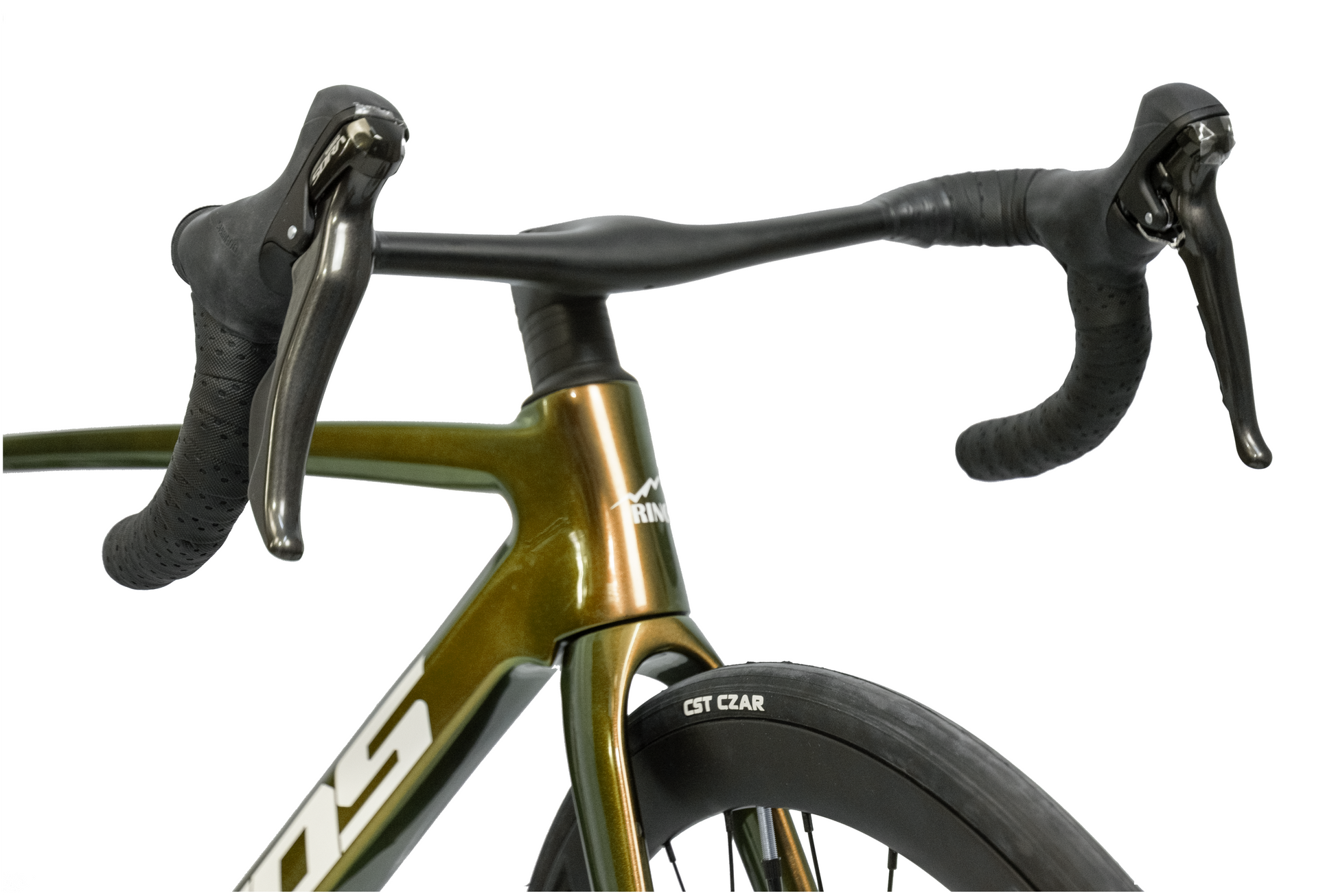

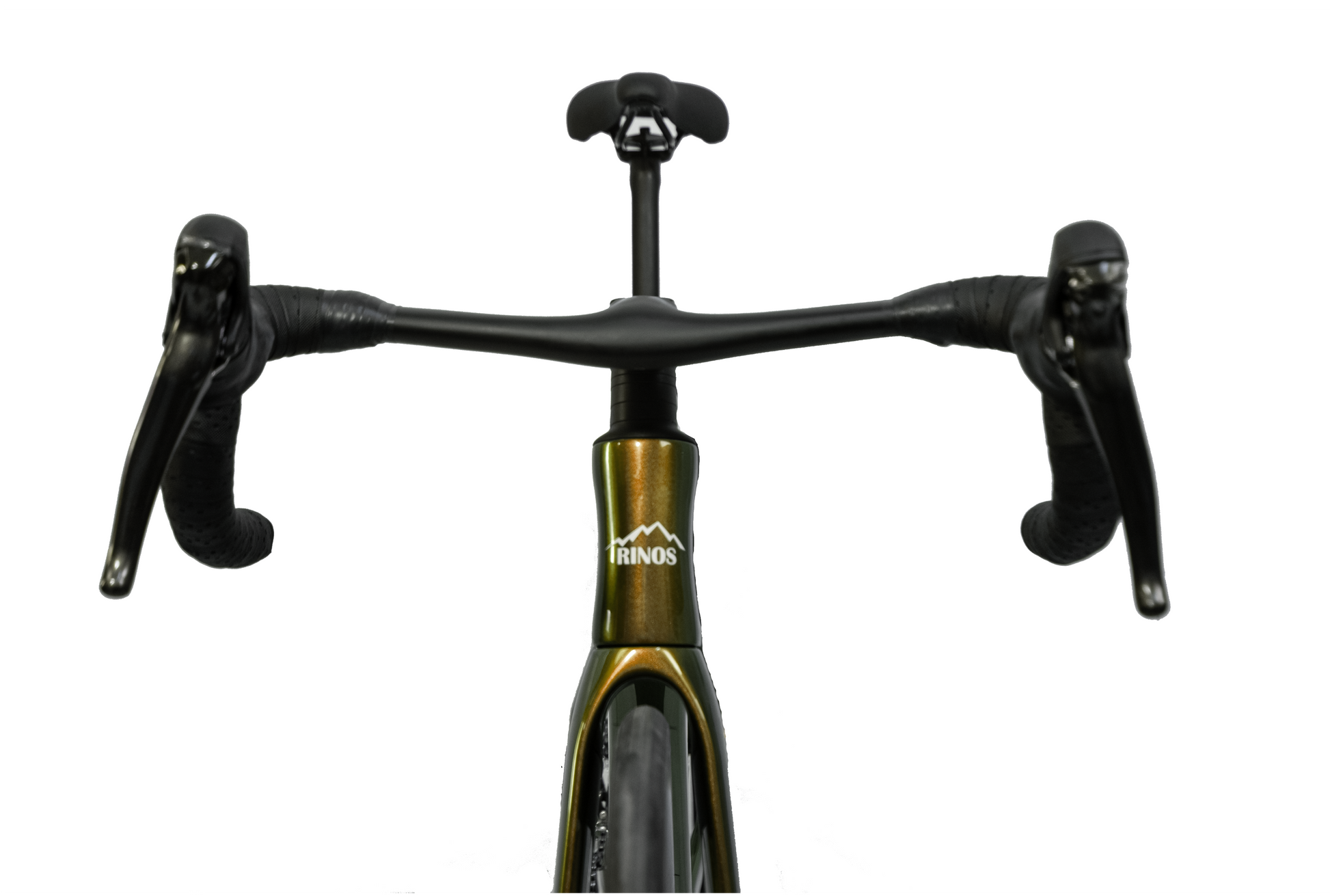

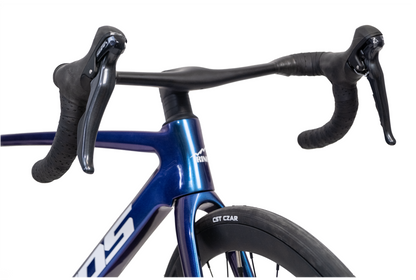

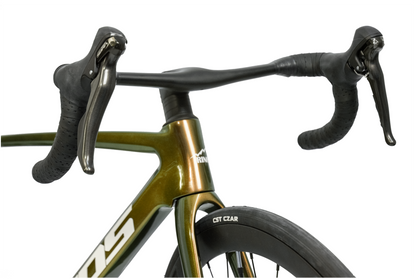

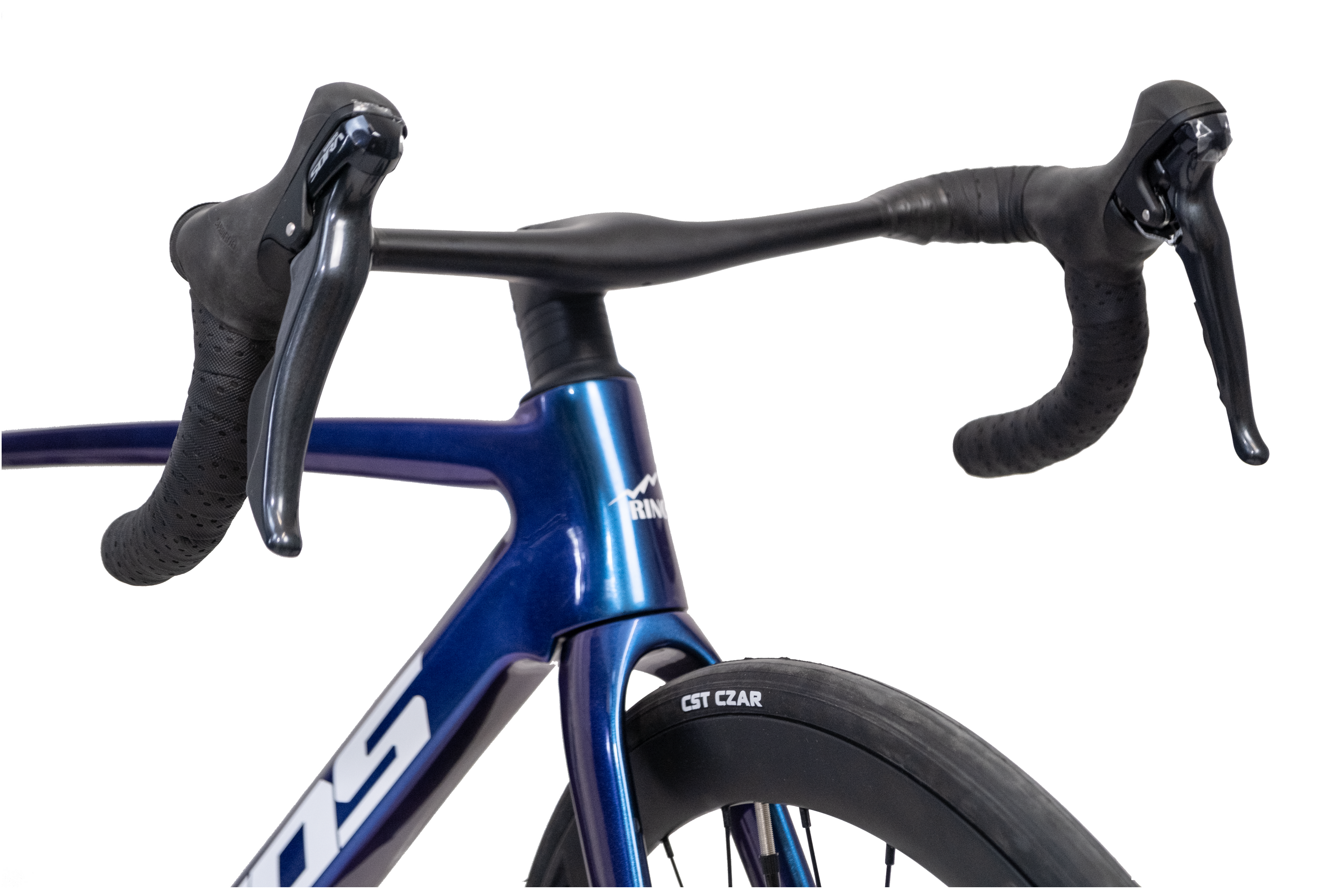

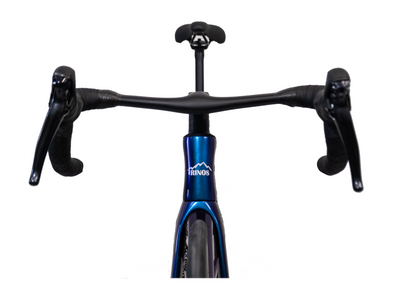

Aerodynamic Design: Internal cable routing, aero handlebars, and 38mm deep-section rims.
-
Only 8.8kg (Complete Bike): Built to go fast without weighing you down.
📐 Geometry & Fit:
Available in sizes XS to XL — covering riders from 152cm to 200cm. Check the sizing chart above to find your perfect fit.
📦 What’s Included:
-
RINOS Odin 1.0 Complete Bike (8.8kg)
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
New racers looking for an entry-level carbon road bike
-
Long-distance road rides or fast-paced group rides
-
Cyclists upgrading from alloy to carbon frames
🔍 Tech Specs Summary:
-
Frame/Fork: RINOS T800 Carbon (UCI-tested)
-
Groupset: Shimano SORA R3000, 18-Speed (2x9)
-
Brakes: Mechanical Disc Brakes
-

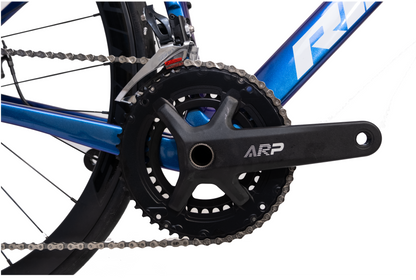

Crankset: 50/34T (Compact)
-
Cassette: 11-32T
-
Wheels: 700C, 38mm profile rims
-
Tyres: CST 700x25C
-
Handlebar/Seatpost: Carbon
-
Weight: 8.8kg (Bike), 13.8kg (Shipping)
📘 Full Technical Specifications
- Model: Odin 1.0
- Manufacturer: RINOS

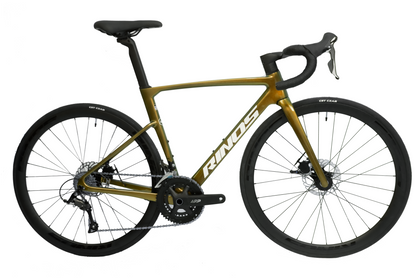

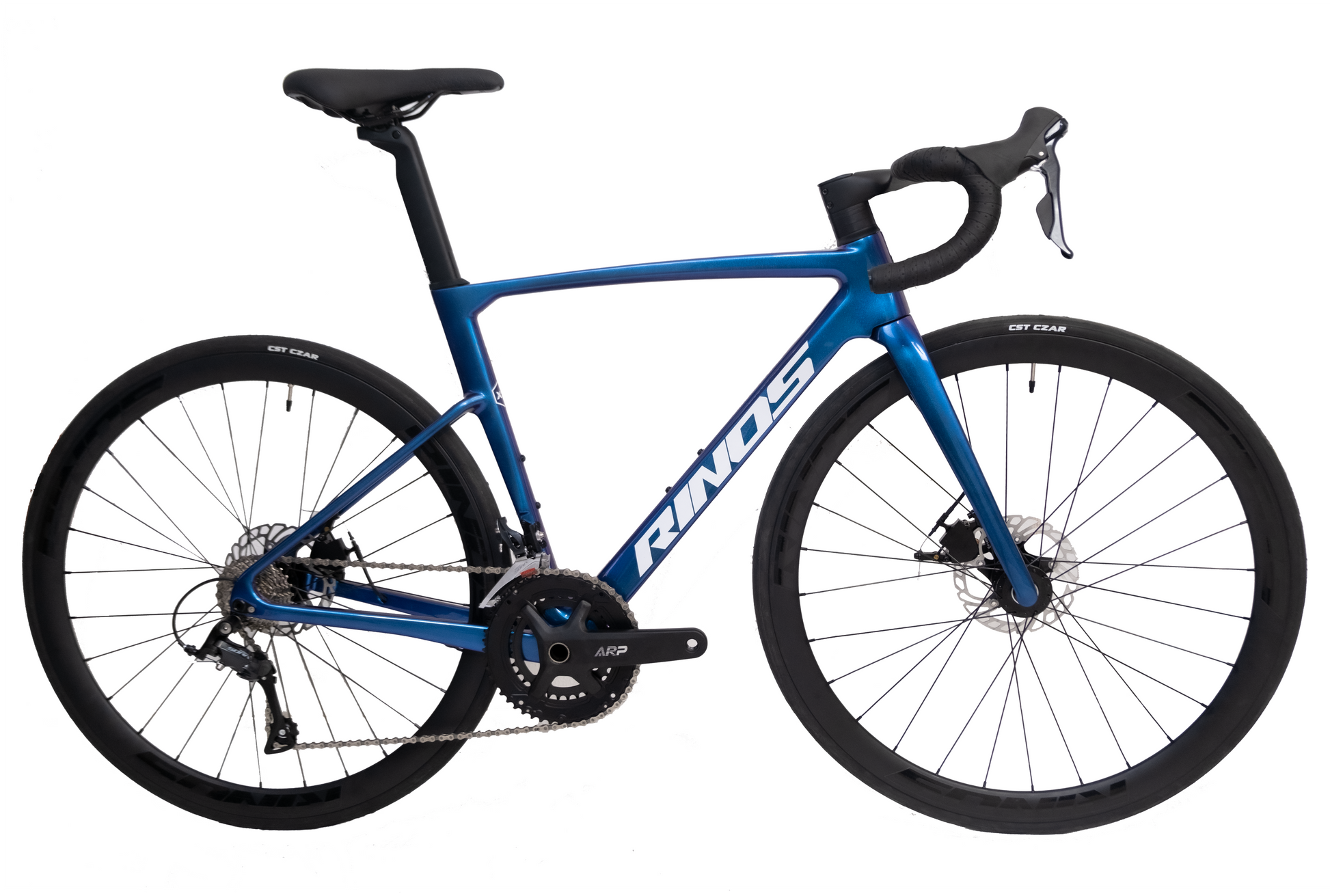

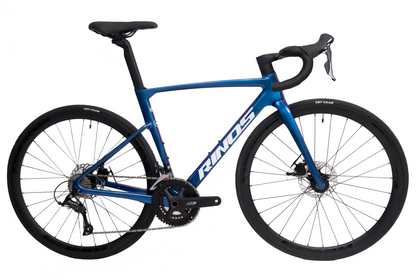

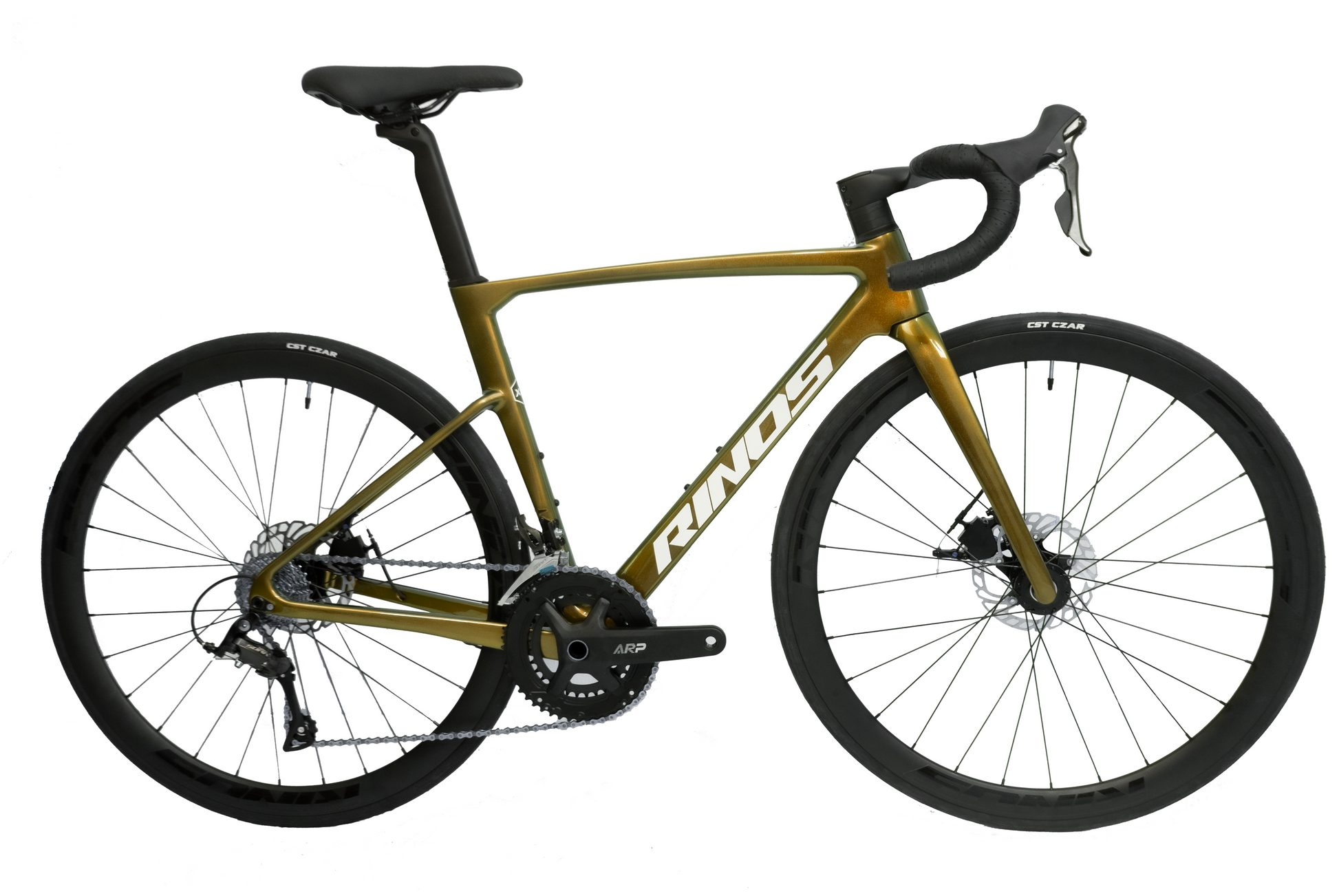

- Colour: Gold / Blue
- Wheel Size: 28 inch (700C)
- Frame Sizes: XS / S / M / L / XL
-
Recommended Heights:
XS: 156–165 cm
S: 166–174 cm
M: 175–184 cm
L: 185–193 cm
XL: 194–200 cm - Product Weight: 8.8 kg
- Shipping Weight: 13.8 kg

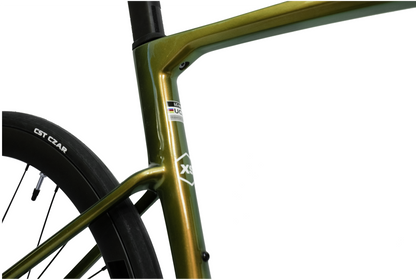

- Frame: Toray T800 Carbon
- Fork: Toray T800 Carbon

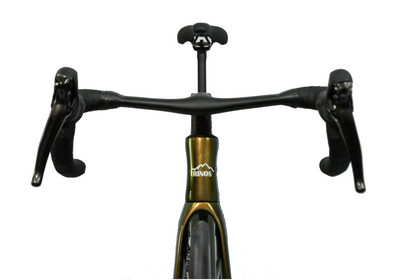

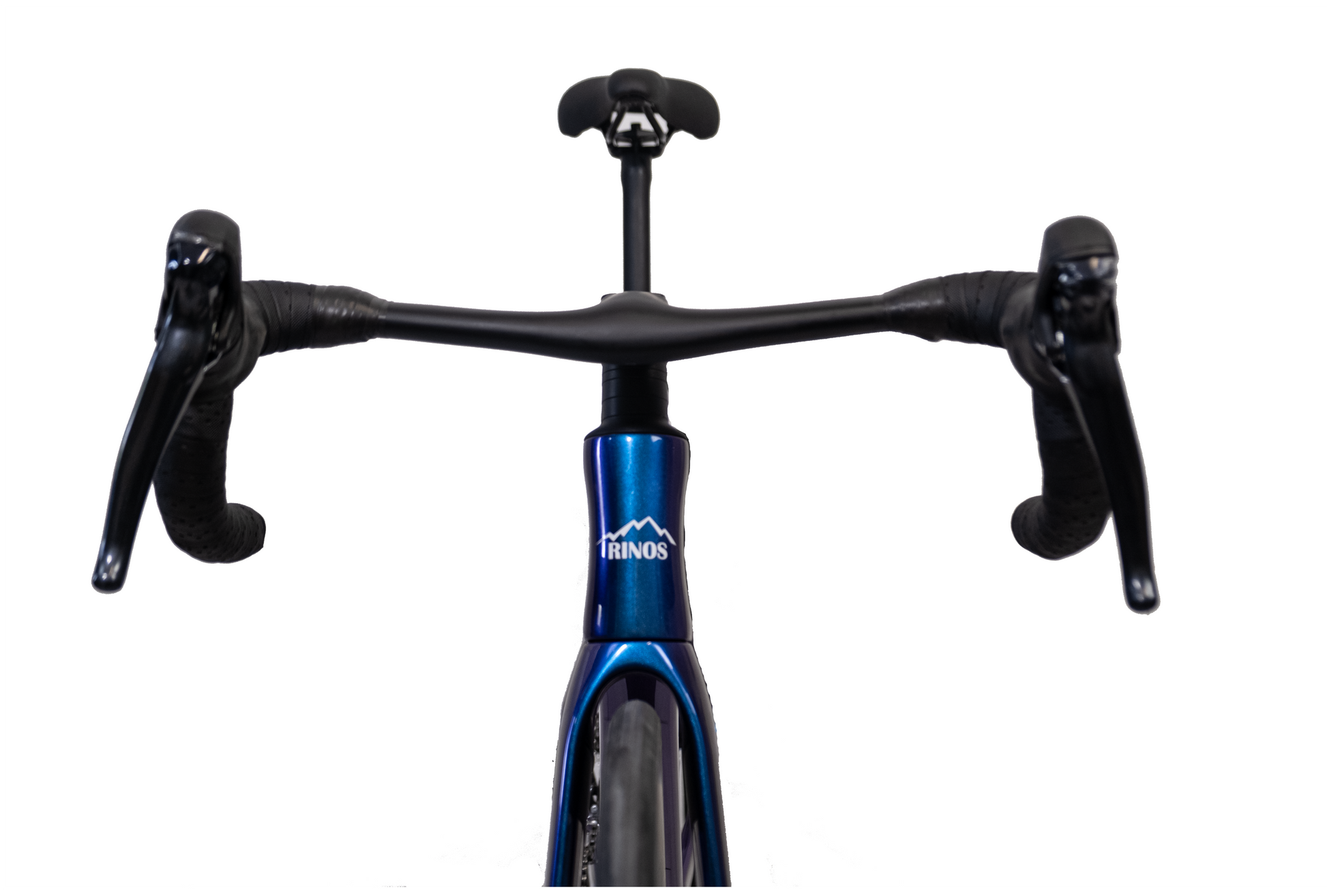

- Handlebar: Carbon, 400–420 × 28.6 mm
- Headset: Alu, 1-1/2", 28.6×52×52×28.6 mm
- Seatpost: Carbon, 380 mm
- Saddle: RINOS
- Gearing: Shimano SORA ST-R3000, 18-Speed (2x9)

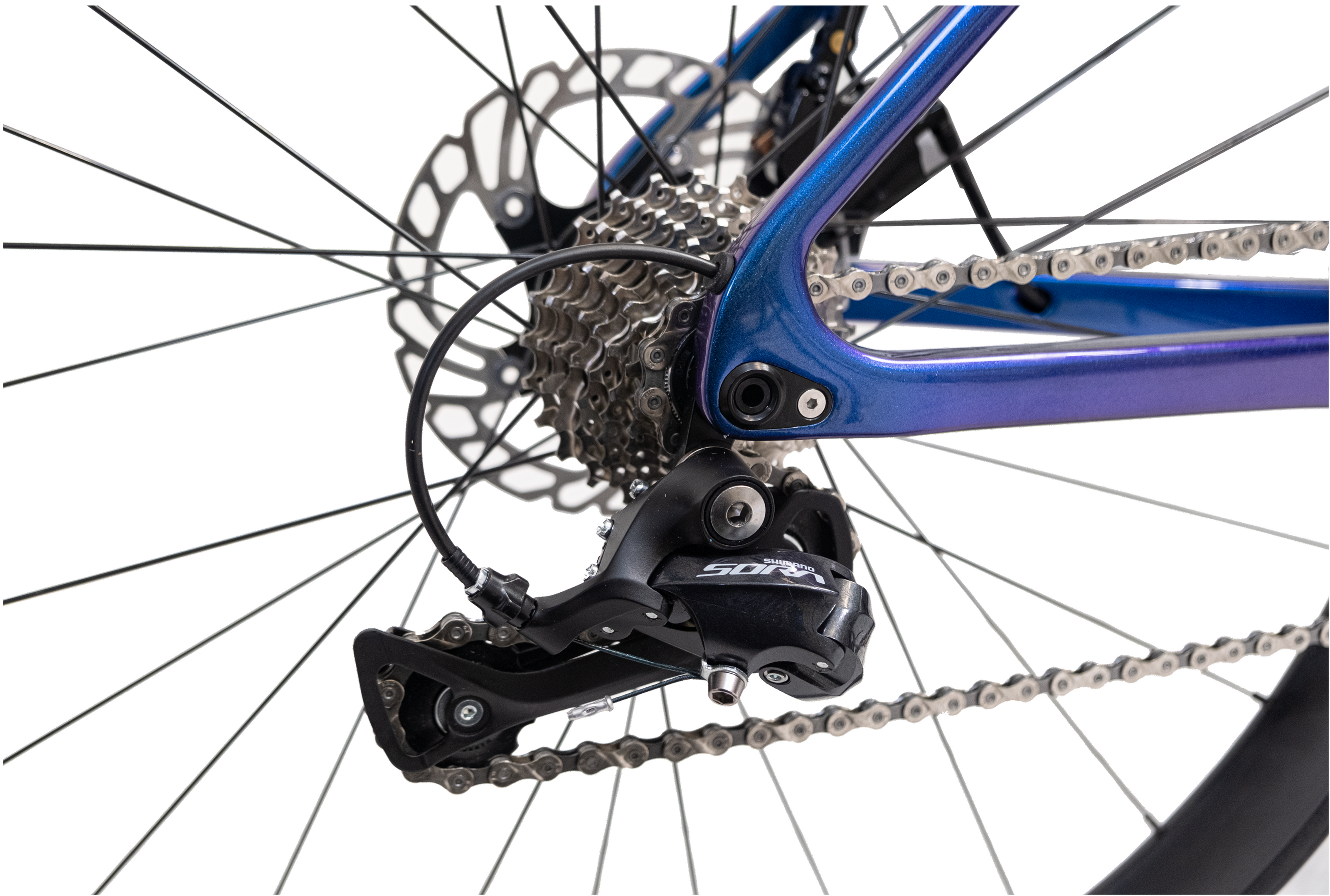

- Derailleur: Shimano SORA R3000
- Brakes: Mechanical Disc Brakes
- Cassette: 11–32T

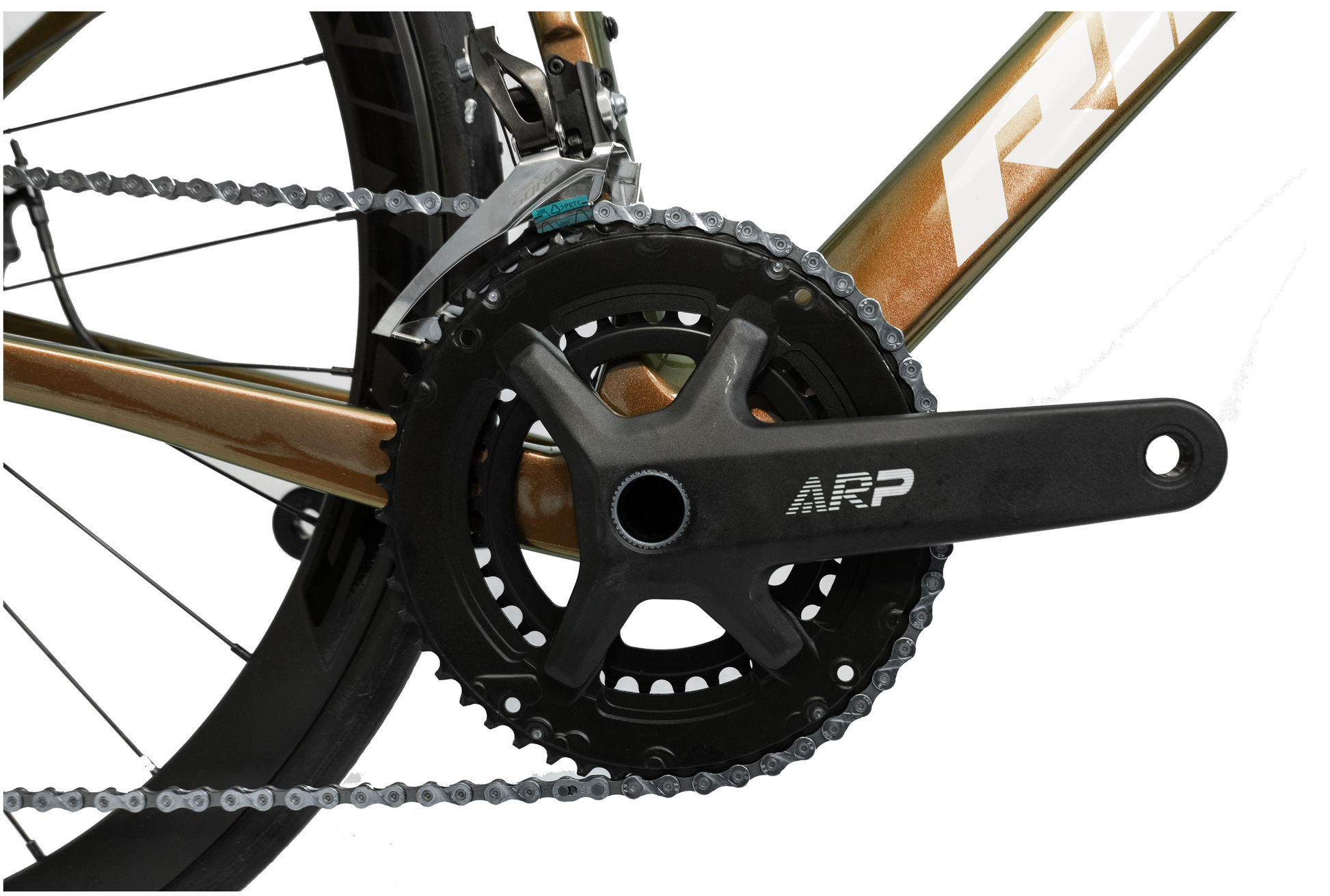

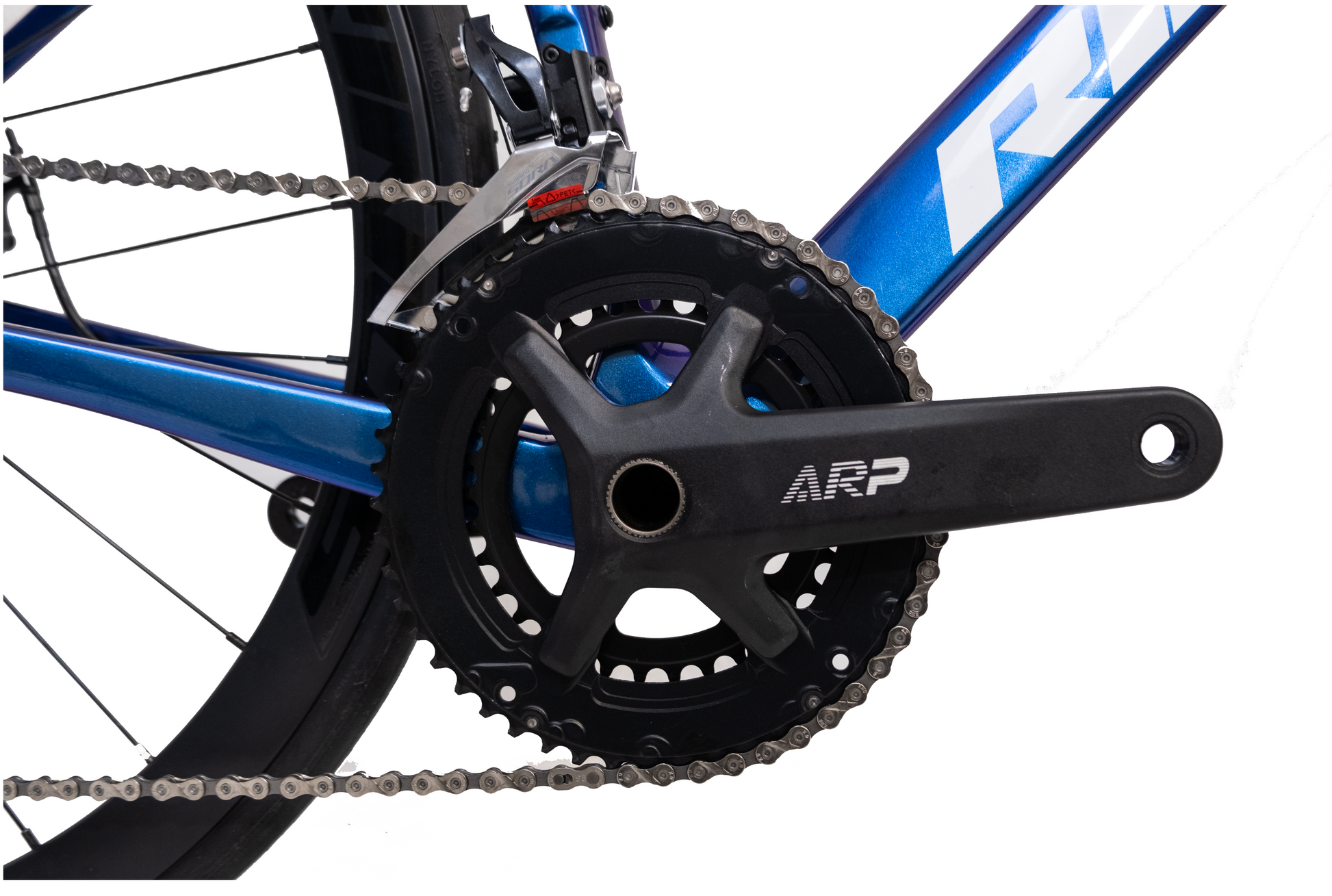

- Crankset: 50/34T × 170 mm
- Chain: KMC
- Wheels: RINOS 700C × 28H × 14G, 38 mm
- Rims: Alu, 700C × 14G × 28H F/V
- Hubs: Novatec, 28H × 14G
- Tyres: CST 700 × 25C
- Accessories: Tools, Instruction Manual

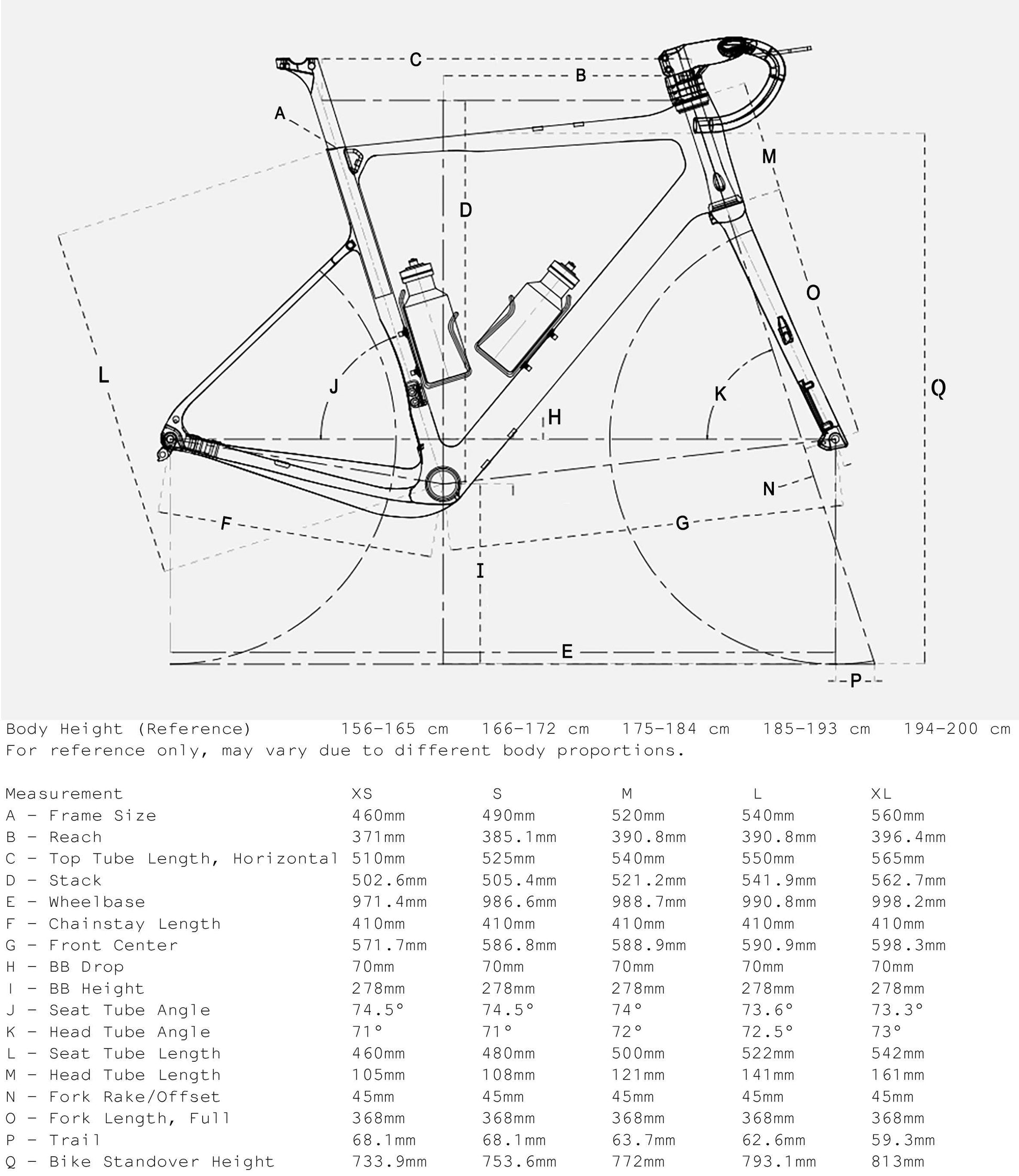

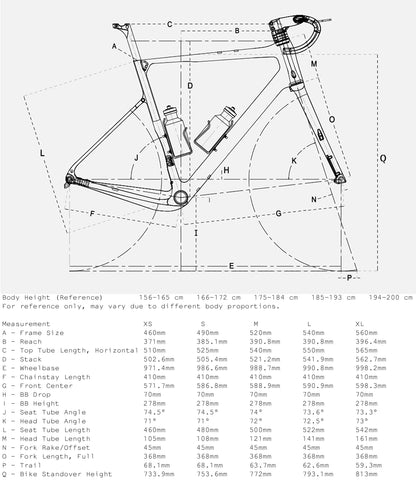

Rinos Road Bicycle Sizing

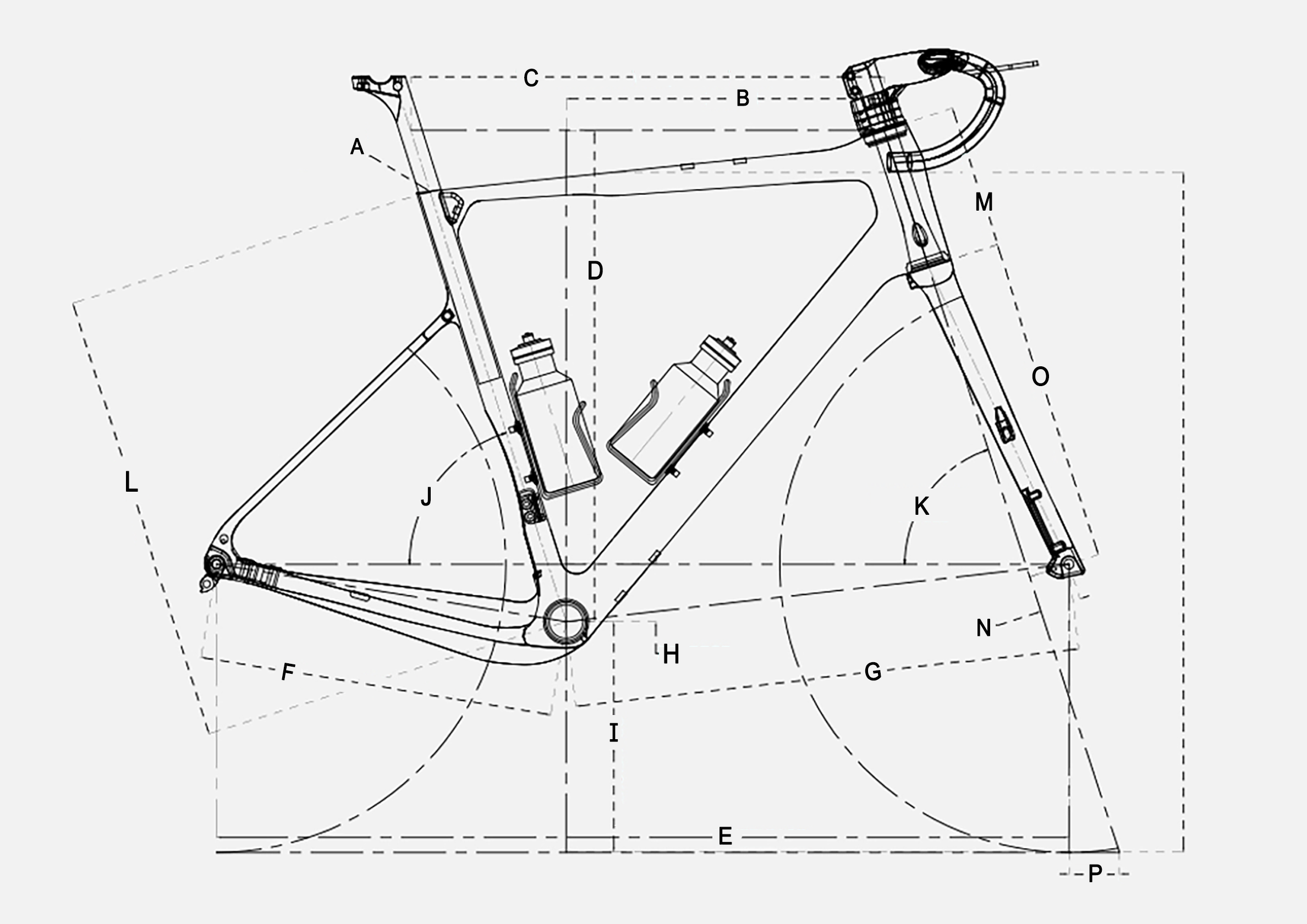

Geometry & Sizing Details

Measurement | XS | S | M | L | XL |
---|---|---|---|---|---|
Body Height (Reference) | 152–165 cm | 166–172 cm | 175–184cm | 185–193 cm | 194–200 cm |
For reference only, may vary due to different body proportions. | |||||
A – Frame Size | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
B – Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
C – Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm |
D – Top Tube Length, Horizontal | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm |
E – Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm |
F – Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm |
G – Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
H – Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm |
I – BB Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
J – BB Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
K – Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
L – Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° |
M – Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm |
N – Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm |
Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm |
O – Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
P – Fork Length, Full | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
P – Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm |
