tire size
28 inch
gear shifter
Shimano 105
weight
8.8kg
frame material
Carbon
Shop now. Pay with Klarna. Learn more
Flexible payment methods
Pay in up to 30 days
Receive your order first, then pay.
Installments
Split the amount into smaller payments.
Pay now
Pay the full amount today with a card.
The availability of payment methods may vary by shop and amount. Subject to credit check. Additional payment conditions may apply. Payment conditions. Klarna's buyer protection excludes certain payment methods and purchases, e.g. travel, event tickets, or gift cards. Payment conditions.
How it works:
Choose Klarna at checkout
Choose a payment plan
Depending on the purchase amount and creditworthiness, different payment plans may be displayed.
Complete your order
We automatically deduct the installments according to your payment plan.

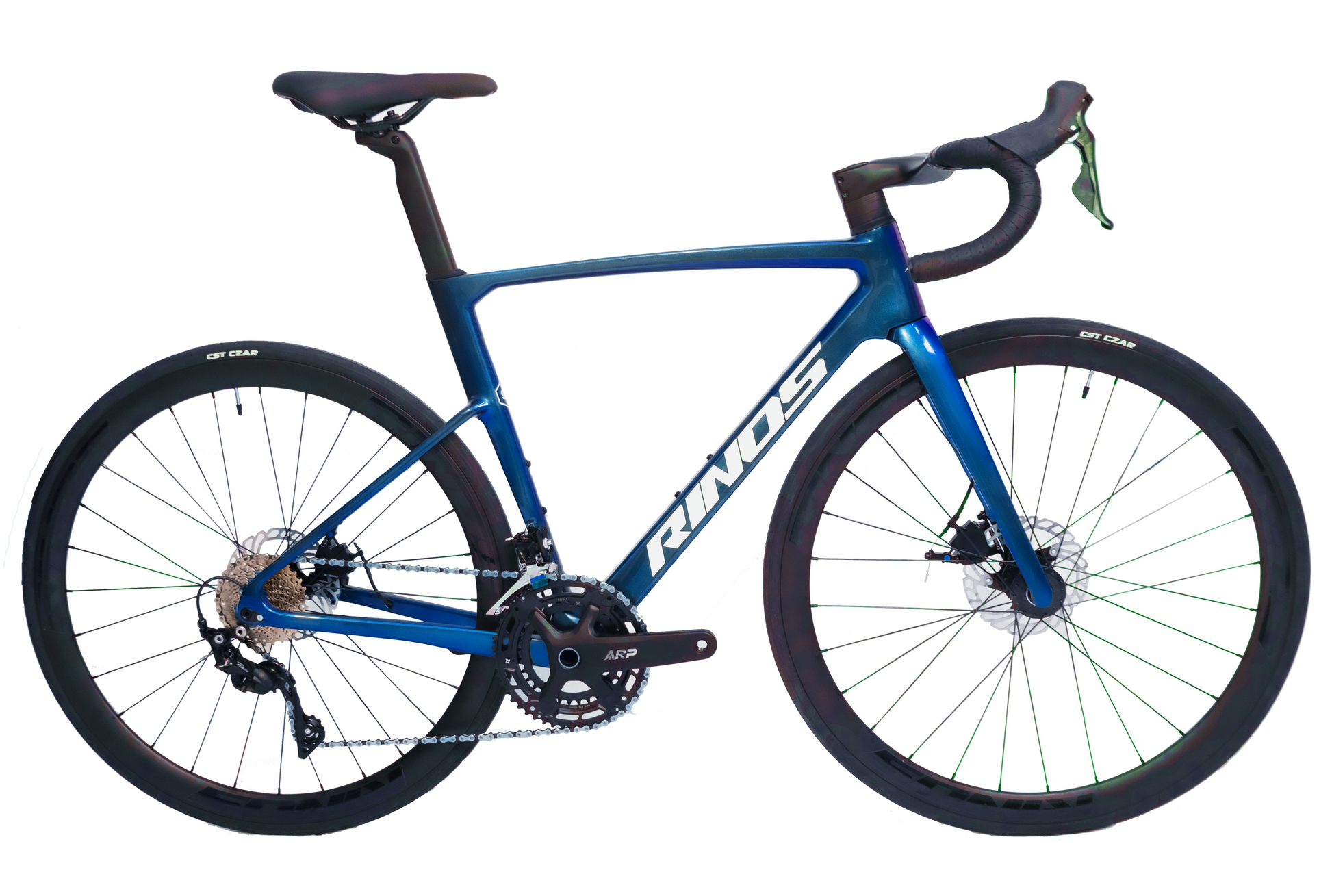

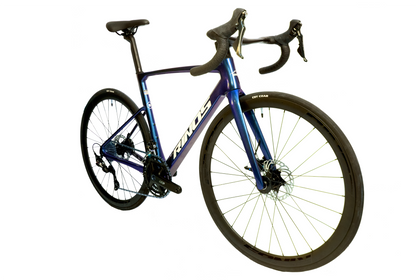

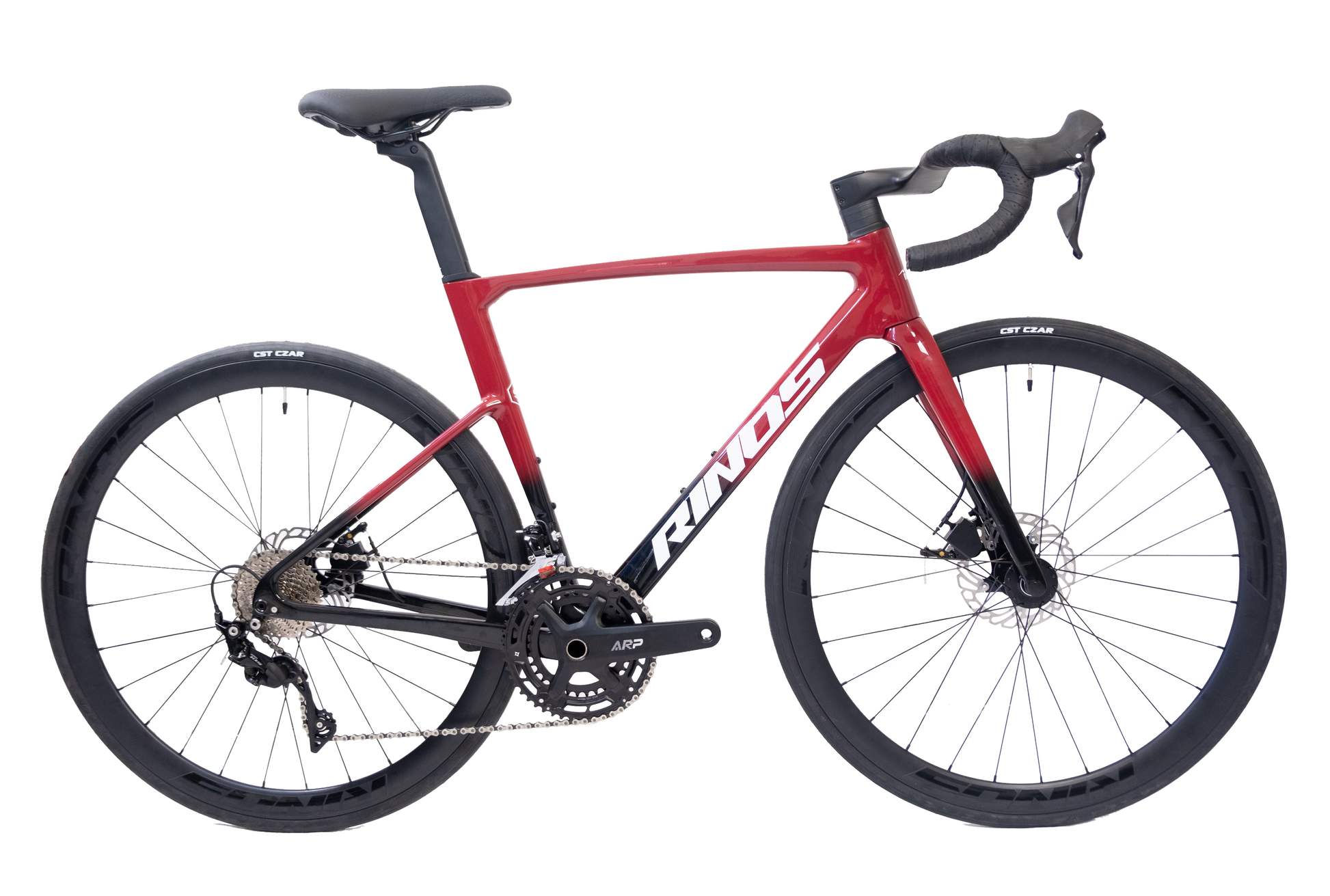

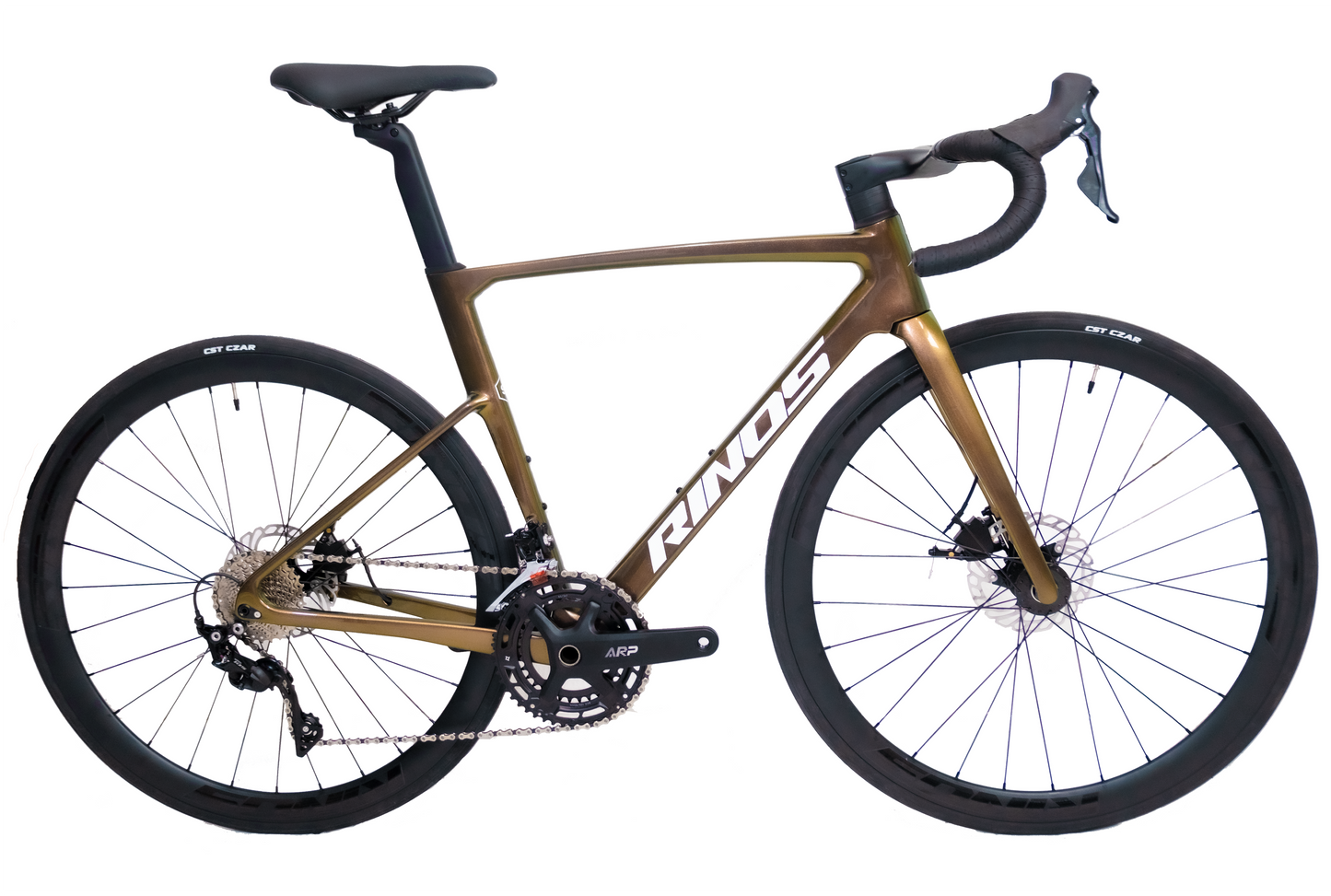

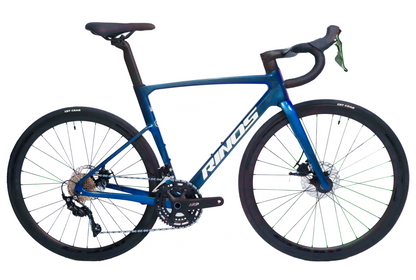

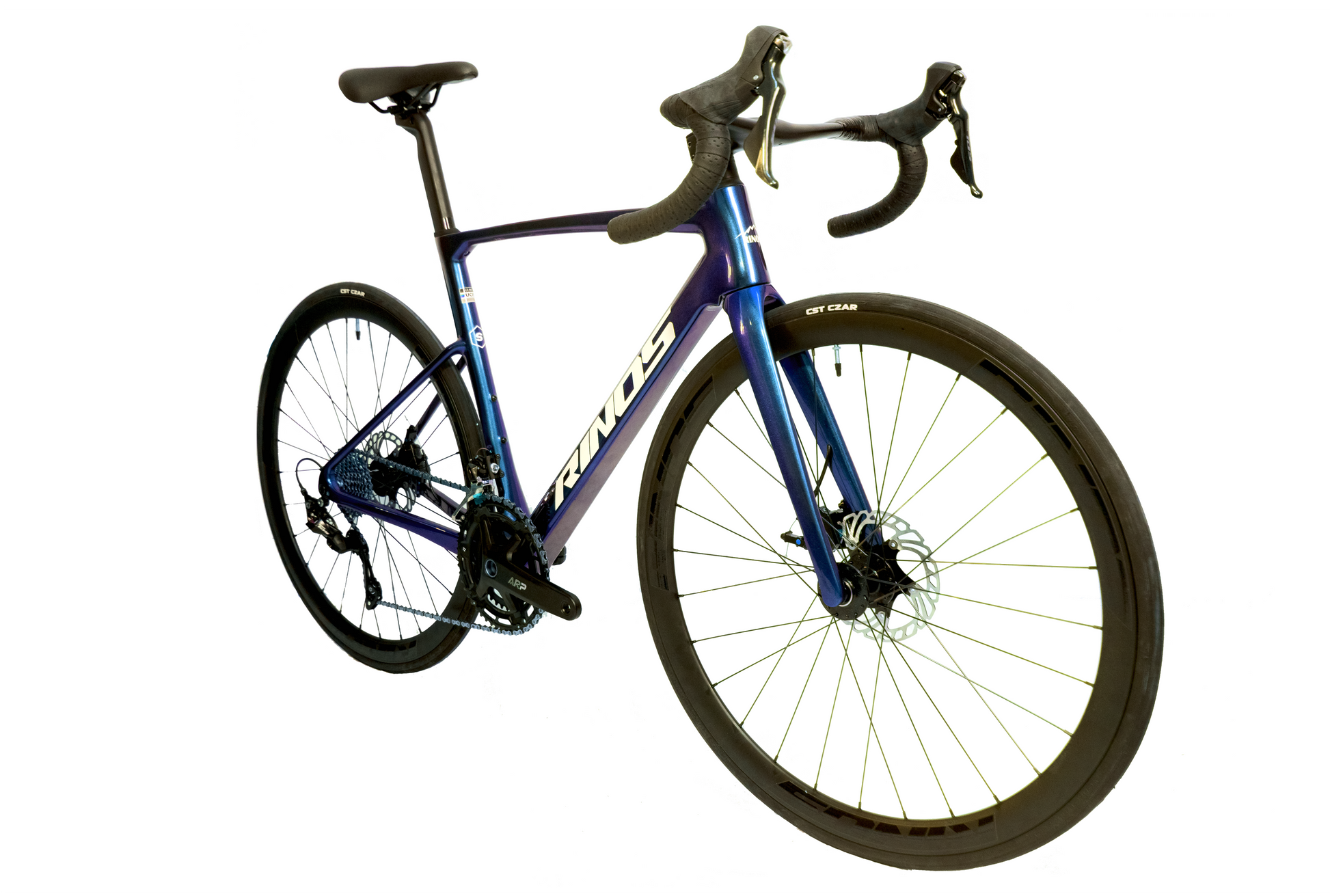

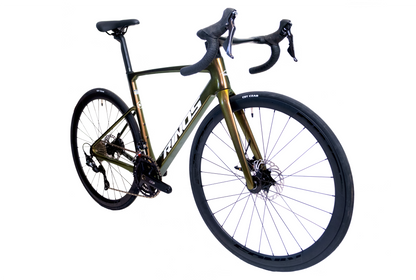

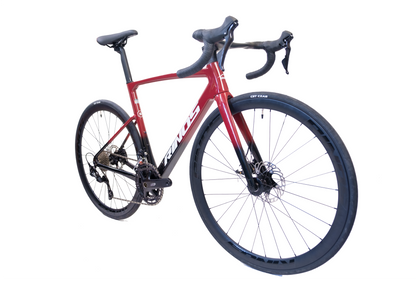

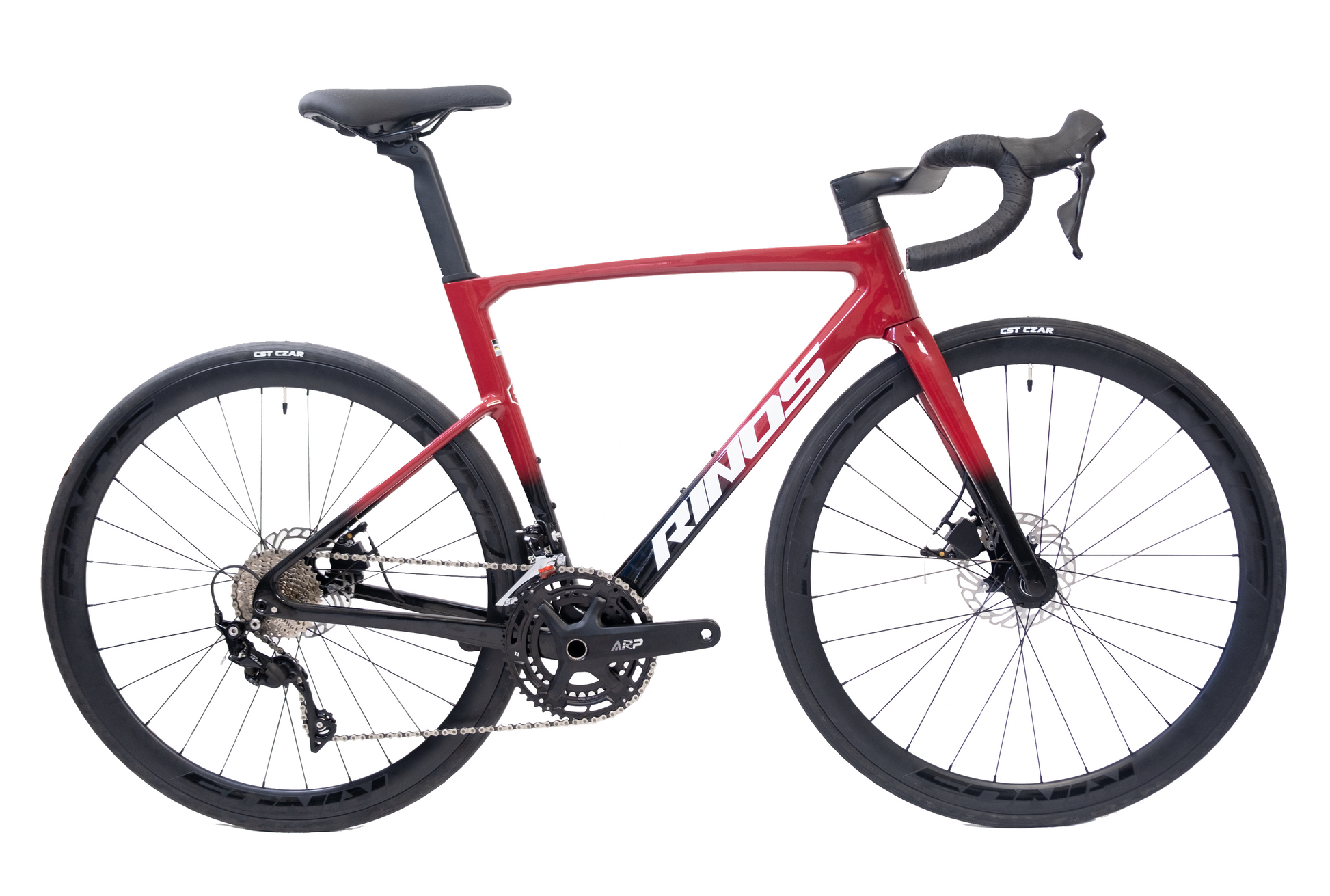

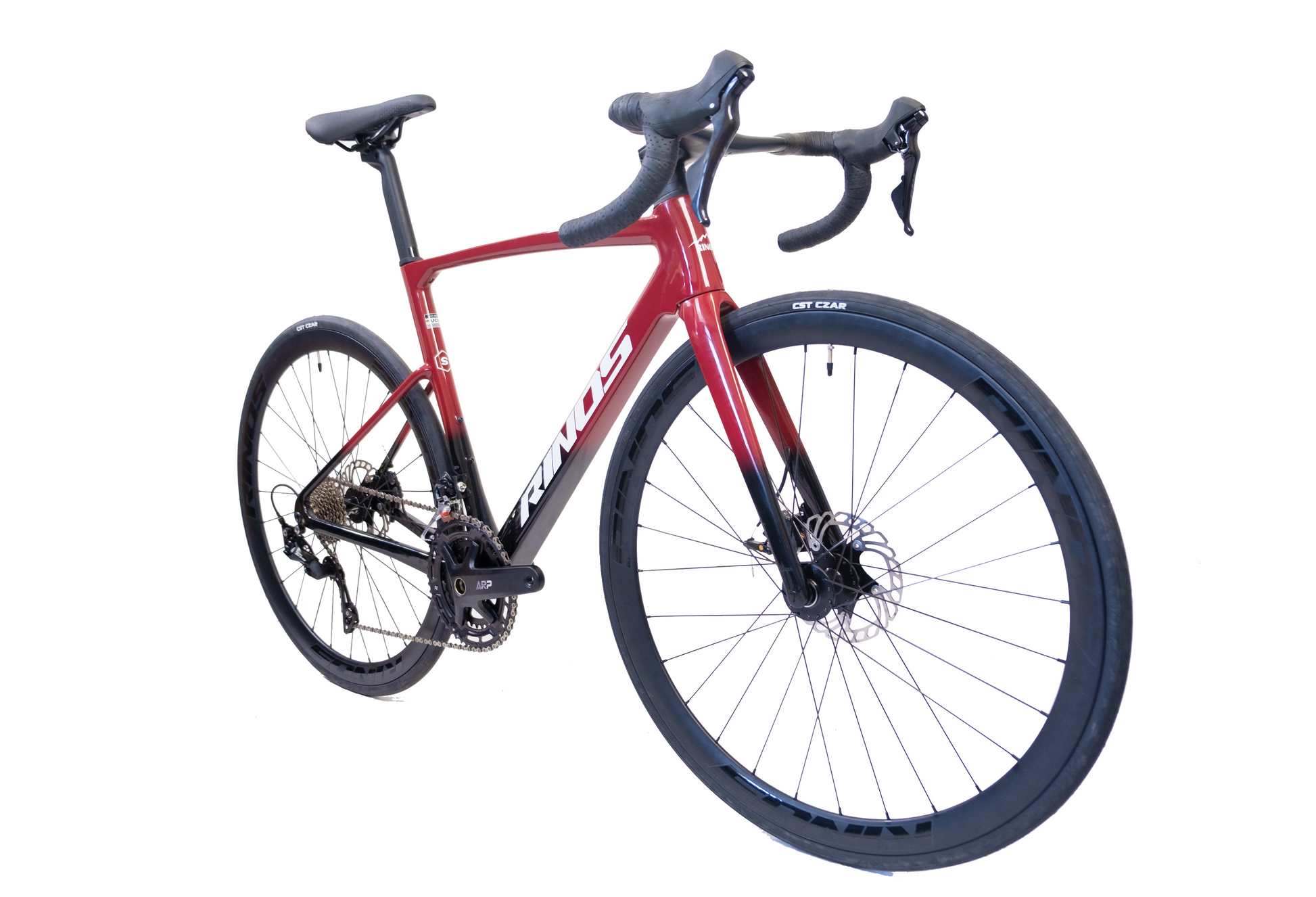

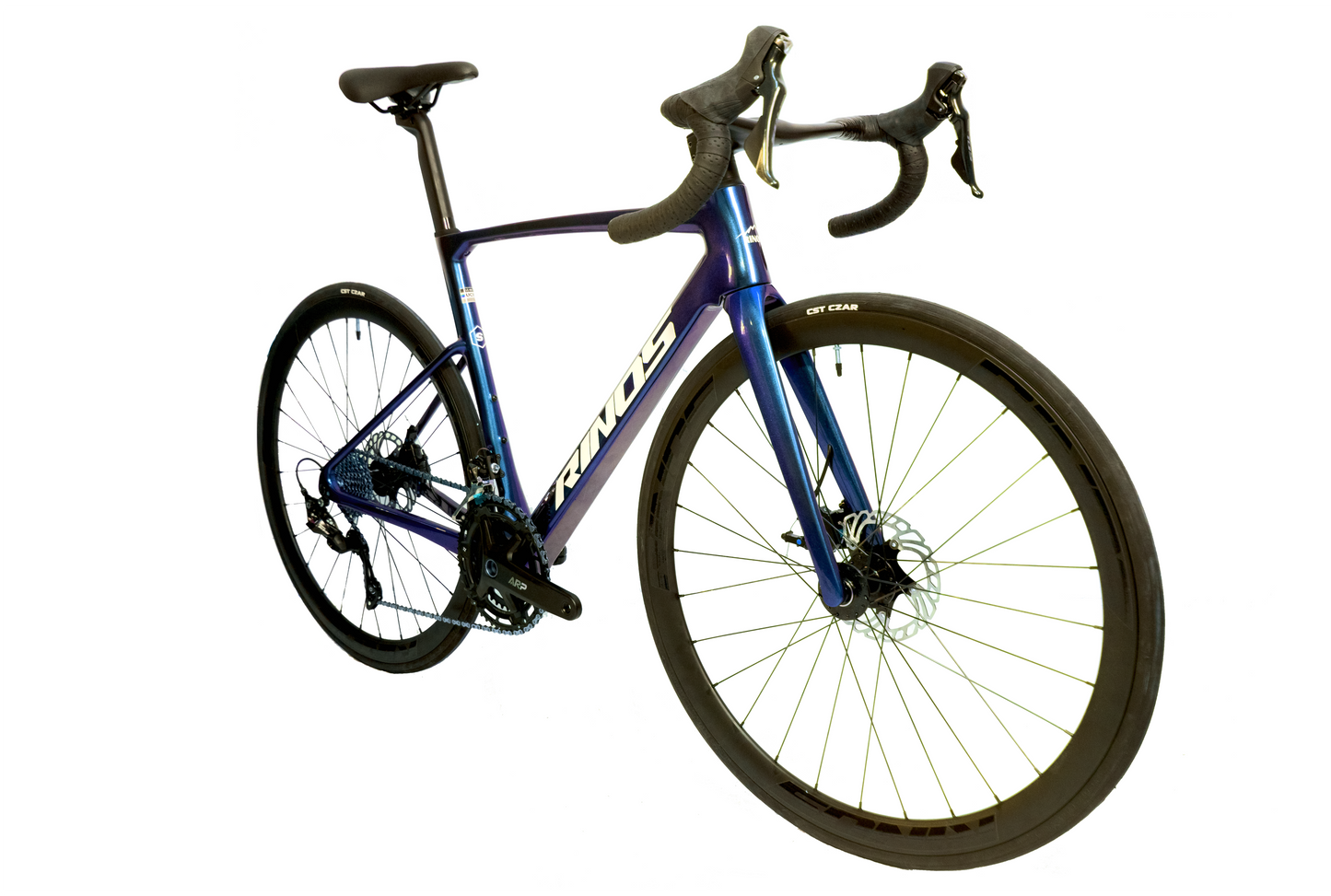

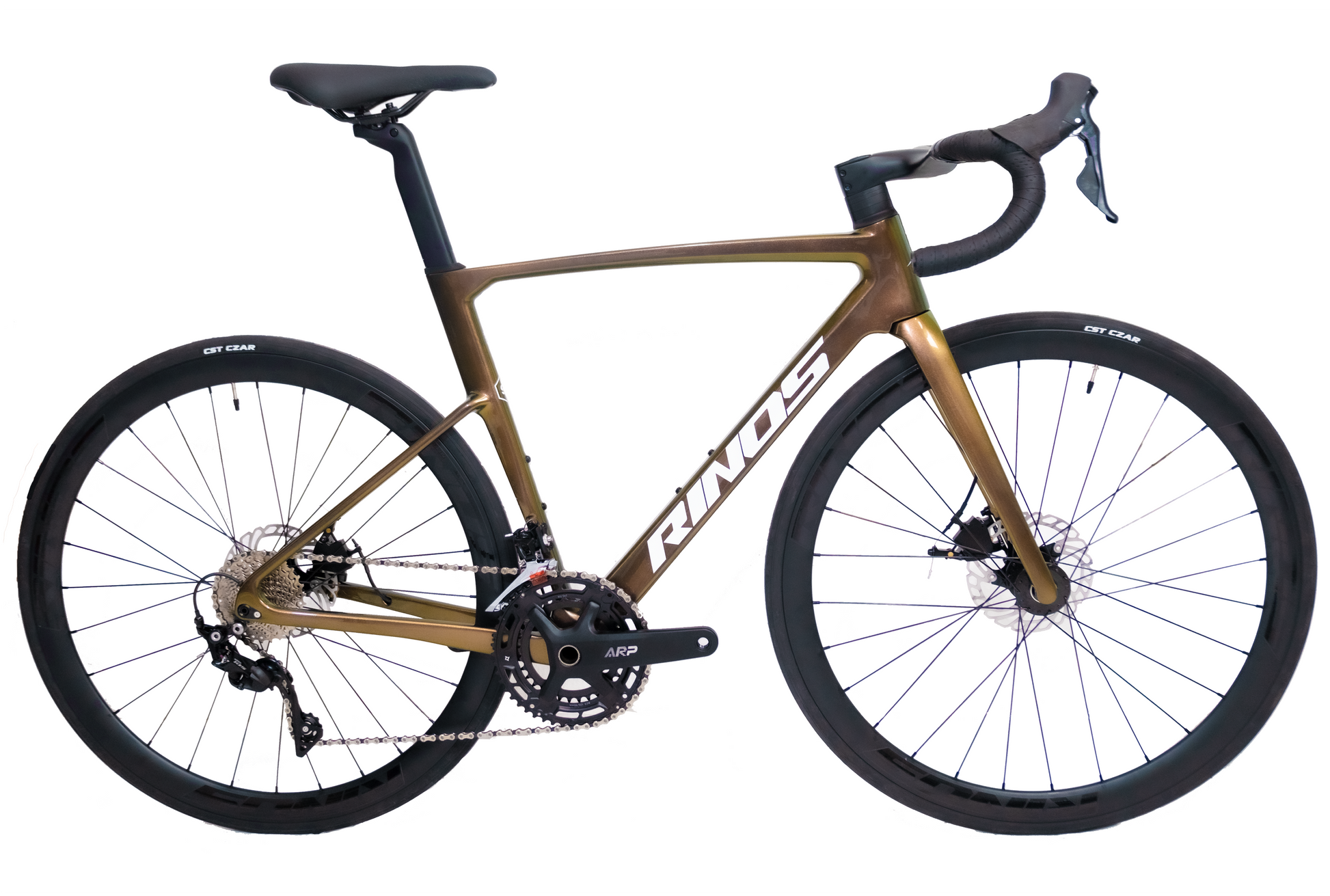

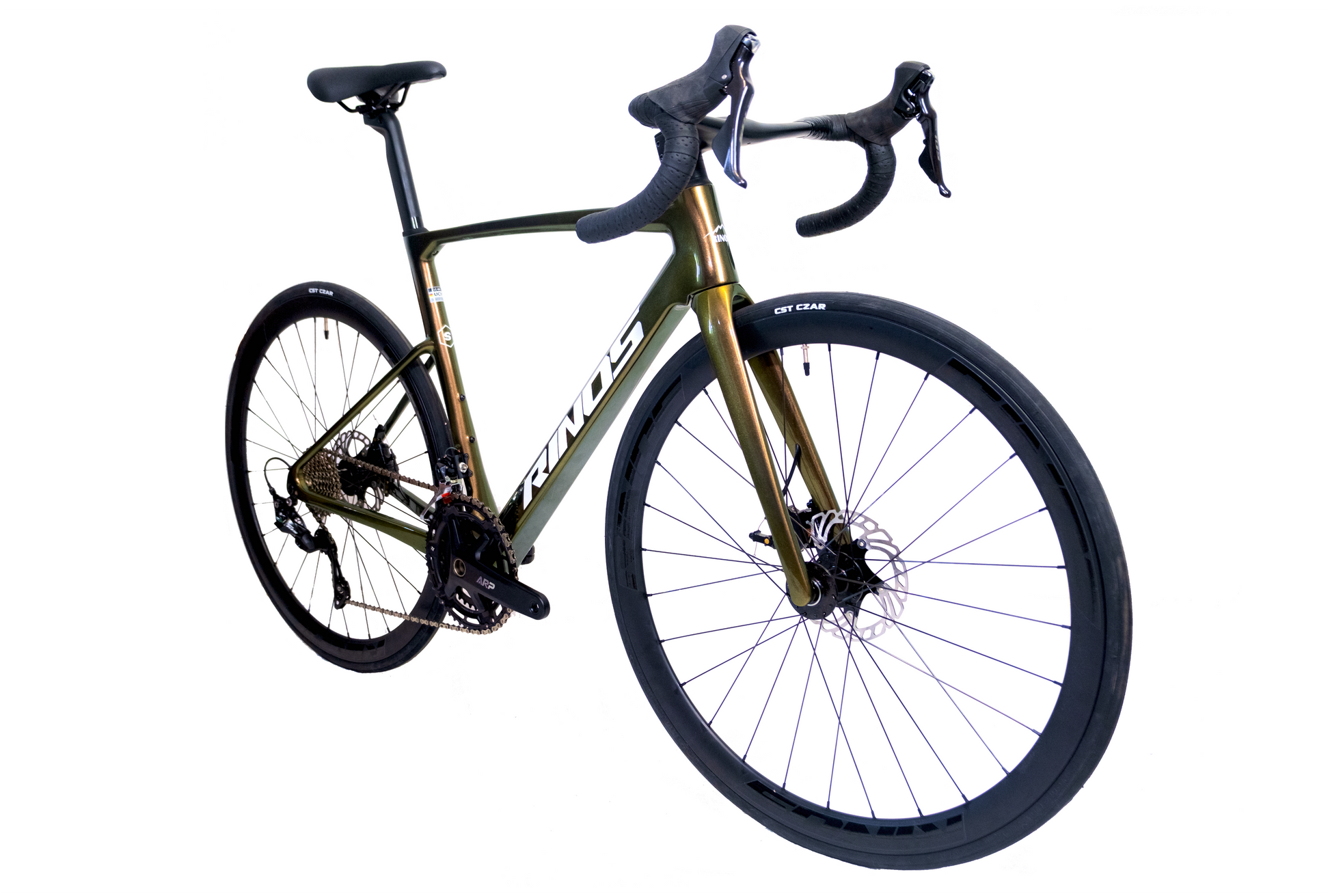

The Odin 3, at a glance.
-

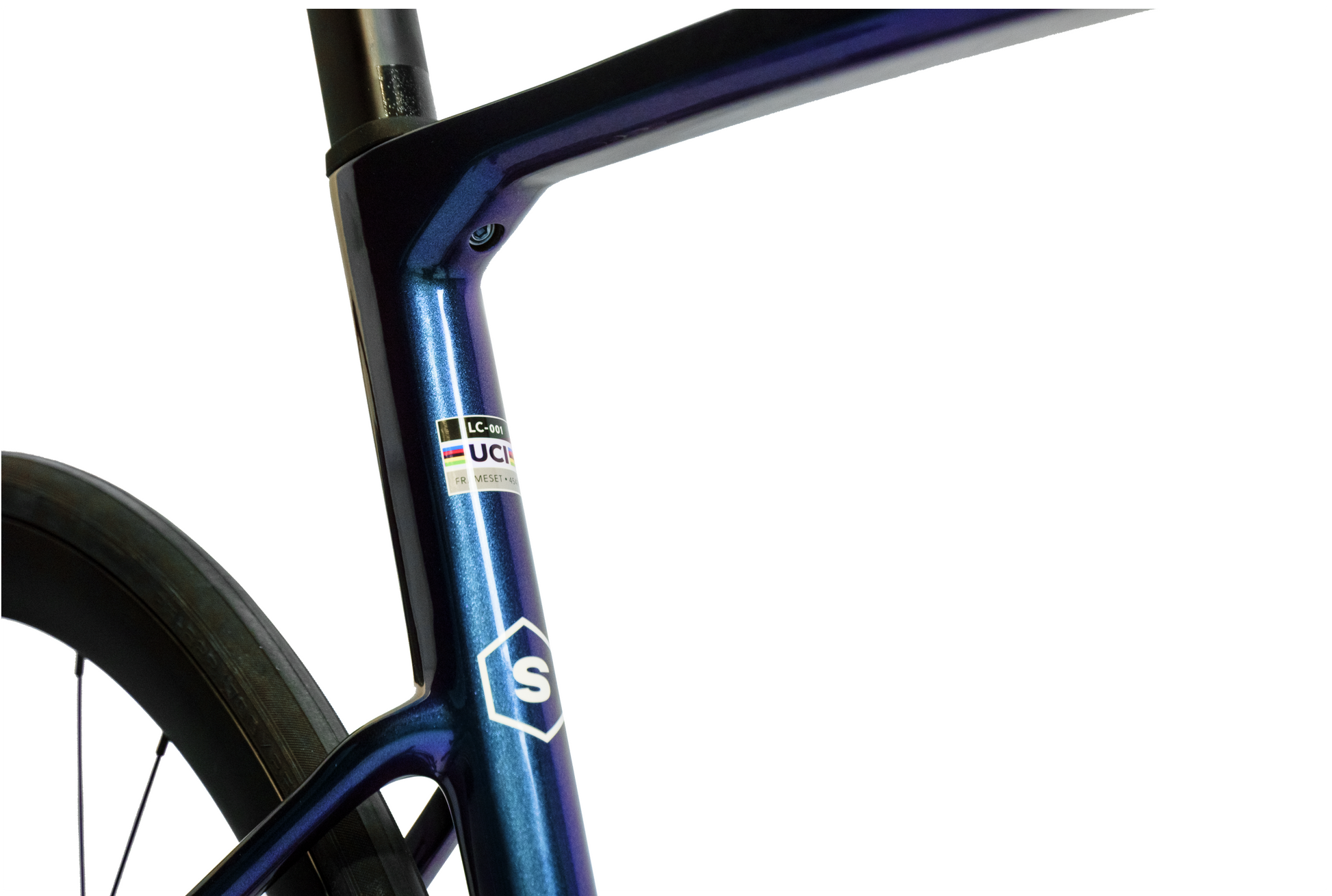

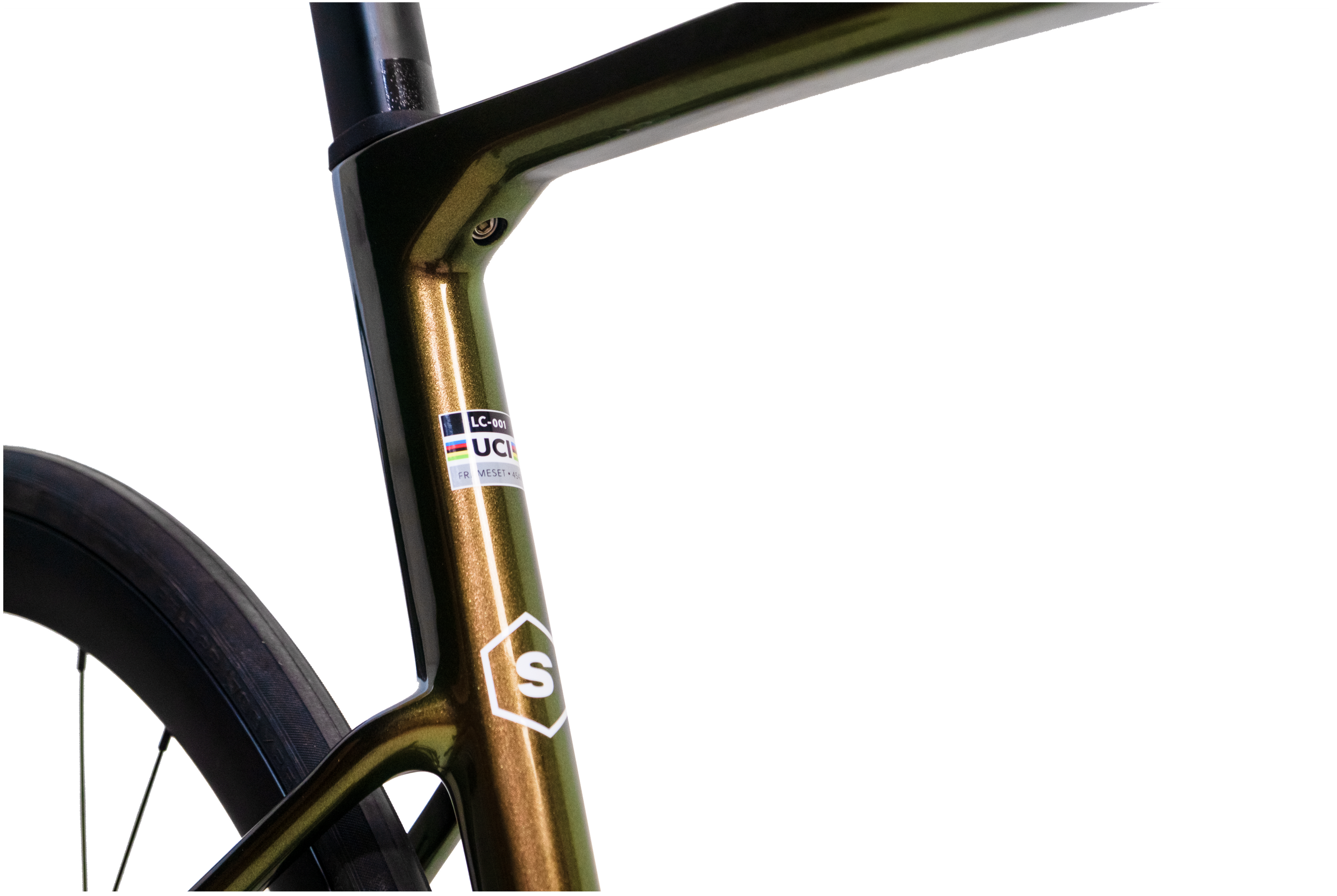

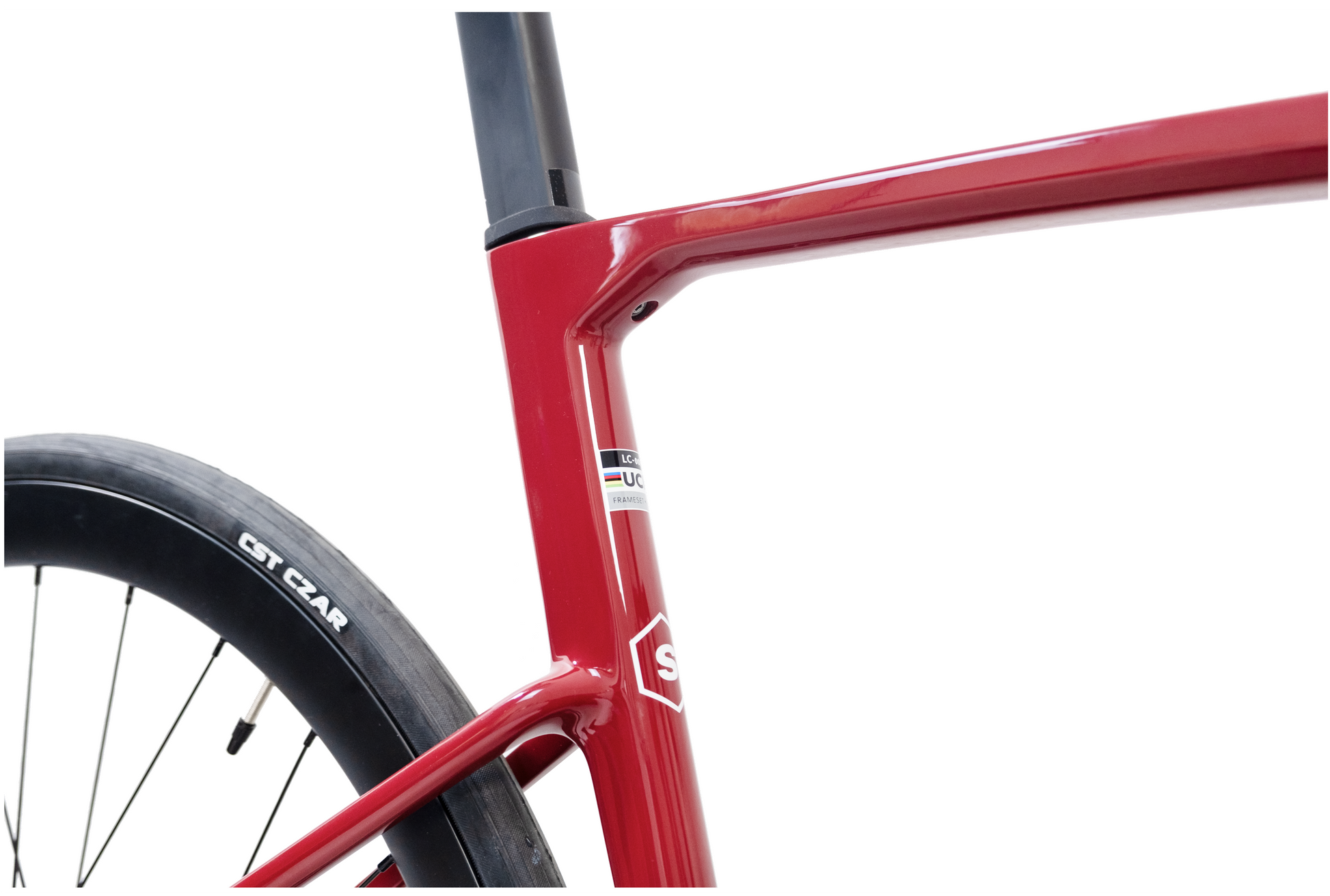

UCI Certified.
Ride with confidence — the Odin 3 meets UCI standards, making it competition-ready straight out of the box.
-
Shimano 105, with full carbon frame and fork.
A lightweight yet durable TORAY T800 carbon setup paired with Shimano Sora 2x9 gearing for smooth and reliable performance.
-
High-End Mid-Entry Model
Designed for riders who want to upgrade to pro-level feel without the pro-level price tag.
Wheels You Can Trust.
Every Odin is precision-trued with TRUDI by Berd, the world’s most advanced wheel truing system.
That means straighter wheels, tighter tolerances, and absolute stability — so you ride faster, corner harder, and never lose performance to wobble or flex.
A true upgrade from entry-level carbon models, the Odin 3 delivers race-ready geometry, Shimano 105 shifting, and disc brake confidence. With a stiff and lightweight frame, aero-focused design, and a 8.8kg build, it’s the perfect choice for cyclists moving towards competitive riding or long-distance endurance events.
🔧 Key Features:
-
UCI Certified: Approved for racing under international standards.
-

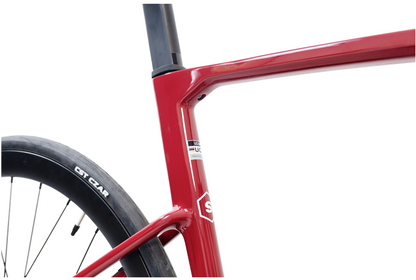

Full Carbon Frame, Fork & Seatpost: Lightweight Toray T800 carbon construction for stiffness, comfort, and durability.
-

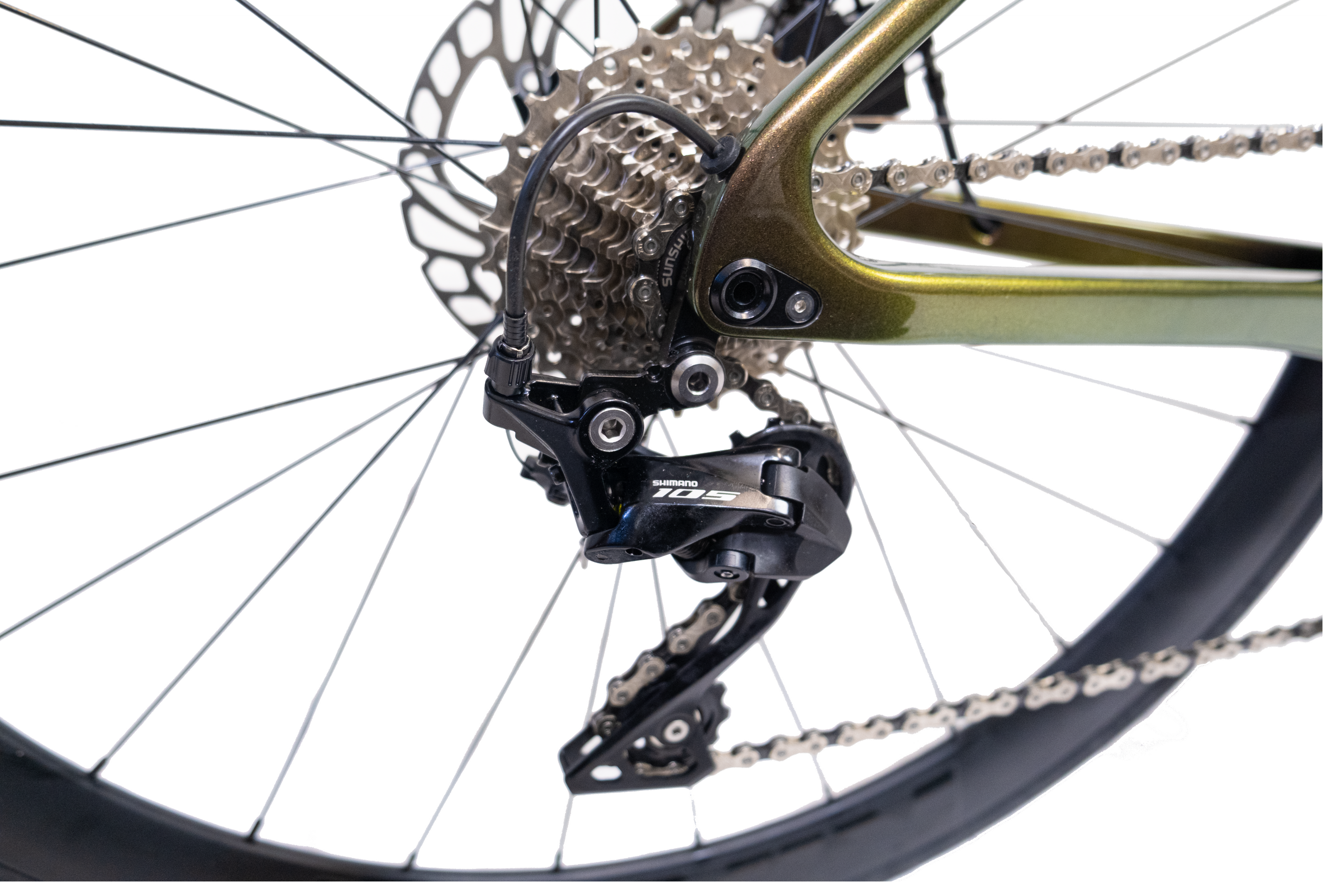

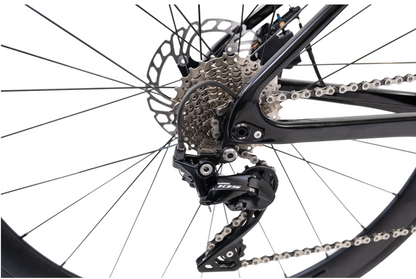

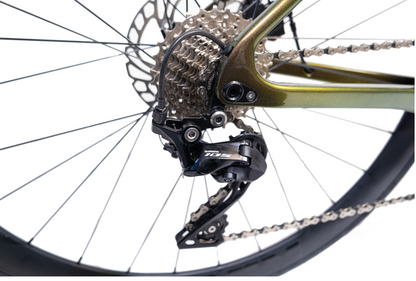

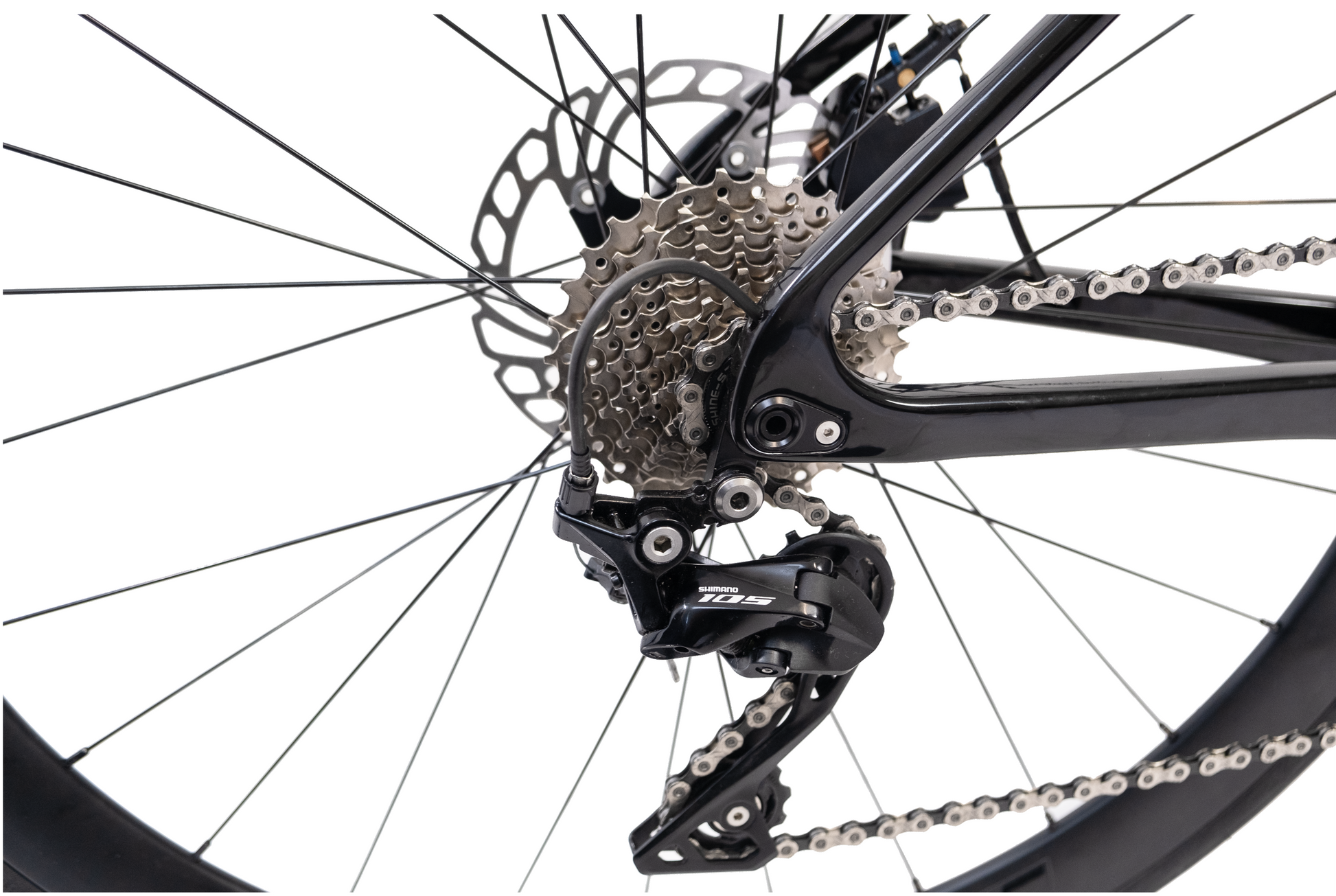

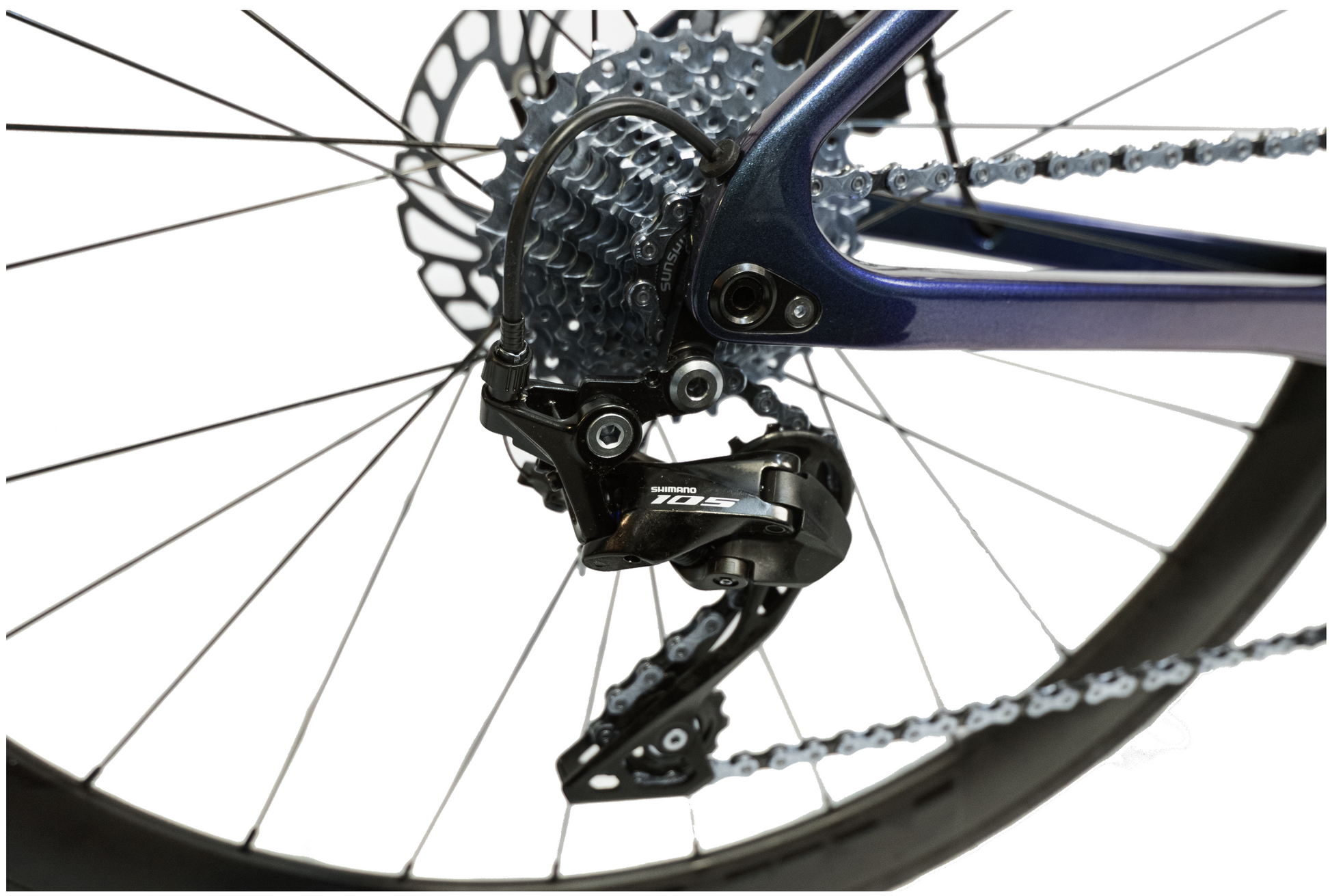

Shimano 105 R7000 (2x11-speed): Crisp, responsive shifting with proven performance.
-

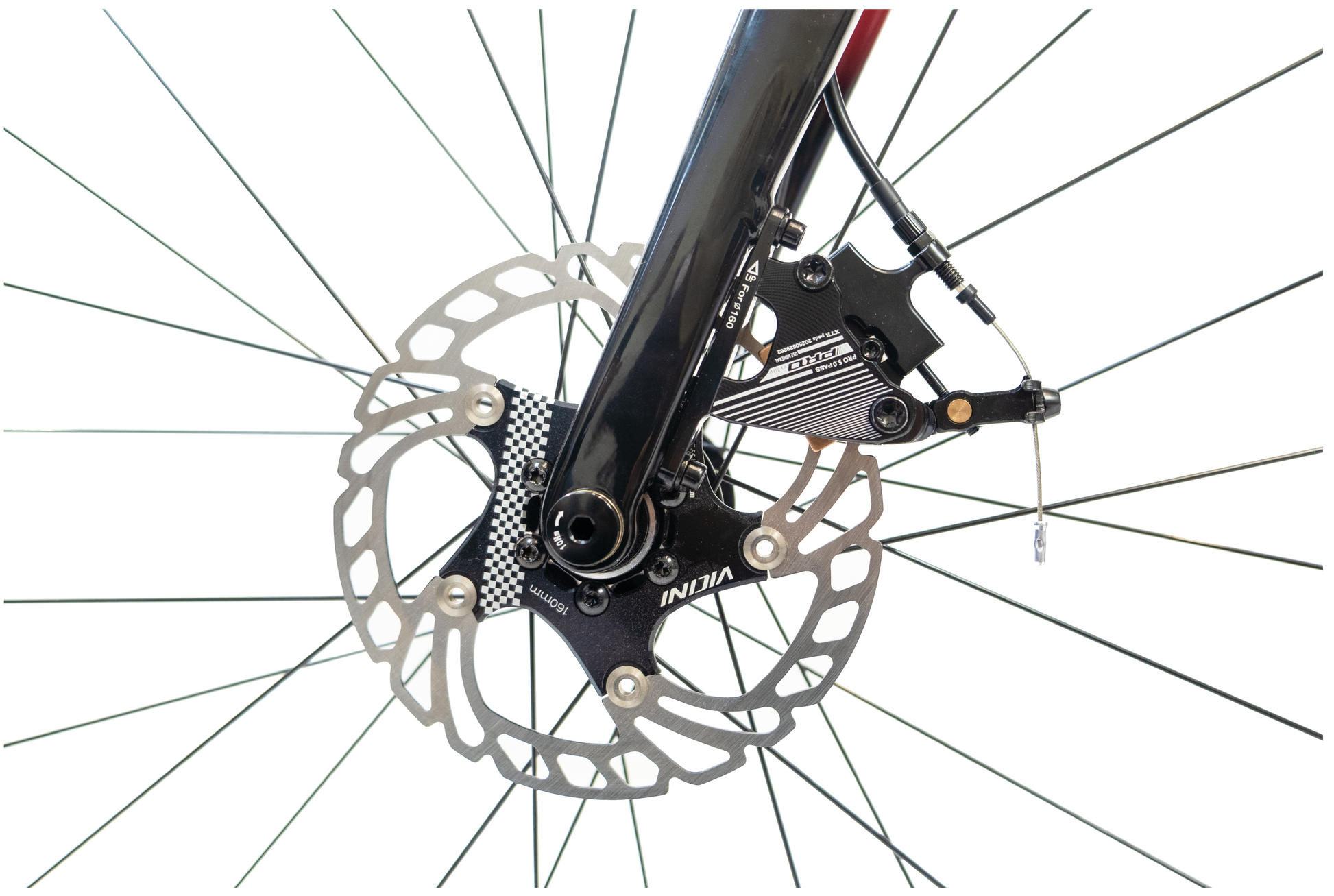

Disc Brakes: Confident stopping power in all weather conditions.
-

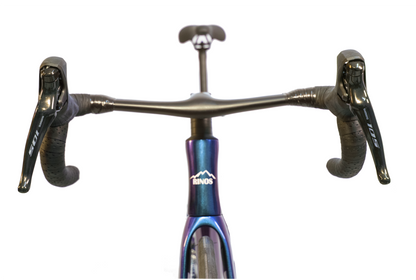

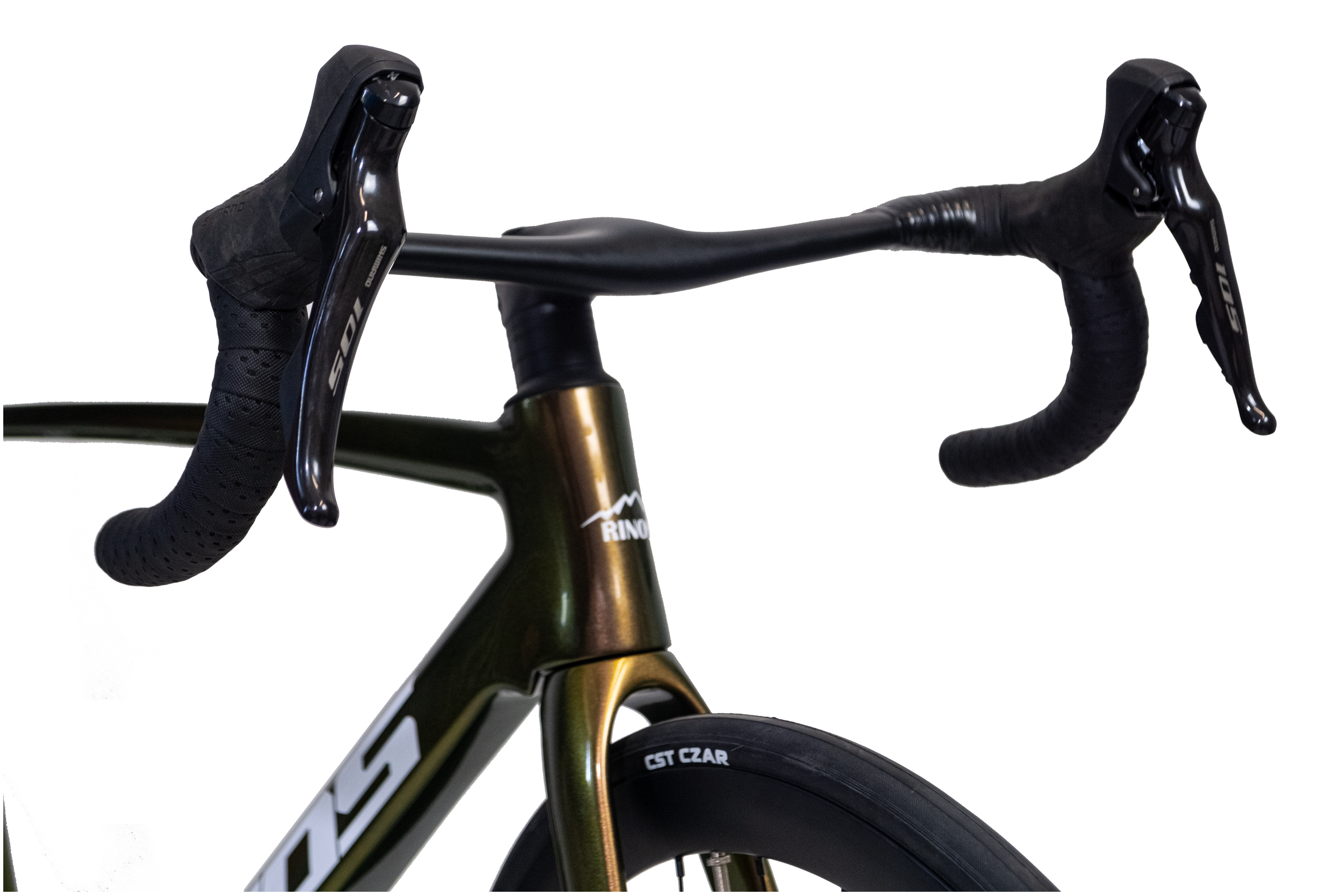

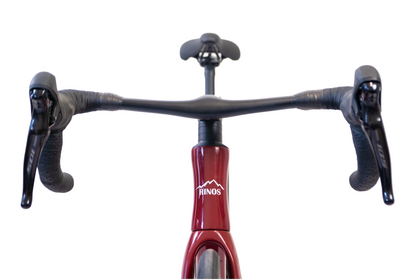

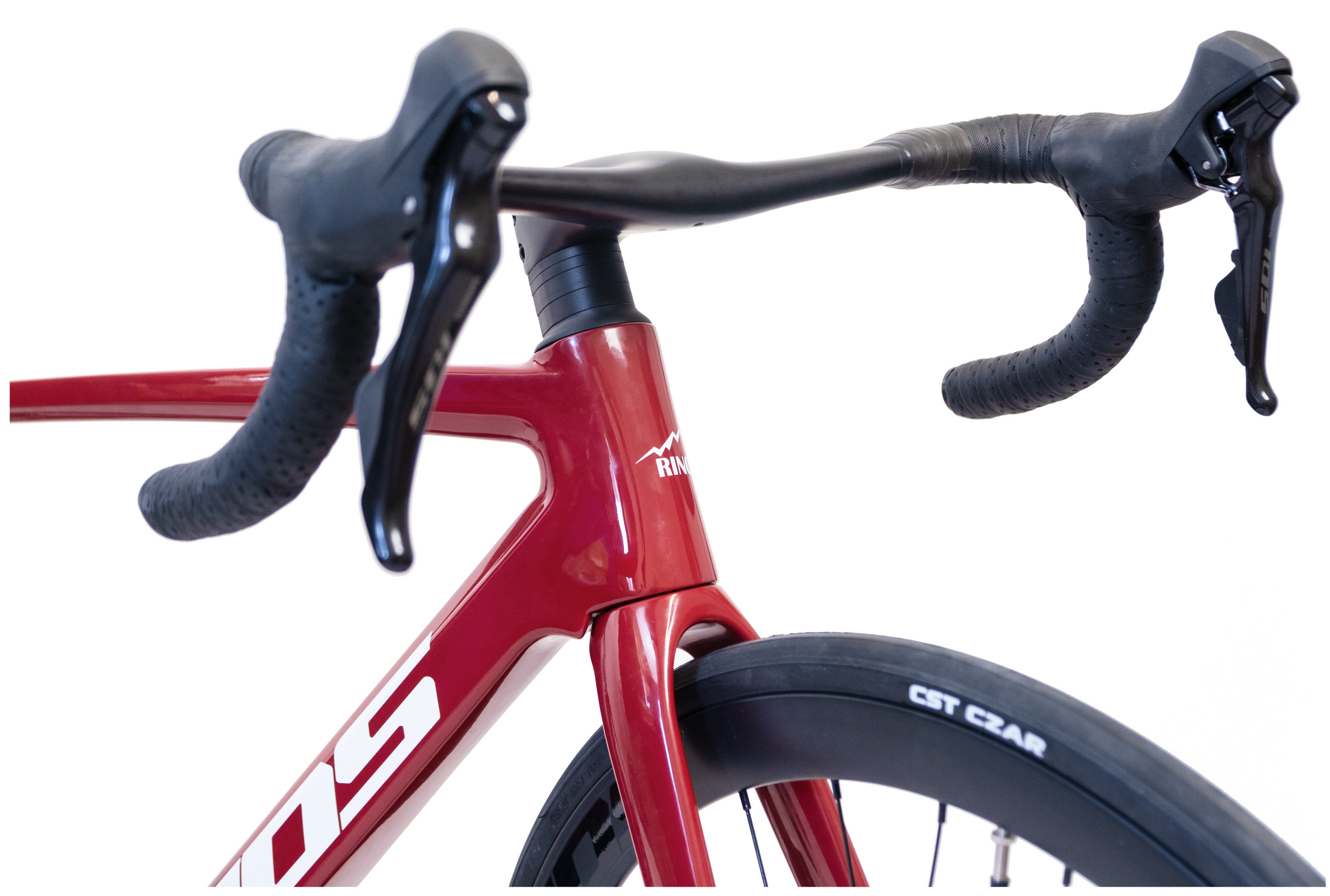

Aerodynamic Design: Internal cable routing, aero carbon handlebars, and 40mm deep-section rims.
-
Only 8.8kg (Complete Bike): Perfect balance of lightness and reliability.
📐 Geometry & Fit:
Available in sizes XS to XL — covering riders from 152cm to 200cm. Check the sizing chart above to find your perfect fit.
📦 What’s Included:
-
RINOS Odin 3 Complete Bike (8.8kg)
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
Riders upgrading from entry-level carbon or alloy road bikes
-
Cyclists looking for reliable Shimano 105 performance
-
Competitive racing, long-distance road rides, or fast-paced group rides
🔍 Tech Specs Summary:
-
Frame/Fork: RINOS T800 Carbon (UCI-tested)
-
Groupset: Shimano 105 R7000, 22-Speed (2x11)
-
Brakes: Disc Brakes
-

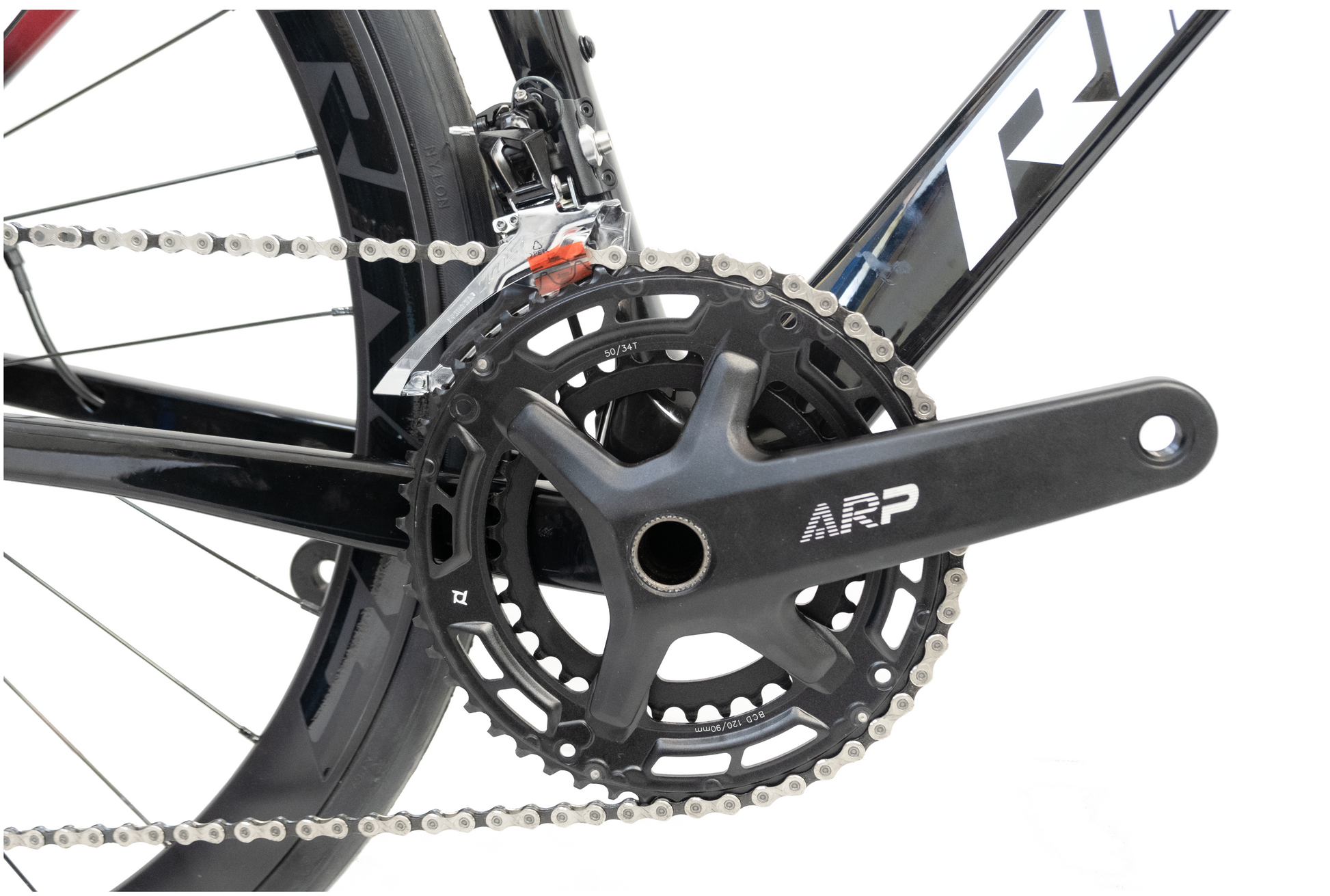

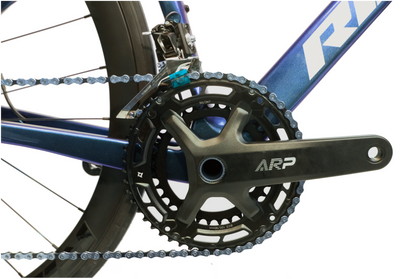

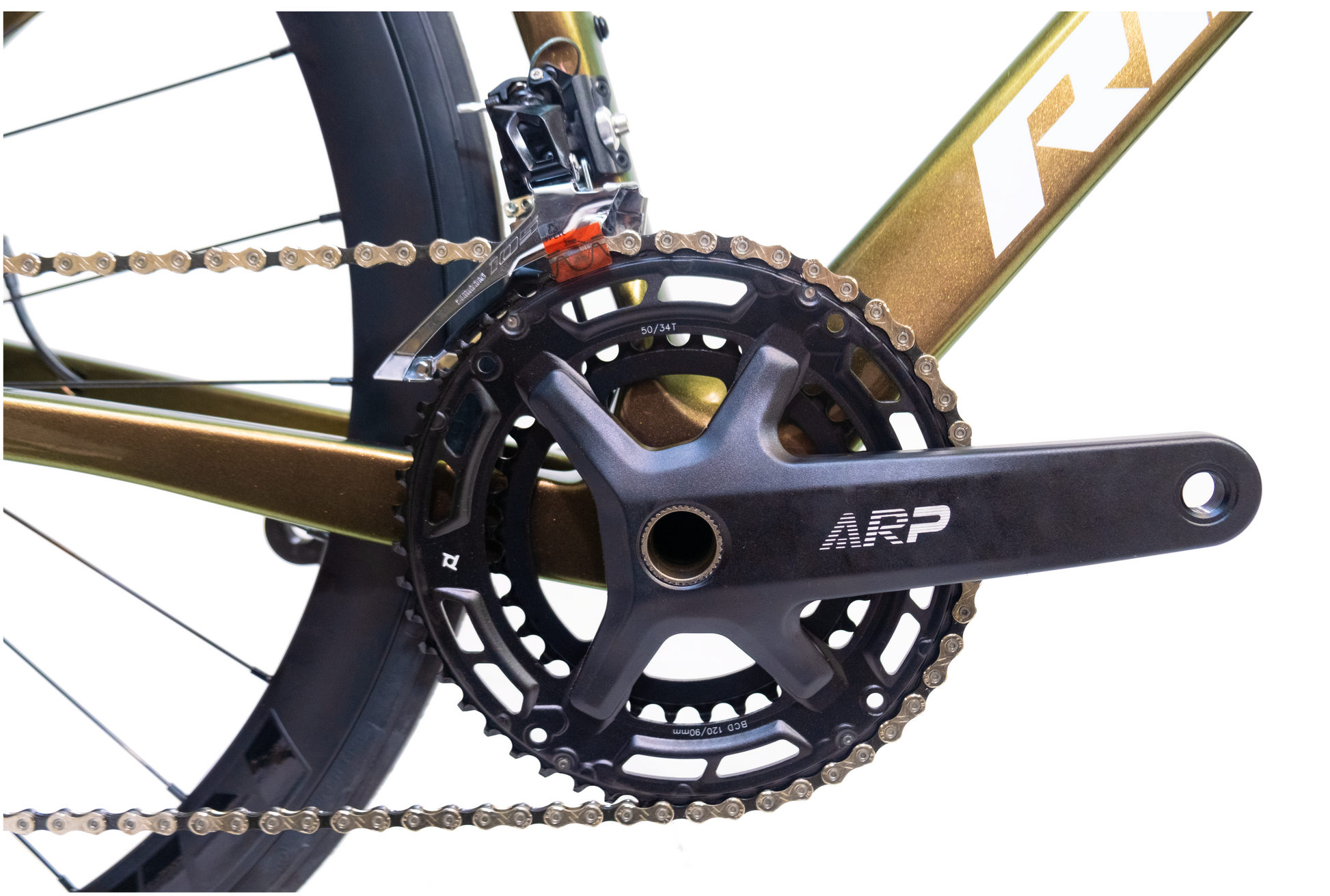

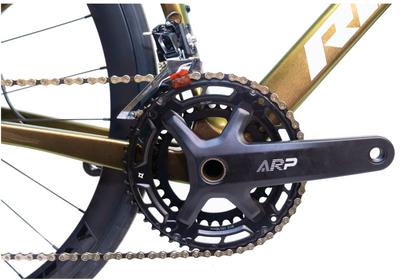

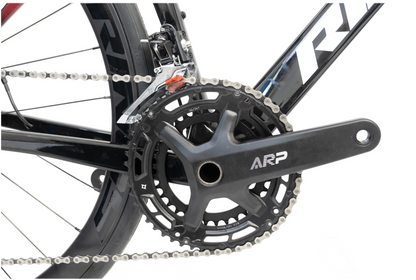

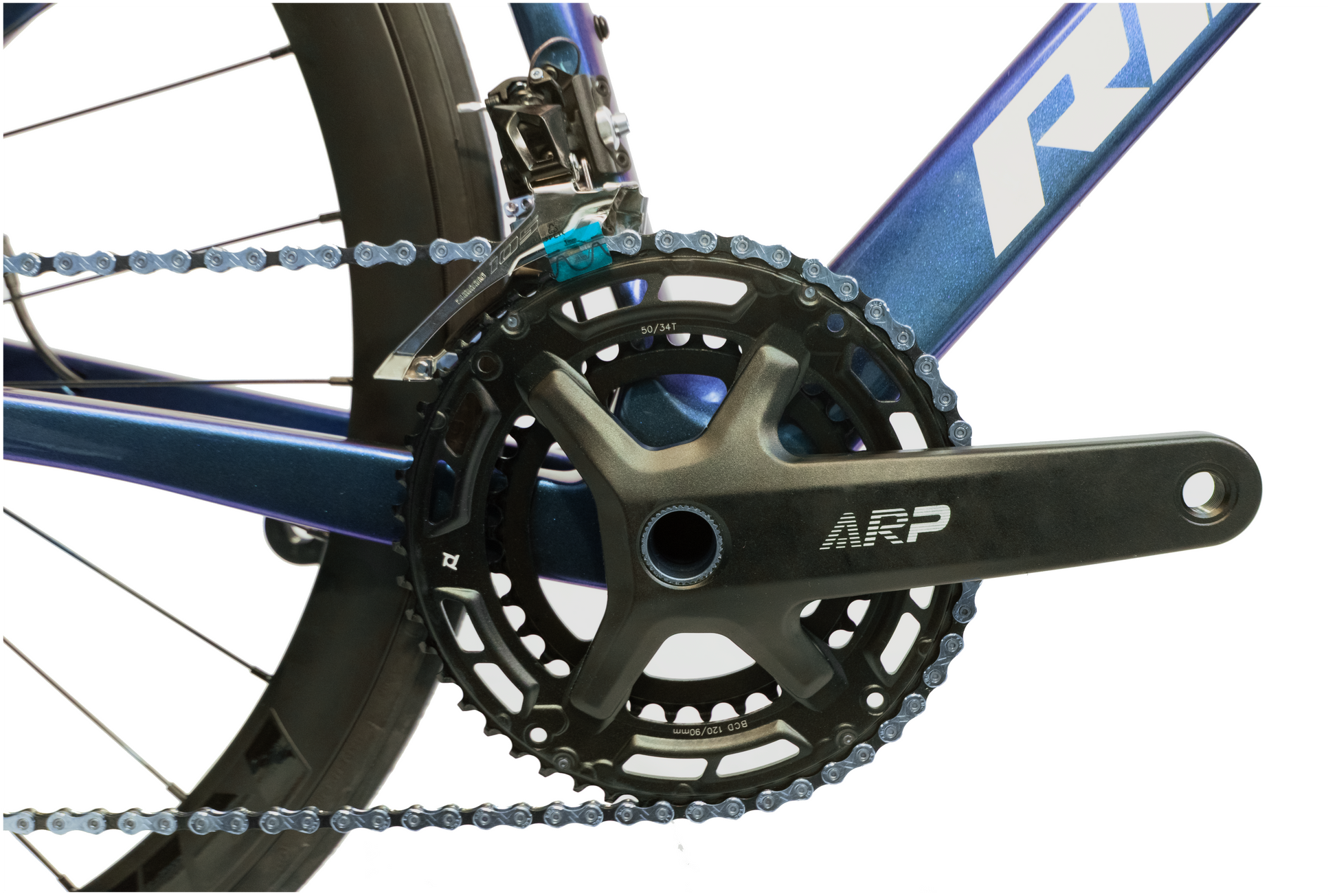

Crankset: 50/34T (Compact)
-
Cassette: 11-30T
-
Wheels: 700C, 40mm profile rims
-
Tyres: CST 700x25C
-
Handlebar/Seatpost: Carbon
-
Weight: 8.8kg (Bike), 13.8kg (Shipping)
📘 Full Technical Specifications
| Frame / Fork | Rinos T800 Carbon |
|---|---|
| Groupset | Shimano 105 R7000, 2×11-speed |
| Brakes | Disc Brakes |
| Crankset | 50/34T (Compact) |
| Cassette | 11-30T |
| Wheels | 700C, 40 mm profile rims |
| Tyres | CST 700×25C |
| Handlebar / Seatpost | Carbon |
| Weight (Bike) | 8.8 kg |
| Shipping Weight | 13.8 kg |
| Sizes / Rider Height | XS: 152–165 cm S: 166–172 cm M: 175–184 cm L: 185–193 cm XL: 194–200 cm |
| Wheel Size | 28-inch (700C) |
| Frame Sizes | 50, 53, 56, 58 cm |
| Seatpost | 31.6 × 350 mm Carbon |

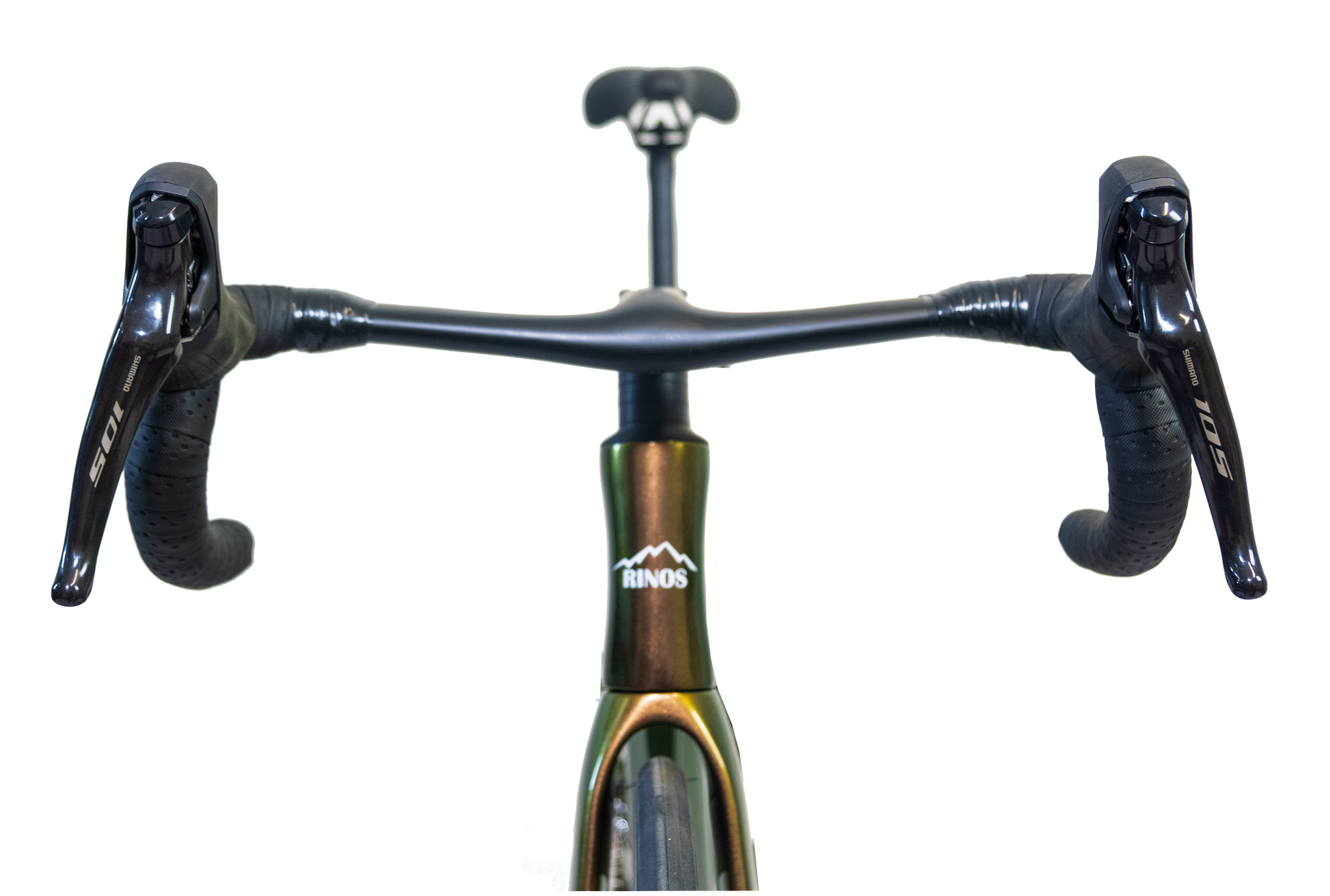

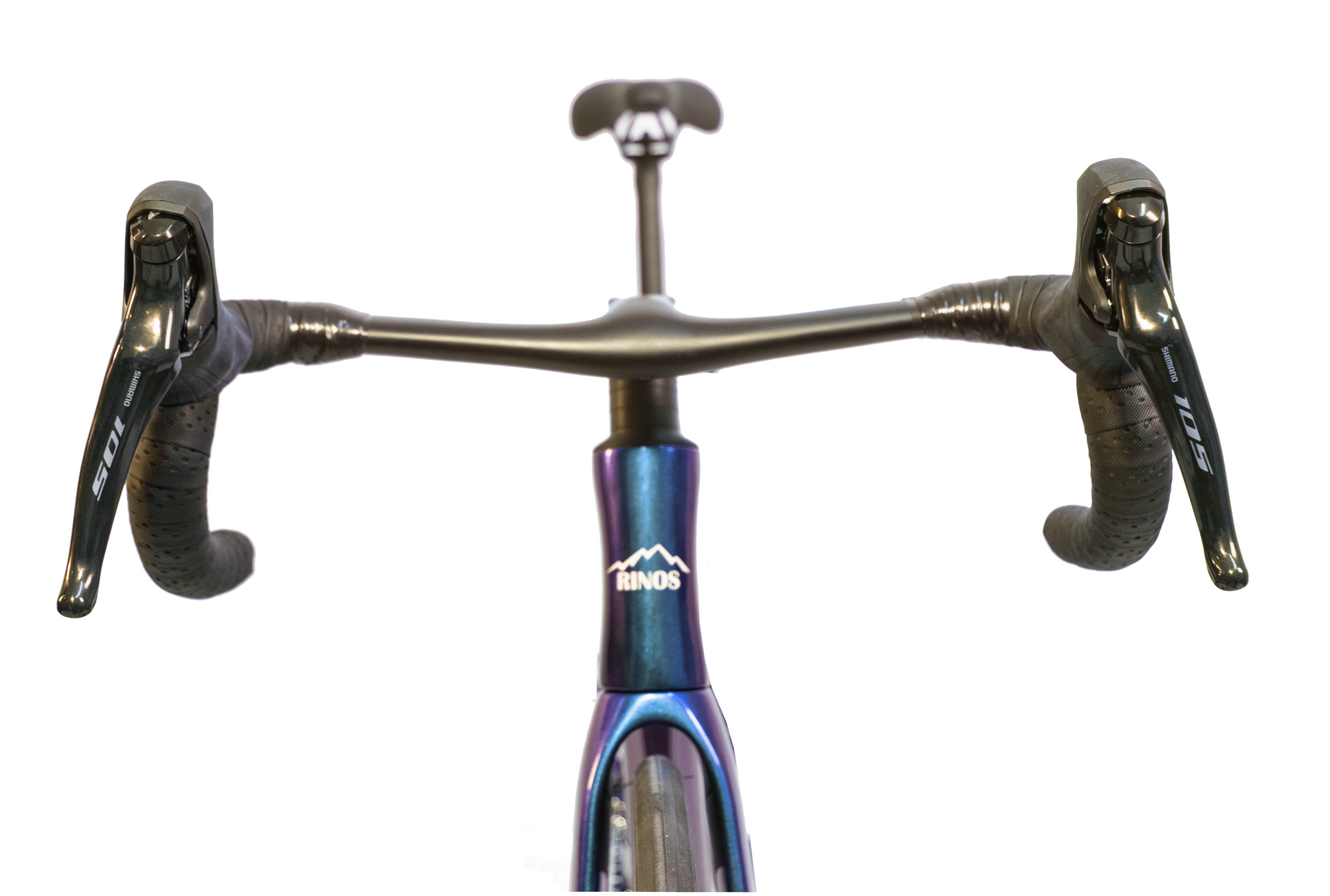

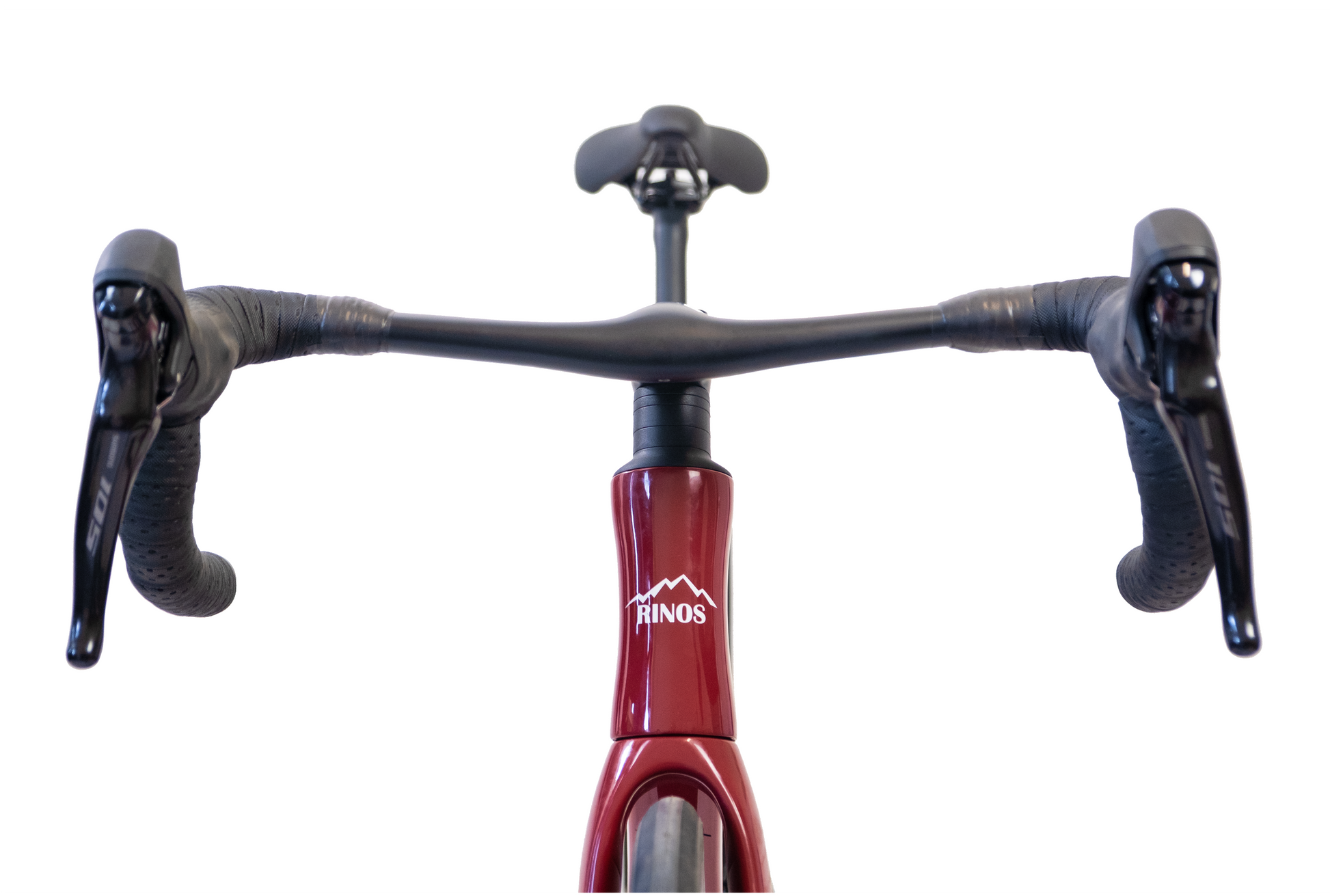

| Handlebar | Rinos Carbon 420 × 31.8 mm |
| Headset | Aluminum 1-1/8″ 28.6 × 41.8 × 52 × 39.8 mm |
| Saddle | Rinos |
| Chain | KMC |
| Rims | Aluminum UD 700C × 14G × 20H F/V, 14 × 36 mm |
| Hubs | Selected 24H × 14G |
| Accessories Included | Tools, User Manual |
| Warranty / Testing | Material: T1000, T800, T700 Carbon Fiber Construction: TIG Welded Testing: 10,000+ Cycles Safety Factor: 5× Certification: ISO 4210 Warranty: 2 Year |
Rinos Road Bicycle Sizing

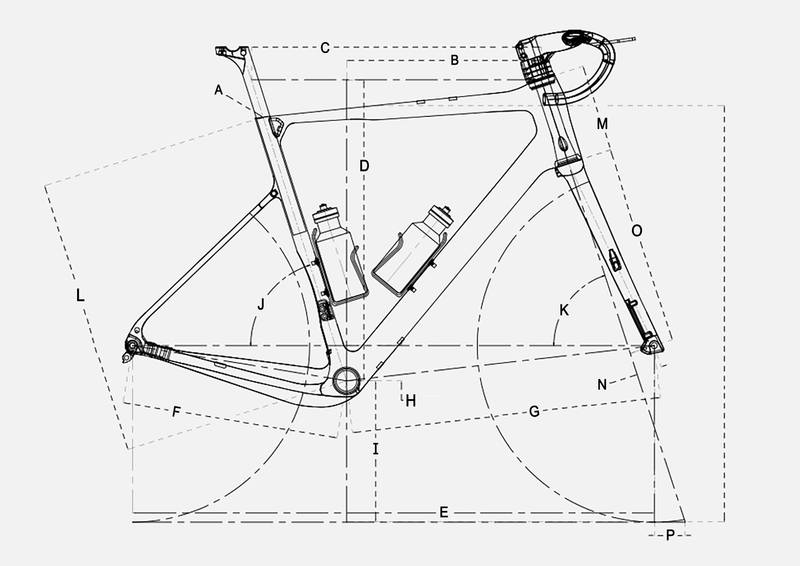

Geometry & Sizing Details
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height (Reference) | 152–165 cm | 166–172 cm | 175–184cm | 185–193 cm | 194–200 cm |
| For reference only, may vary due to different body proportions. | |||||
| A – Frame Size | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
| B – Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| C – Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm |
| D – Top Tube Length, Horizontal | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm |
| E – Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm |
| F – Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm |
| G – Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| H – Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm |
| I – BB Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| J – BB Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| K – Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
| L – Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° |
| M – Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm |
| N – Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm |
| Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm |
| O – Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| P – Fork Length, Full | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
| P – Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm |
Engineered for Endurance
Every frame undergoes rigorous testing to ensure reliability you can depend on.
Built Different
Our approach to frame construction prioritizes long-term durability through careful material selection and precise engineering.
