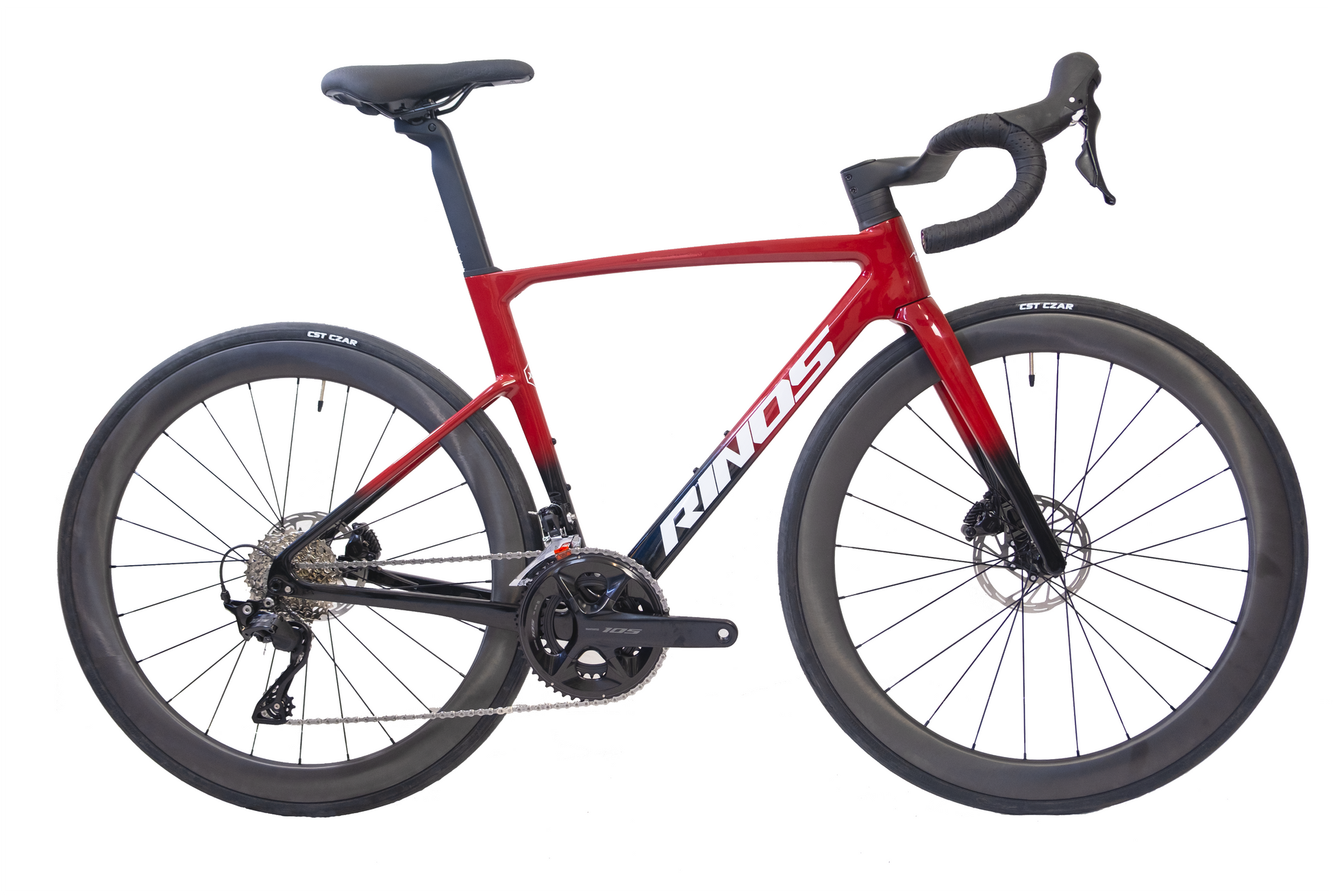

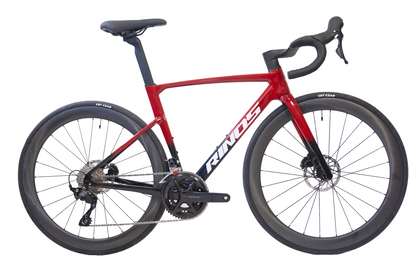

Odin 4.1
Odin 4.1
Couldn't load pickup availability
tire size
25C
gear shifter
Shimano 105
weight
7.9kg
frame material
Carbon
Shop now. Pay with Klarna.
Klarna
Flexible payment methods
Pay in up to 30 days
Receive your order first, then pay.
Installments
Split the amount into smaller payments.
Pay now
Pay the full amount today with a card.
How it works:
Choose Klarna at checkout
Choose a payment plan
Depending on the purchase amount and creditworthiness, different payment plans may be displayed.
Complete your order
We automatically deduct the installments according to your payment plan.

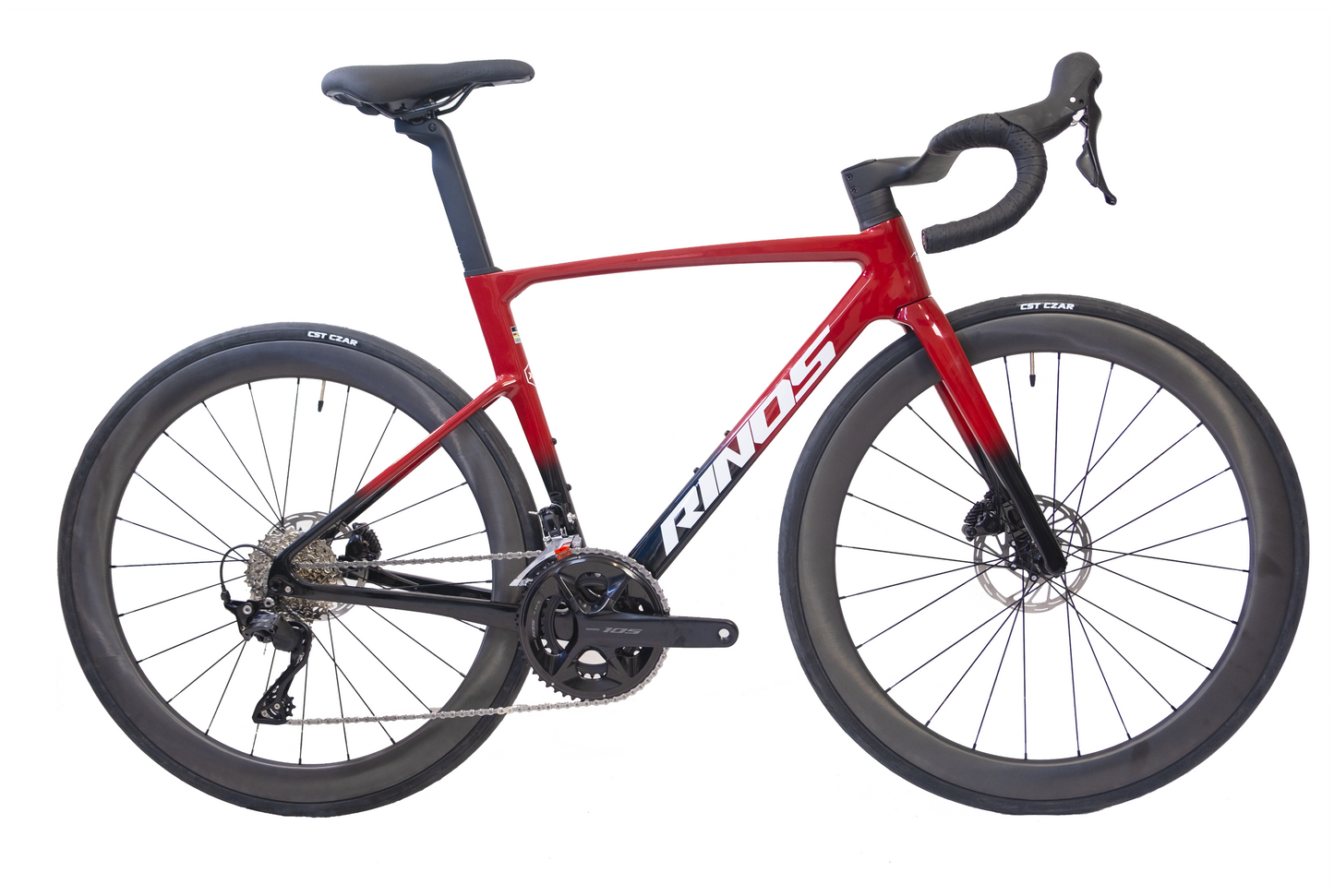

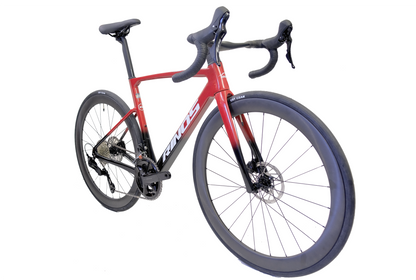

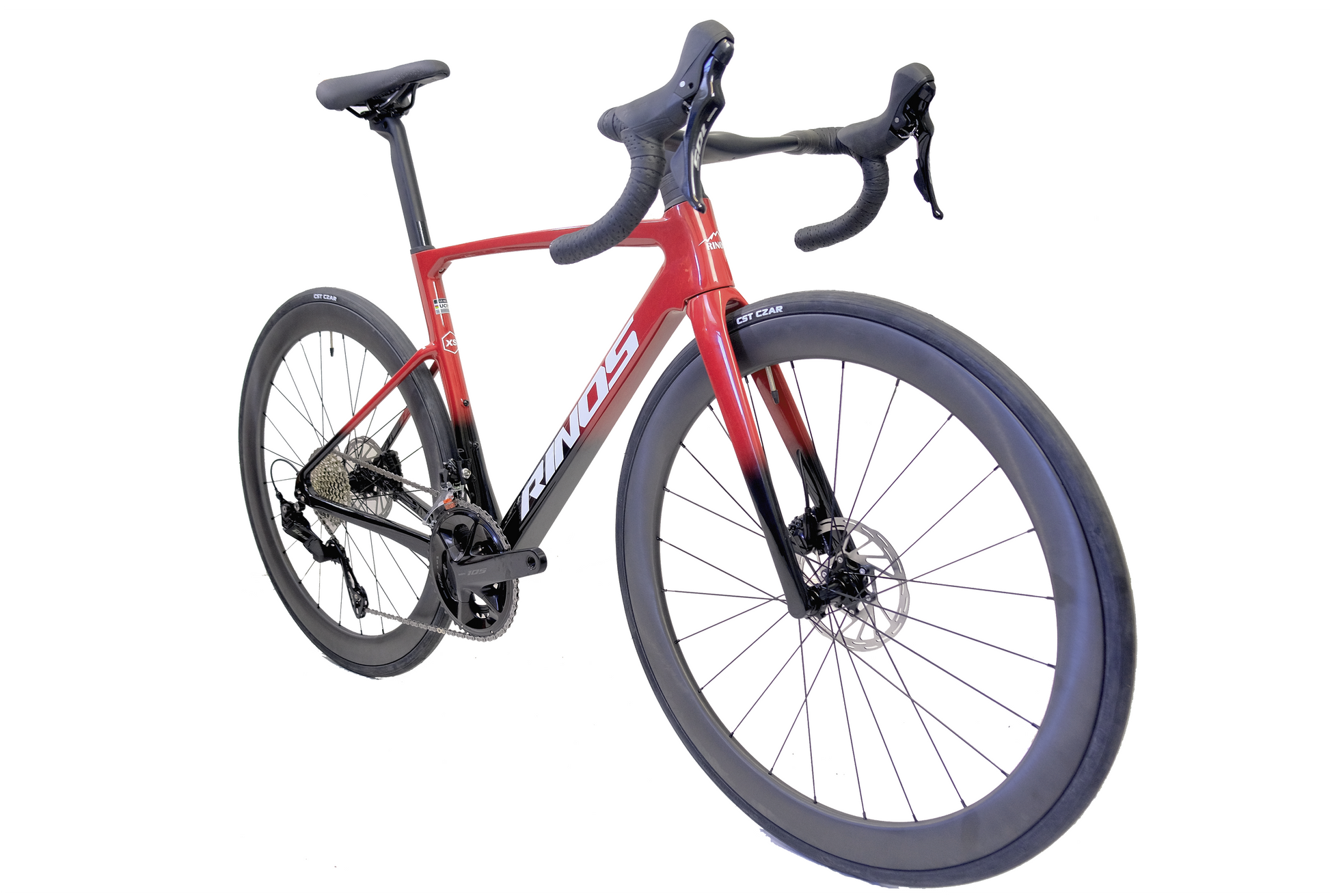

The Odin 4.1, at a glance.
-
UCI Certified.
Ride with confidence. The Odin 4.1 meets UCI standards, making it competition-ready straight out of the box.
-
Shimano 105 performance with full carbon frame and wheels
Weighing just 7.9 kg, the Odin 4.1 features Shimano 105 R7100 12-speed components, hydraulic disc brakes, and full carbon rims for lighter weight, better stiffness, and faster, more responsive rides.
-
Next-Level Carbon Road Bike.
Engineered for riders seeking maximum speed, aerodynamic efficiency, and the performance boost of carbon wheels.
Wheels You Can Trust.
Every Odin is precision-trued with TRUDI by Berd, the world’s most advanced wheel truing system.
That means straighter wheels, tighter tolerances, and absolute stability — so you ride faster, corner harder, and never lose performance to wobble or flex.
⚡ Key Features:
-
UCI Certified: Ready for competition at international level.
-

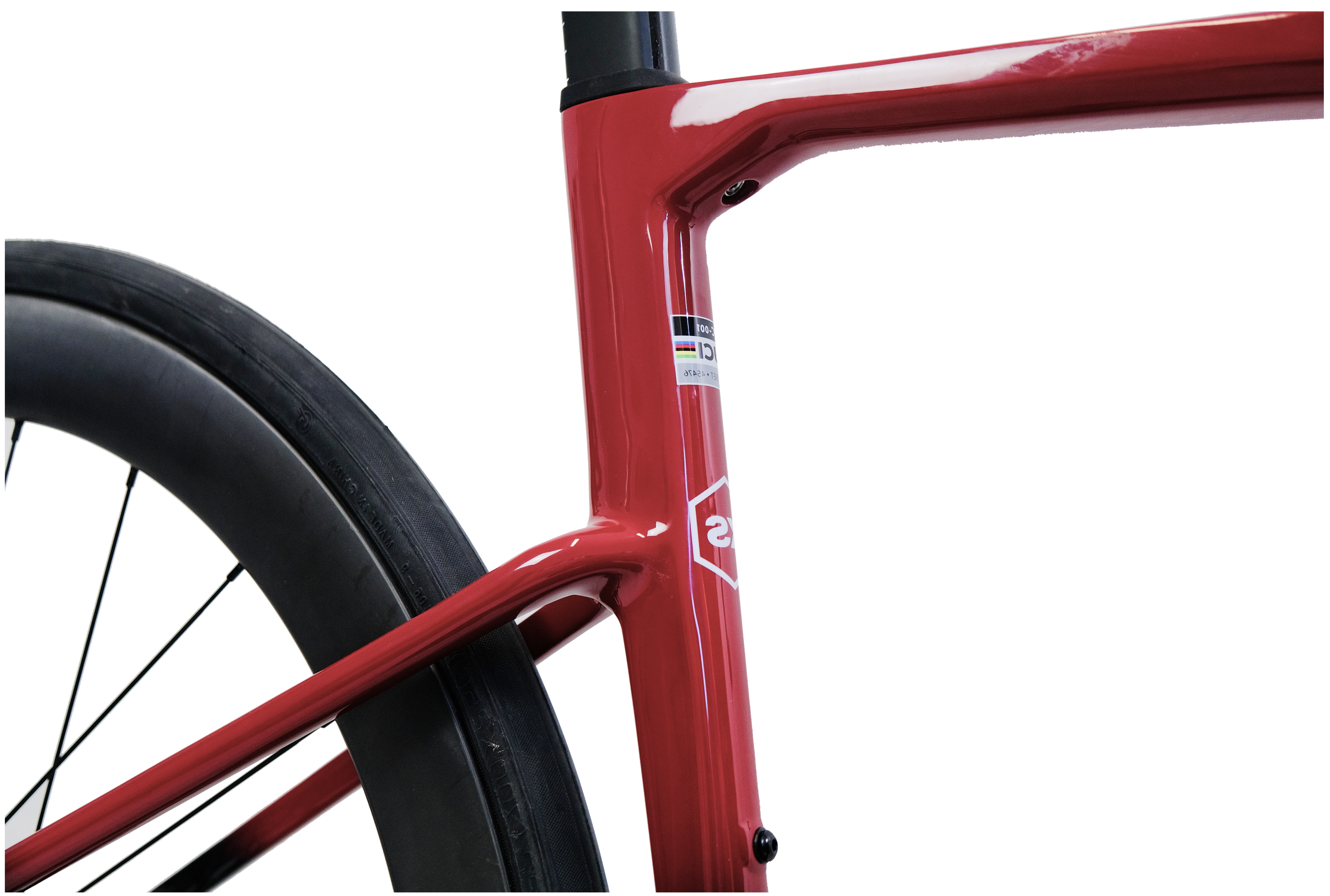

Full Carbon Frame, Fork & Seatpost: Toray T800 carbon for stiffness and comfort.
-
Full Carbon Wheels: Lightweight, aerodynamic carbon rims.
-

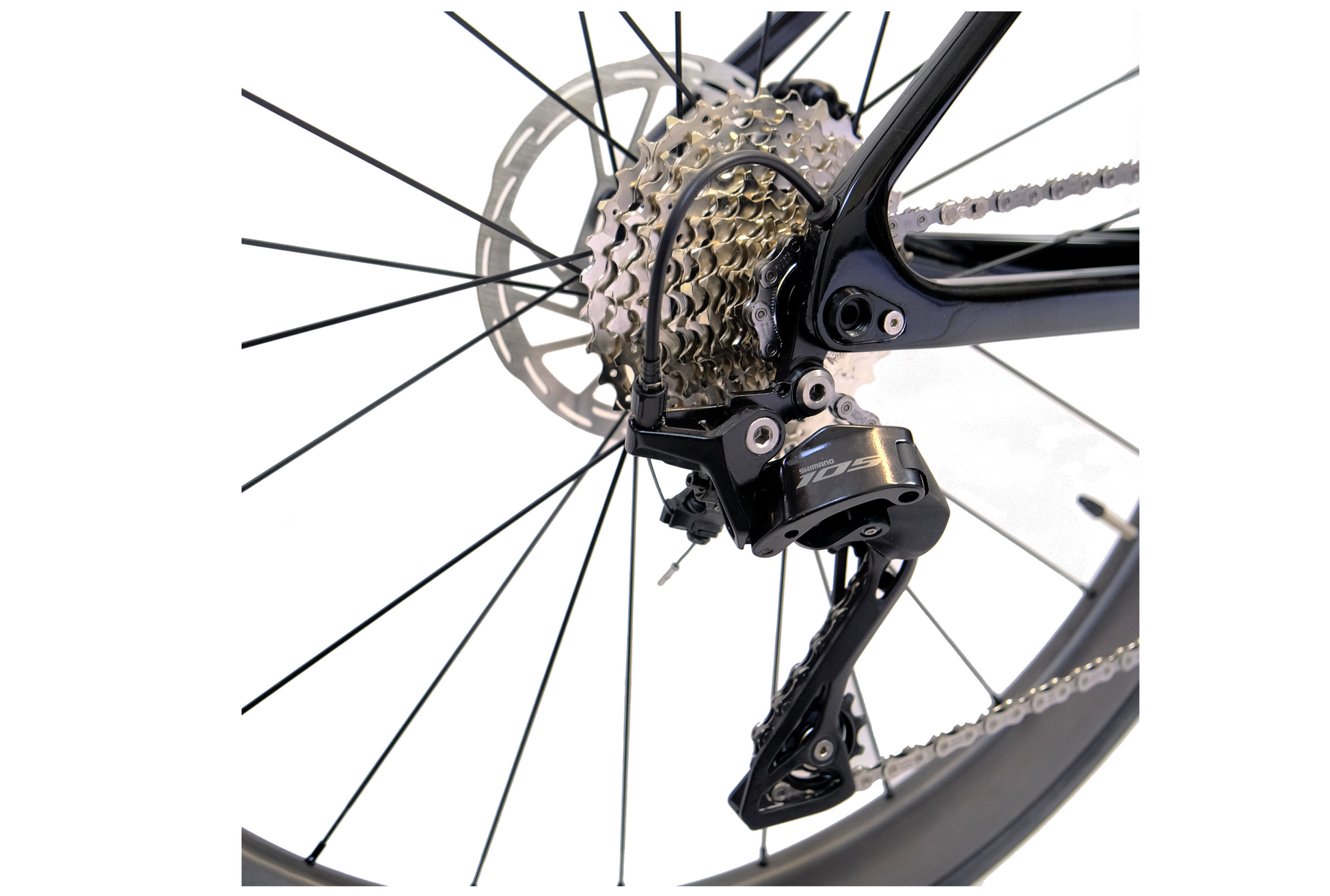

Shimano 105 R7100 (2×12-speed): Smooth, precise shifting.
-

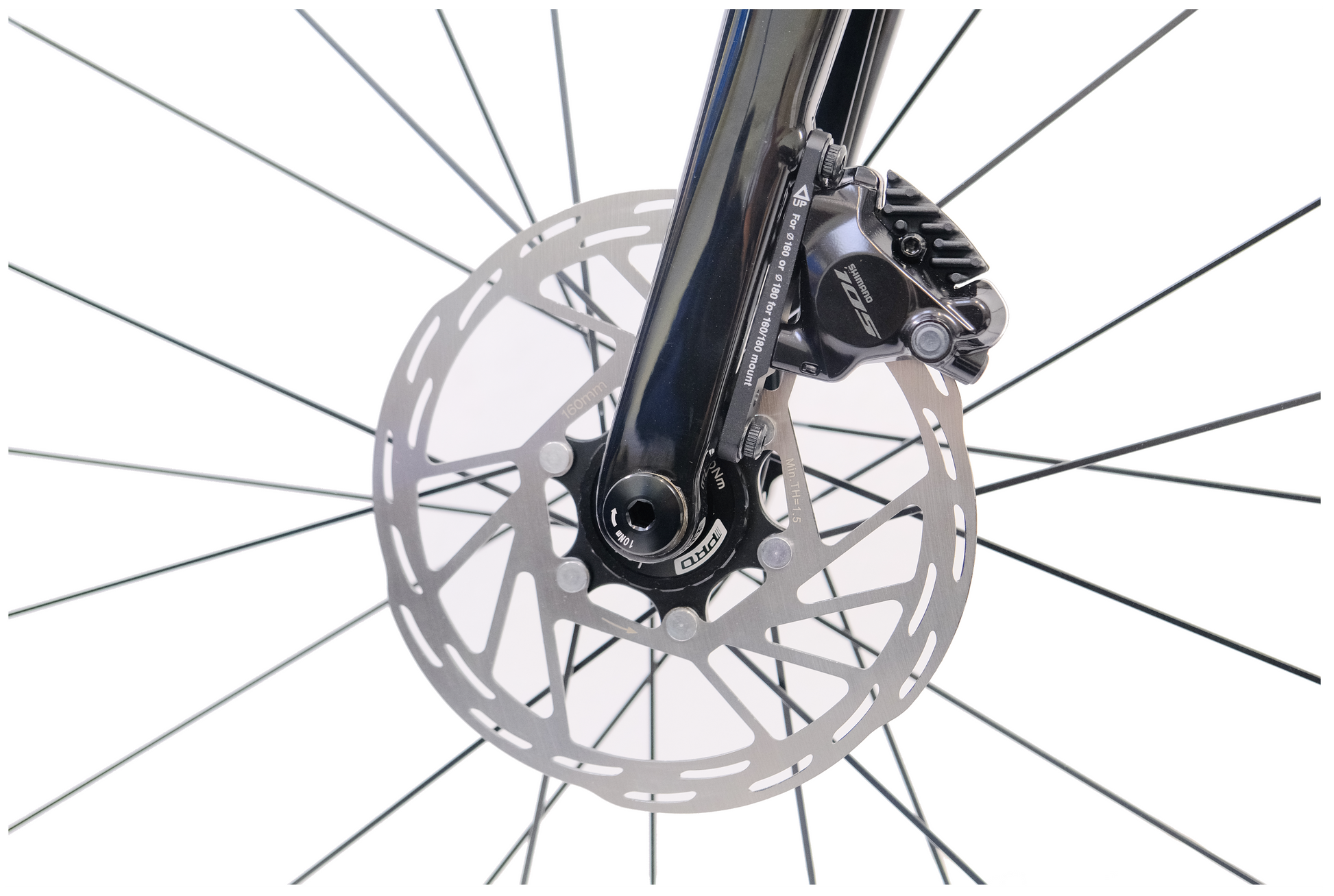

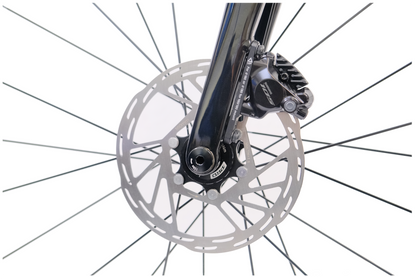

Hydraulic Disc Brakes: Reliable stopping power in all conditions.
-

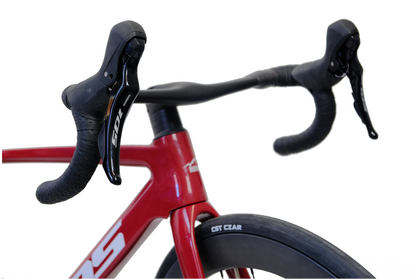

Aerodynamic Design: Integrated cabling, aero handlebars, and 38 mm deep carbon rims.
-
Only 7.9 kg (Complete Bike): Lightest in the Odin 4 series.
📦 What’s Included:
-
RINOS Odin 4.1 Complete Bike (7.9 kg)
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
Riders upgrading to carbon wheels and hydraulic brakes
-
Competitive road racing, endurance rides, and fast-paced training
-
Cyclists who want maximum performance at an accessible price
🔍 Tech Specs Summary:
-
Frame/Fork: RINOS T800 Carbon (UCI-tested)
-
Groupset: Shimano 105 R7100, 24-Speed (2×12)
-

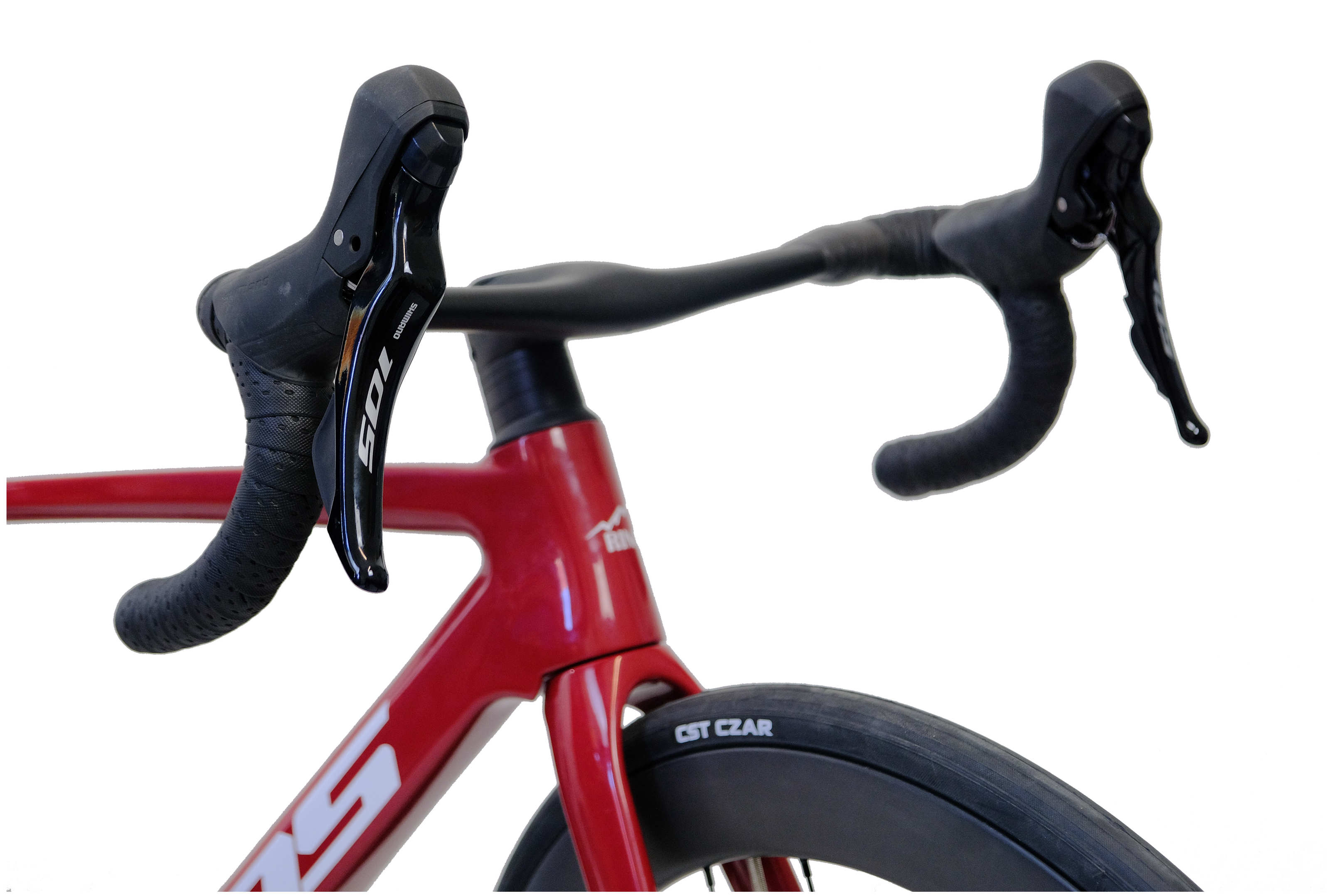

Brakes: Shimano 105 ST-R7120 / BR-R7170 Hydraulic Disc Brakes
-

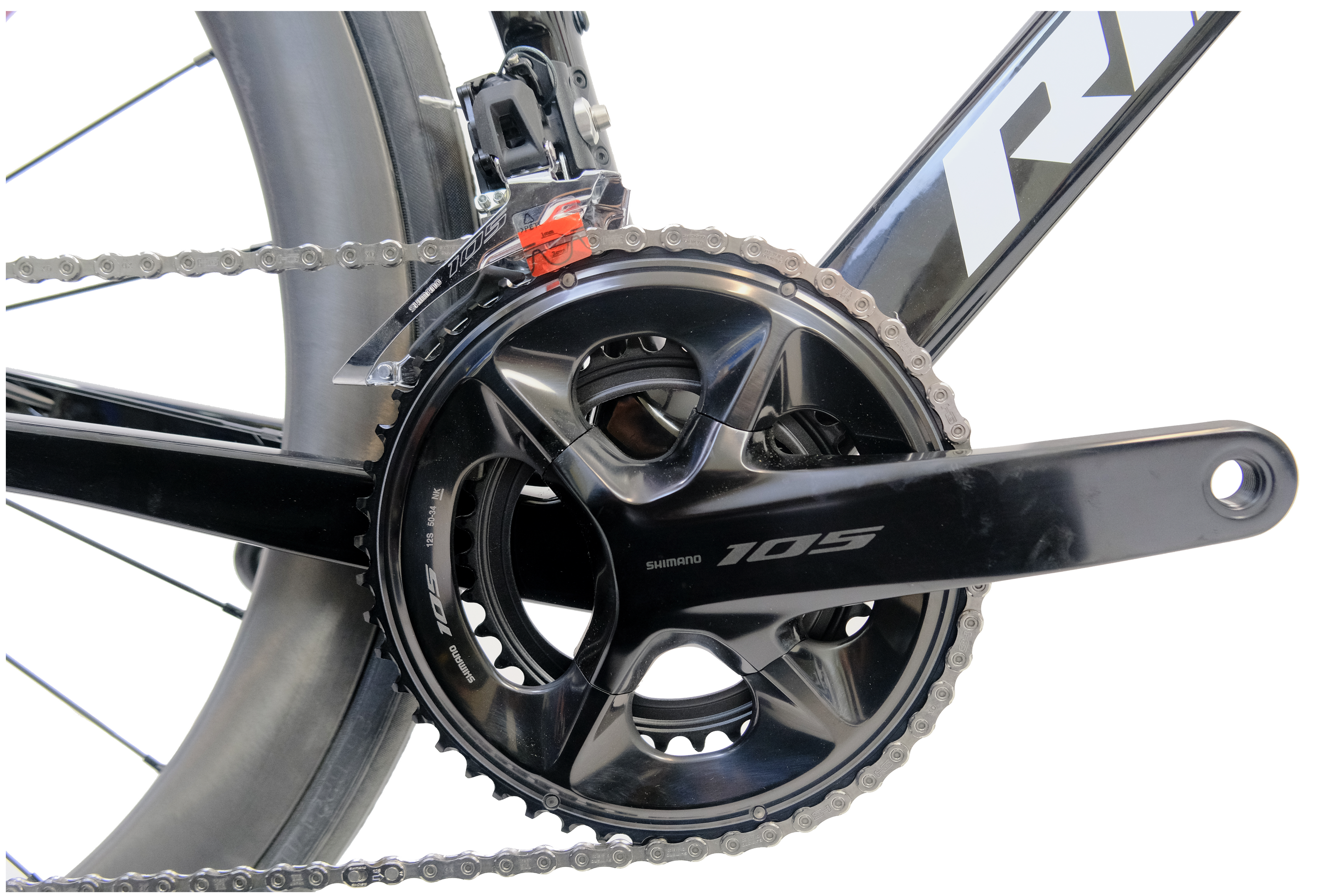

Crankset: Shimano R7100 50/34T × 172.5
-
Cassette: Shimano 11-36T 12-Speed
-
Wheels: 700C, 38 mm full carbon rims (Novatec hubs)
-
Tyres: CST 700×25C (Presta Valve)
-

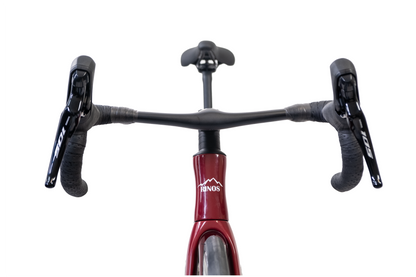

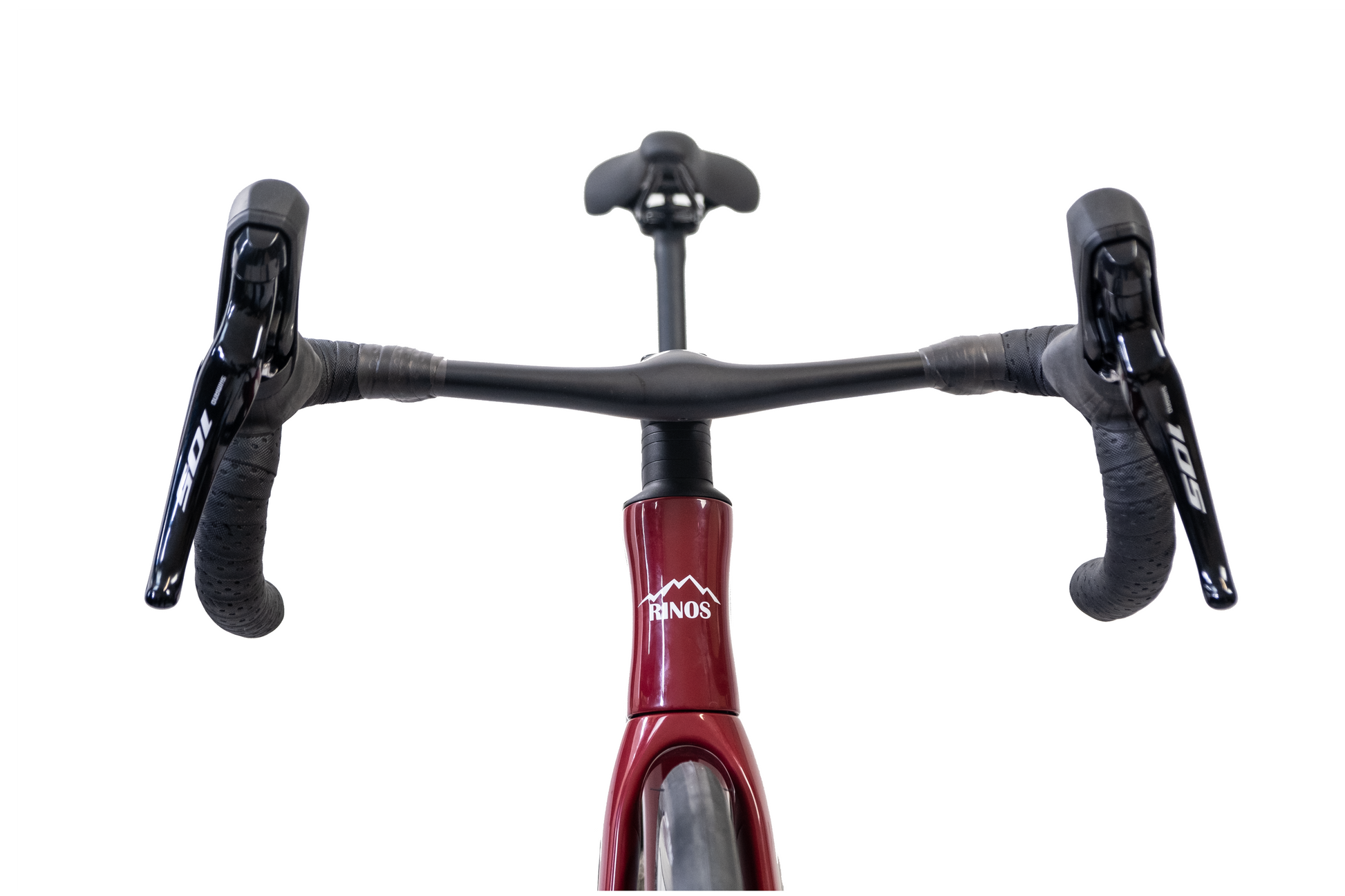

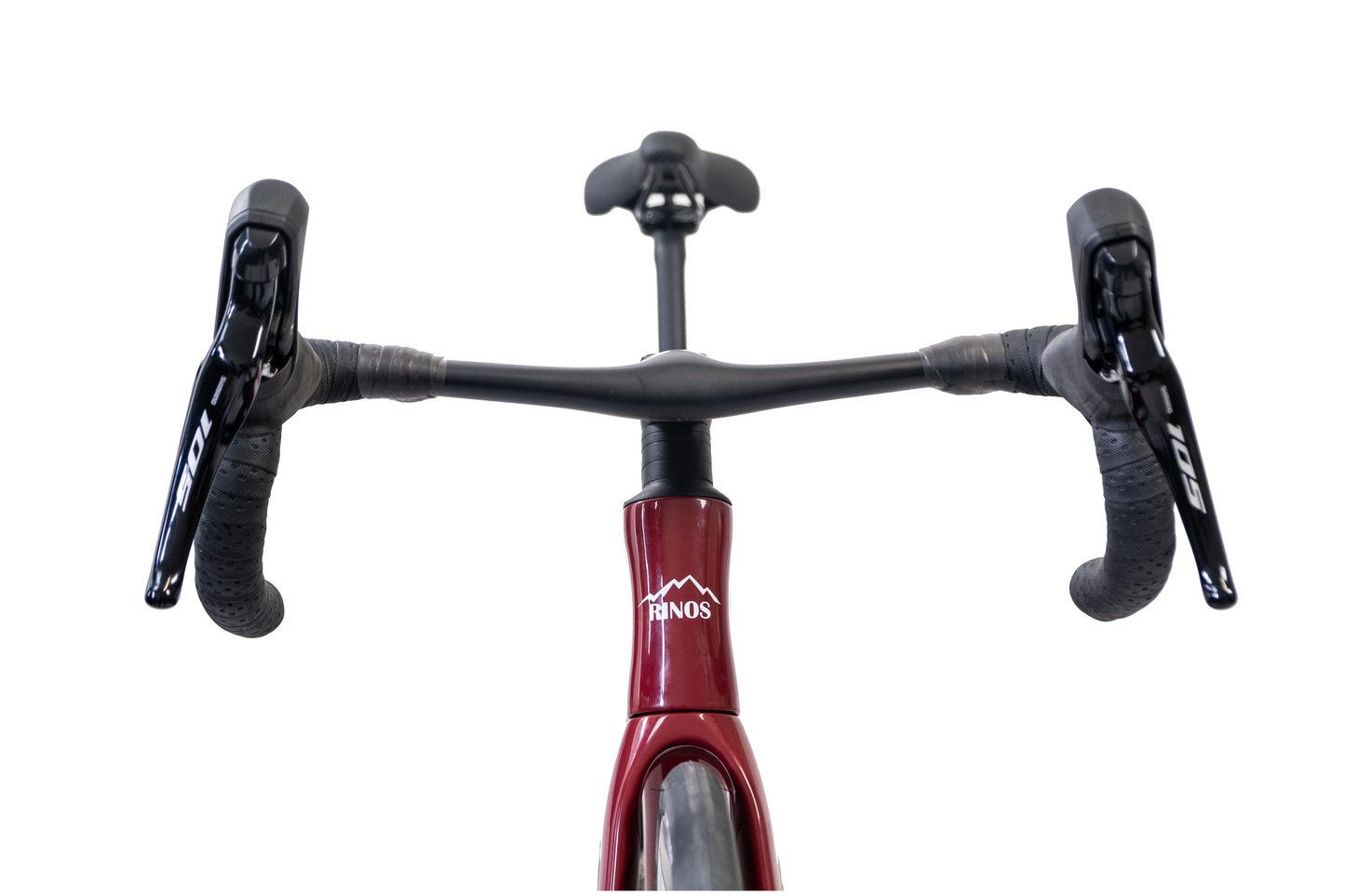

Handlebar: Rinos Carbon 420/440 × 28.6 mm
-
Seatpost: Rinos Carbon 27.2 × 400 mm
-
Weight: 7.9 kg (Bike), 13.8 kg (Shipping)
-
Sizes: XS, S, M, L, XL
Rinos Odin Sizing Recommendations

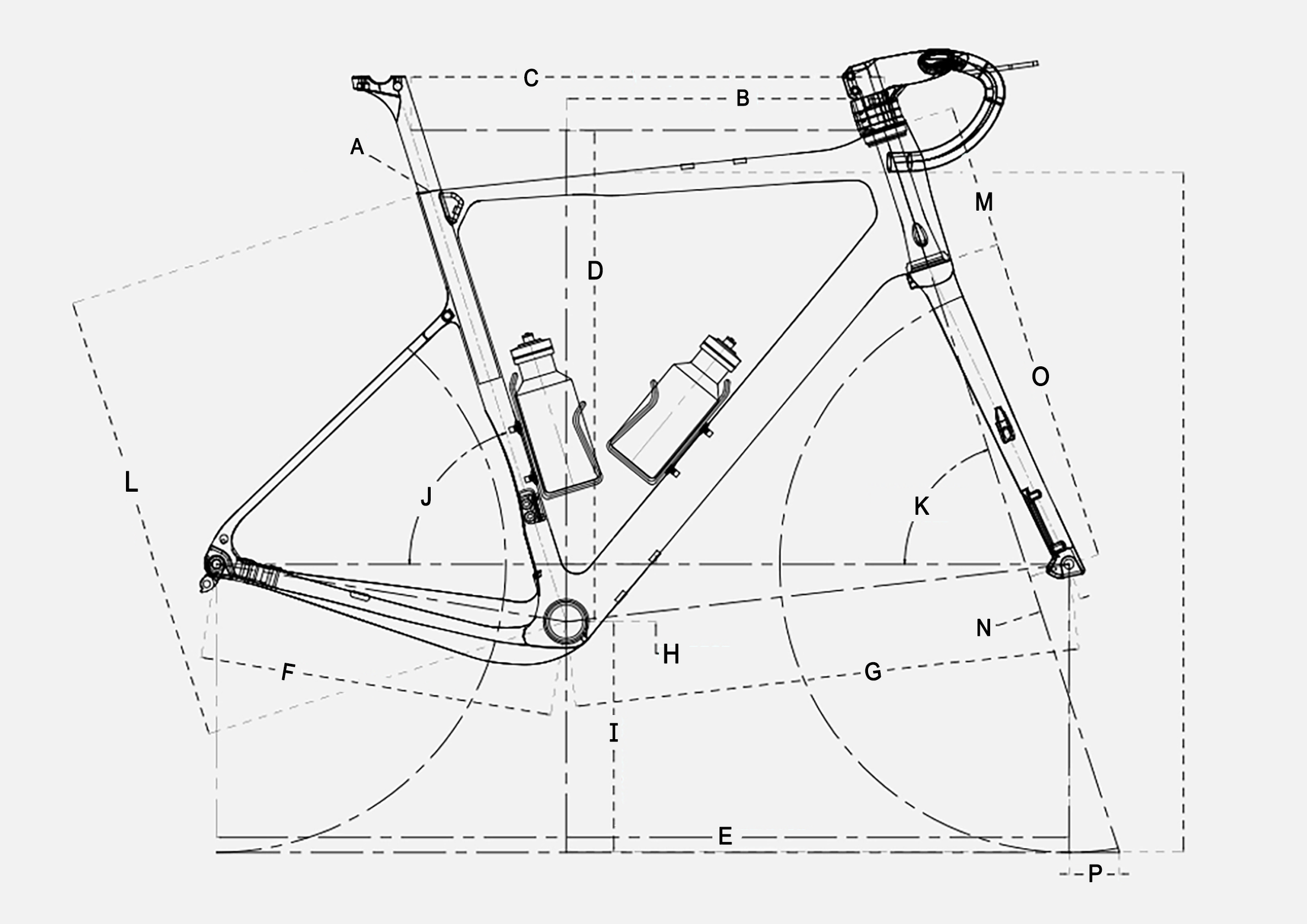

Geometry & Sizing Details
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height (Reference) | 152–165 cm | 166–172 cm | 175–184cm | 185–193 cm | 194–200 cm |
| For reference only, may vary due to different body proportions. | |||||
| A – Frame Size | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
| B – Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| C – Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm |
| D – Top Tube Length, Horizontal | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm |
| E – Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm |
| F – Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm |
| G – Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| H – Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm |
| I – BB Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| J – BB Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| K – Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
| L – Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° |
| M – Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm |
| N – Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm |
| Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm |
| O – Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| P – Fork Length, Full | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
| P – Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm |
Engineered for Endurance
Every frame undergoes rigorous testing to ensure reliability you can depend on.
Built Different
Our approach to frame construction prioritizes long-term durability through careful material selection and precise engineering.
