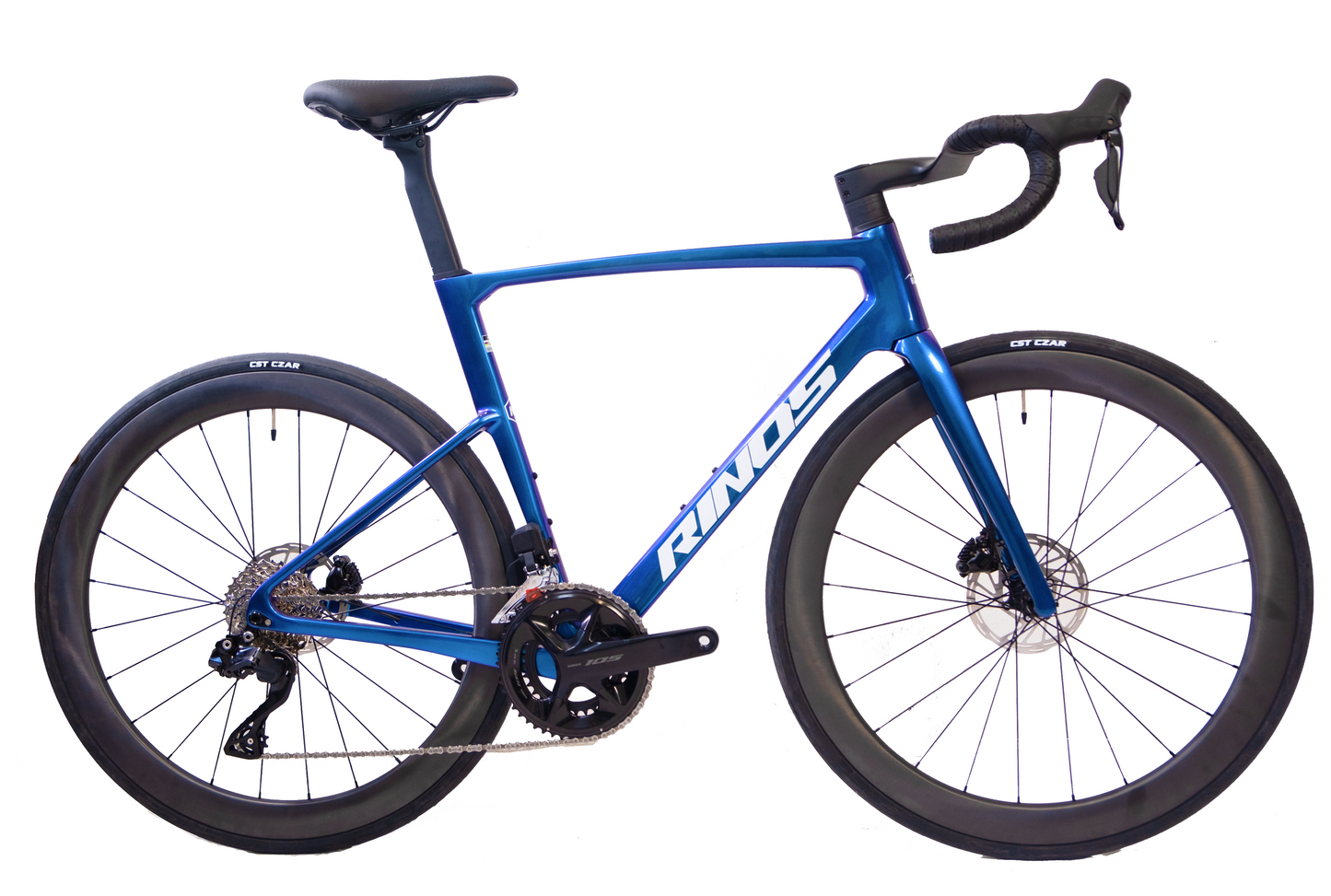

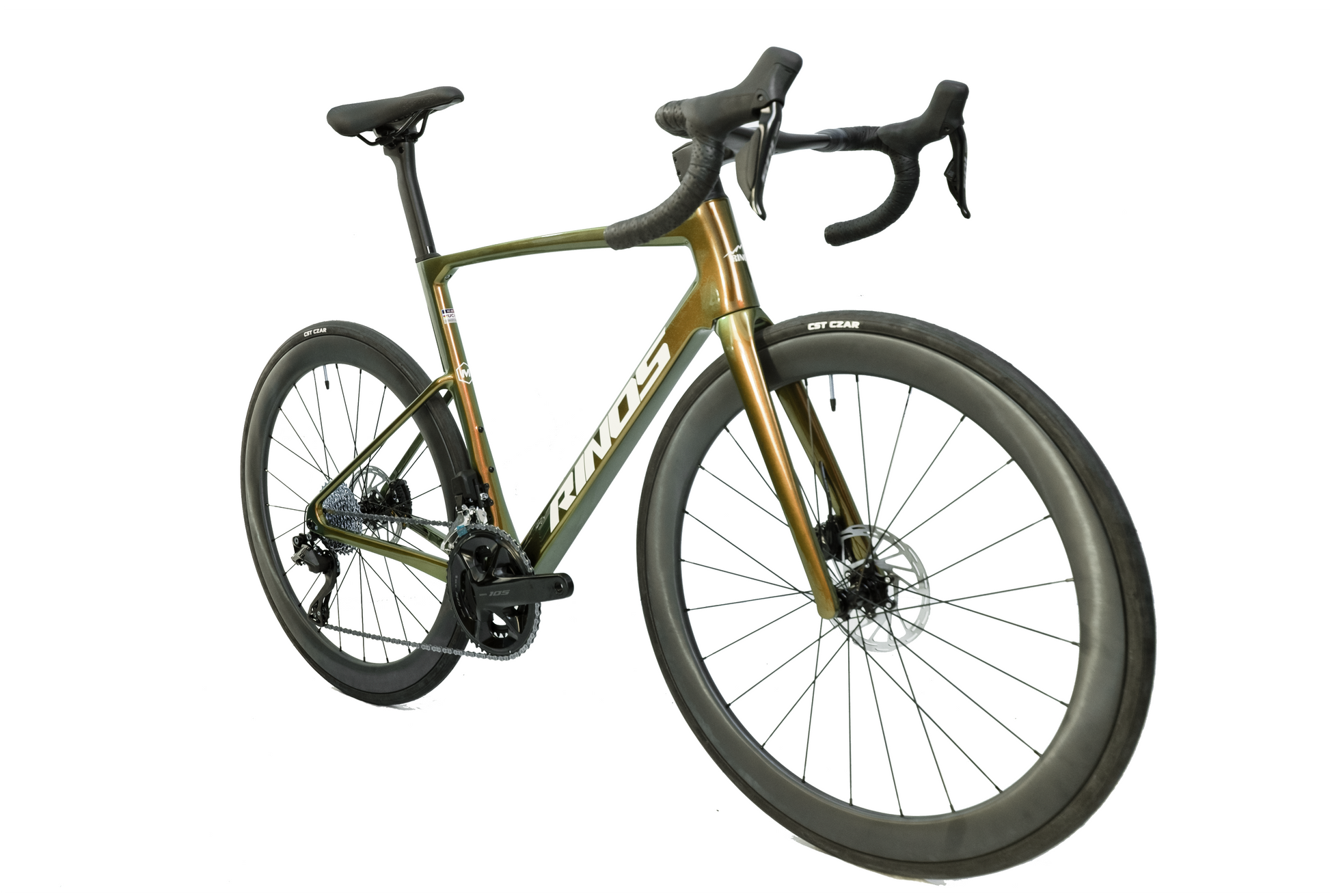

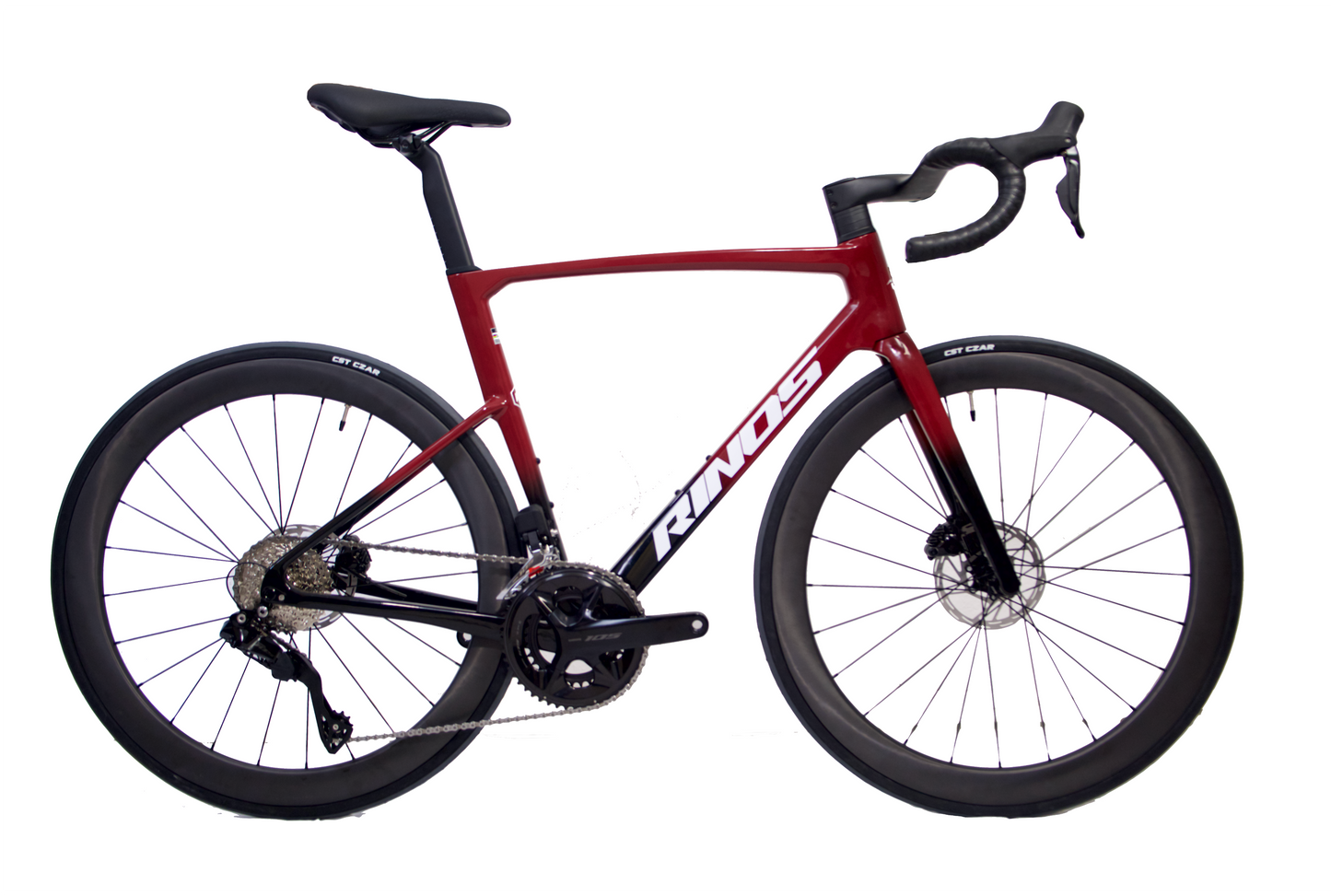

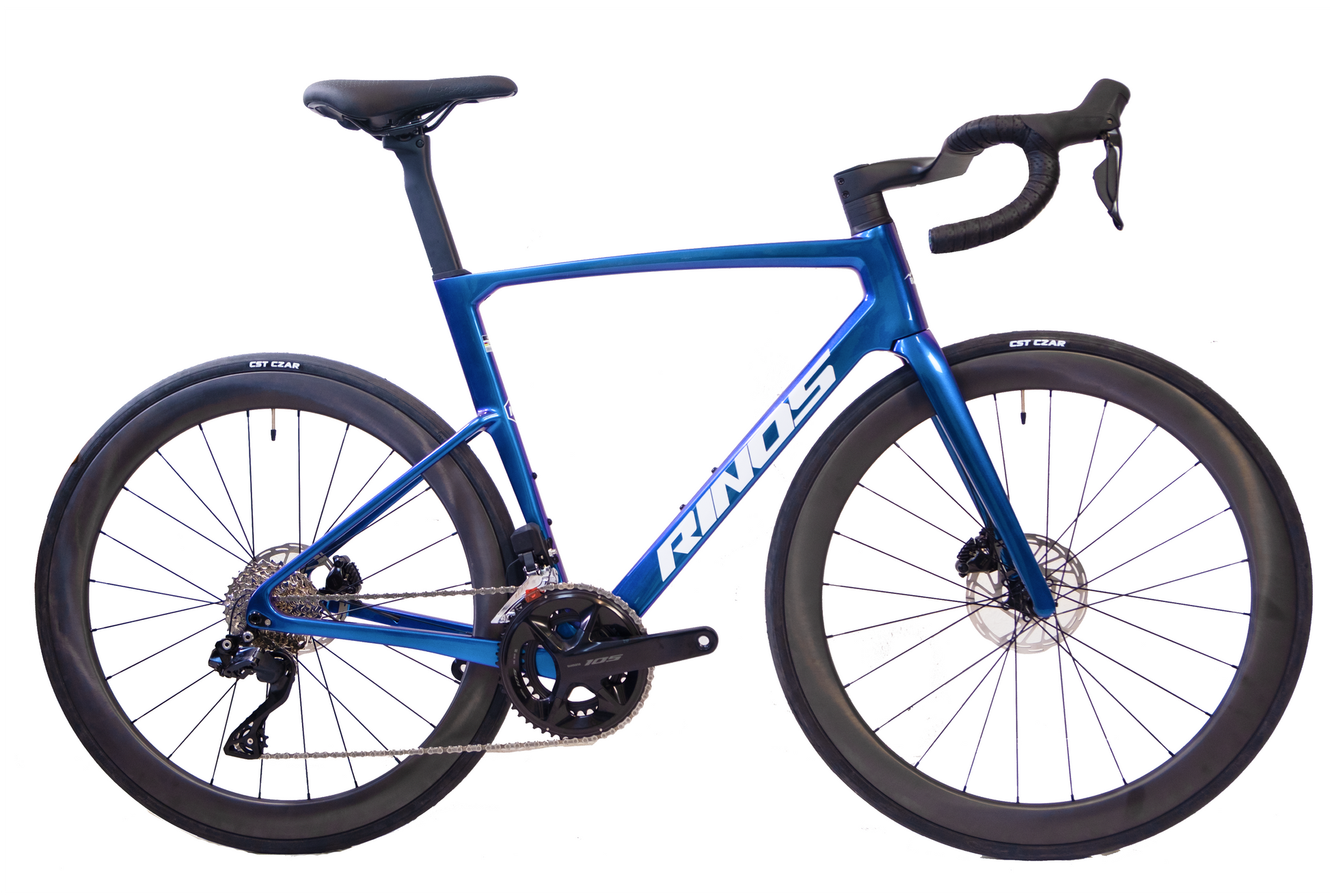

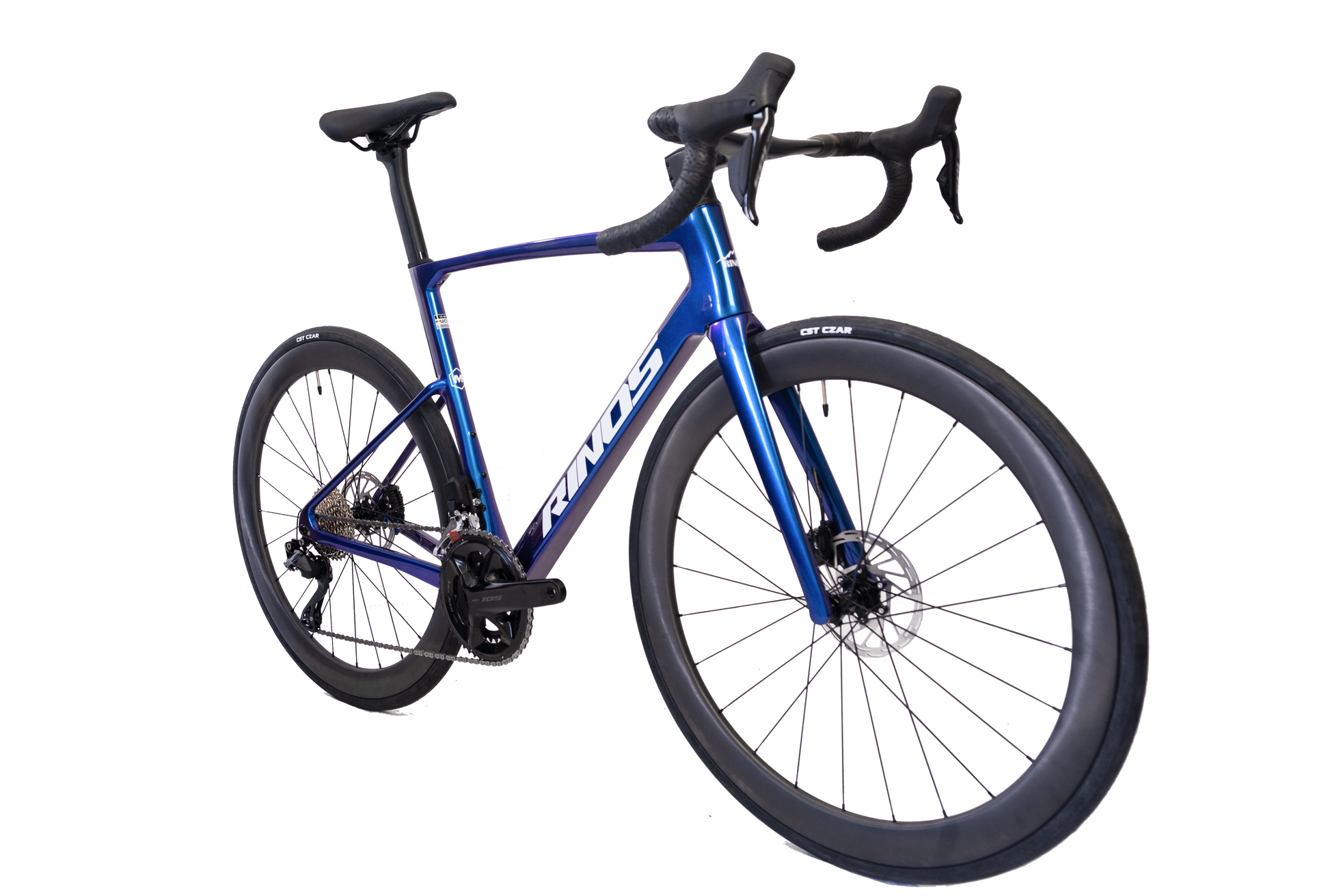

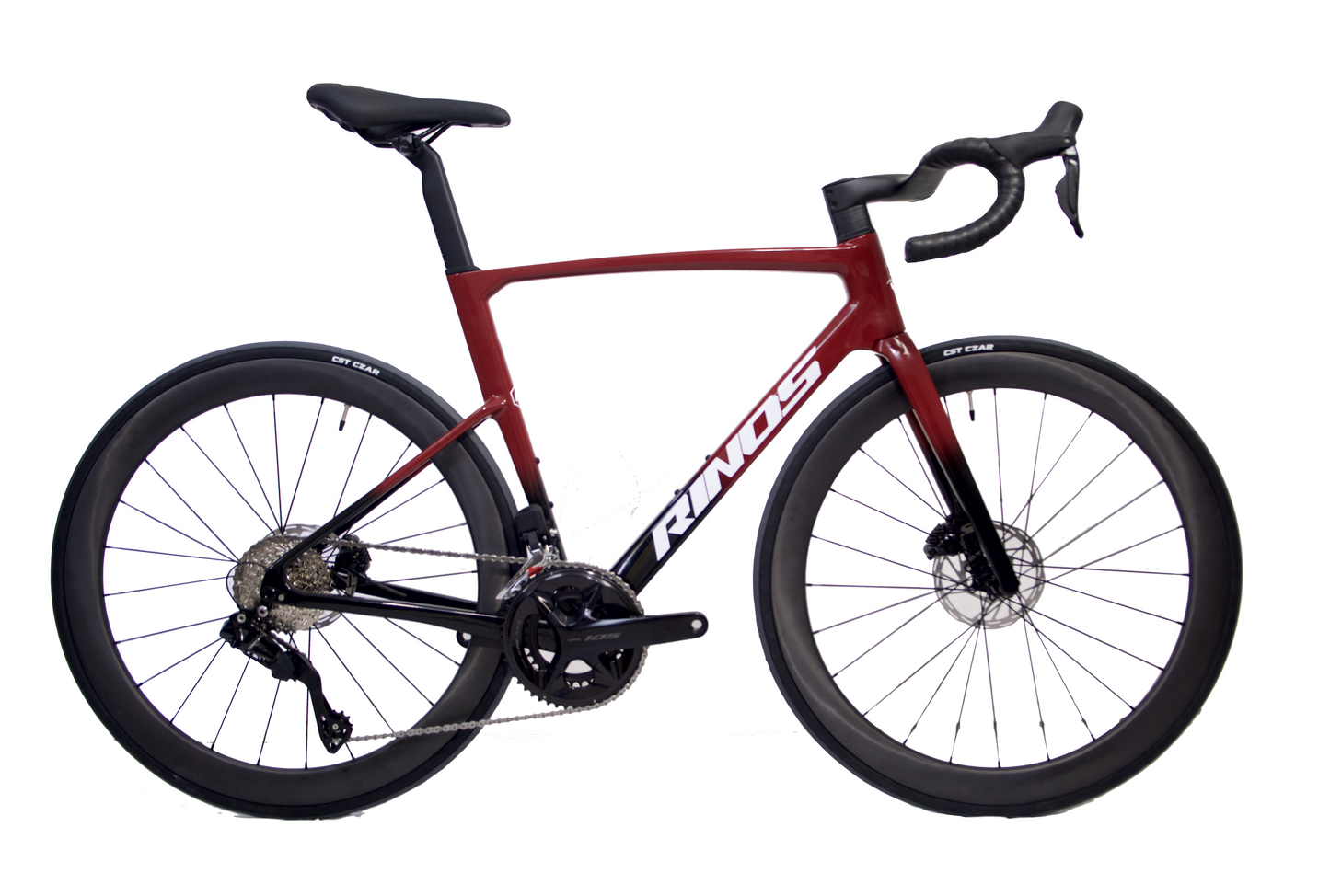

Odin 6.1
Odin 6.1
Couldn't load pickup availability
tire size
25C
gear shifter
Shimano 105 R7150 DI2
weight
7.8 kg
frame material
Carbon
Shop now. Pay with Klarna.
Klarna
Flexible payment methods
Pay in up to 30 days
Receive your order first, then pay.
Installments
Split the amount into smaller payments.
Pay now
Pay the full amount today with a card.
How it works:
Choose Klarna at checkout
Choose a payment plan
Depending on the purchase amount and creditworthiness, different payment plans may be displayed.
Complete your order
We automatically deduct the installments according to your payment plan.

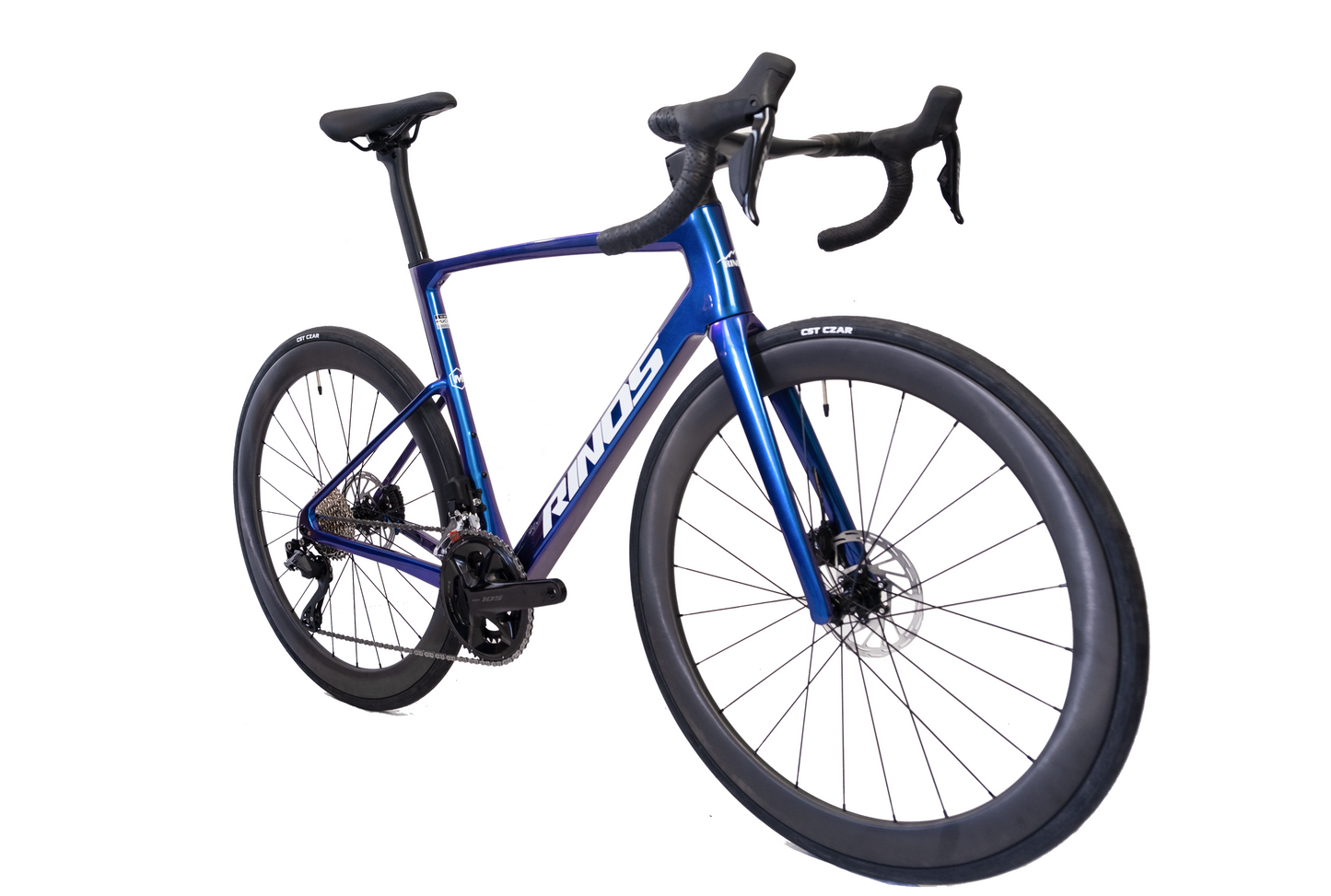

The Odin 6.1, at a glance.
-

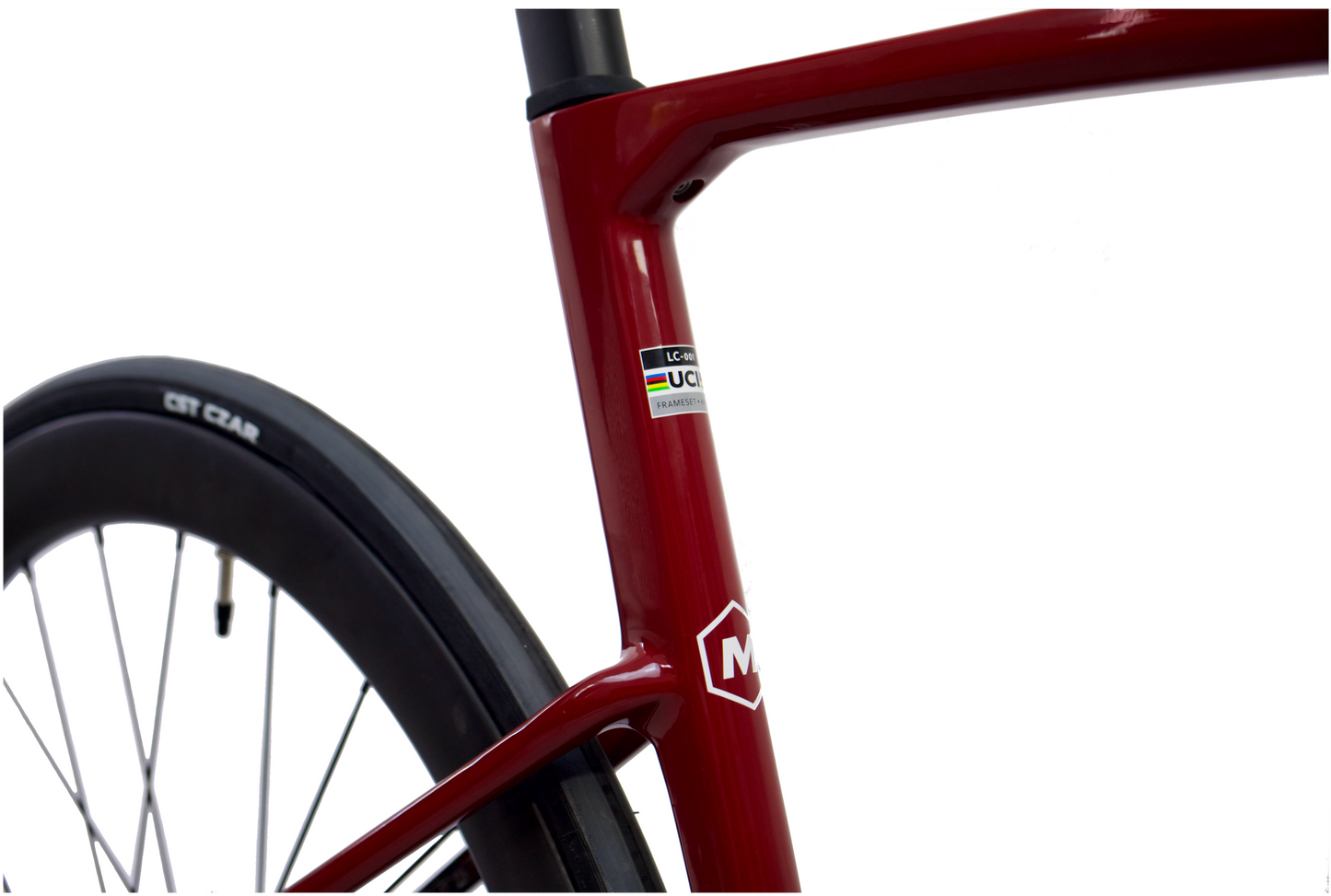

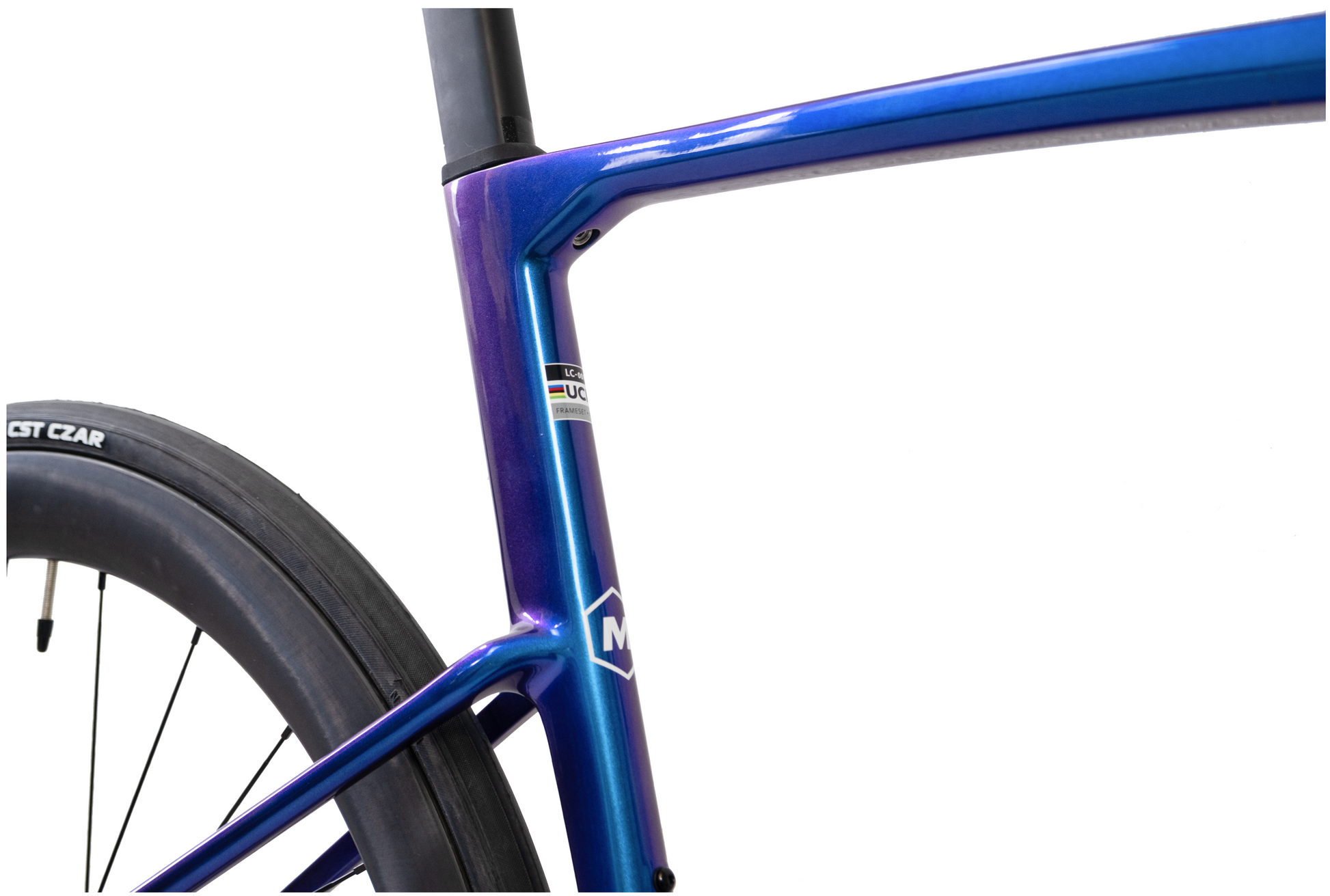

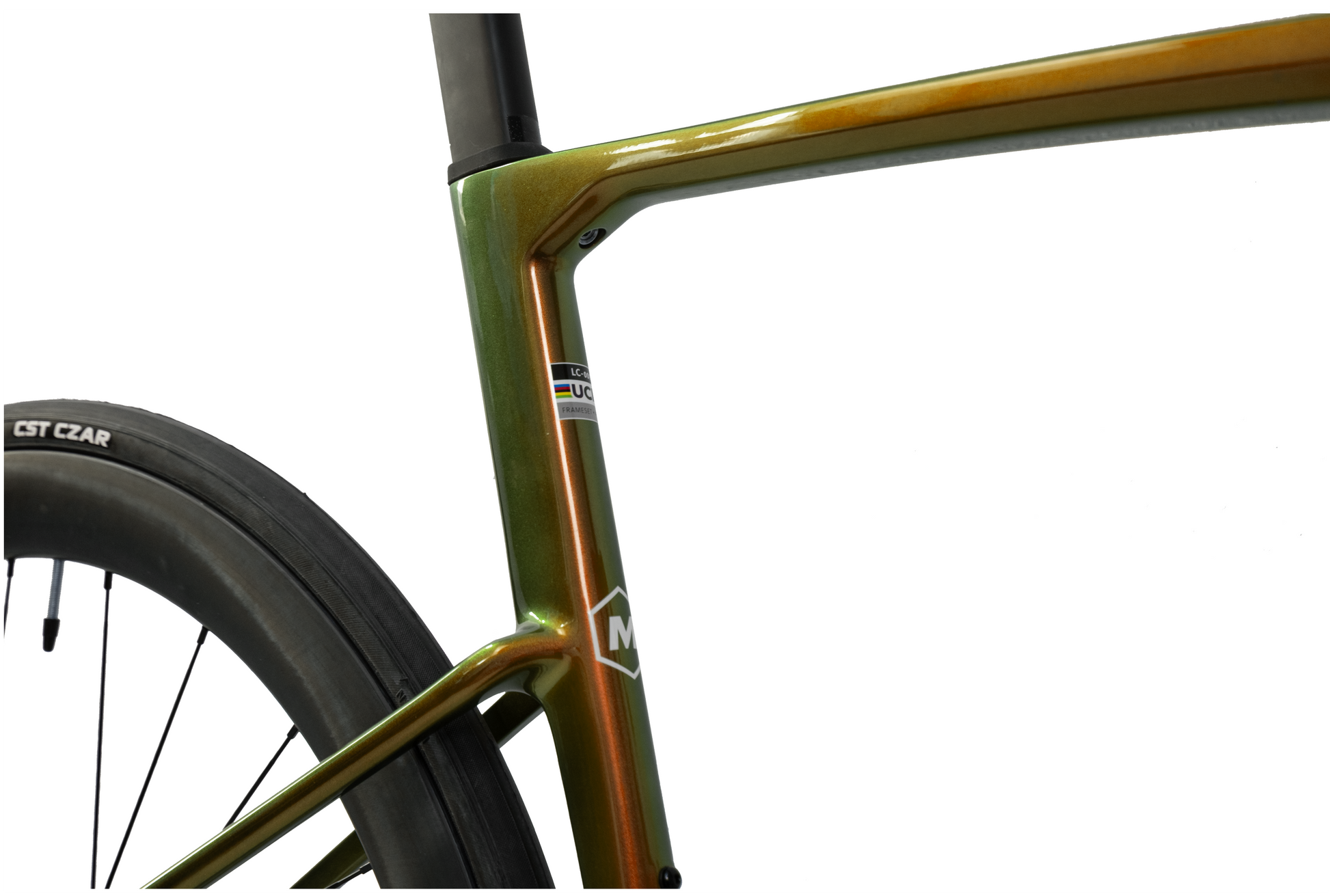

UCI Certified.
Ride with confidence. The Odin meets UCI standards, making it competition-ready straight out of the box.
-

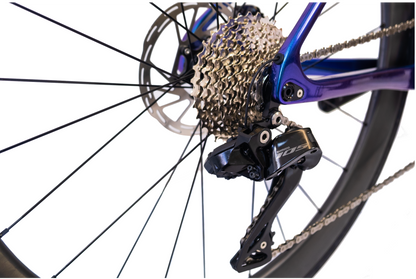

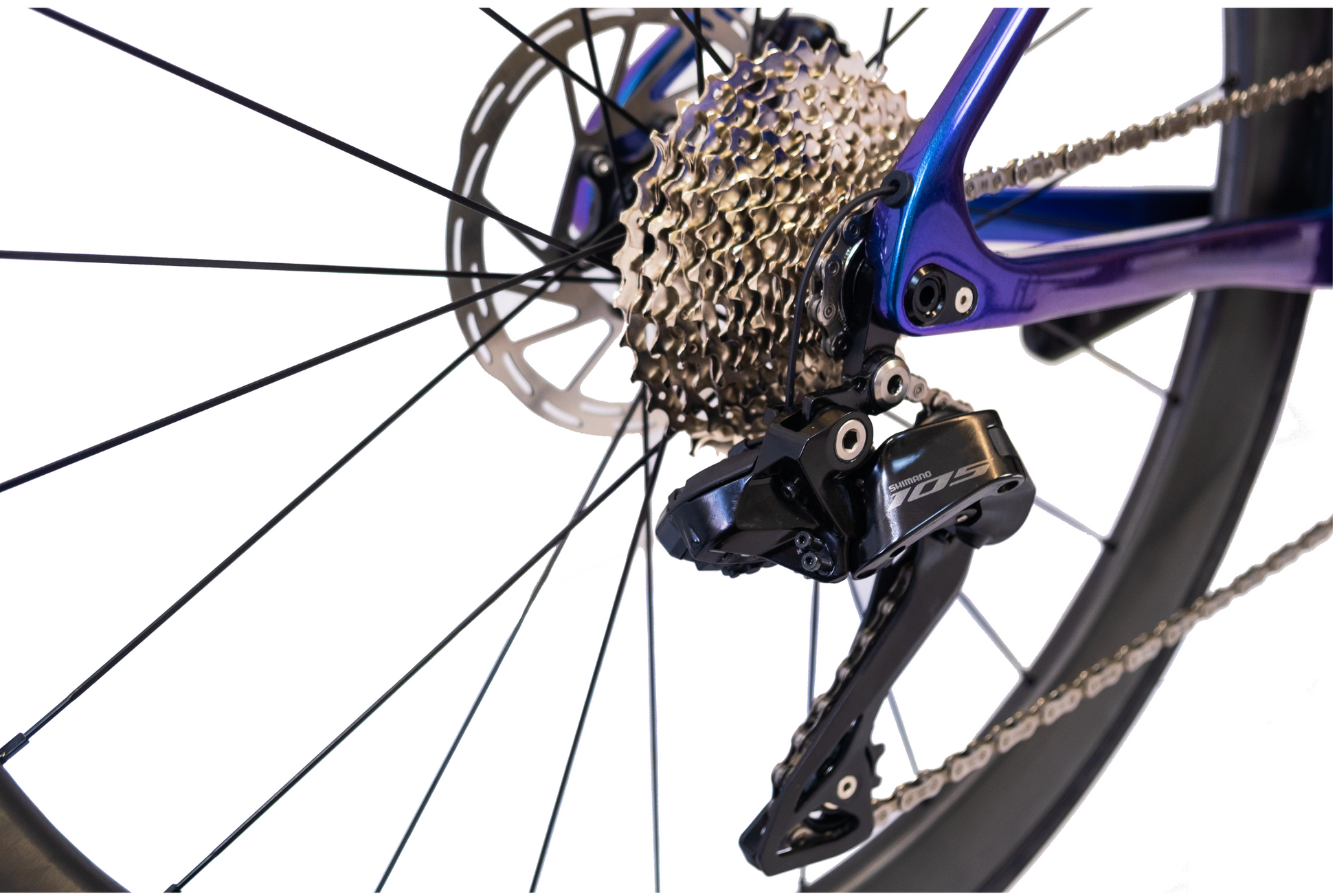

Shimano 105 Di2 Electronic Shifting
Instant, precise, and effortless gear changes with Shimano’s 2×12-speed electronic system — no cables, no compromise.
-
Hydraulic Braking & 40mm Wheels
Confident stopping power in all weather and smooth rolling performance for every road and race condition.
Peak Cycling, together.
"Thanks to its lightning-fast, accurate, and reliable shifting performance, Di2 puts riders in complete control and ensures a seamless interface between the cyclist and bike like never before. Creating and continually improving the world's best shifting is a complicated undertaking requiring constant technological advancements. From hardware to software, Shimano Di2 technology is on the cutting edge, striving to deliver the best rider experience possible now and in the future."
Wheels You Can Trust.
Every Odin is precision-trued with TRUDI by Berd, the world’s most advanced wheel truing system.
That means straighter wheels, tighter tolerances, and absolute stability — so you ride faster, corner harder, and never lose performance to wobble or flex.
⚡ Key Features:
-
Shimano 105 Di2 Electronic Shifting: Professional-grade electronic shifting with instant, precise gear changes.
-
Full Carbon Wheelset: 50mm deep carbon rims for superior aerodynamics and reduced weight.
-
Full Carbon Frame & Fork: Ultra-lightweight Toray T800 carbon construction.
-
24-Speed Drivetrain (2×12): Perfect gear ratios for any terrain with 50/34T crankset and 11-34T cassette.
-

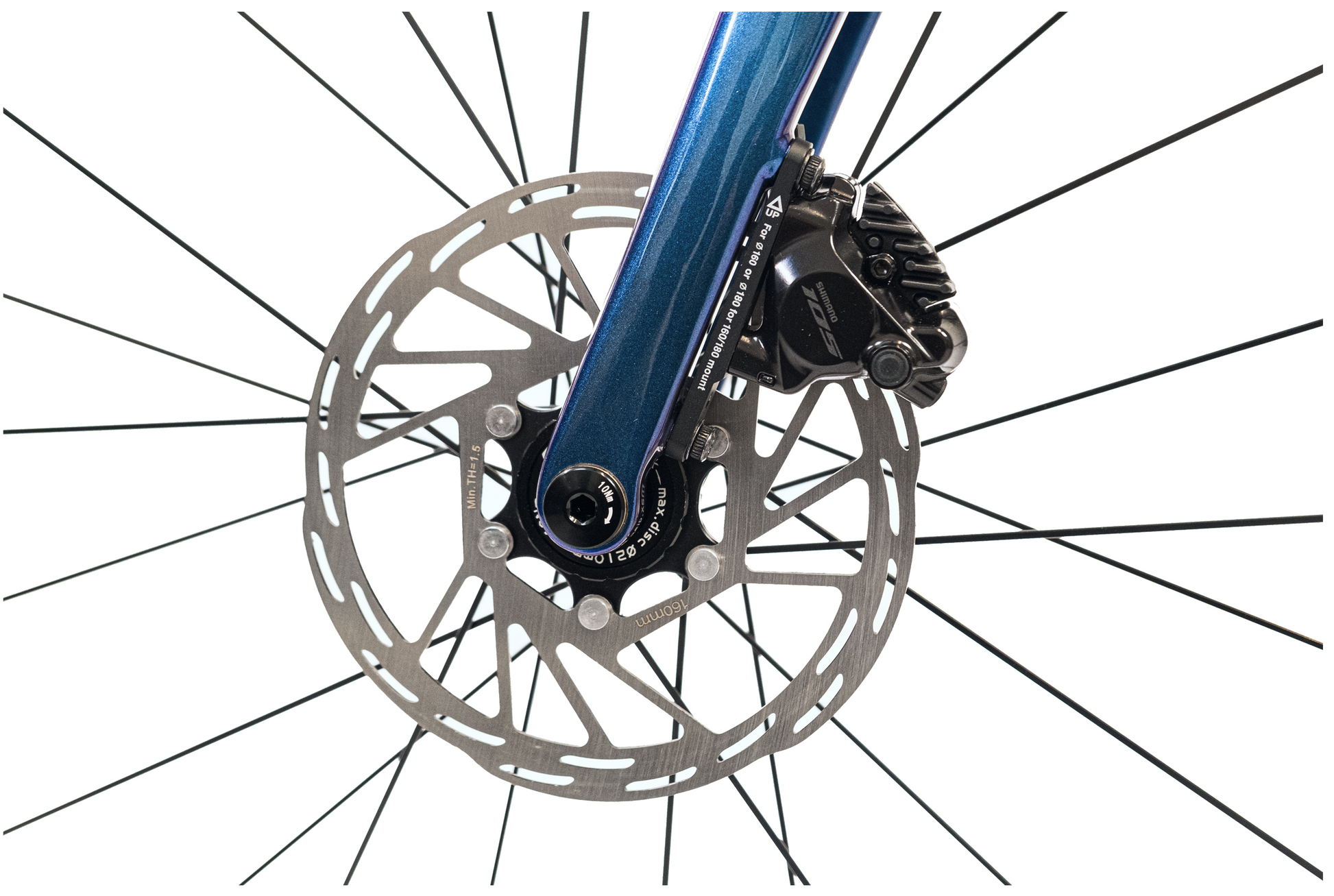

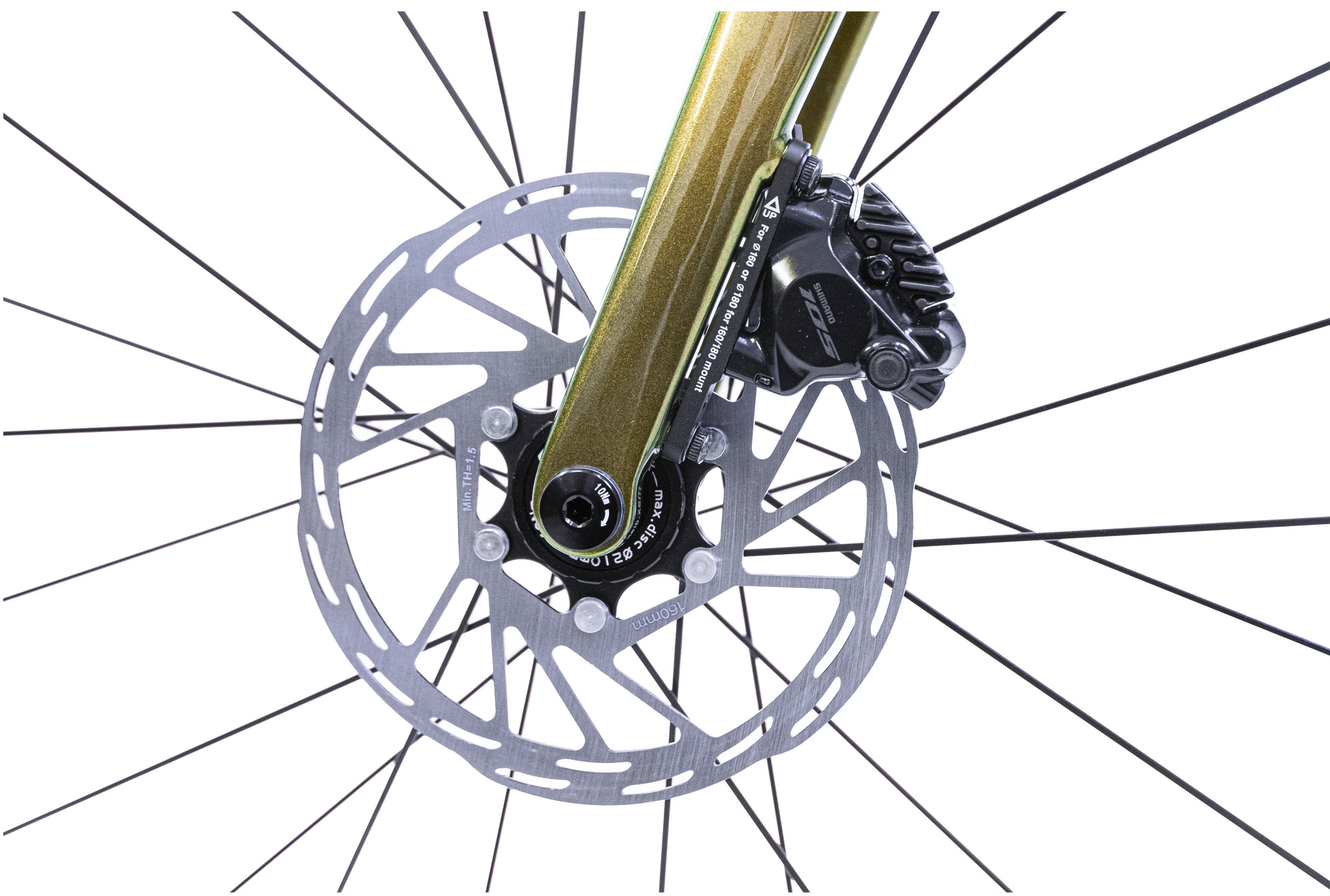

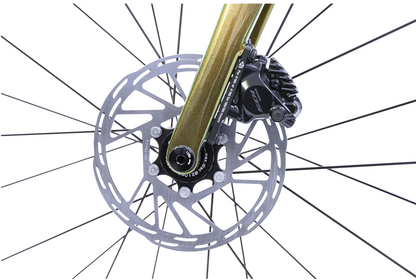

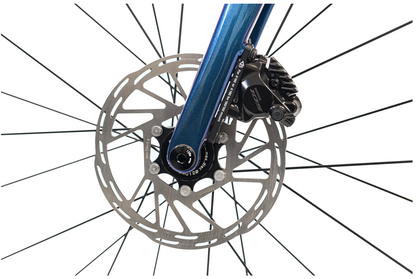

Hydraulic Disc Brakes: Shimano 105 BR-R7170 for consistent, powerful stopping in all conditions.
-
Only 7.8 kg (Complete Bike): Ultimate lightweight performance for speed and climbing.
📐 Geometry & Fit:
Available in sizes XS–XL — covering riders from 156 cm to 200 cm.
📦 What's Included:
-
RINOS Odin 6.1 Complete Bike (7.8 kg)
-
Shimano BT-DN300 Battery & EW-EC300 Charging Cable
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
Serious riders seeking the ultimate performance upgrade with carbon wheels and electronic shifting
-
Competitive racing, criteriums, and high-performance training
-
Cyclists demanding the lightest, most aerodynamic setup possible
🔍 Tech Specs Summary:
-
Frame/Fork: Rinos Toray T800 Carbon
-
Groupset: Shimano 105 Di2, 24-Speed (2×12)
-

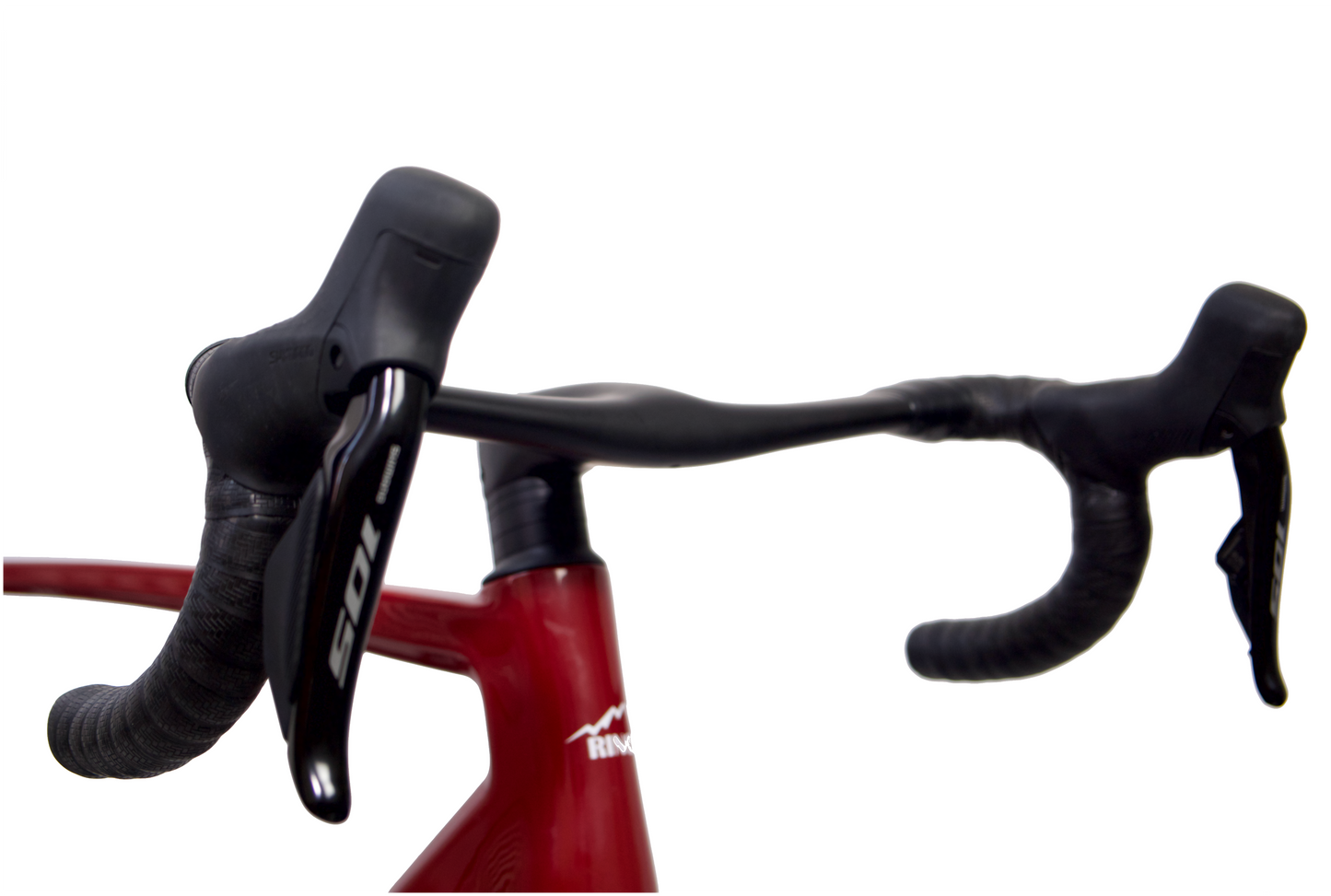

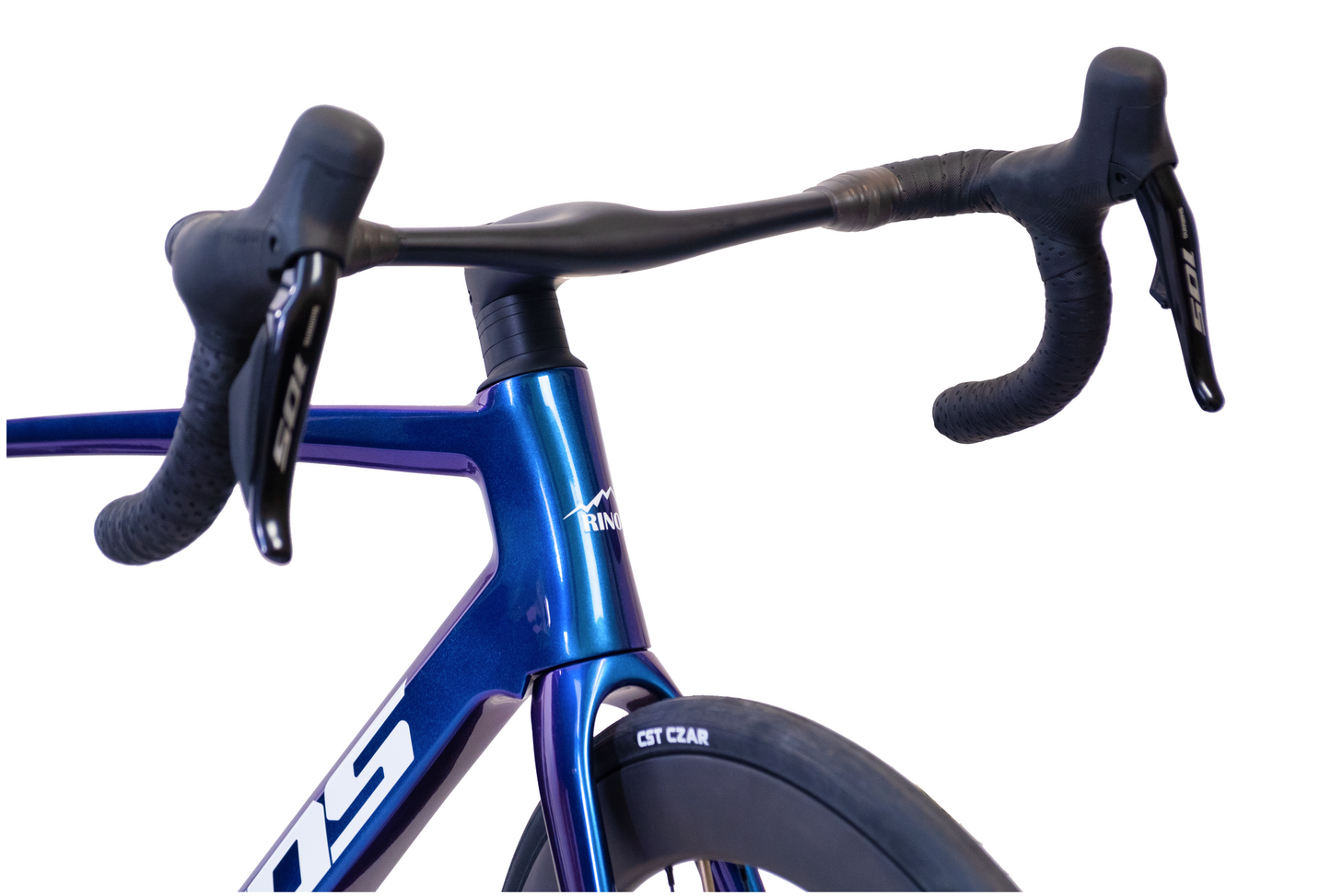

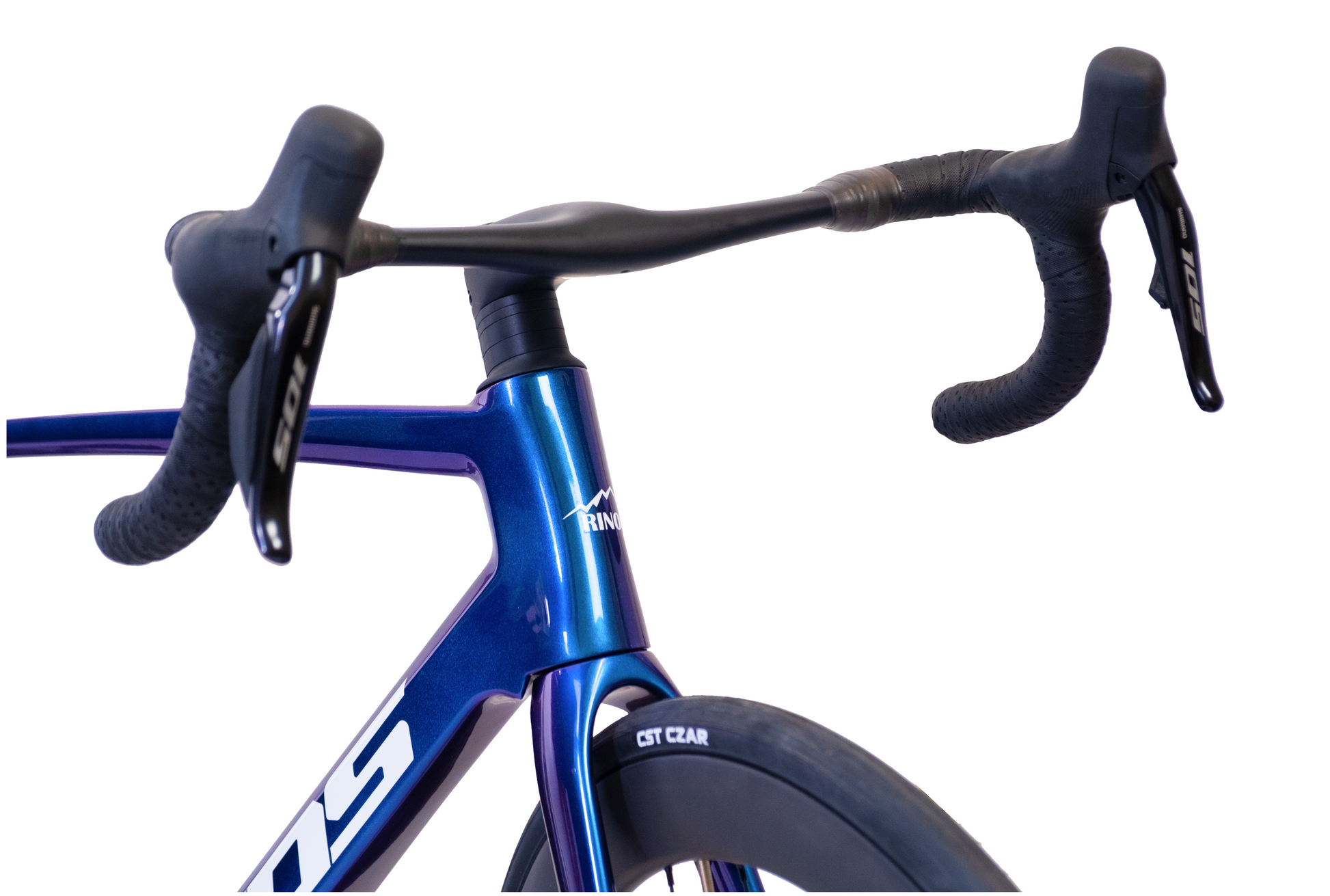

Shifters: Shimano ST-R7170
-
Brakes: Shimano BR-R7170 Hydraulic Disc
-

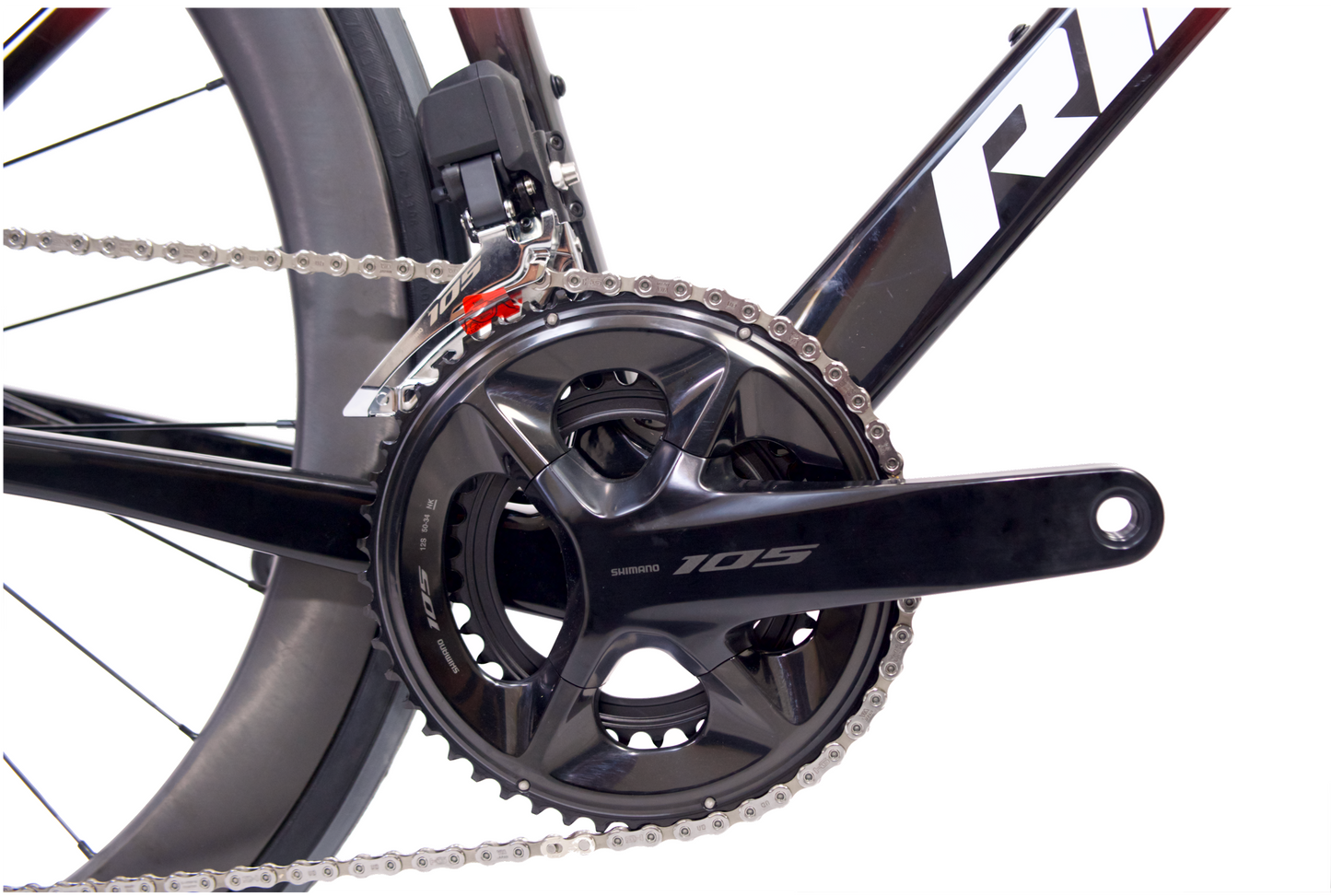

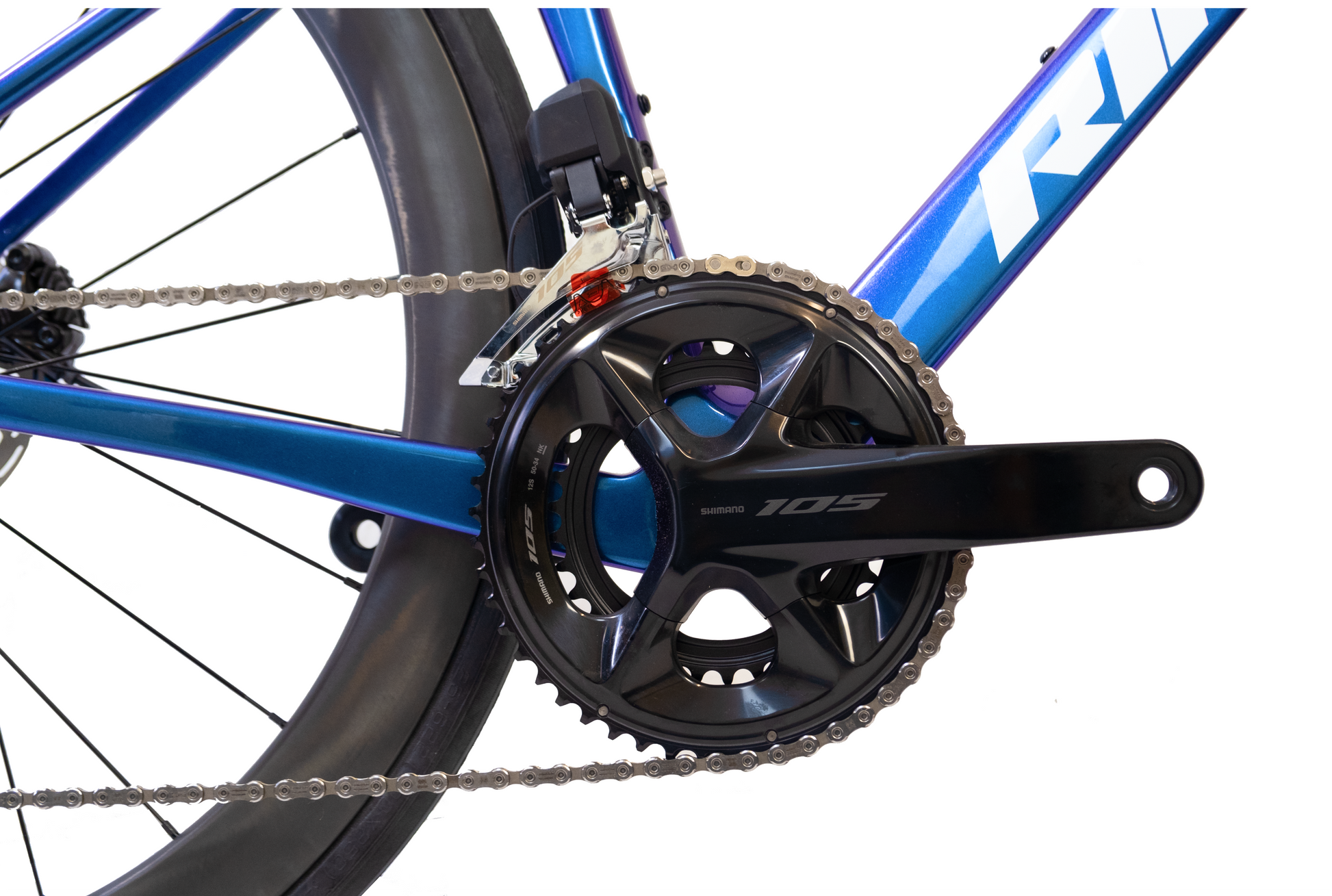

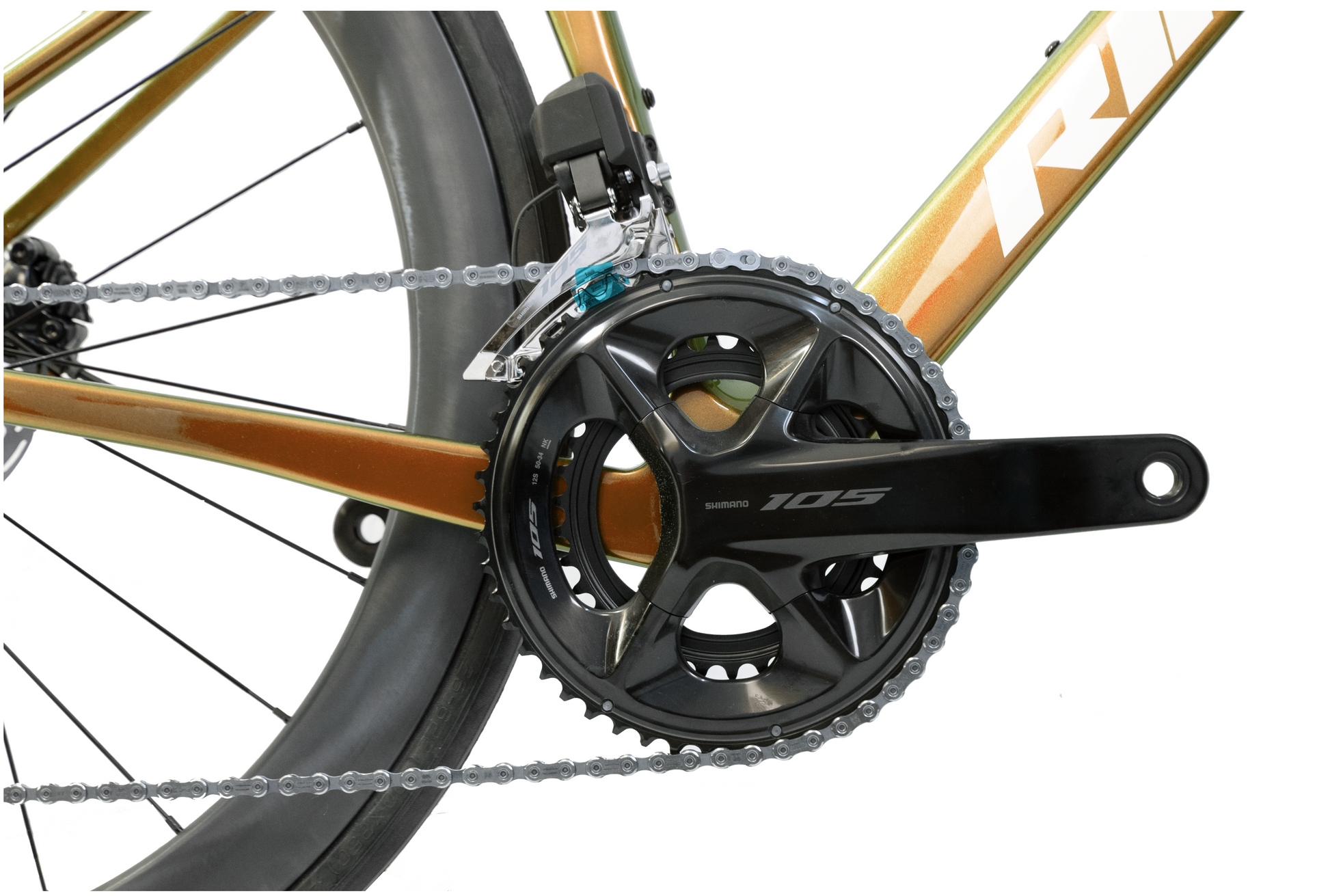

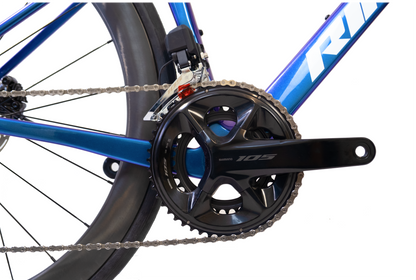

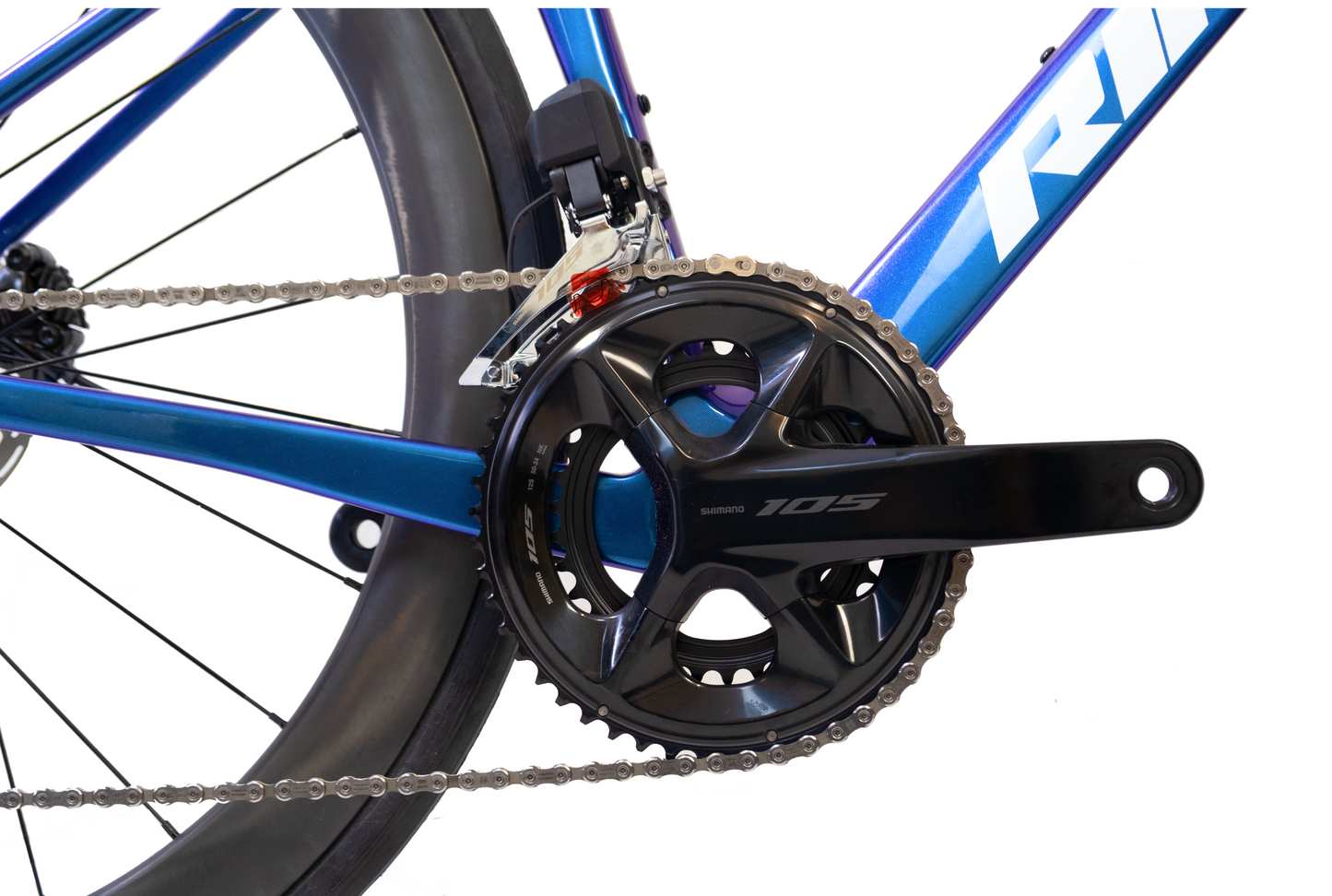

Crankset: Shimano FC-R7100 50/34T
-

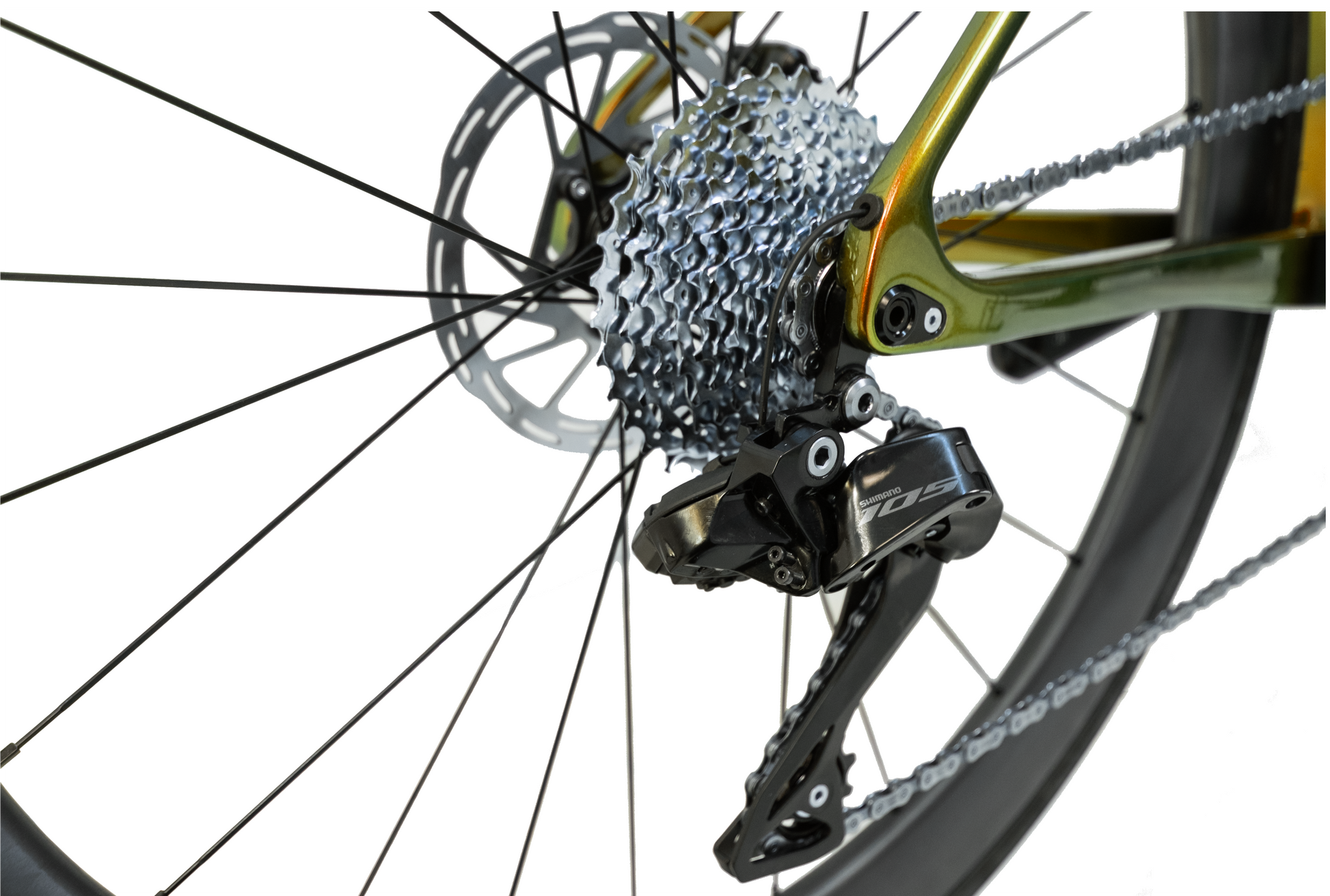

Cassette: Shimano 11-34T CS-R7101, 12-Speed
-
Wheels: Carbon 700C × 24H, 50mm Deep
-
Tyres: CST 700×25C (Presta Valve 80mm)
-

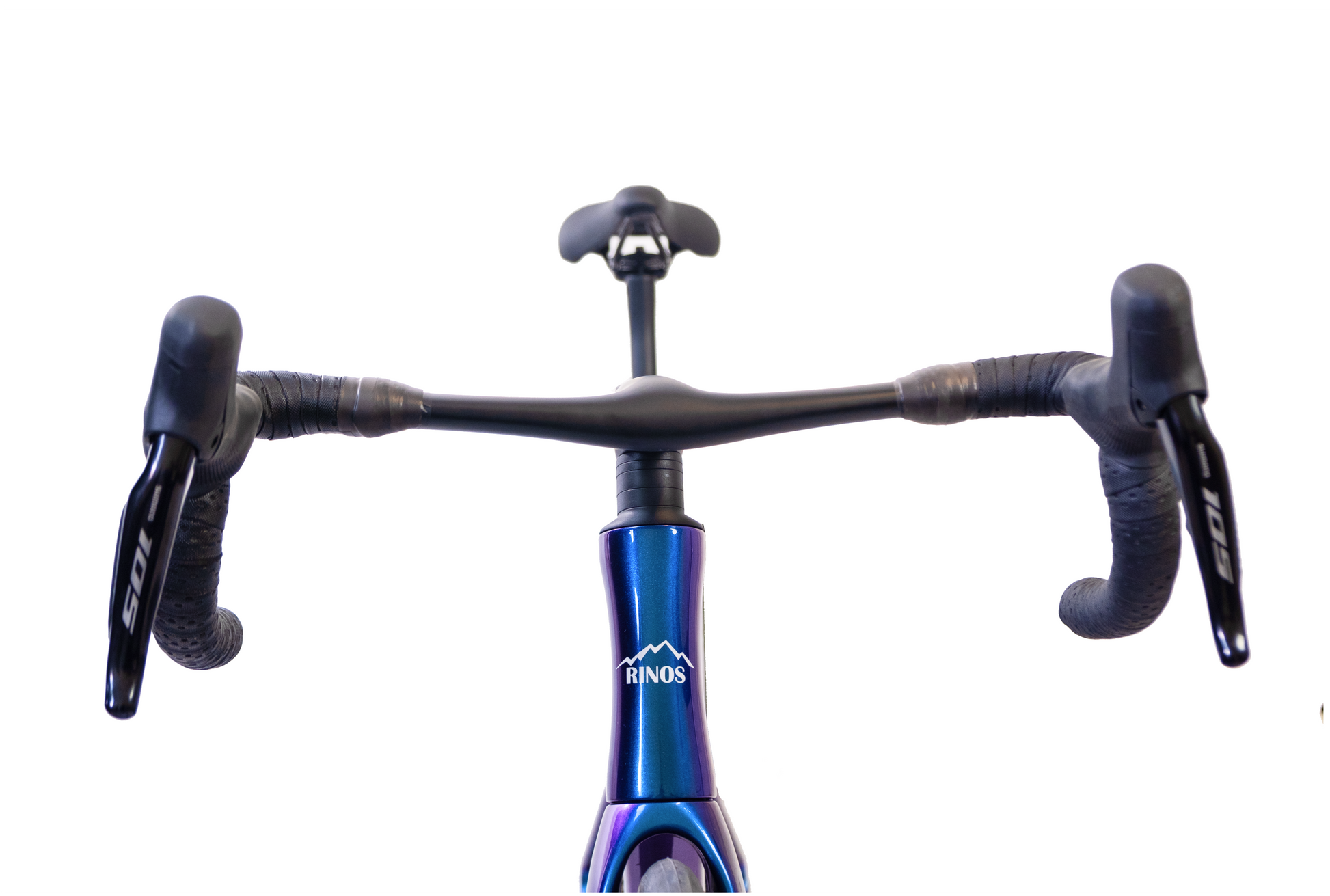

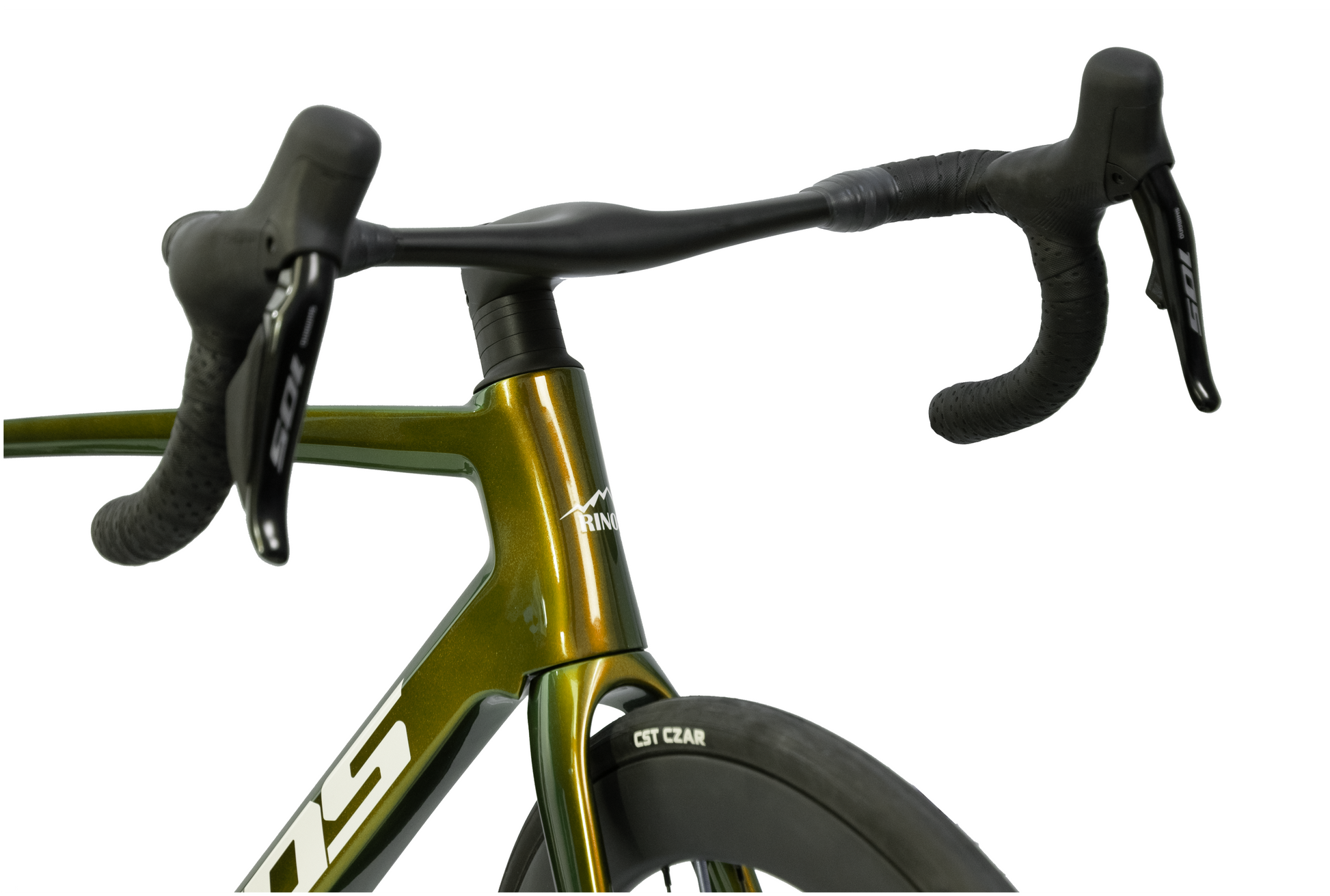

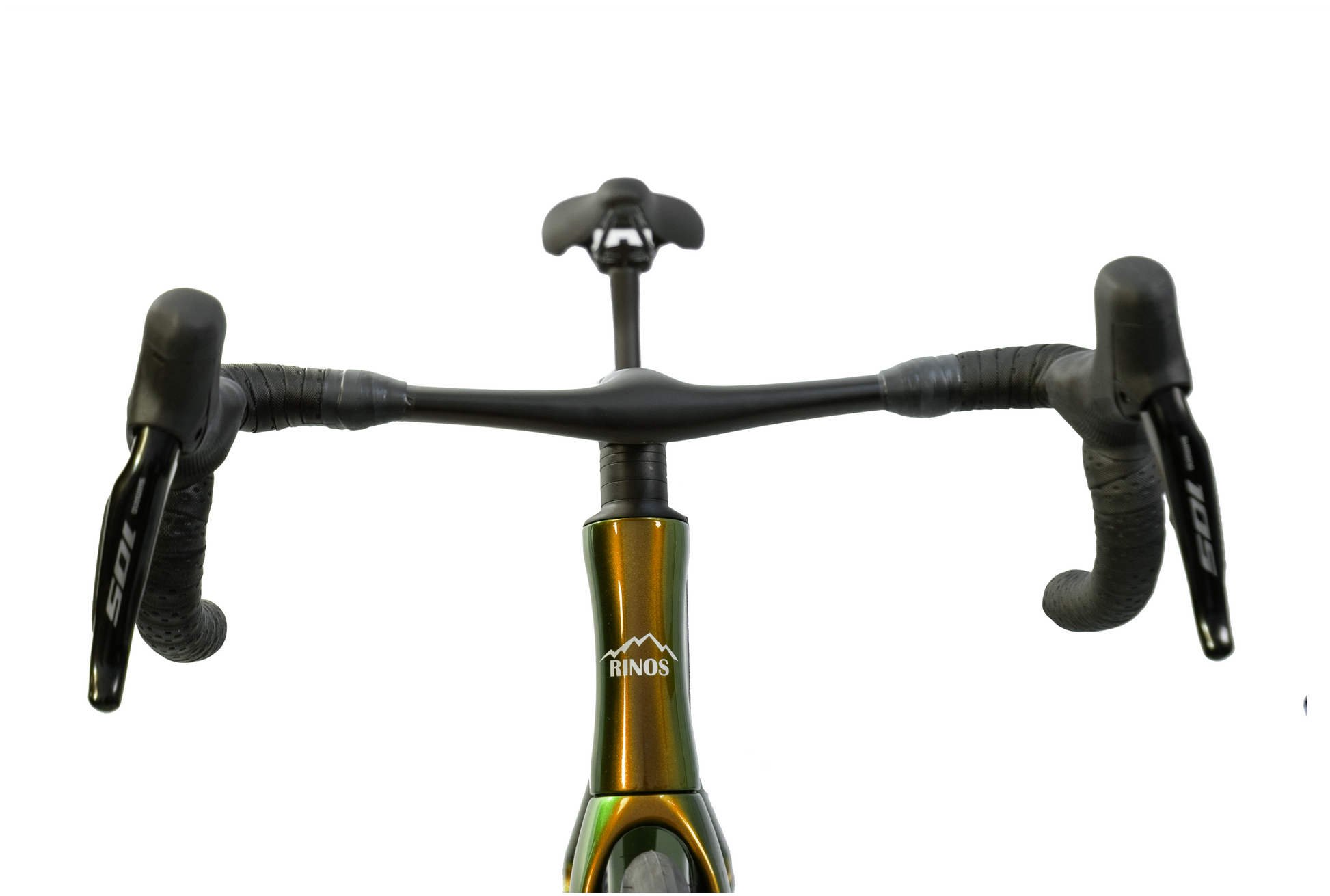

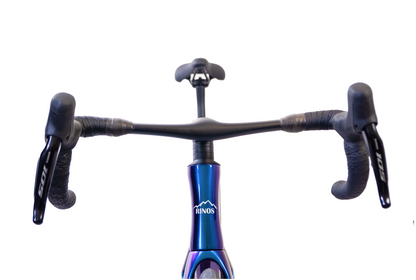

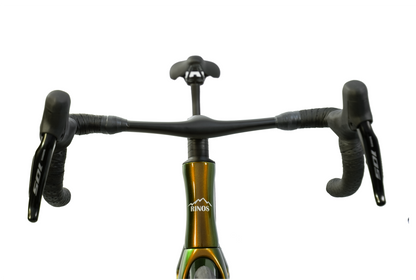

Handlebar: Rinos Carbon 400/420 mm (size-dependent)
-
Stem: 80/90/100/110 mm (size-dependent)
-
Seatpost: Rinos Carbon 27.2 mm
-
Weight: 7.8 kg (Bike), 13.8 kg (Shipping)
-
Battery: Shimano BT-DN300, 1000 km range, 2-hour charge
📘 Full Technical Specifications
| Frame / Fork | Rinos Toray T800 Carbon |
|---|---|
| Groupset | Shimano 105 Di2, 24-Speed (2×12) |
| Shifters | Shimano ST-R7170 |
| Rear Derailleur | Shimano RD-R7150 |
| Front Derailleur | Shimano FD-R7150 |
| Brakes | Shimano BR-R7170 Hydraulic Disc |
| Crankset | Shimano FC-R7100 50/34T |
| Cassette | Shimano 11-34T CS-R7101, 12-Speed |
| Chain | Shimano CN-M7100 12-Speed |
| Wheels | Carbon 700C × 24H × 14G |
| Rims | Carbon 50mm Deep |
| Tyres | CST 700×25C (Presta Valve 80mm) |
| Handlebar | Rinos Carbon 400/420 mm |
| Stem | 80/90/100/110 mm (varies by size) |
| Seatpost | Rinos Carbon 27.2 mm |
| Headset | Rinos Aluminum 1-1/8" |
| Saddle | Rinos |
| Battery | Shimano BT-DN300 |
| Charging Cable | Shimano EW-EC300 |
| Battery Life | 1000 km range, 2-hour charge |
| Accessories Included | Tools, User Manual |
| Weight (Bike) | 7.8 kg |
| Shipping Weight | 13.8 kg |
| Colors | Red/Black, Metal Blue, Chameleon Gold |
| Sizes / Rider Height | XS: 156–165 cm S: 166–172 cm M: 175–184 cm L: 185–193 cm XL: 194–200 cm |
Rinos Odin Sizing Recommendations

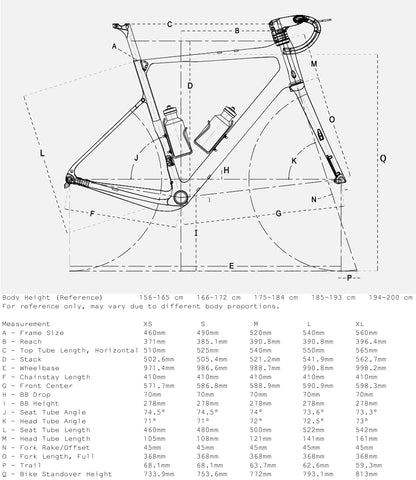

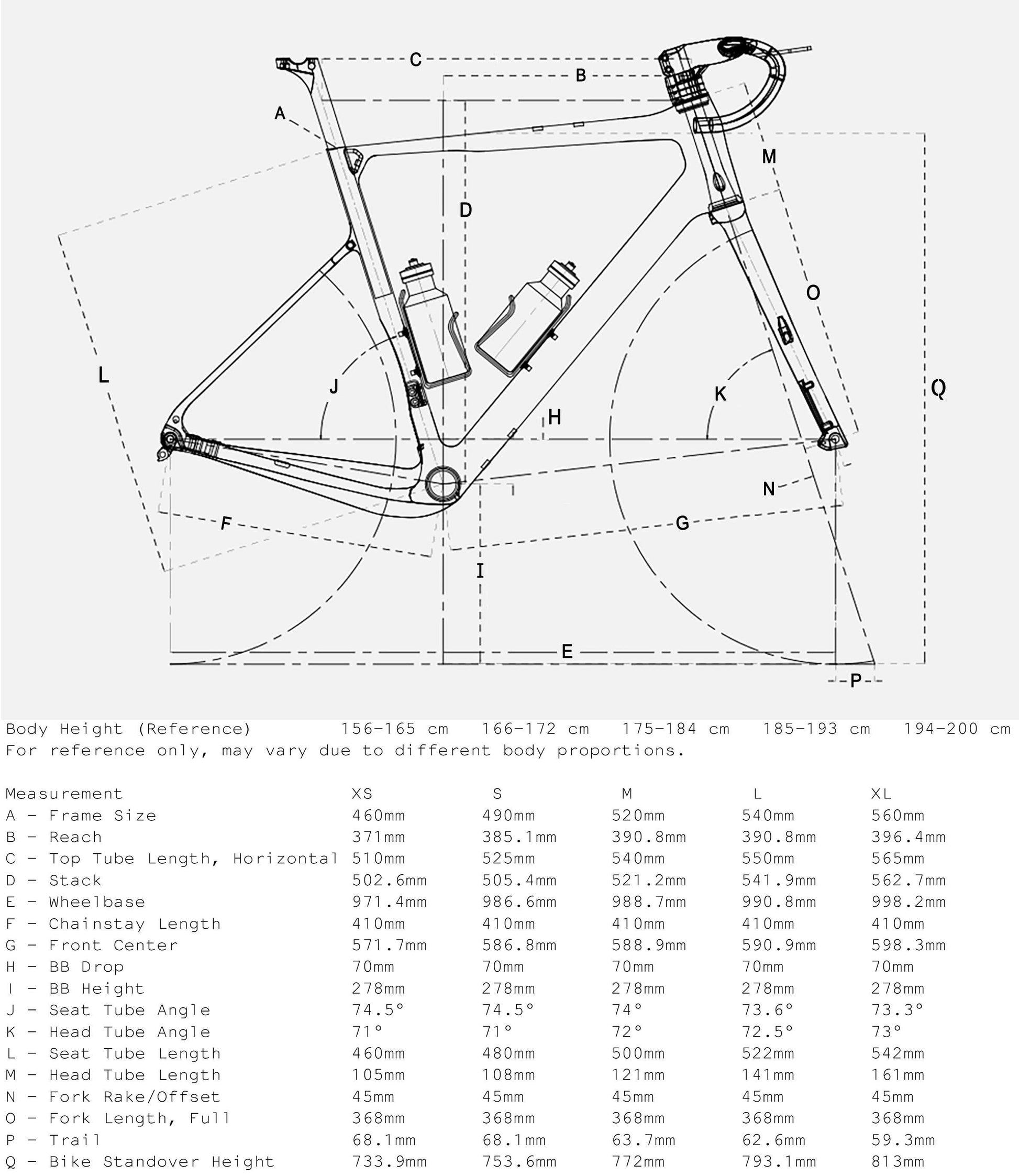

Geometry & Sizing Details
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height (Reference) | 152–165 cm | 166–172 cm | 175–184cm | 185–193 cm | 194–200 cm |
| For reference only, may vary due to different body proportions. | |||||
| A – Frame Size | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
| B – Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| C – Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm |
| D – Top Tube Length, Horizontal | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm |
| E – Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm |
| F – Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm |
| G – Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| H – Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm |
| I – BB Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| J – BB Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| K – Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
| L – Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° |
| M – Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm |
| N – Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm |
| Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm |
| O – Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| P – Fork Length, Full | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
| P – Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm |
Engineered for Endurance
Every frame undergoes rigorous testing to ensure reliability you can depend on.
Built Different
Our approach to frame construction prioritizes long-term durability through careful material selection and precise engineering.
