tire size
25C

gear shifter
Shimano Ultegra Di2

weight
7.6

frame material
Full Carbon
⚡ Key Features:
-
Shimano Ultegra Di2 Electronic Shifting: Top-tier electronic shifting with programmable hood buttons and satellite shifter compatibility for ultimate control.
-
Full Carbon Wheelset: 50mm deep carbon rims (1510g) for superior aerodynamics and significant weight reduction compared to aluminum.
-

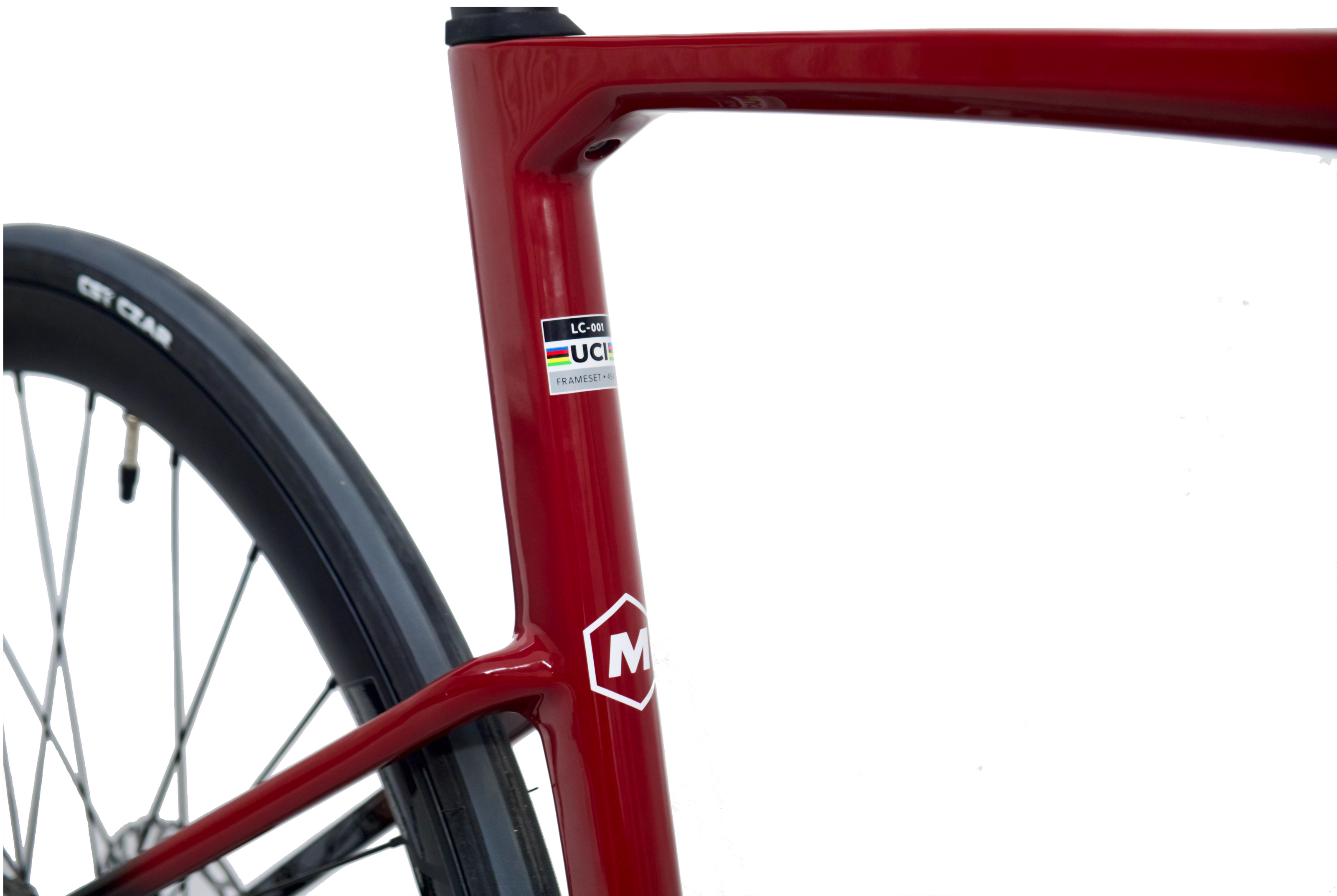

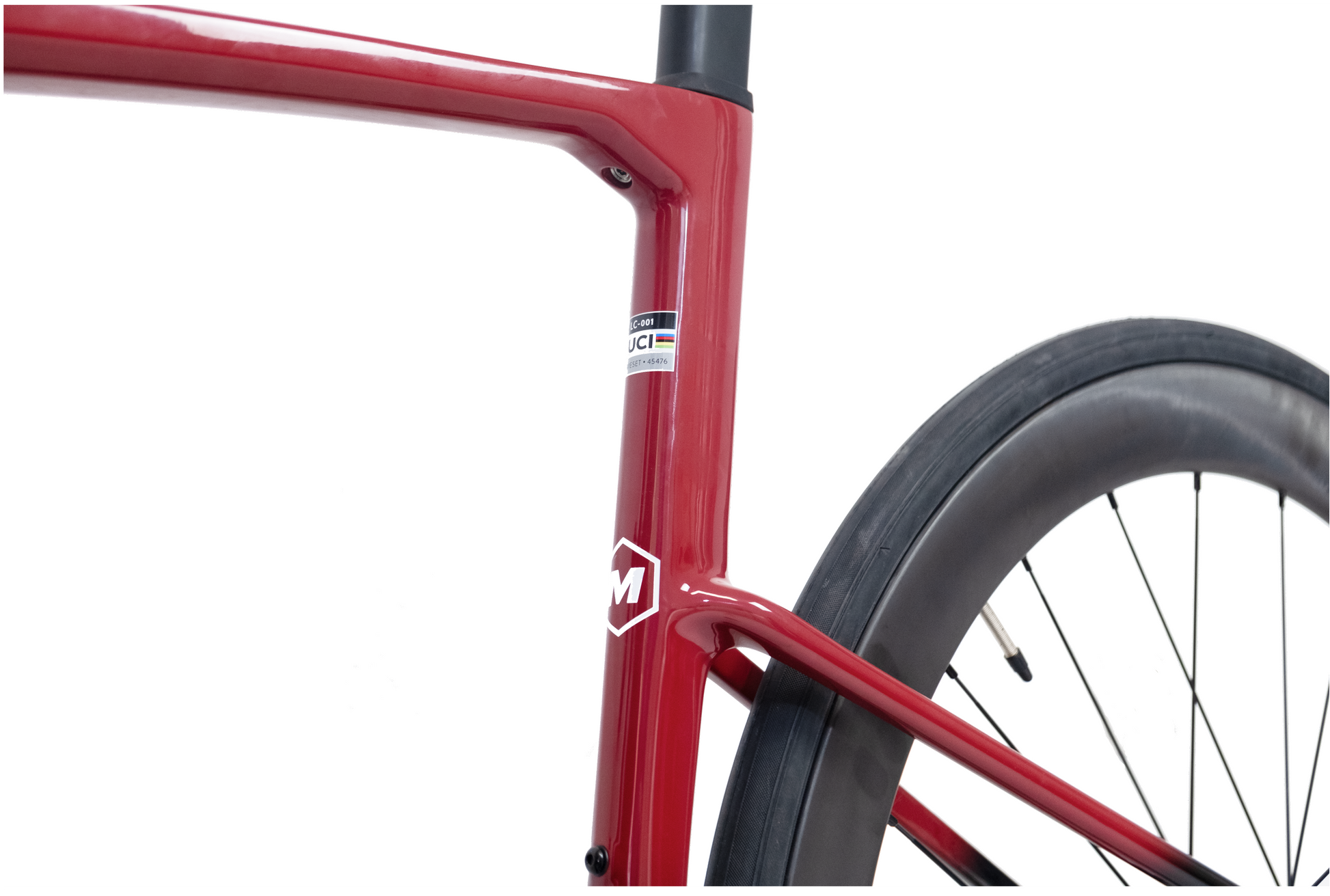

Full Carbon Frame & Fork: Ultra-lightweight Toray T800 carbon construction—optimized for racing and triathlons.
-
24-Speed Drivetrain (2×12): Shimano Ultegra groupset with 50/34T crankset and 11-34T cassette for perfect gear ratios on any terrain.
-

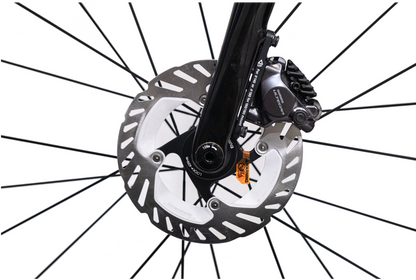

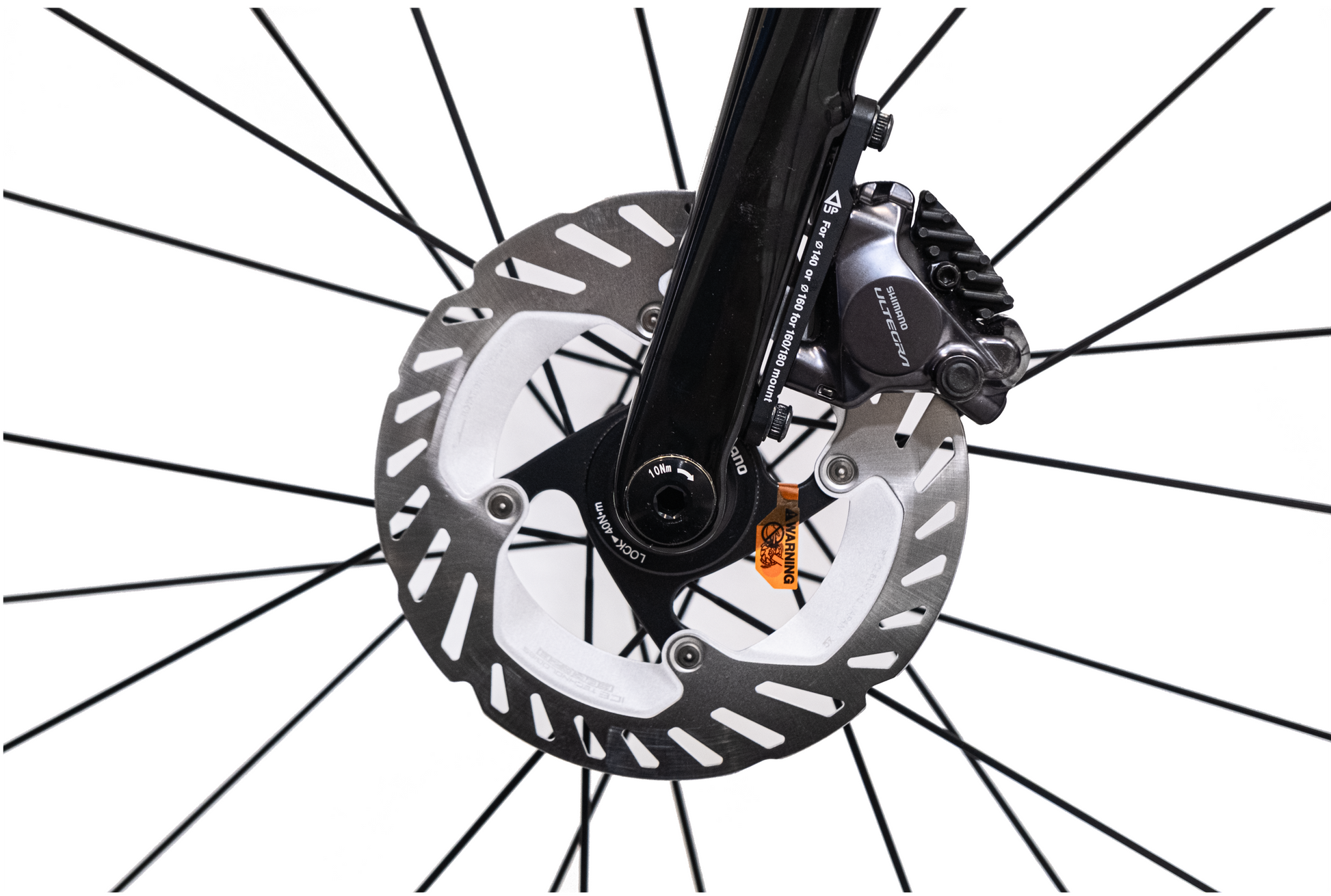

Hydraulic Disc Brakes: Shimano Ultegra BR-R8170 hydraulic disc brakes with integrated internal cable routing for consistent, powerful stopping.
-
Only 7.6 kg (Complete Bike): Race-ready weight for competitive performance in criteriums, road races, and time trials.
-
Integrated Battery: Battery housed in seatpost for full weather protection and clean aesthetics.
-
E-Tube App Compatible: Fully customizable shifting and button programming via Shimano's E-Tube Project app.
📐 Geometry & Fit:
Available in sizes XS–XL — covering riders from 156 cm to 200 cm.
📦 What's Included:
-

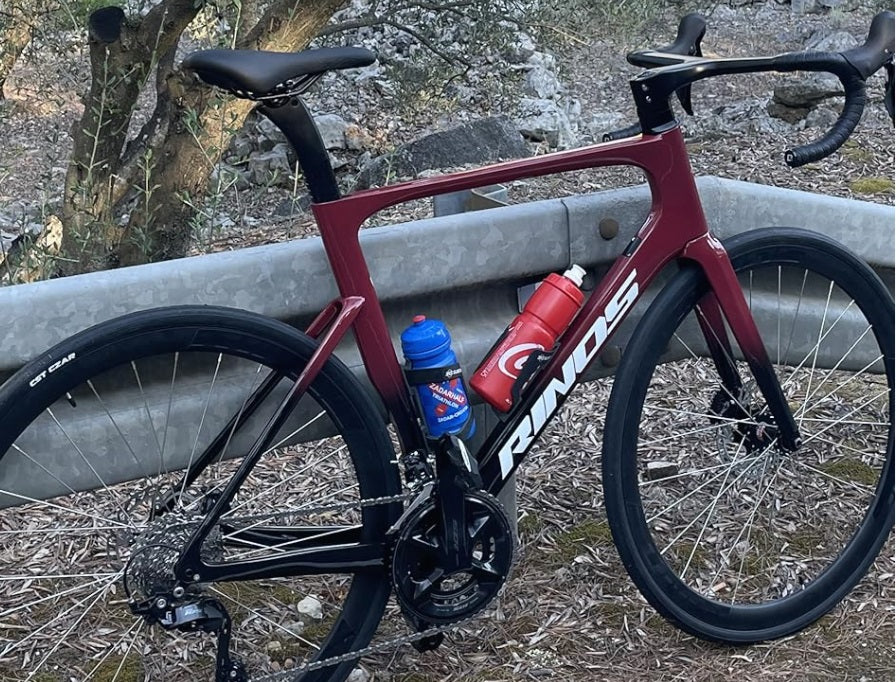

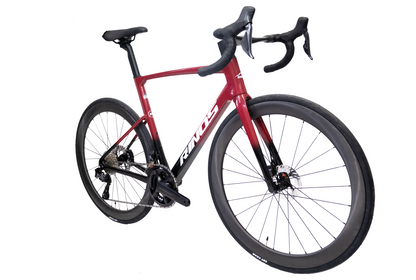

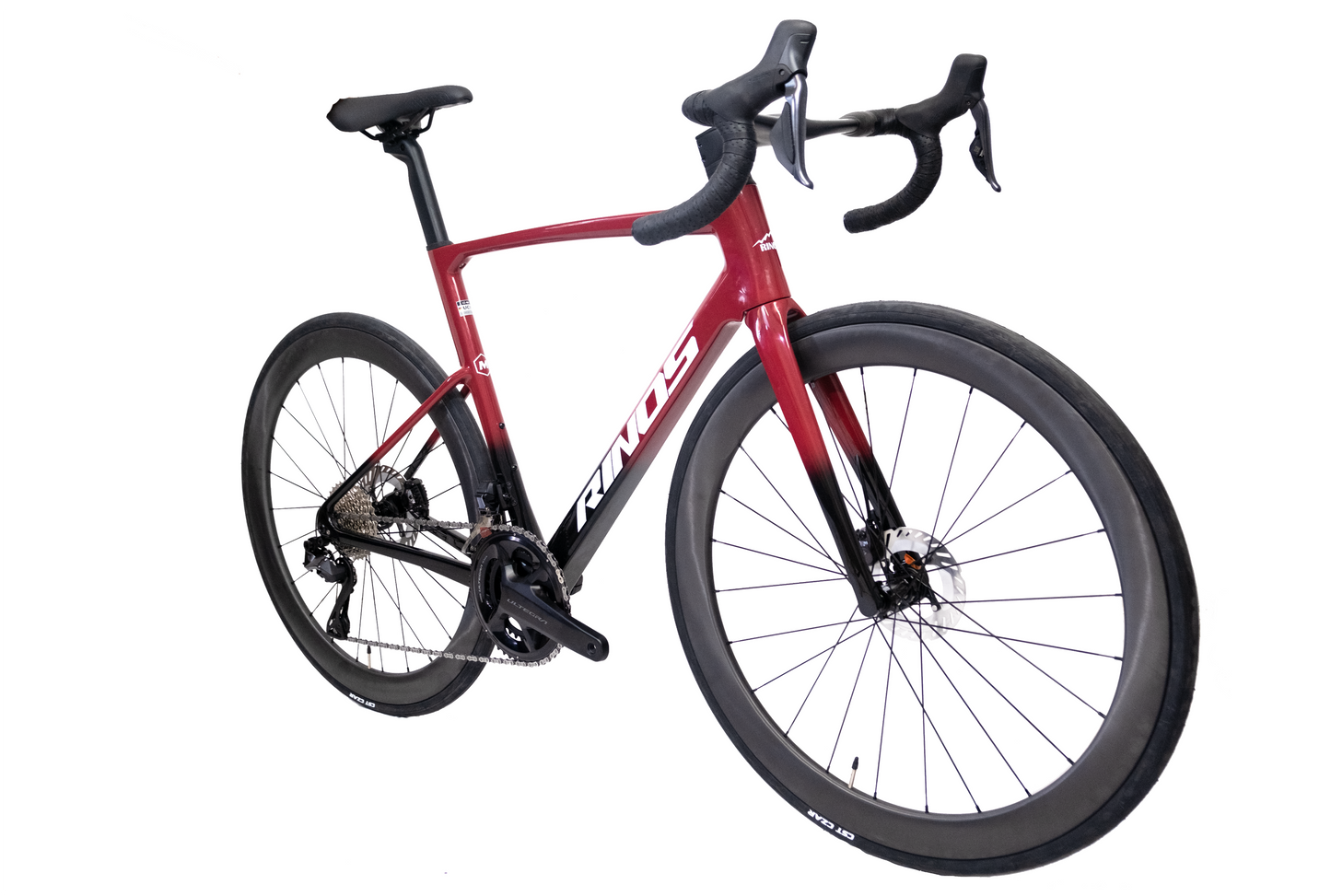

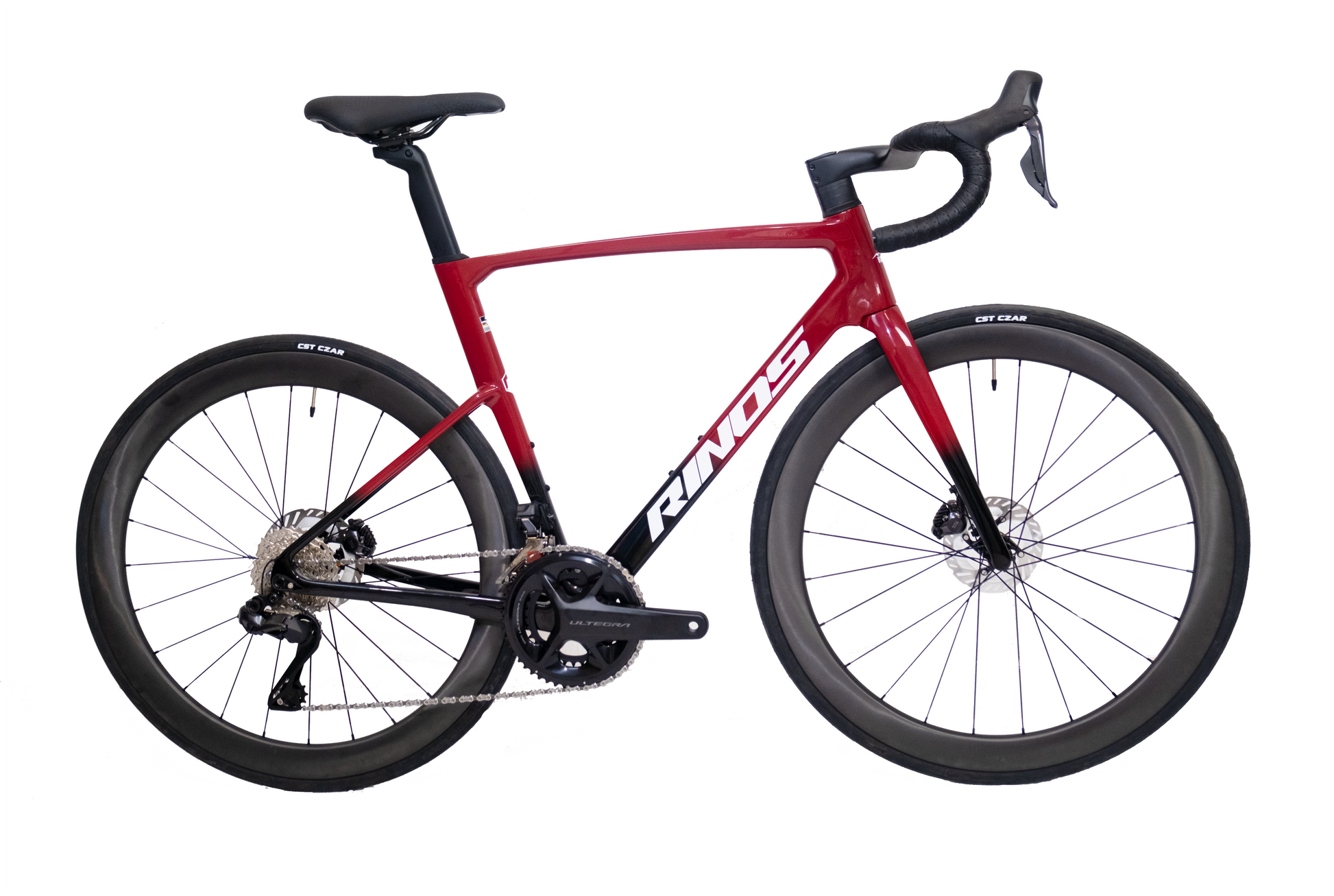

RINOS Odin 7.1 Complete Bike (7.6 kg)
-
Shimano BT-DN300 Battery & EW-EC300 Charging Cable
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
Elite riders and racers demanding professional-grade performance with Ultegra-level components
-
Competitive road racing, criteriums, time trials, and triathlon events
-
Cyclists seeking the ultimate combination of carbon wheels, electronic shifting, and race-optimized weight
-
Athletes who want programmable controls and satellite shifter compatibility for tactical racing advantages
🔍 Tech Specs Summary:
-
Frame/Fork: Rinos Toray T800 Carbon
-
Groupset: Shimano Ultegra Di2, 24-Speed (2×12)
-

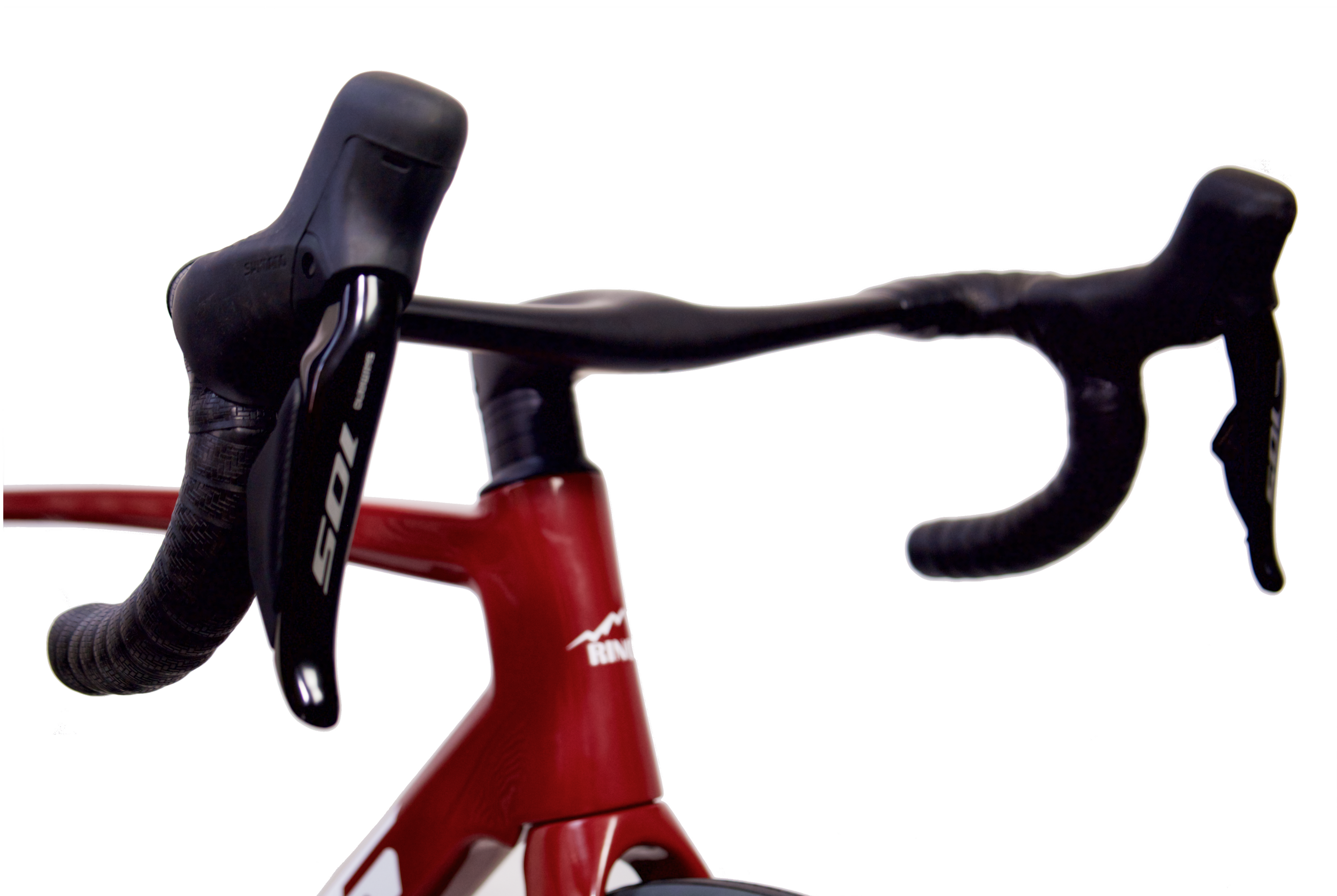

Shifters: Shimano ST-R8170 (with programmable hood buttons)
-

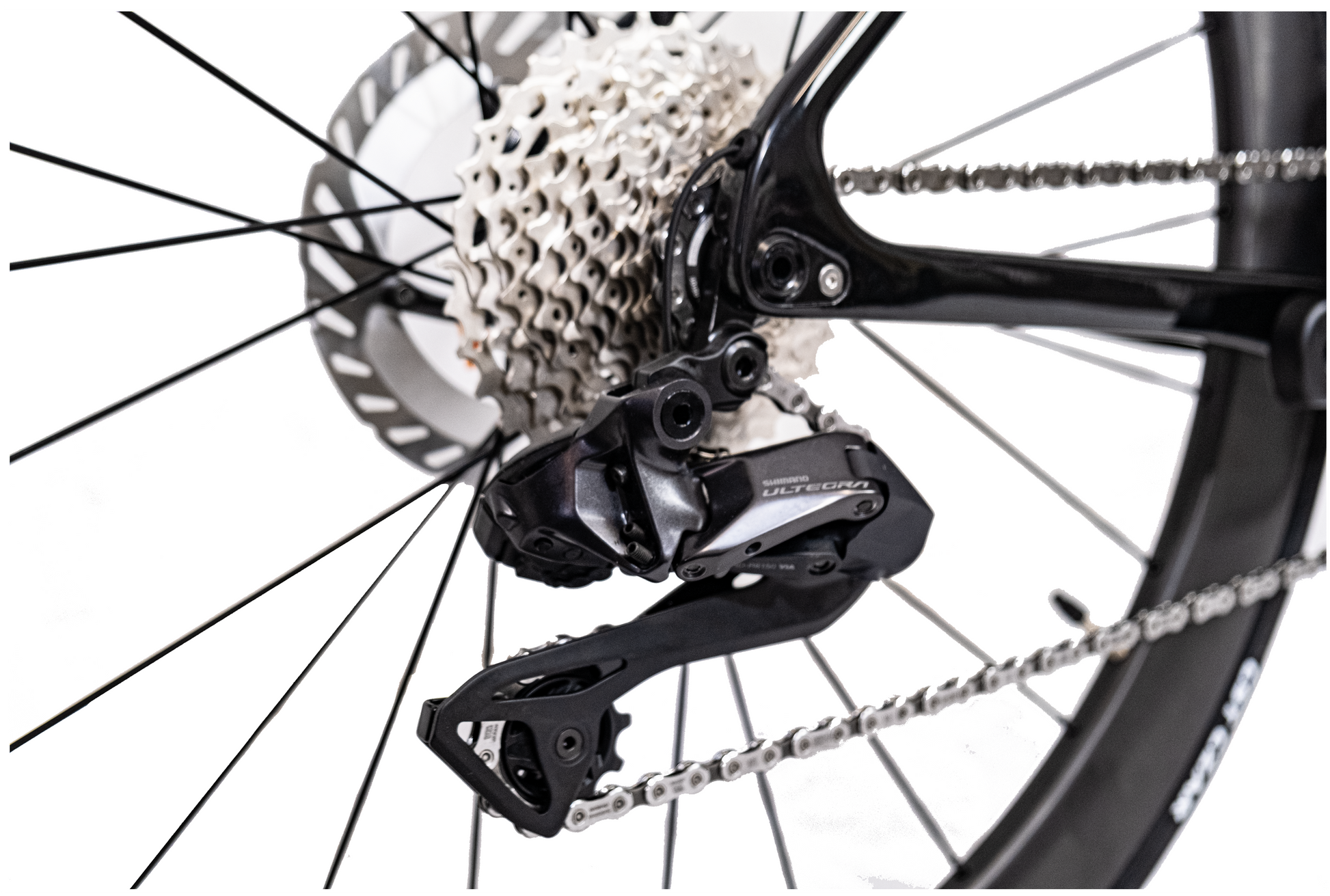

Rear Derailleur: Shimano RD-R8150
-
Front Derailleur: Shimano FD-R8150
-
Brakes: Shimano BR-R8170 Hydraulic Disc
-

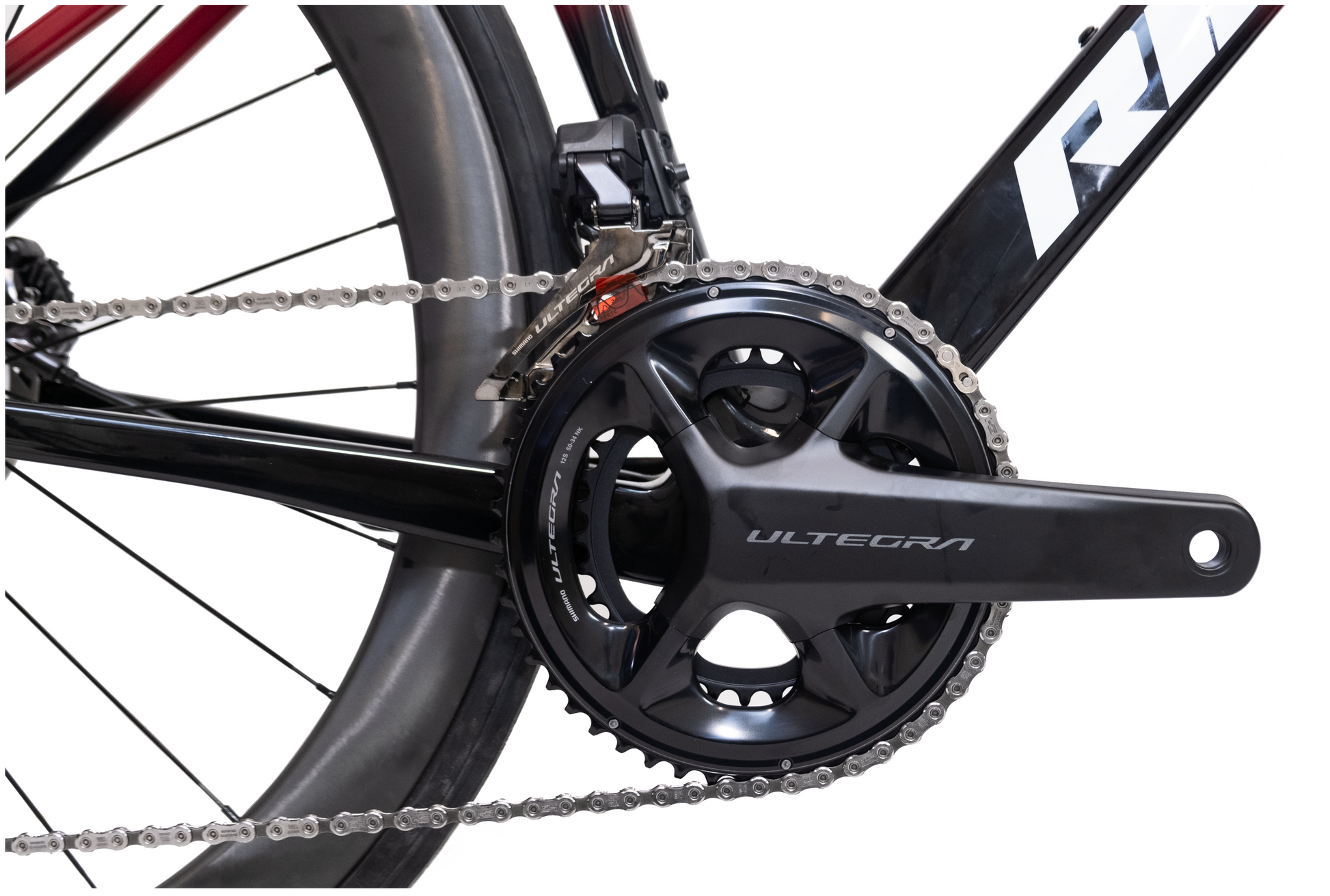

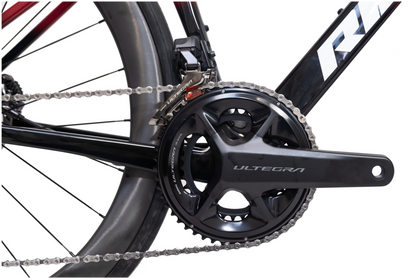

Crankset: Shimano FC-R8100 50/34T
-
Cassette: Shimano 11-34T CS-R8100, 12-Speed
-
Chain: Shimano CN-M8100 12-Speed
-
Wheels: Carbon 700C × 24H, 50mm Deep (approx. 1510g)
-
Tyres: CST 700×25C (Presta Valve 80mm)
-

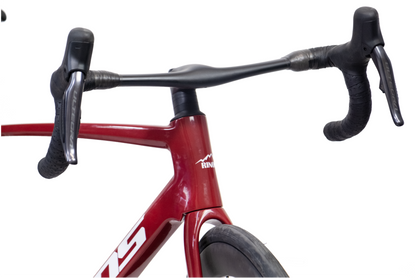

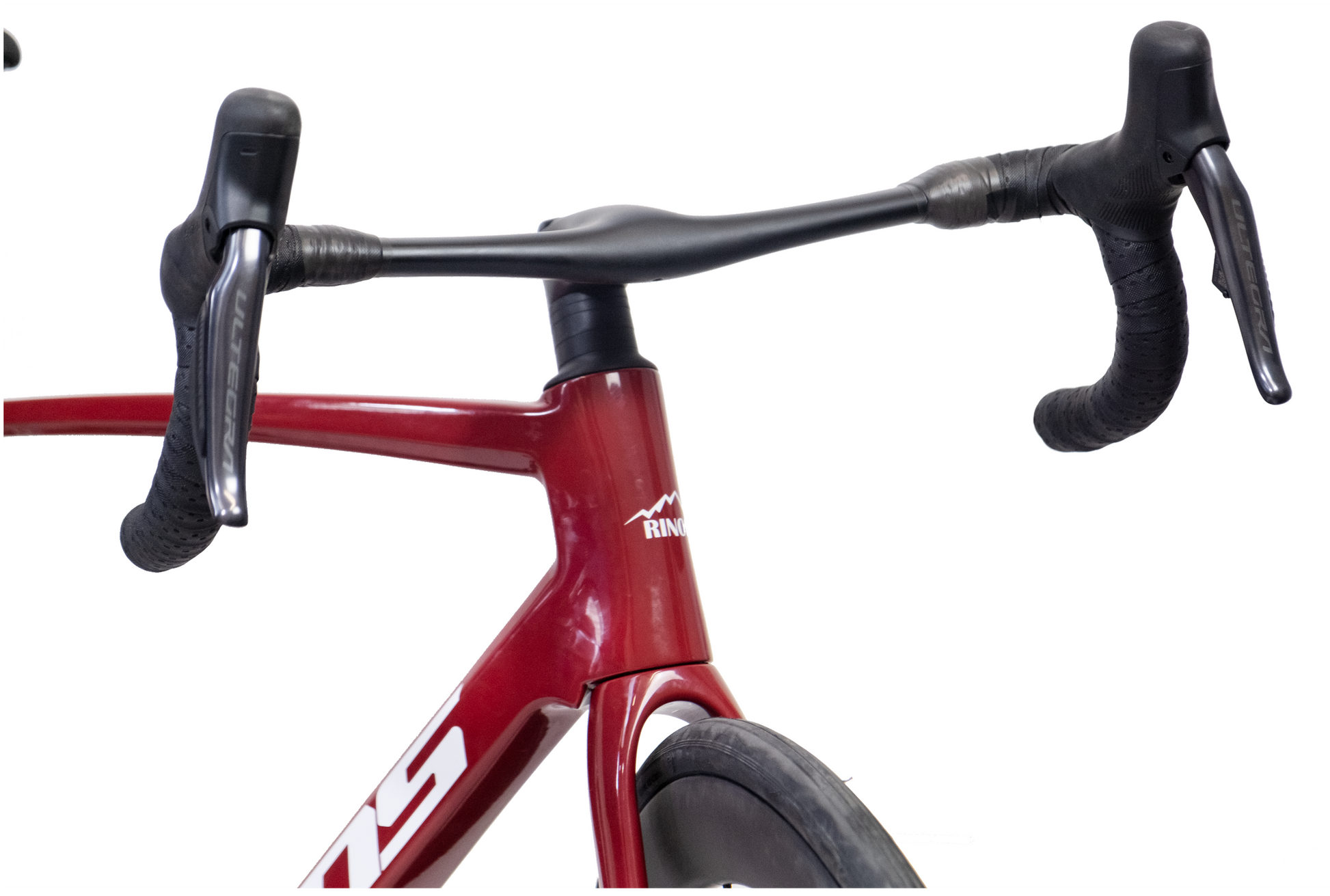

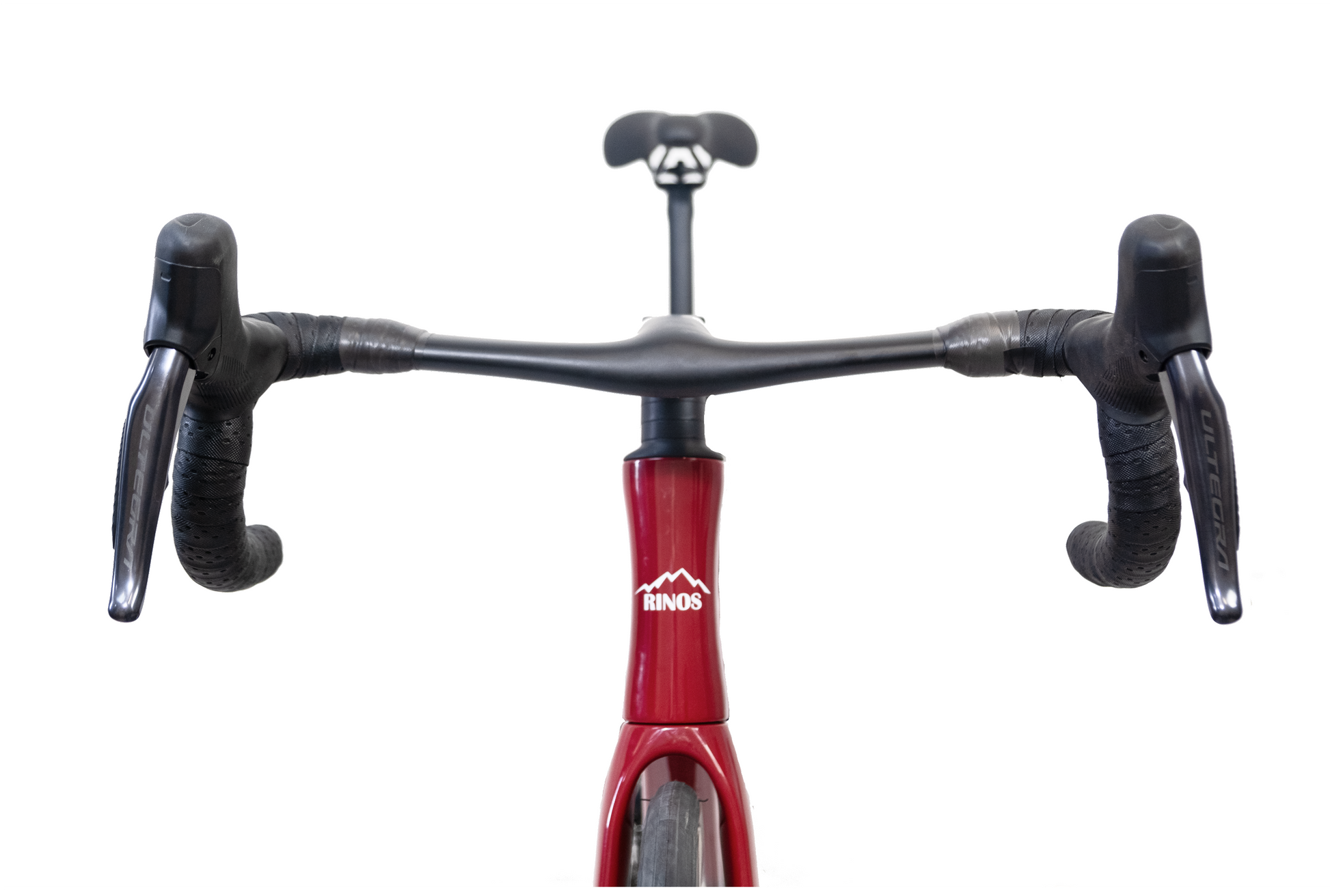

Handlebar: Rinos Carbon 400/420 mm (size-dependent)
-
Stem: 80/90/100/110 mm (size-dependent)
-
Seatpost: Rinos Carbon 27.2 mm (with integrated battery)
-
Weight: 7.6 kg (Bike), 13.8 kg (Shipping)
-
Battery: Shimano BT-DN300, 1000 km range, 2-hour charge
-
Colors: Red
🚀 Performance Advantages:
-
Carbon Wheels vs Aluminum: The 50mm carbon wheelset saves approximately 685g compared to standard 40mm aluminum wheels (1510g vs 2195g), dramatically improving acceleration and climbing.
-
Aerodynamic Efficiency: Deep-section carbon rims cut through air with less drag, increasing speed on flats and descents without additional effort.
-
Enhanced Stiffness: Carbon construction provides superior power transfer—every watt goes into forward motion rather than flex.
-
Vibration Damping: Carbon naturally absorbs road vibrations better than aluminum, reducing fatigue on long rides.
-
Programmable Controls: Ultegra Di2's hood buttons can control bike computers, accessories, or custom shift patterns via E-Tube app.
-
Satellite Shifter Ready: Add Shimano RS801 sprint, climbing, or aero remotes for additional shift points—perfect for time trials and tactical racing.
📘 Full Technical Specifications
Frame / Fork | Rinos Toray T800 Carbon |
---|---|
Groupset | Shimano Ultegra Di2, 24-Speed (2×12) |
Shifters | Shimano ST-R8170 (programmable hood buttons) |
Rear Derailleur | Shimano RD-R8150 |
Front Derailleur | Shimano FD-R8150 |
Brakes | Shimano BR-R8170 Hydraulic Disc |
Crankset | Shimano FC-R8100 50/34T |
Cassette | Shimano 11-34T CS-R8100, 12-Speed |
Chain | Shimano CN-M8100 12-Speed |
Wheels | Carbon 700C × 24H × 14G |
Rims | Carbon 50mm Deep (approx. 1510g) |
Tyres | CST 700×25C (Presta Valve 80mm) |
Handlebar | Rinos Carbon 400/420 mm |
Stem | 80/90/100/110 mm (varies by size) |
Seatpost | Rinos Carbon 27.2 mm (integrated battery housing) |
Headset | Rinos Aluminum 1-1/8" |
Saddle | Rinos |
Battery | Shimano BT-DN300 (integrated in seatpost) |
Charging Cable | Shimano EW-EC300 |
Battery Life | 1000 km range, 2-hour charge |
Compatibility | E-Tube Project app, Shimano RS801 satellite shifters |
Cable Routing | Fully integrated internal routing |
Accessories Included | Tools, User Manual |
Weight (Bike) | 7.6 kg |
Shipping Weight | 13.8 kg |
Colors | Red |
Sizes / Rider Height | XS: 156–165 cm S: 166–172 cm M: 175–184 cm L: 185–193 cm XL: 194–200 cm |
Rinos Odin Sizing Recommendations

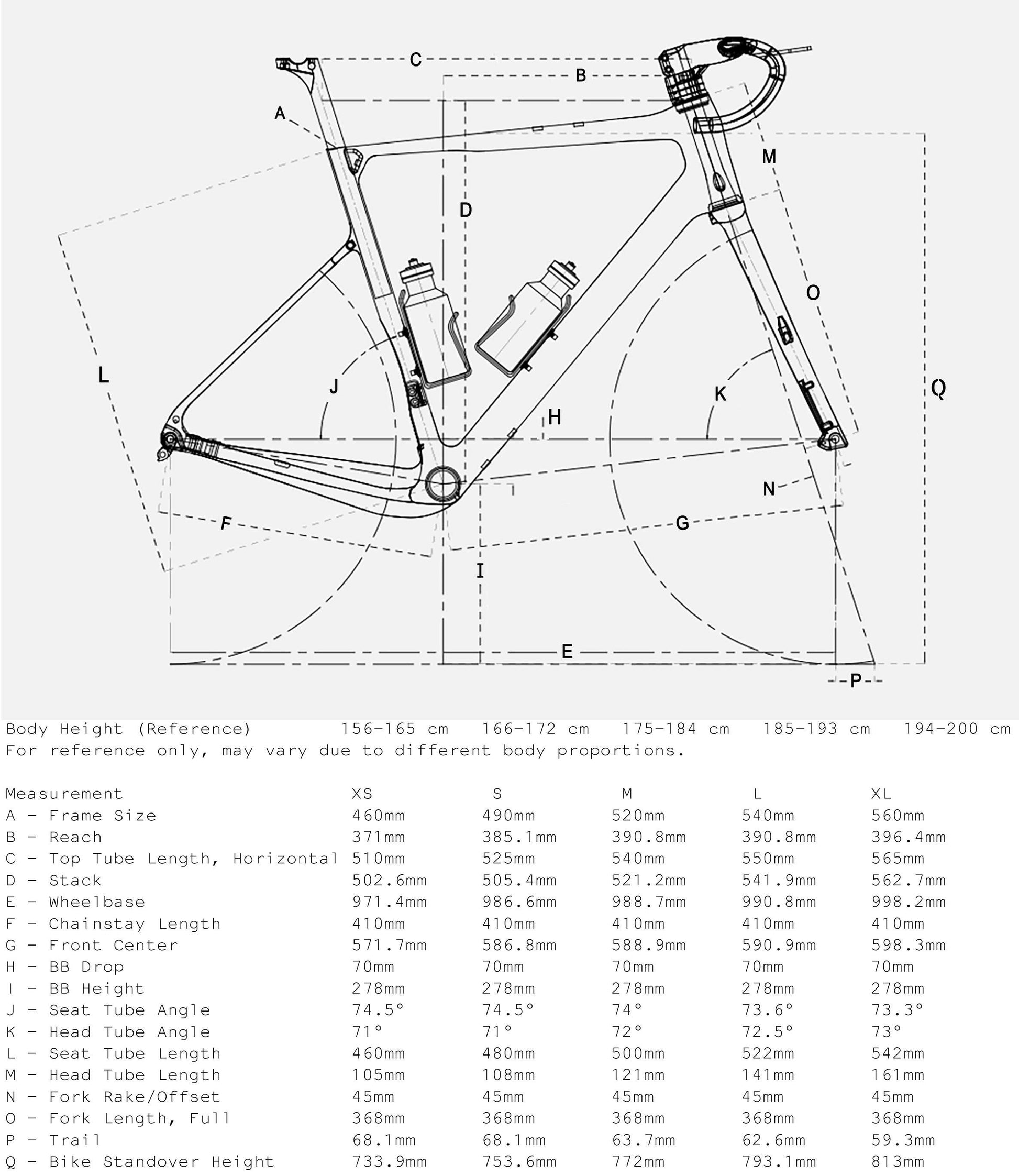

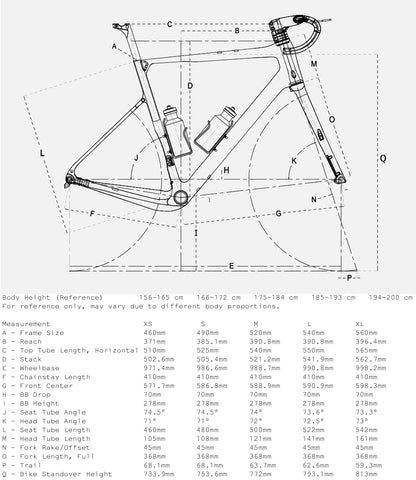

Geometry & Sizing Details

Measurement | XS | S | M | L | XL |
---|---|---|---|---|---|
Body Height (Reference) | 152–165 cm | 166–172 cm | 175–184cm | 185–193 cm | 194–200 cm |
For reference only, may vary due to different body proportions. | |||||
A – Frame Size | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
B – Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
C – Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm |
D – Top Tube Length, Horizontal | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm |
E – Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm |
F – Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm |
G – Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
H – Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm |
I – BB Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
J – BB Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
K – Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
L – Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° |
M – Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm |
N – Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm |
Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm |
O – Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
P – Fork Length, Full | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
P – Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm |
