Model: Atlas5.0
Manufacturer: RINOS
Color: Titan
Wheel size: 28 inch (700c)
Frame size: XS / S / M / L / XL / XXL
Item Weight: ~10.3 kg (varies by frame size)
Delivery weight: 13.8 kg
Frame: Rinos, Titanium
Fork: Rinos, Toray T800 Carbon
Handlebar (Steering): Rinos, Carbon, 420/440 × 28.6 mm
Headset: Rinos, Alu, 1-1/8" (28.6 × 52 × 52 × 39.8 mm)
Seat Post: Rinos, 31.6 × 400 mm Carbon
Saddle: ROCKBROS
Gear Shifter: Shimano GRX 820 ST-RX820/BR-RX820, 24 speeds
Rear Derailleur: Shimano GRX RD-RX820
Brakes: Shimano GRX 820 ST-RX820/BR-RX820 Hydraulic Brakes
Cassette: Shimano CS-R8100 11-34T
Crankset: Shimano GRX FC-RX820 48-31T
Chain: Shimano (12 speed)
Wheels: Rinos 28" (700C × 28H × 14G), 38 mm
Rims: Alu 700C × 14G × 28H F/V, 14 × 38 mm (Fits up to 50C)
Hub: Novatec 28H × 14G
Tires: CST 700 × 40C Skin Wall (Presta 60 mm)
Accessories: Tools, User Manual
Rinos Atlas Sizing Guide
Use the chart below to compare seat tube lengths and find the best fit based on your height. Factors like inseam and personal preference can also affect final choice.
XS (48 cm) ~150–165 cm
S (51 cm) ~165–175 cm
M (54 cm) ~175–183 cm 1 on stock
L (55.5 cm) ~183–188 cm made on demand
XL (57 cm) ~188–193 cm made on demand
XXL (60 cm) 193 cm and above made on demand

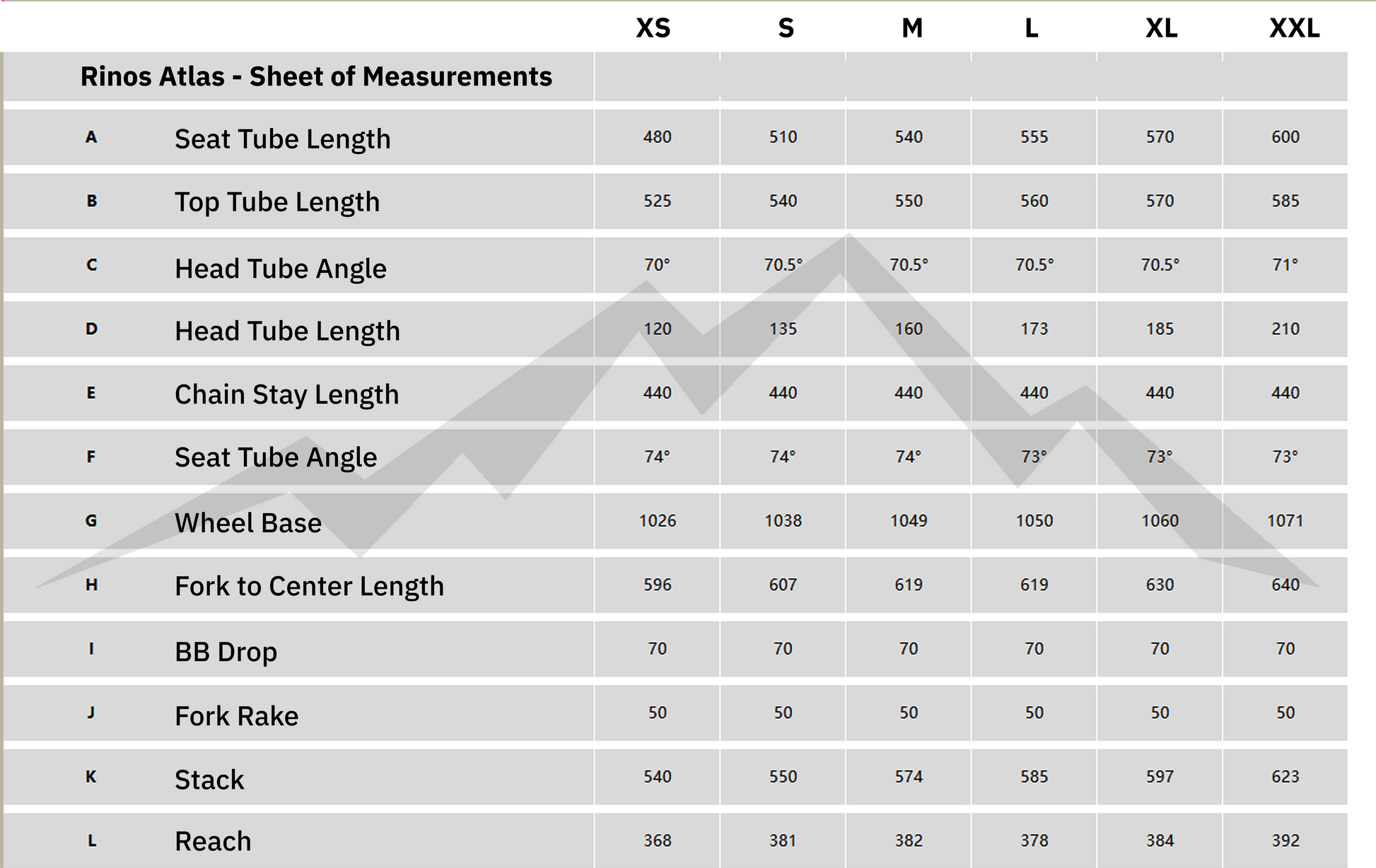

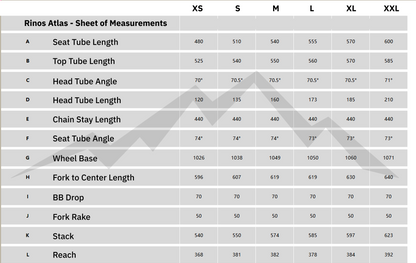

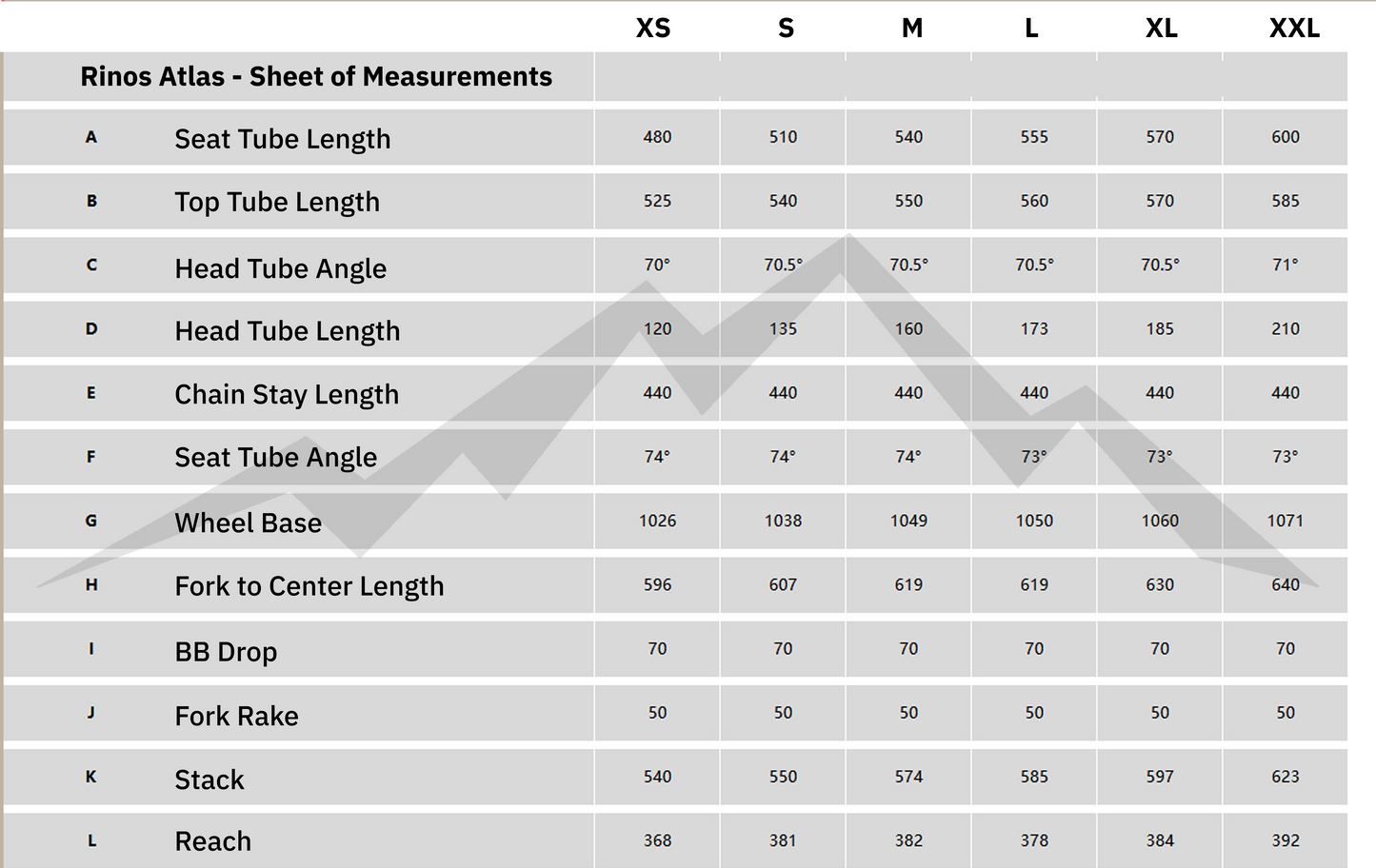

Frame Geometry References:
For the most accurate fit, measure your inseam and compare with our geometry charts. If you're near the upper or lower edge of a range, we suggest test riding or contacting us for personalized advice.
