tire size
40C

gear shifter
Shimano 105 R7150 DI2

weight
9.4 kg

frame material
Carbon

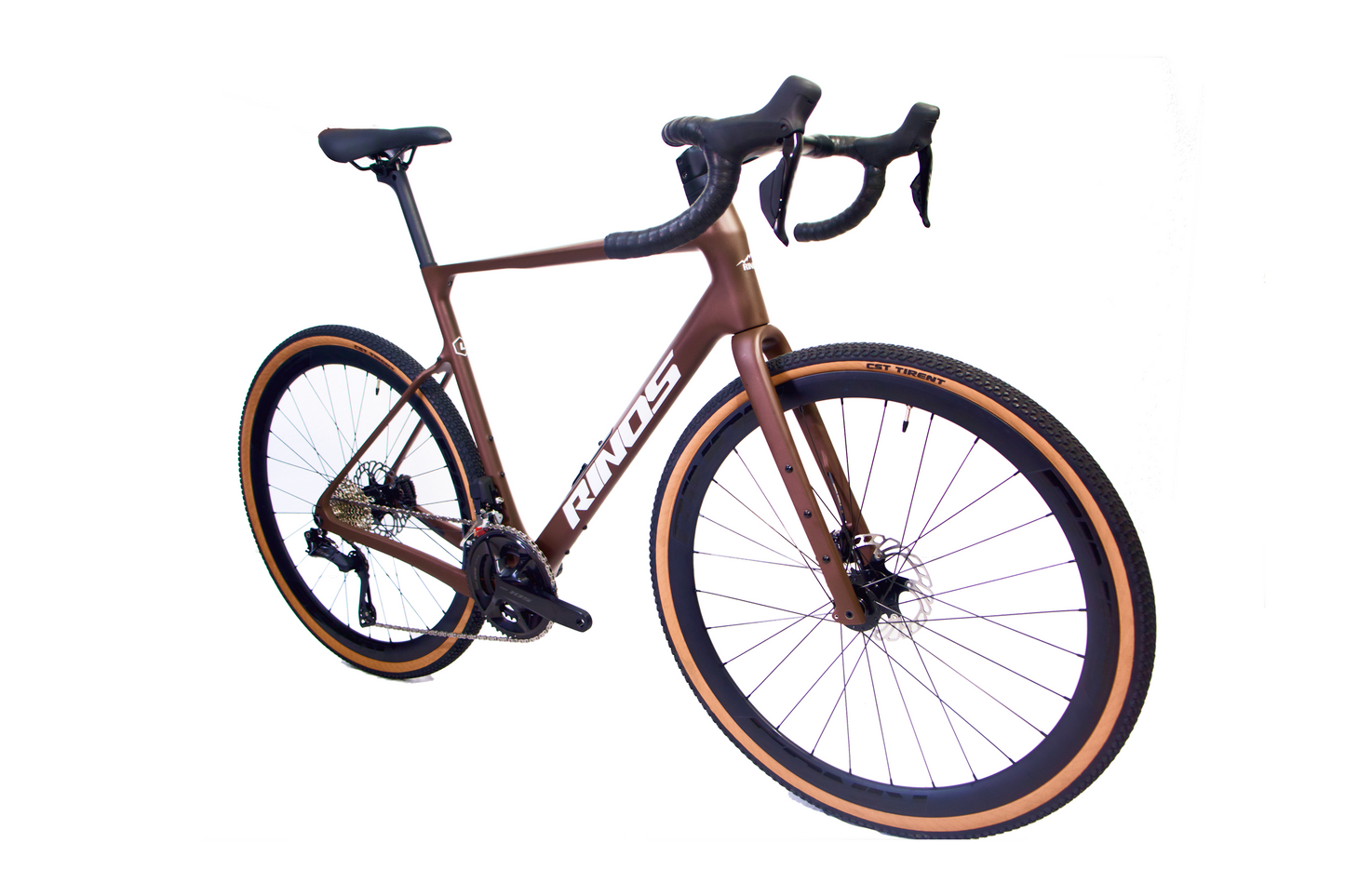

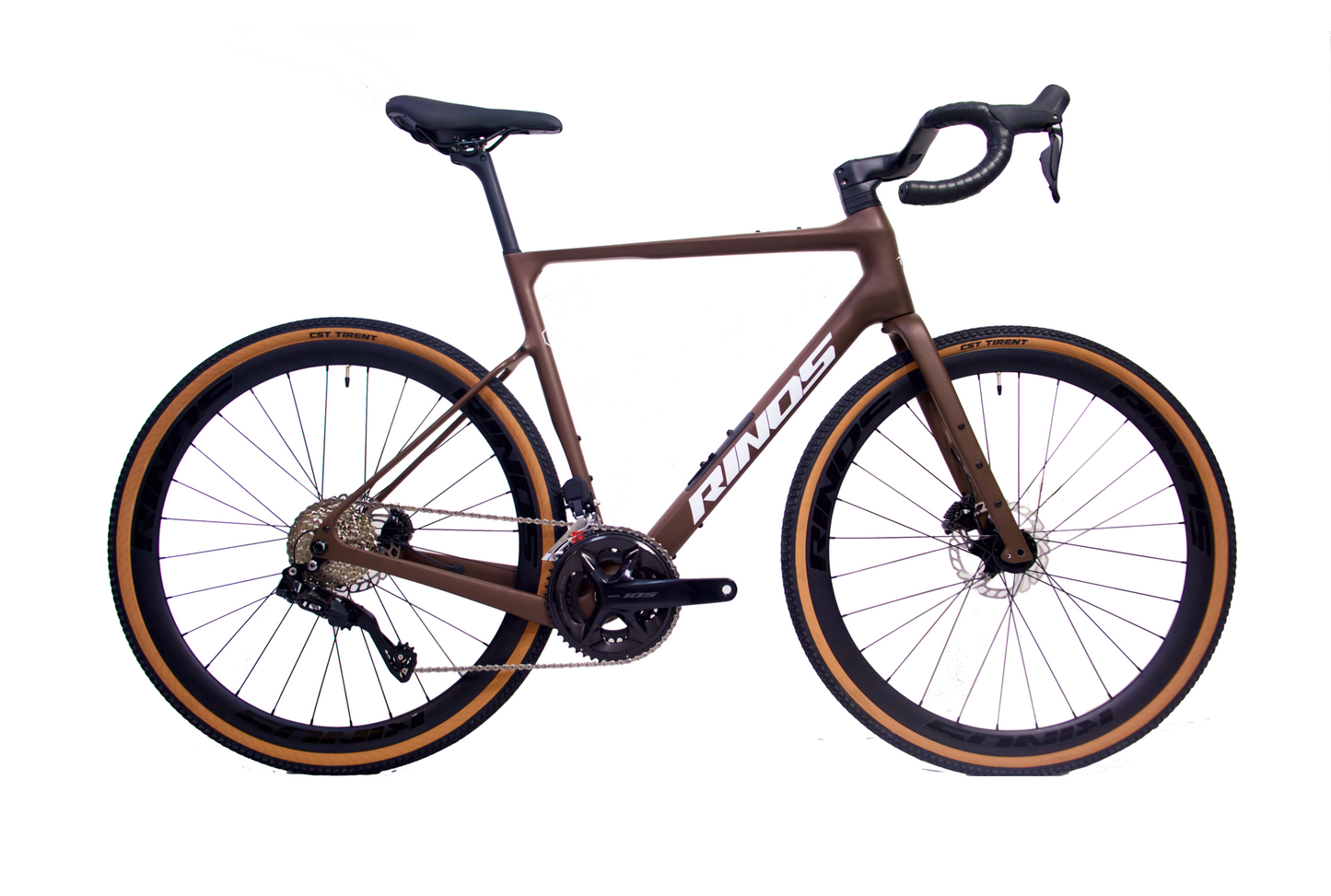

Sandman 8
Carbon. Precision. Adventure. Gravel.

Eurobike 2025 Debut
Premiered at Europe's premier cycling exhibition
Precision in Every Detail

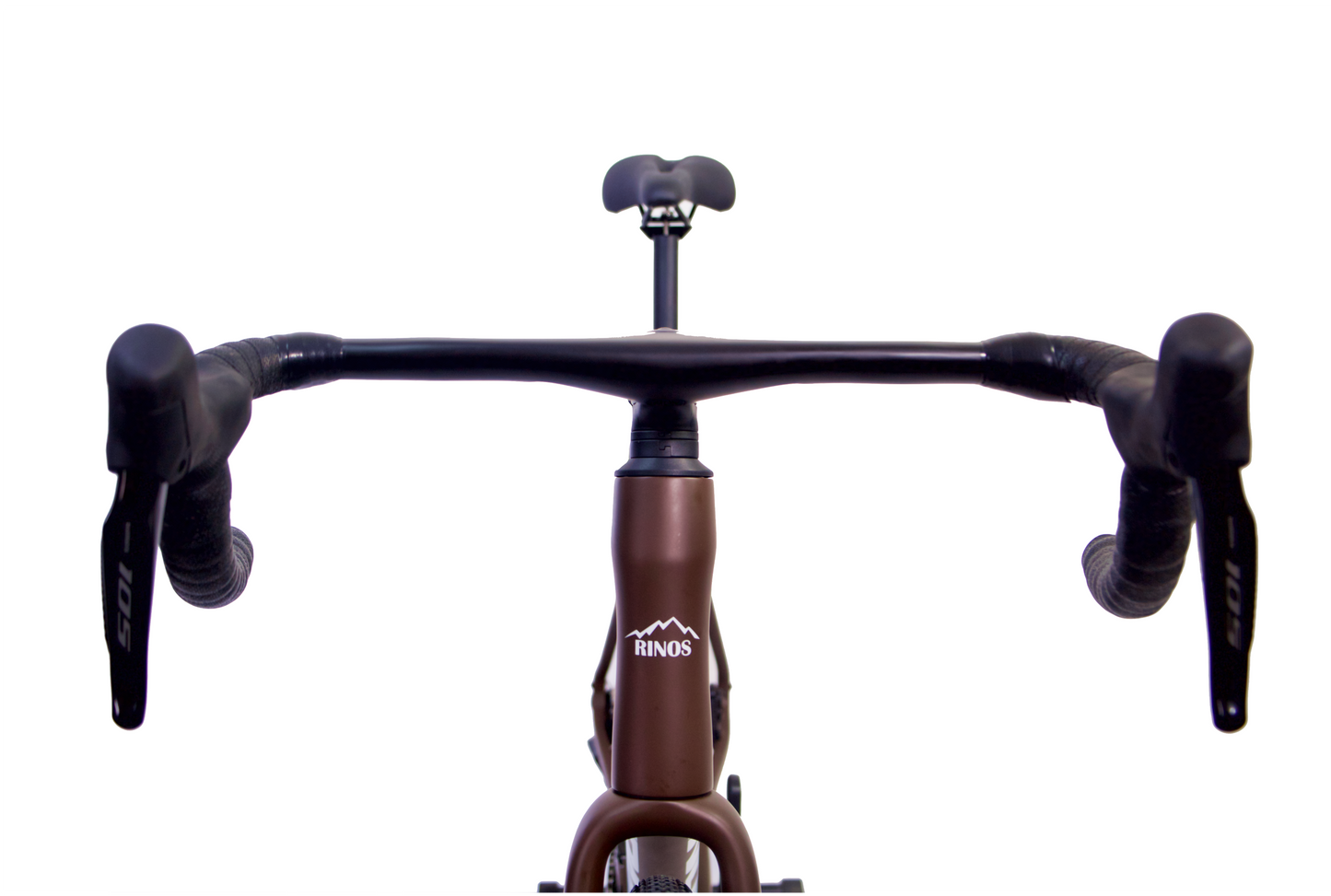

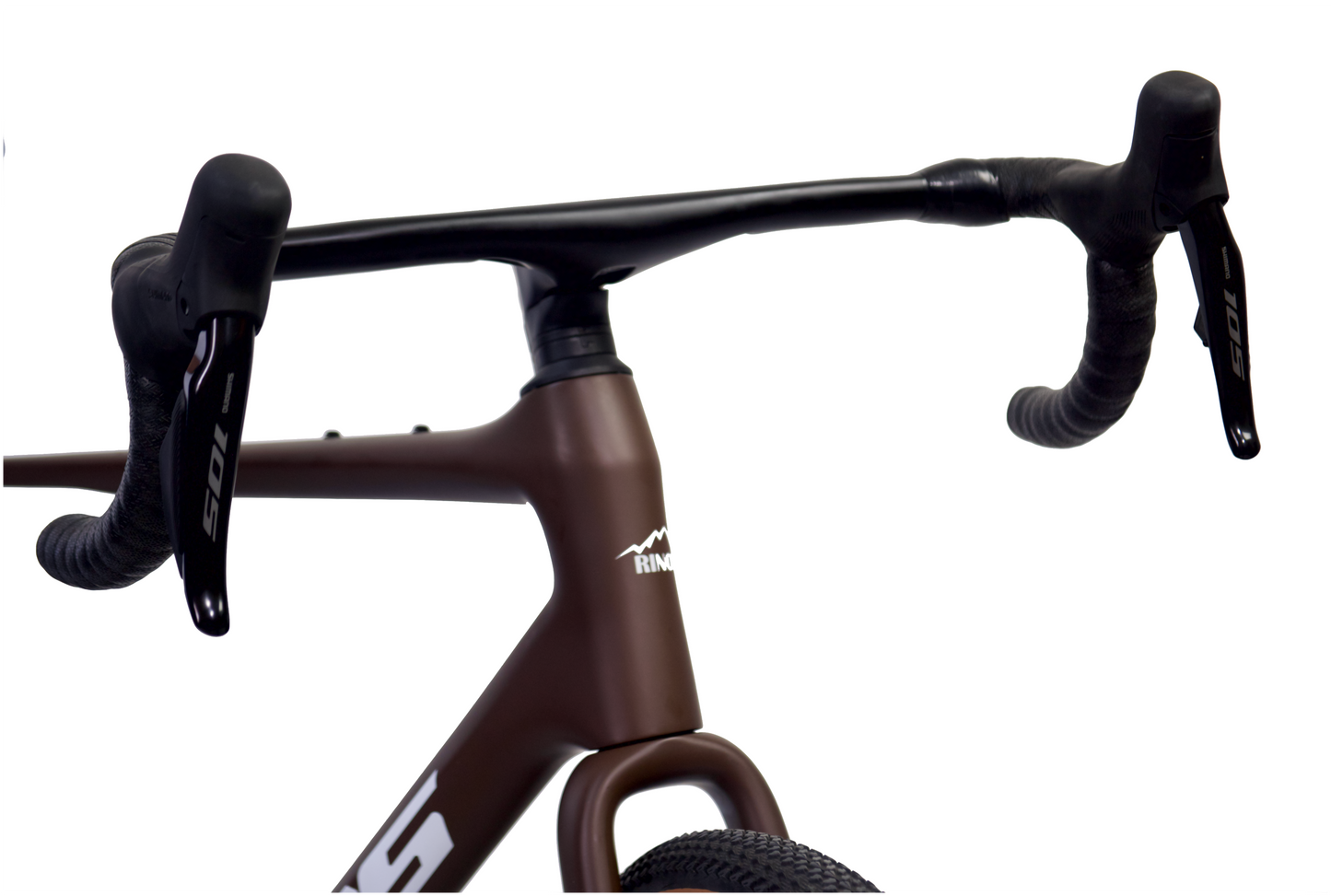

Gravel Geometry
12° flare handlebar. Engineered for endless gravel roads and comfort.

Electronic Perfection
Zero cable friction. Instant response. The future of shifting is here.
Precision in Every Detail

Electronic Perfection
Zero cable friction. Instant response. The future of shifting is here.

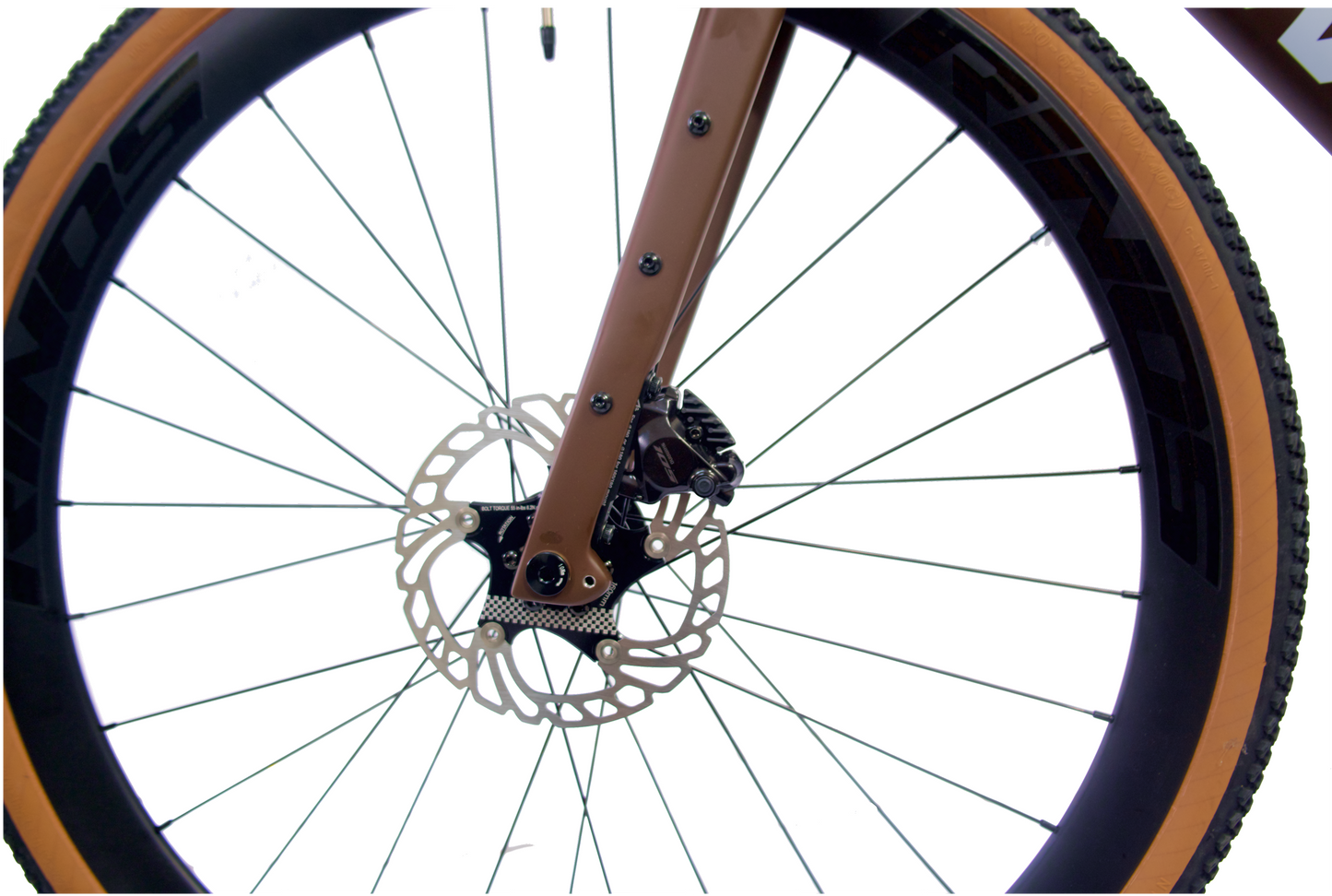

Aero Advantage
40mm carbon profile. Where aerodynamics meets adventure performance.

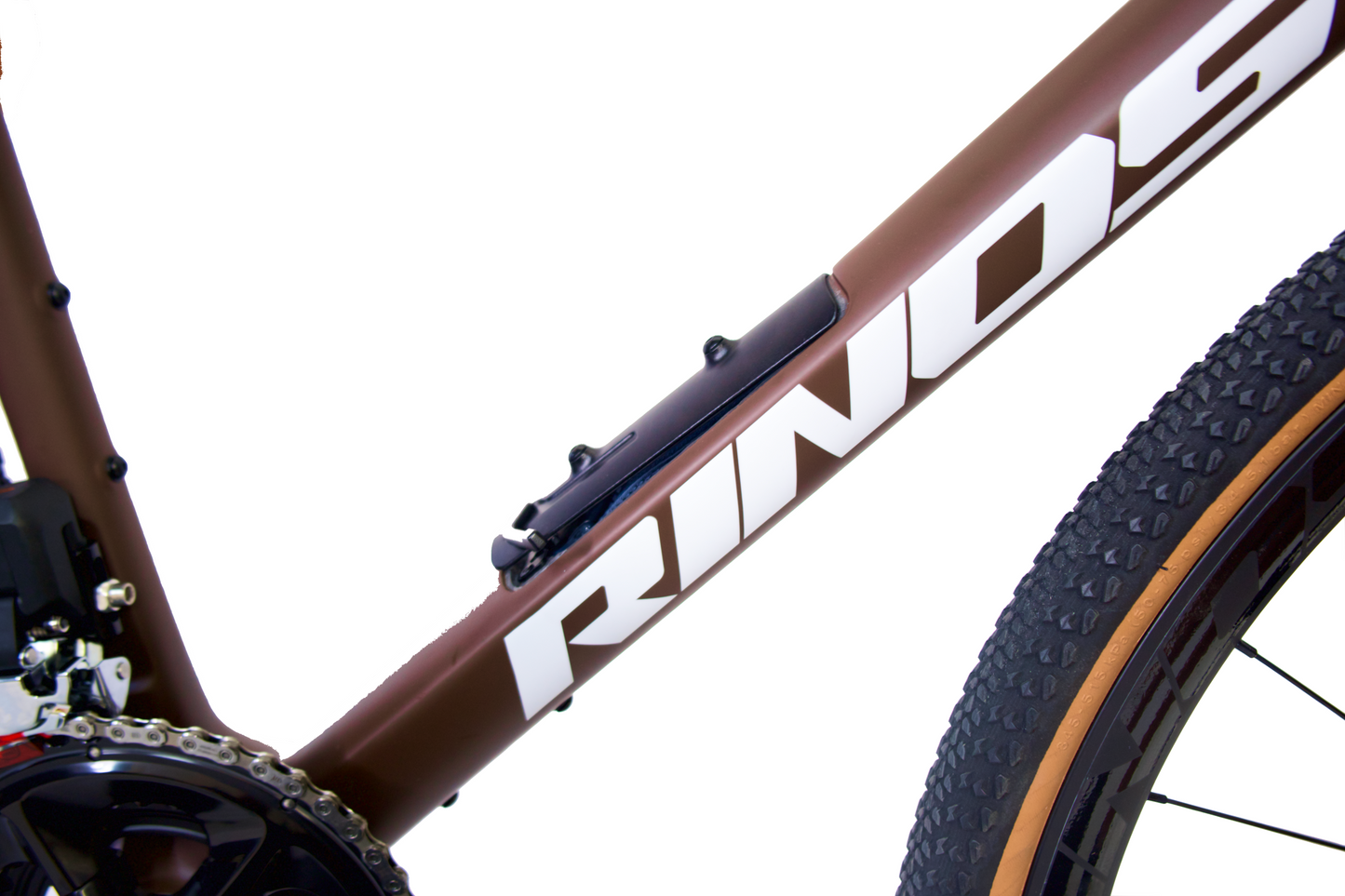

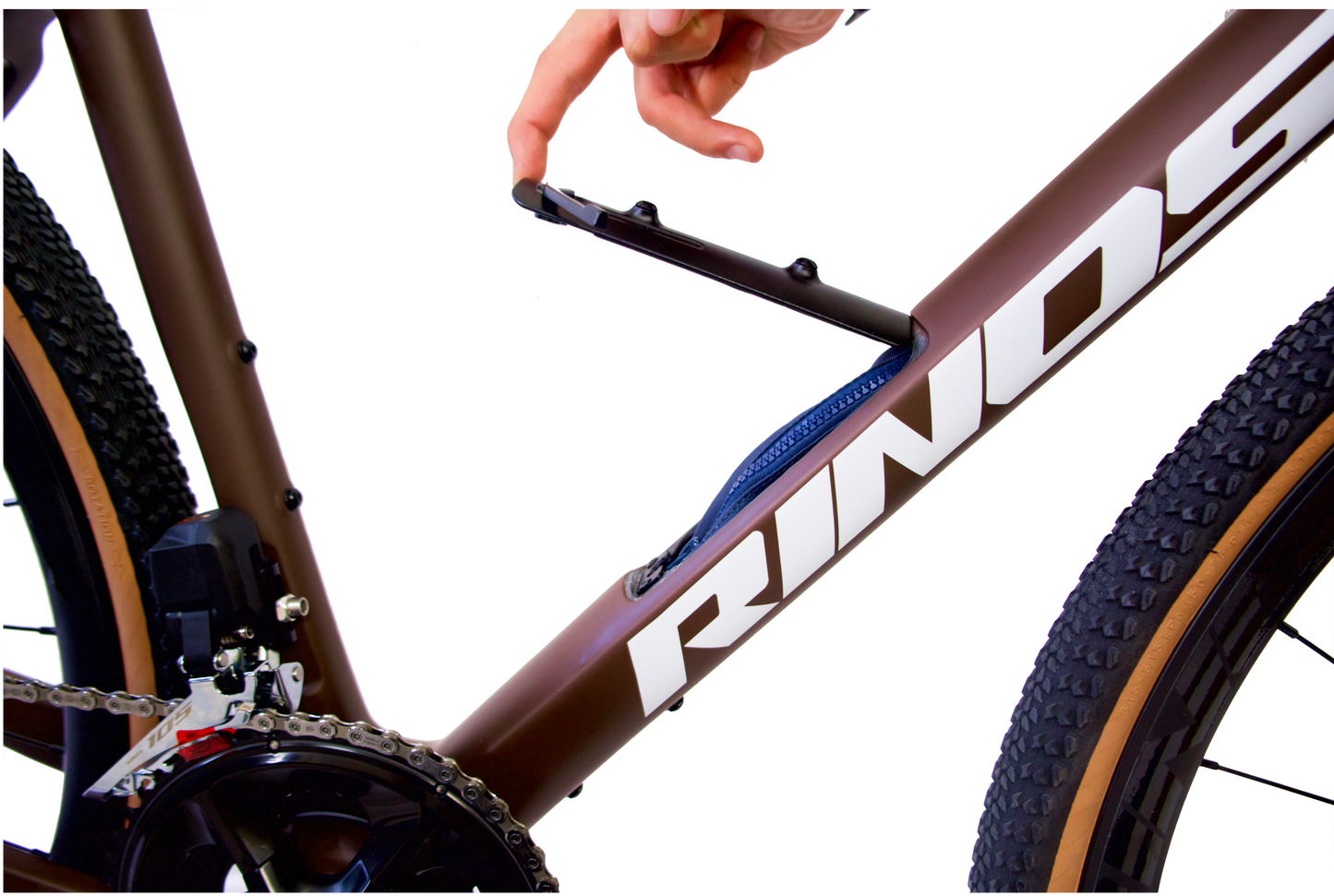

Adventure Ready
Integrated frame storage. Everything has its place on long journeys.
Built for Excellence

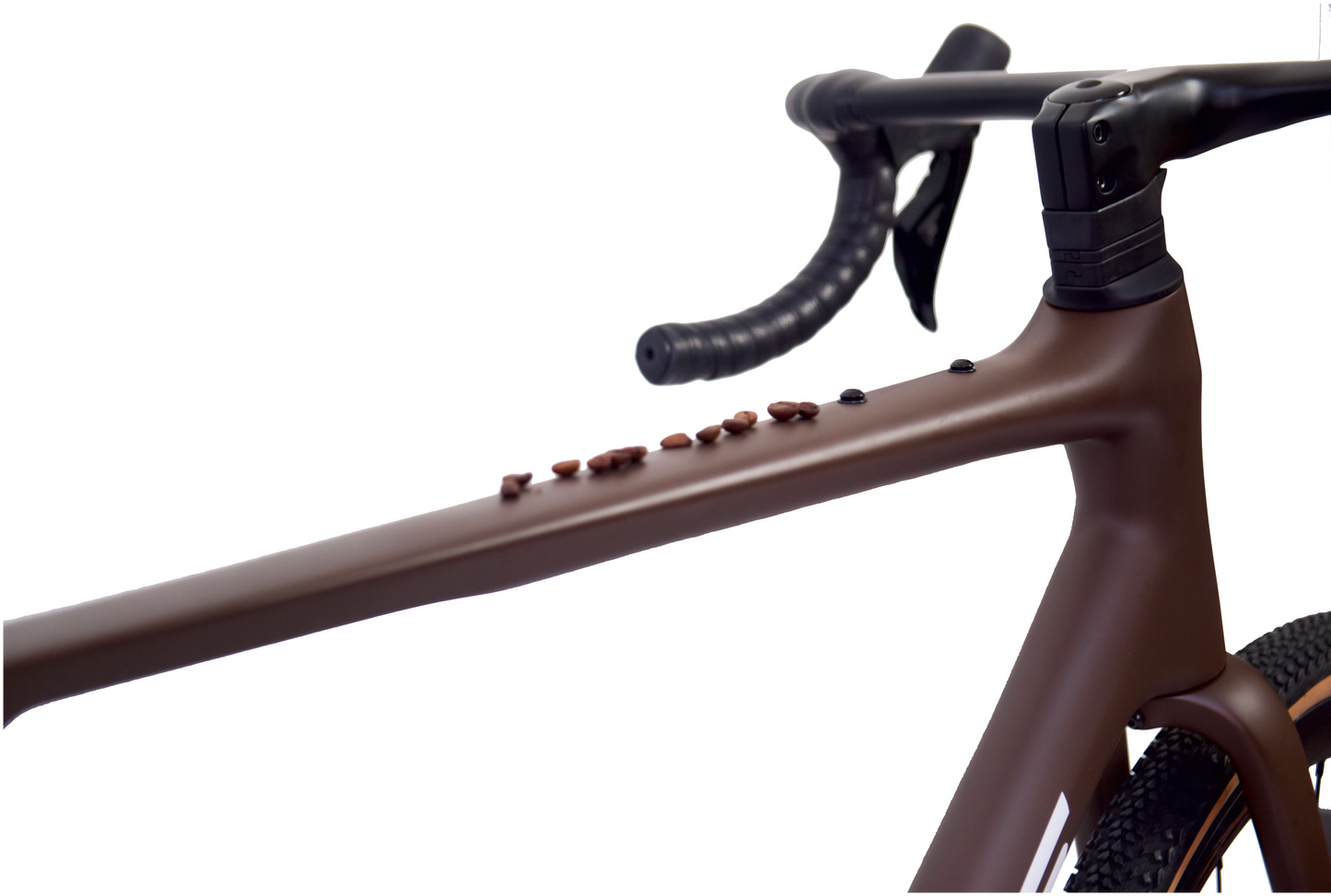

9.4kg Carbon Frame
Toray T800 carbon fiber construction. Lightweight performance without compromise.
Gravel Tuned
Geometry perfected for adventure. Comfort that lasts from dawn to dusk.
Adventure Ready
Integrated storage. Everything has its place on long journeys.

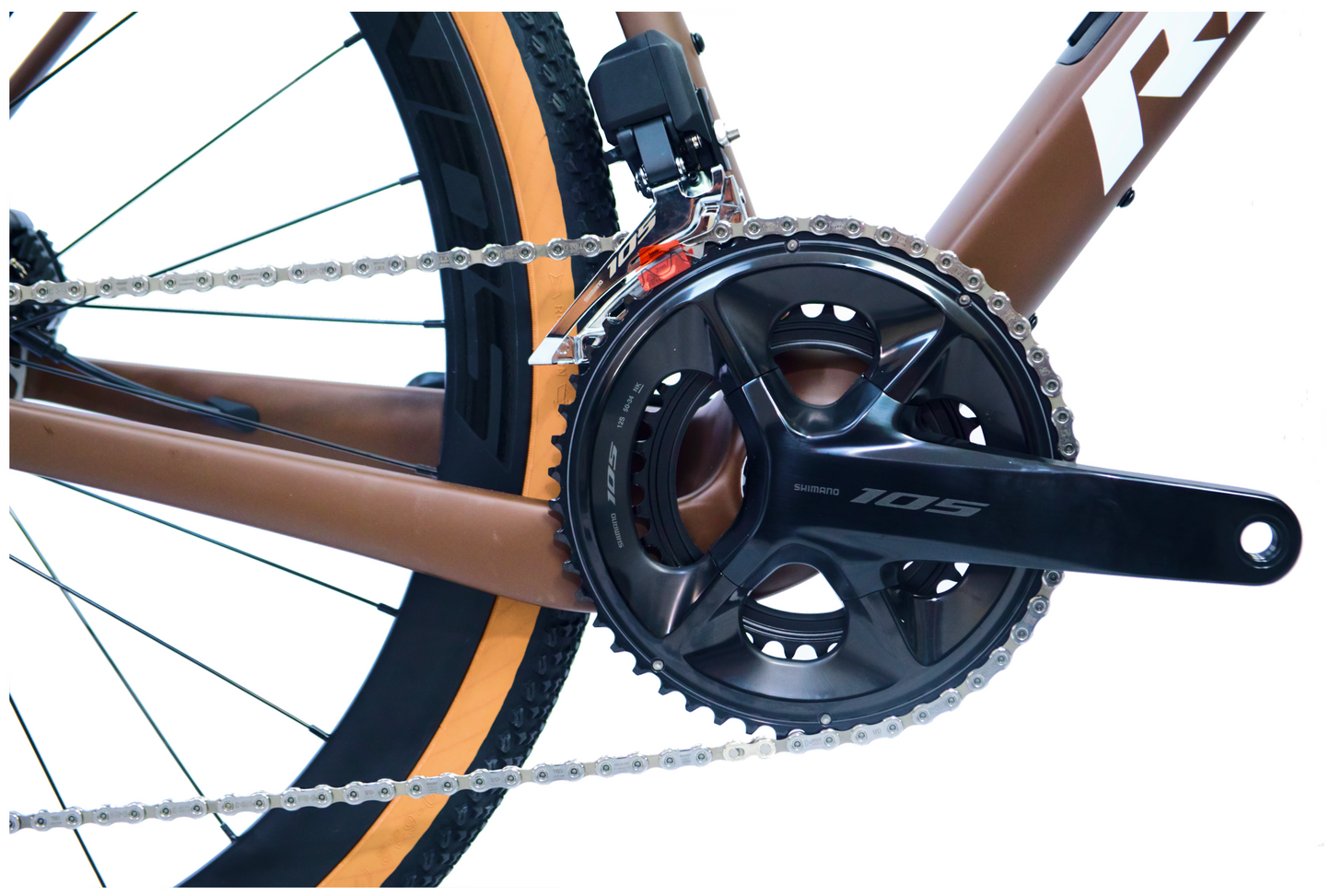

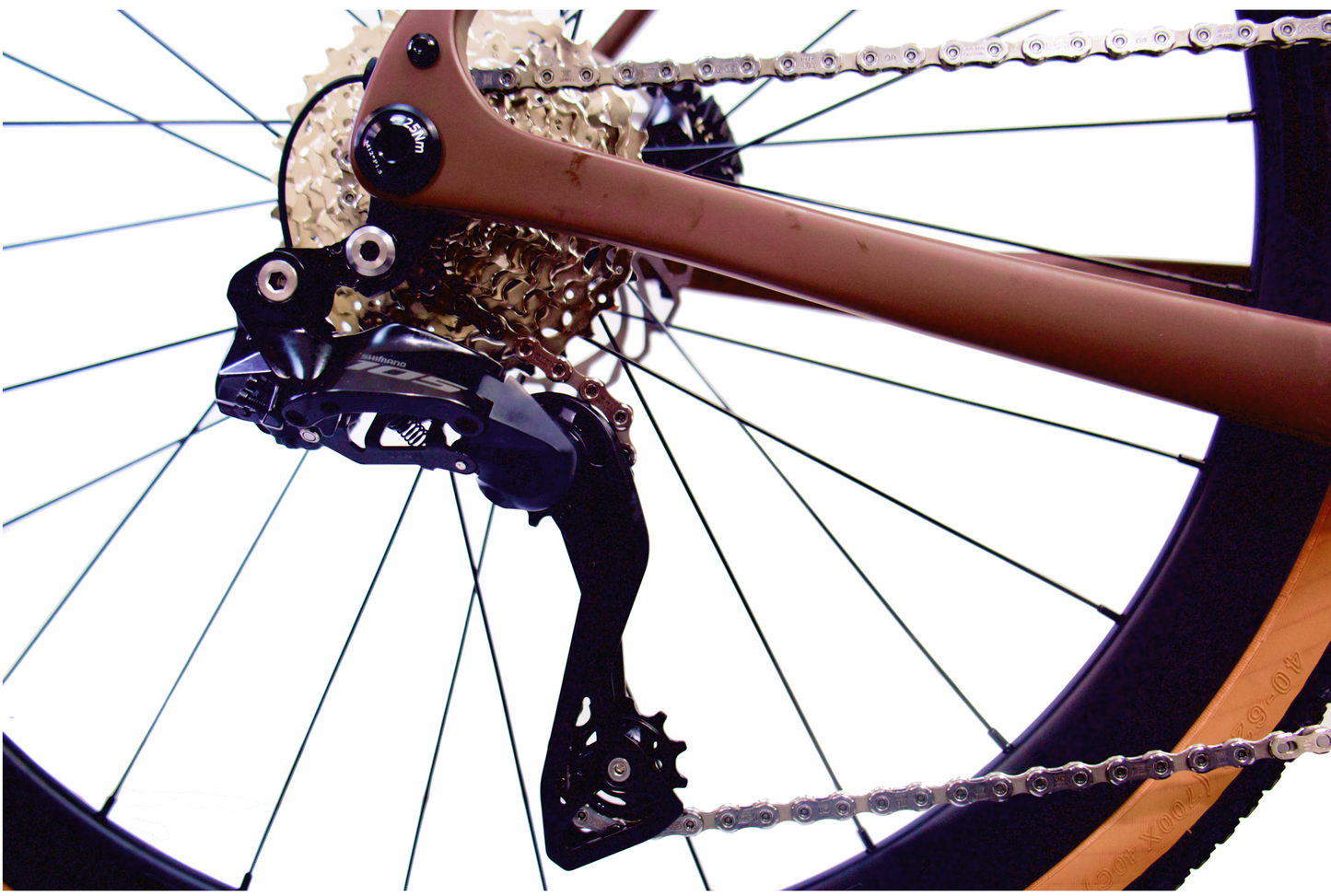

Electronic Precision
Shimano 105 Di2 eliminates mechanical shifting compromises. Every shift is instantaneous, precise, and effortless—regardless of weather, fatigue, or terrain.
Instant Response
Electronic signals travel faster than cable tension. Each shift happens in milliseconds, exactly when you need it most.
Perfect Under Load
Unlike cables that can bind under power, Di2 shifts flawlessly while climbing or sprinting at maximum effort.
Weather Proof
Sealed electronics perform identically in rain, snow, or dust. No cable stretch, corrosion, or performance degradation.
Maintenance Free
Set once, shift forever. No adjustments, cable replacements, or maintenance required. Just pure performance.
Micro USB Charging
Simple Micro USB charging capability. One quick press on any shift button shows battery status instantly.
Smart App Control
Button mapping, shift modes, multi-shift speed, and new "Front Shift Next" toggle via app.
1000km Range • 2hr Charge • Lifetime Precision
The technology that defines modern cycling excellence.
Technical Specifications
Frame & Fork
Drivetrain
Wheels & Brakes
Handlebar Width x Length
Geometry & Sizing Details

Measurement | XS (490) | S (520) | M (550) | L (580) |
---|---|---|---|---|
Body Height (Reference) | 155-164cm | 165-174cm | 175-186cm | 187-196cm |
A - Seat Tube Insert Length | 180mm | 220mm | 250mm | 270mm |
B - Reach | 374.1mm | 377.5mm | 386mm | 397.1mm |
C - Top Tube Length, Horizontal | 535mm | 550mm | 575mm | 595mm |
D - Stack | 542.6mm | 563.4mm | 598.6mm | 627.1mm |
E - Wheelbase | 1008.9mm | 1014.5mm | 1029.6mm | 1049.8mm |
F - Chainstay Length | 430mm | 430mm | 430mm | 430mm |
G - Front Center | 593.8mm | 599.4mm | 614.5mm | 634.5mm |
H - BB Drop | 70mm | 70mm | 70mm | 70mm |
I - BB Height | 285mm | 285mm | 285mm | 285mm |
J - Seat Tube Angle | 73.5° | 73° | 72.5° | 72.5° |
K - Head Tube Angle | 71° | 71.5° | 72° | 72° |
L - Seat Tube Length | 490mm | 520mm | 550mm | 580mm |
M - Head Tube Length | 120mm | 140mm | 175mm | 205mm |
Standover Height (700C×50C) | 776.4mm | 793.4mm | 833.4mm | 863.9mm |
Standover Height (650B×2.1") | 766.4mm | 783.4mm | 823.4mm | 853.9mm |
N - Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm |
O - Fork Length, Full | 397mm | 397mm | 397mm | 397mm |
P - Trail | 69.3mm | 66.1mm | 62.7mm | 62.7mm |
Choose Your Size
