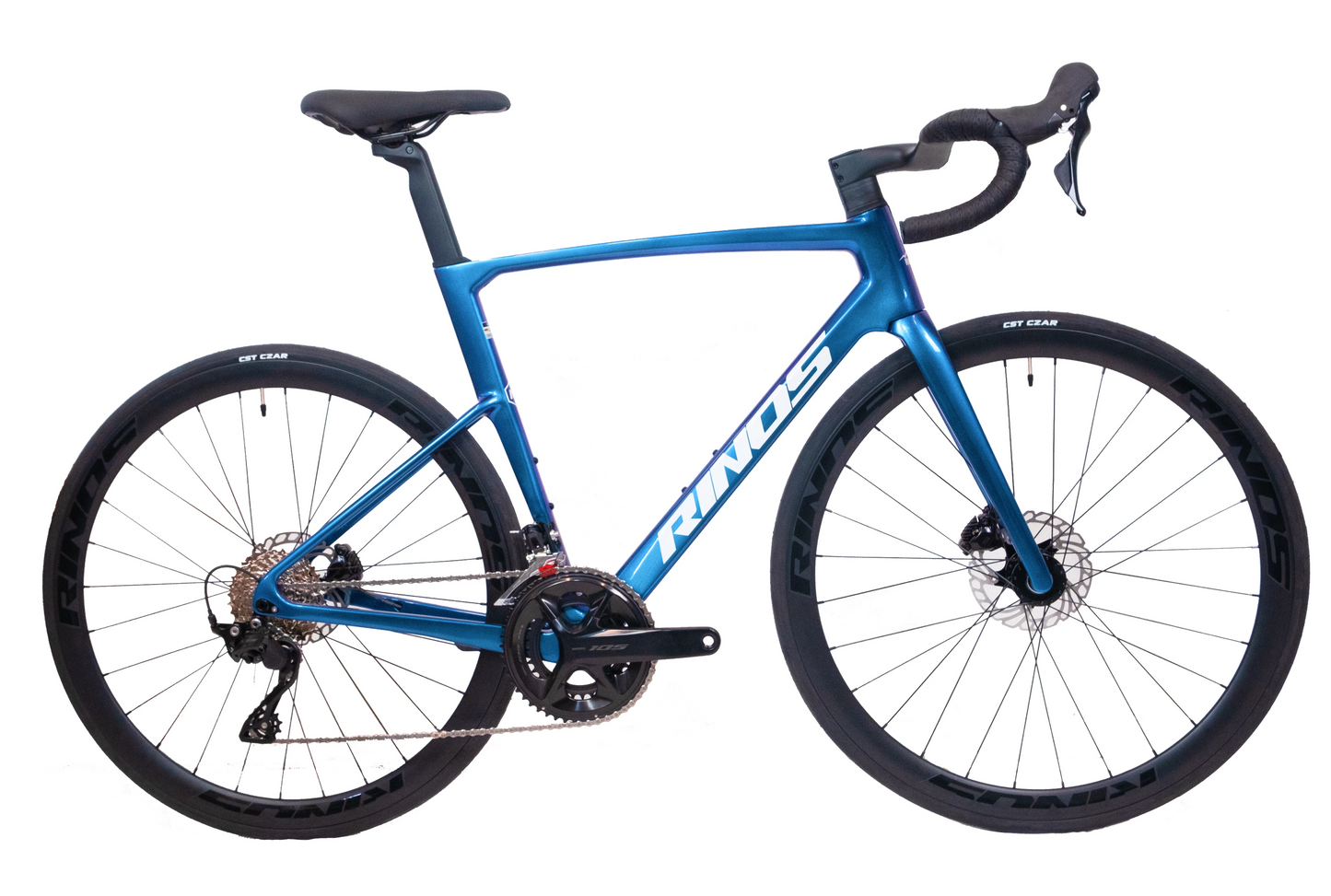

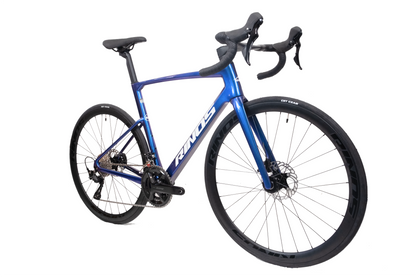

Odin 4
Odin 4
Couldn't load pickup availability
tire size
28 inch
gear shifter
Shimano 105
weight
8.8kg
frame material
Carbon
Shop now. Pay with Klarna.
Klarna
Flexible payment methods
Pay in up to 30 days
Receive your order first, then pay.
Installments
Split the amount into smaller payments.
Pay now
Pay the full amount today with a card.
How it works:
Choose Klarna at checkout
Choose a payment plan
Depending on the purchase amount and creditworthiness, different payment plans may be displayed.
Complete your order
We automatically deduct the installments according to your payment plan.

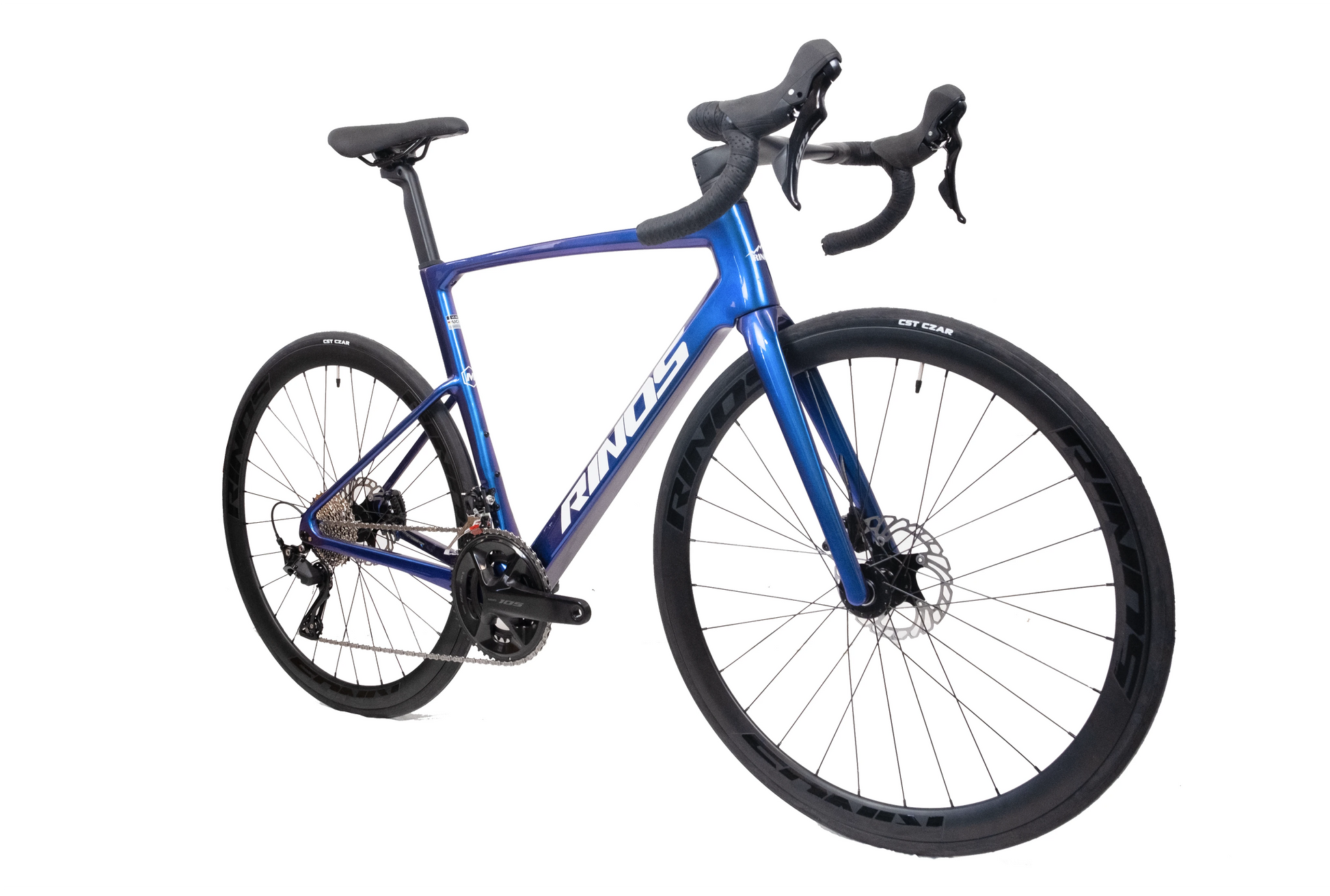

The Odin 4, at a glance.
-

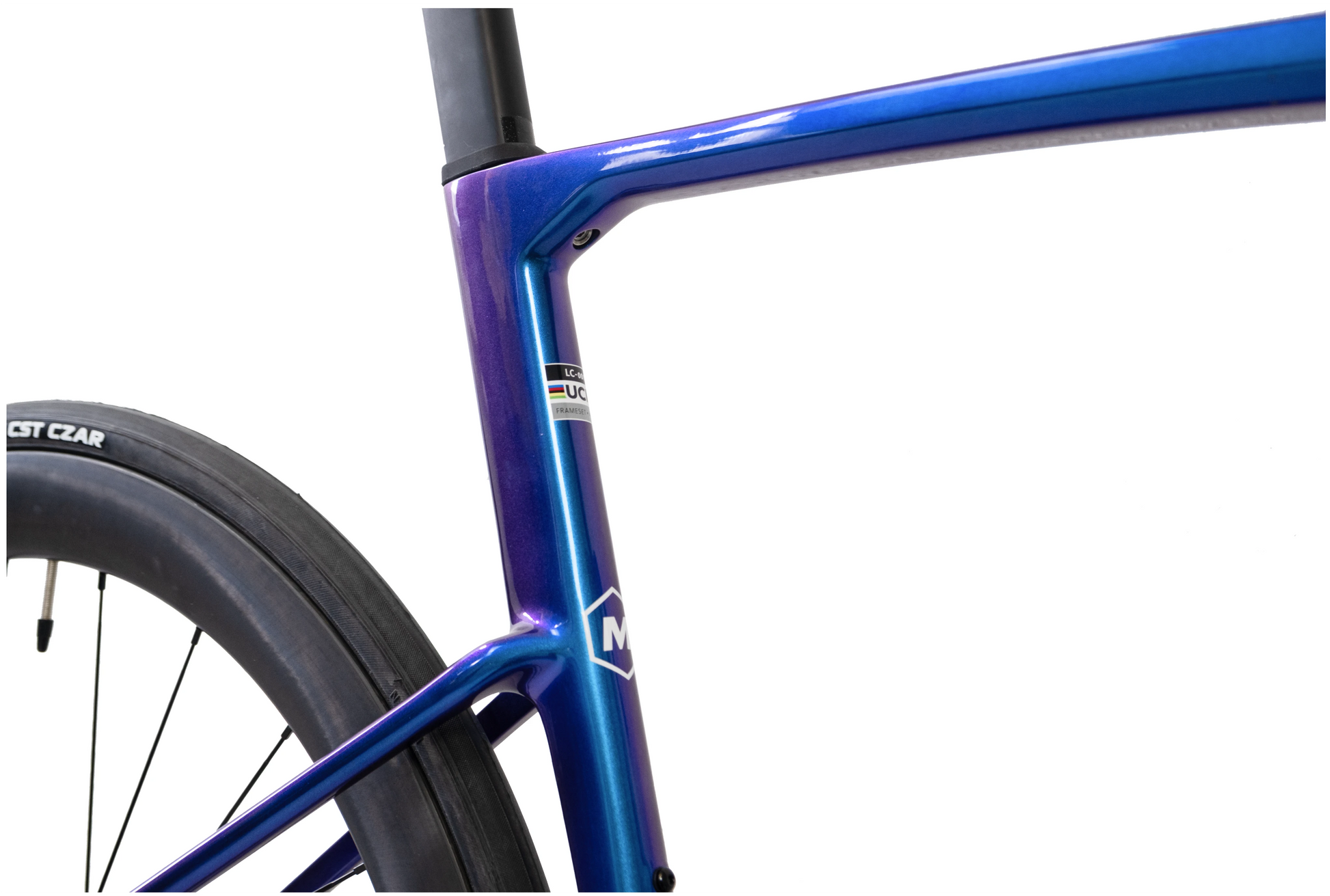

UCI Certified.
Ride with confidence — the Odin 4 meets UCI standards, making it competition-ready straight out of the box.
-
Full group Shimano 105, Full carbon frame and fork, Shimano hydraulic brakes
A lightweight 8.8 kg build featuring Shimano 105 R7100 12-speed components, hydraulic disc brakes, and Toray T800 carbon for the perfect balance of stiffness, agility, and comfort.
-
Next-Level Carbon Road Bike.
Designed for ambitious riders looking for cutting-edge drivetrain technology, hydraulic braking, and a fully aerodynamic setup.
Wheels You Can Trust.
Every Odin is precision-trued with TRUDI by Berd, the world’s most advanced wheel truing system.
That means straighter wheels, tighter tolerances, and absolute stability — so you ride faster, corner harder, and never lose performance to wobble or flex.
⚡ Key Features:
-
UCI Certified: Ready for competition at international level.
-

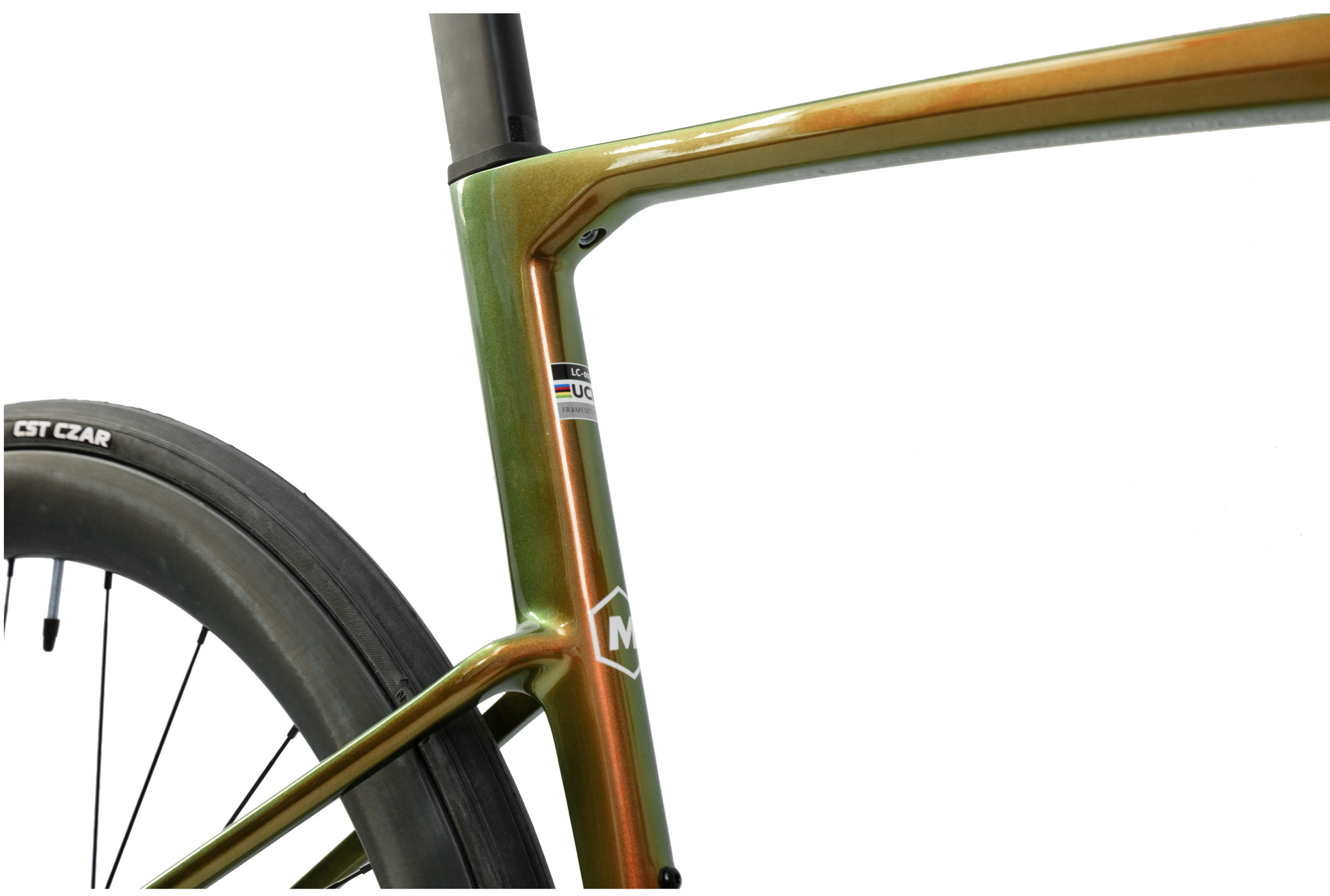

Full Carbon Frame, Fork & Seatpost: Lightweight Toray T800 carbon construction.
-
Shimano 105 R7100 (2×12-speed): Latest generation 105 groupset for precise shifting.
-

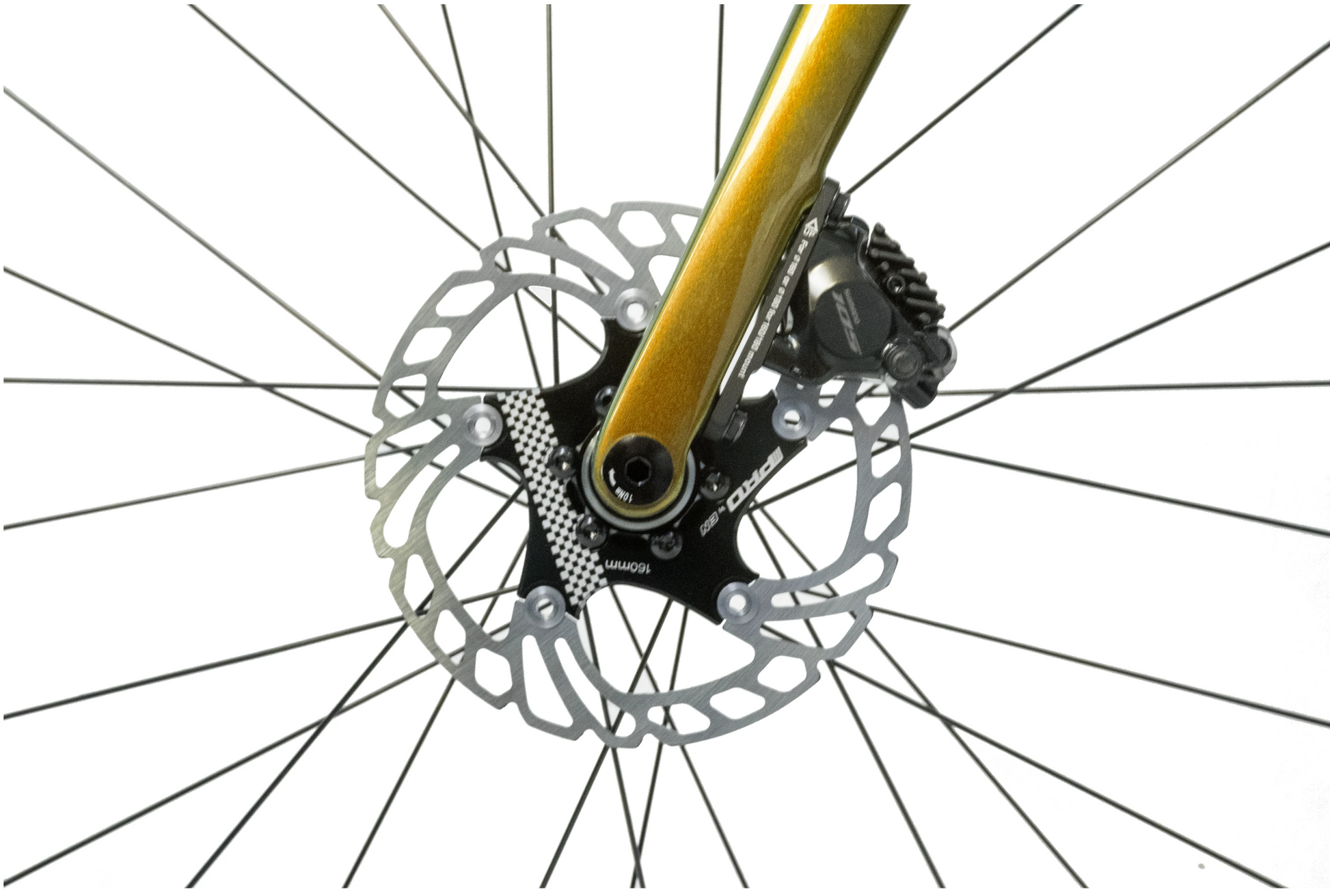

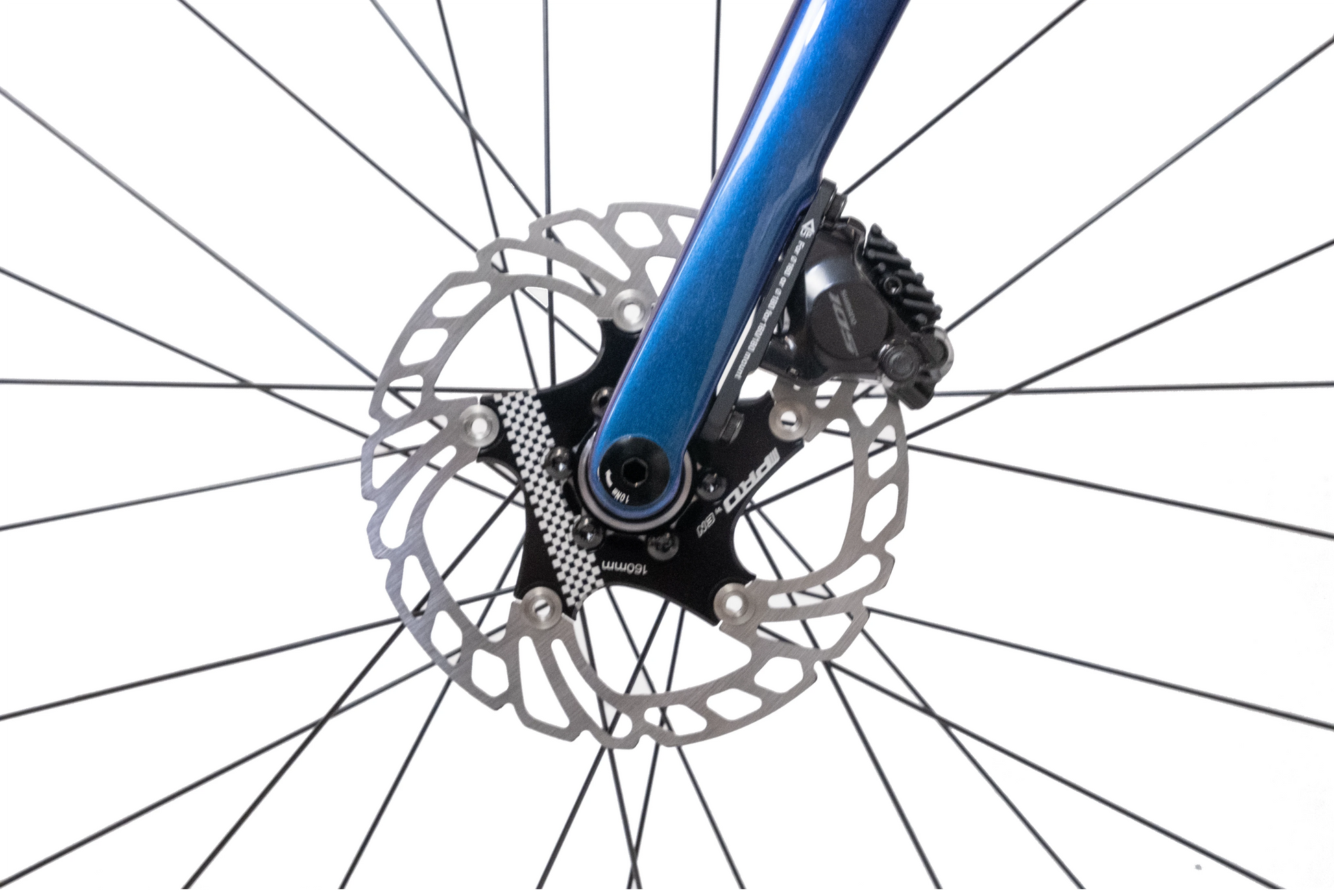

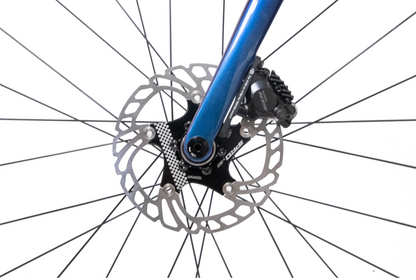

Hydraulic Disc Brakes: Superior braking power in all conditions.
-

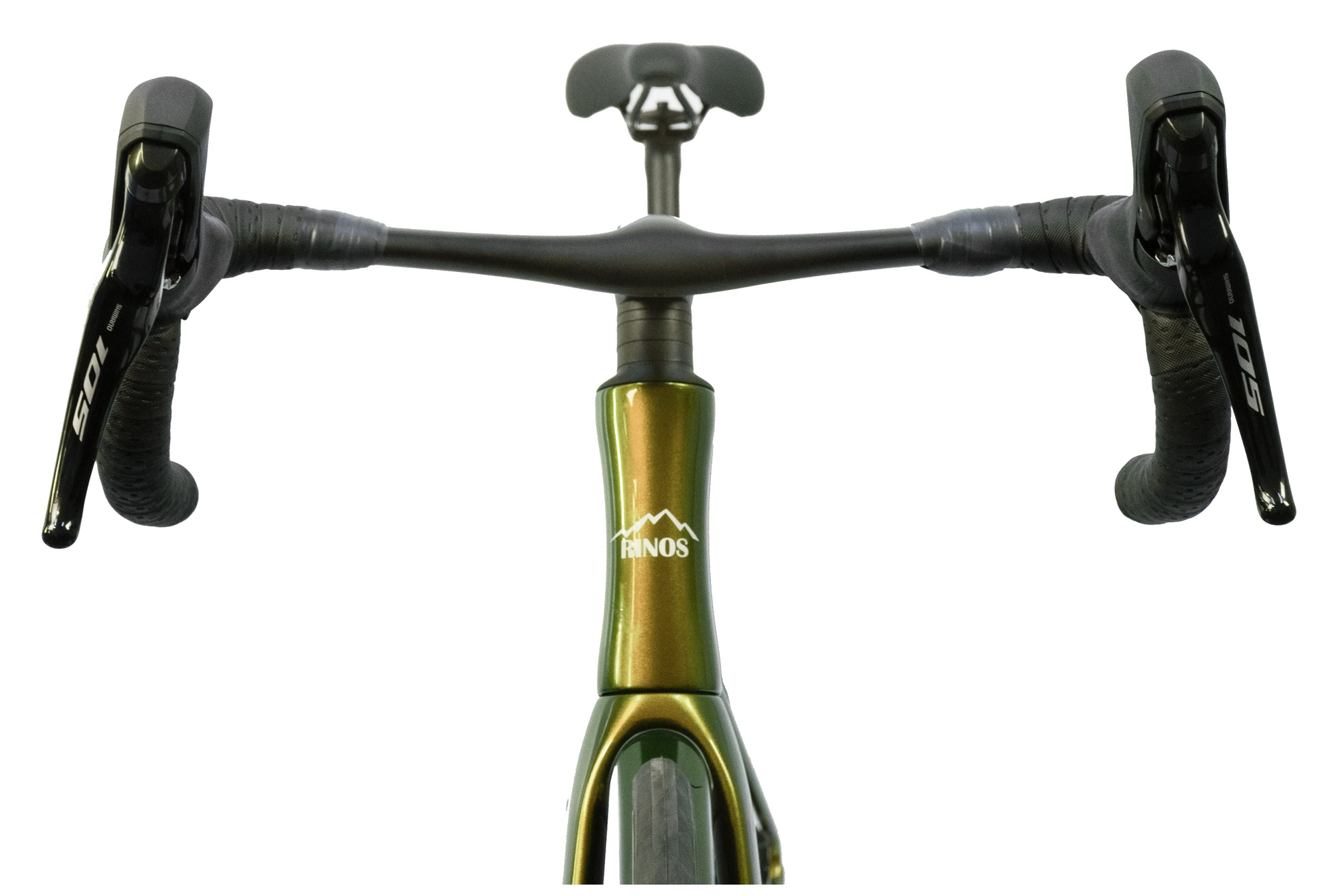

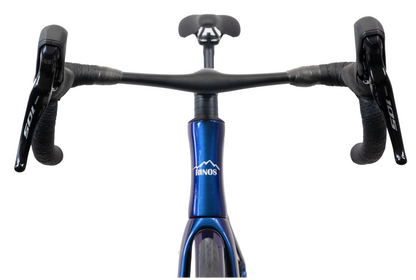

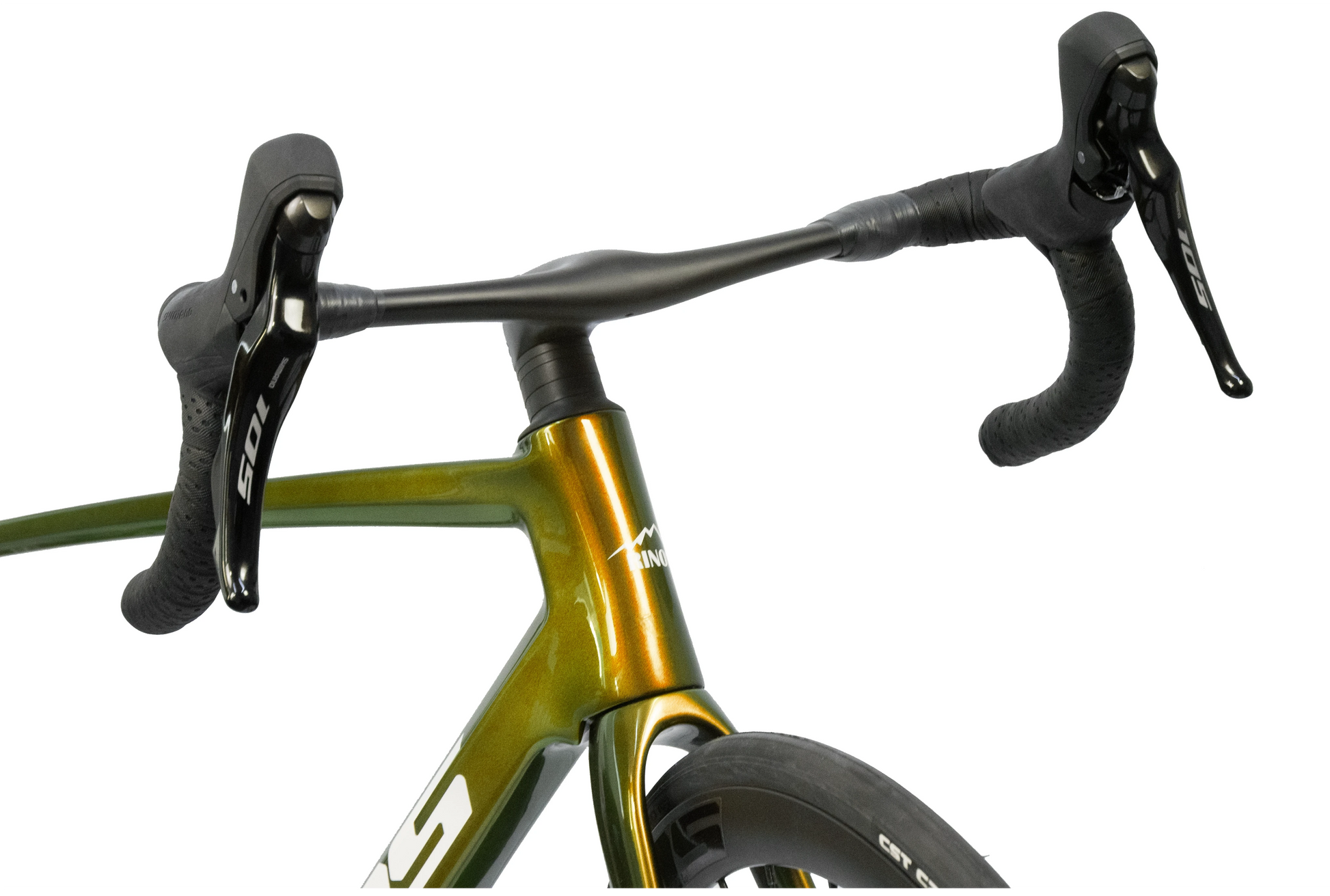

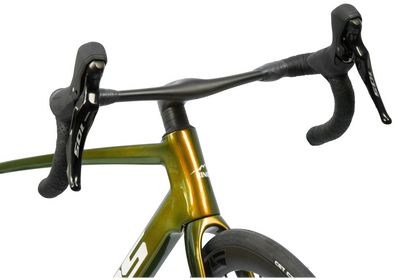

Aerodynamic Design: Integrated cable routing, aero handlebars, and 38 mm deep rims.
-
Only 8.8 kg (Complete Bike): Built for speed and endurance.
📐 Geometry & Fit:
Available in sizes 50–58 cm — covering riders from 155 cm to > 190 cm.
📦 What’s Included:
-
RINOS Odin 4 Complete Bike (8.8 kg)
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
Riders upgrading to 12-speed technology and hydraulic braking
-
Competitive racing, training, and endurance road cycling
-
Cyclists looking for a lightweight, aero carbon frame with Shimano’s latest performance groupset
🔍 Tech Specs Summary:
-
Frame/Fork: RINOS T800 Carbon (UCI-tested)
-
Groupset: Shimano 105 R7100, 24-Speed (2×12)
-
Brakes: Shimano 105 ST-R7120 / BR-R7170 Hydraulic Disc Brakes
-

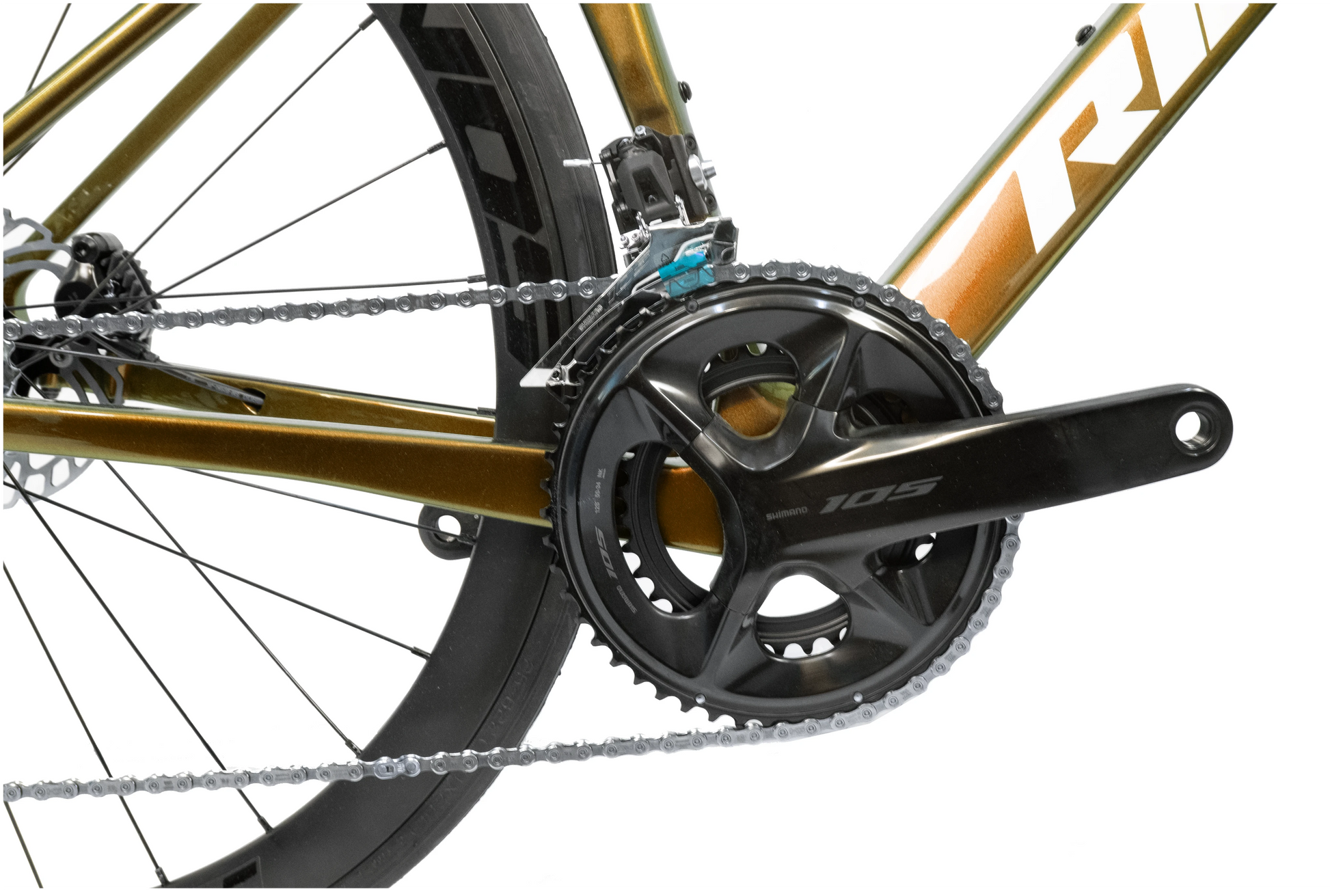

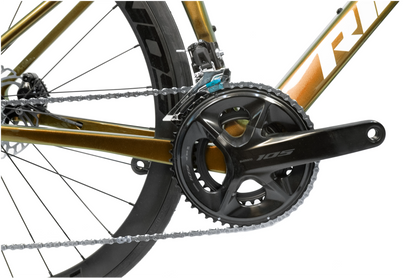

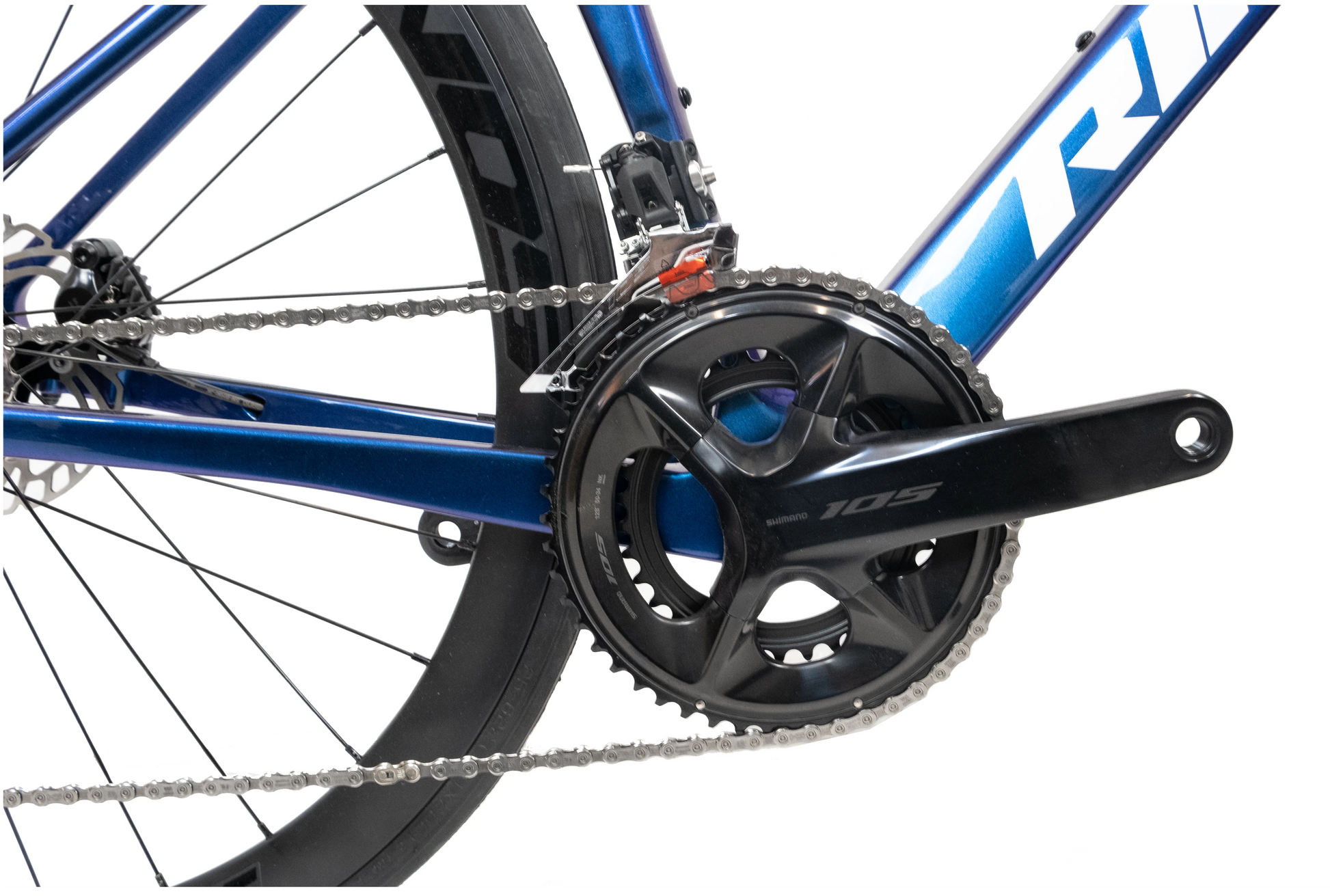

Crankset: Shimano R7100 50/34T (Compact)
-
Cassette: Shimano 11-36T 12-Speed
-
Wheels: 700C, 38 mm profile rims (Novatec hubs)
-
Tyres: CST 700×25C (Presta Valve)
-

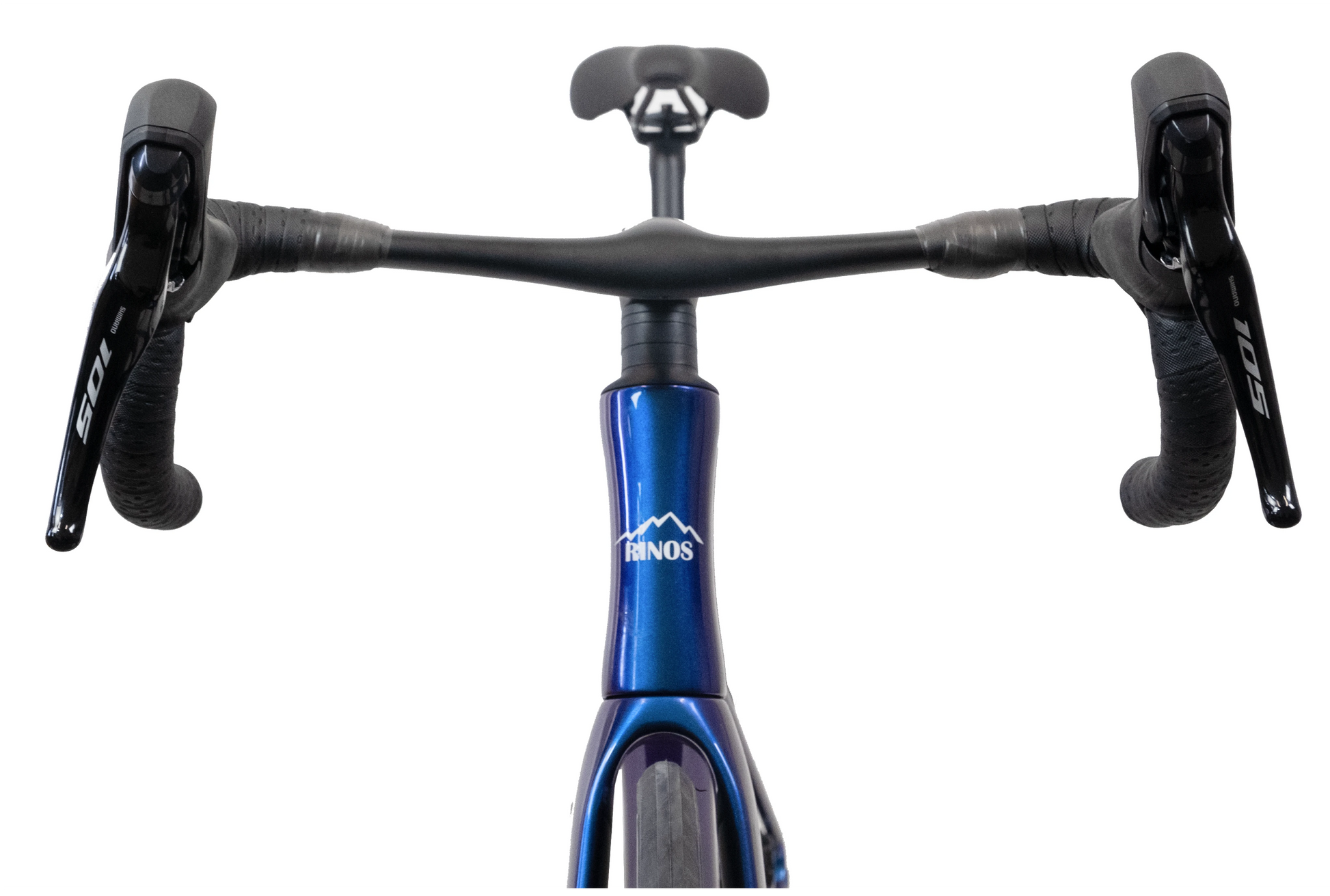

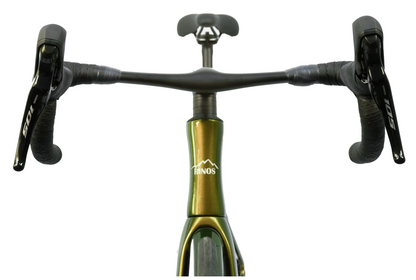

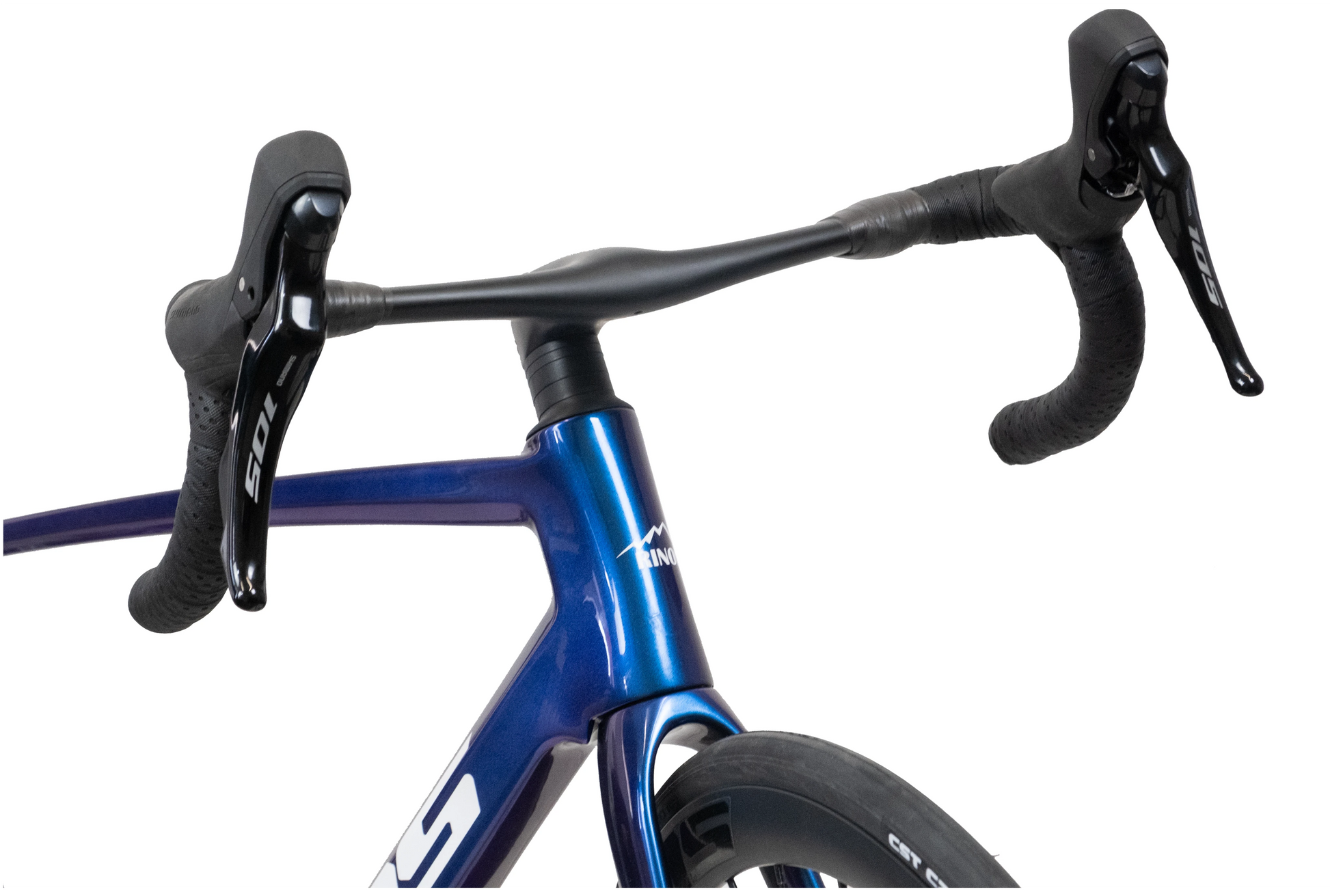

Handlebar: Rinos Carbon 420/440 × 28.6 mm
-
Seatpost: Rinos Carbon 27.2 × 400 mm
-
Weight: 8.8 kg (Bike), 13.8 kg (Shipping)
📘 Full Technical Specifications
| Frame / Fork | Rinos T800 Carbon |
|---|---|
| Groupset | Shimano 105 R7100, 24-Speed (2×12) |
| Shifters | Shimano 105 ST-R7120 |

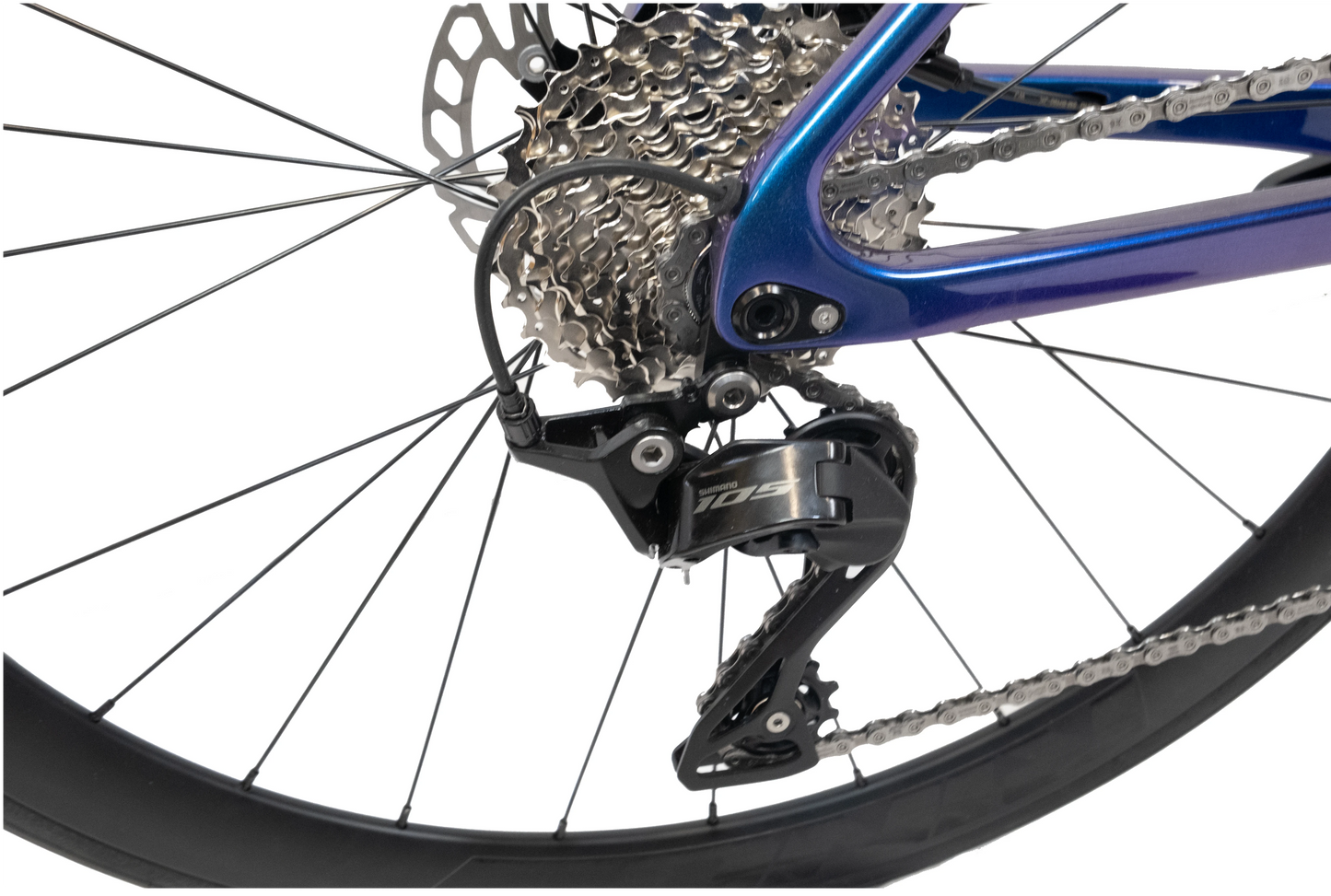

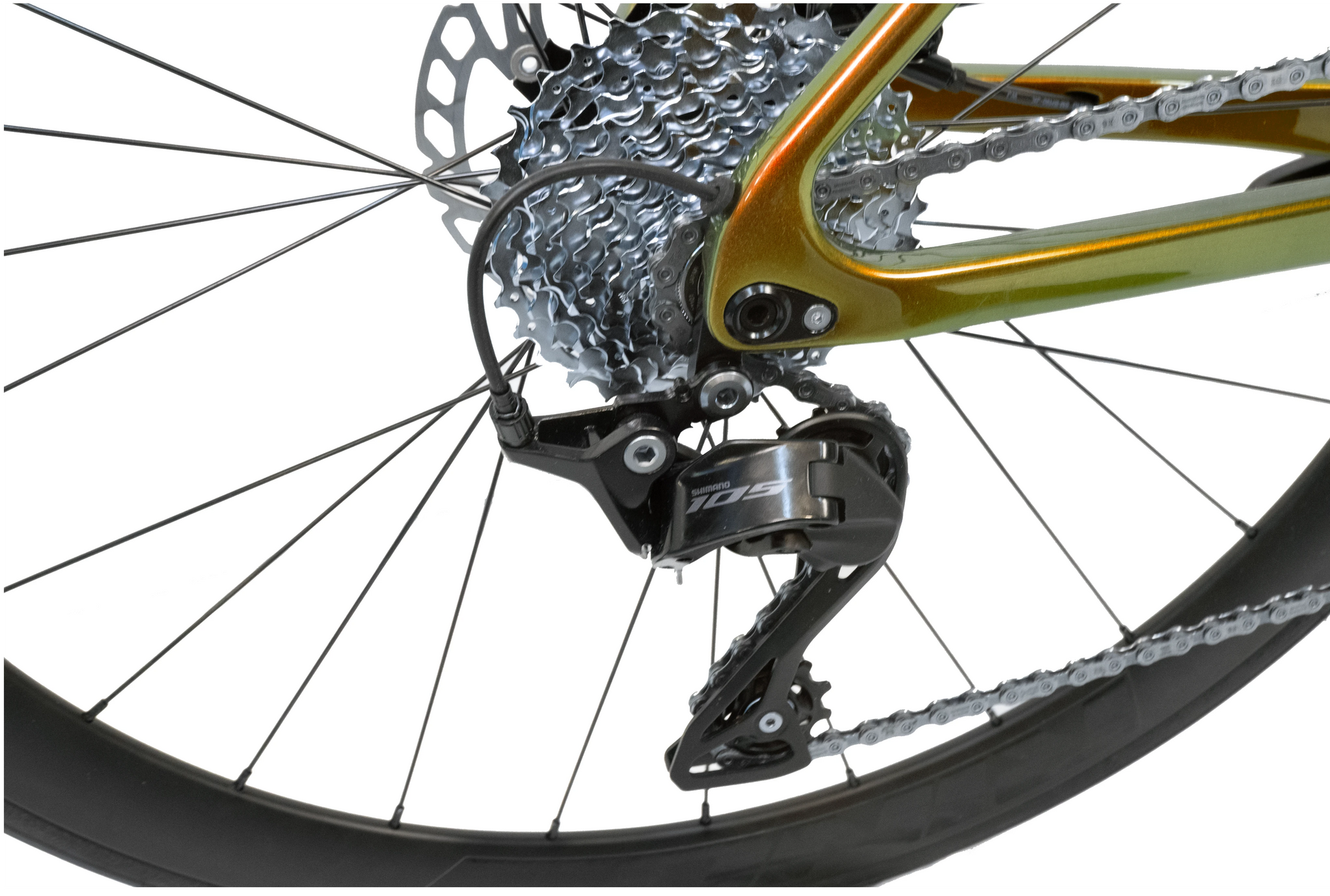

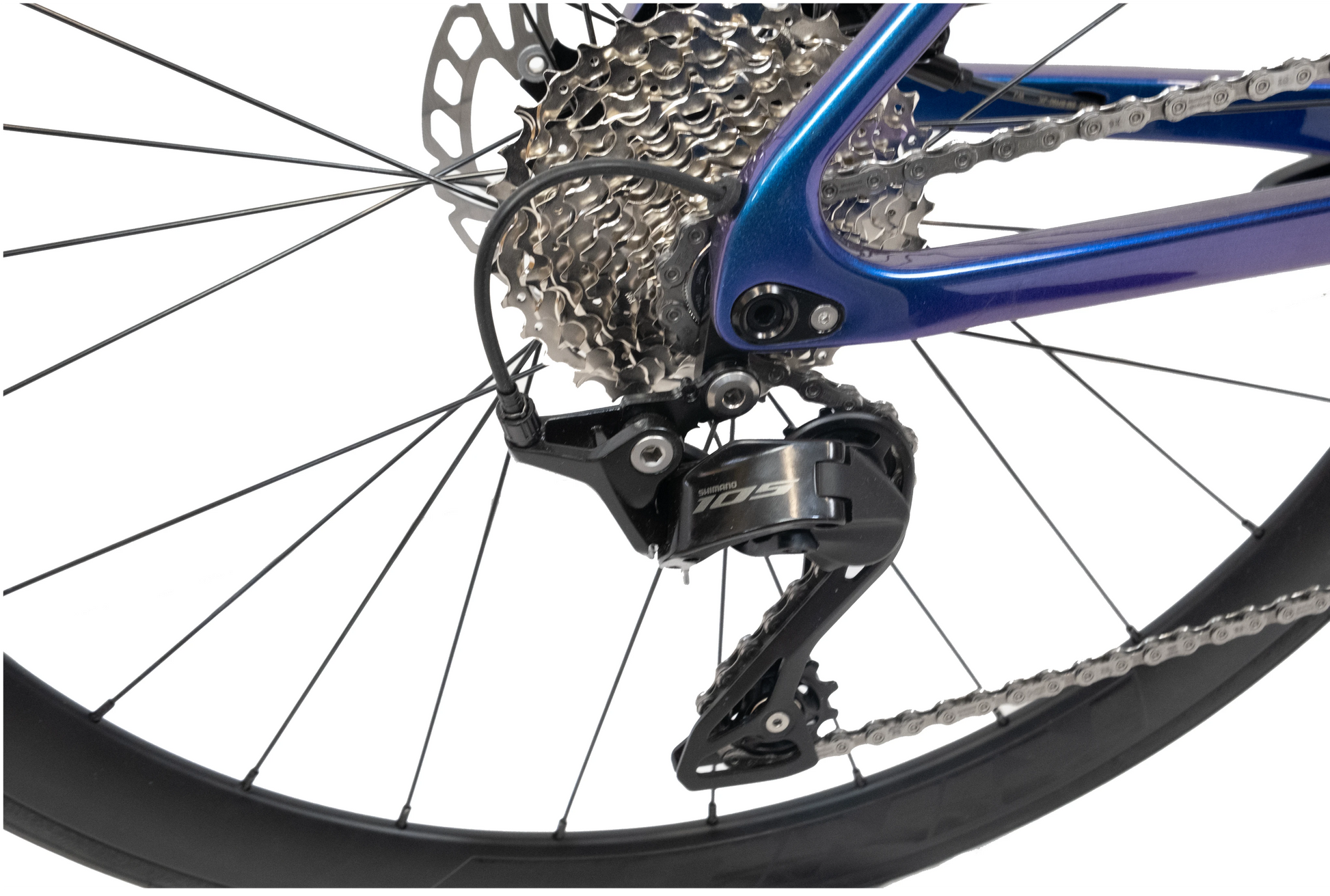

| Rear Derailleur | Shimano 105 R7100 |
| Brakes | Shimano 105 ST-R7120 / BR-R7170 Hydraulic Disc |
| Crankset | Shimano R7100 50/34T × 172.5 |
| Cassette | Shimano 11-36T, 12-Speed |
| Chain | Shimano 12-Speed |
| Wheels | Rinos 700C × 28H × 14G, 38 mm |
| Rims | Aluminum 700C × 14G × 28H F/V, 14 × 38 mm |
| Hubs | Novatec 28H × 14G |
| Tyres | CST 700×25C (Inner tube 60 mm Presta Valve) |
| Handlebar | Rinos Carbon, 420/440 × 28.6 mm |
| Seatpost | Rinos Carbon, 27.2 × 400 mm |
| Headset | Rinos Aluminum, 1-1/8″ 28.6 × 52 × 52 × 39.8 mm |
| Saddle | Rinos |
| Accessories Included | Tools, User Manual |
| Weight (Bike) | 8.8 kg |
| Shipping Weight | 13.8 kg |
| Sizes / Rider Height | 50 cm: 155–170 cm 52 cm: 171–175 cm 54 cm: 176–180 cm 56 cm: 181–190 cm 58 cm: > 190 cm |

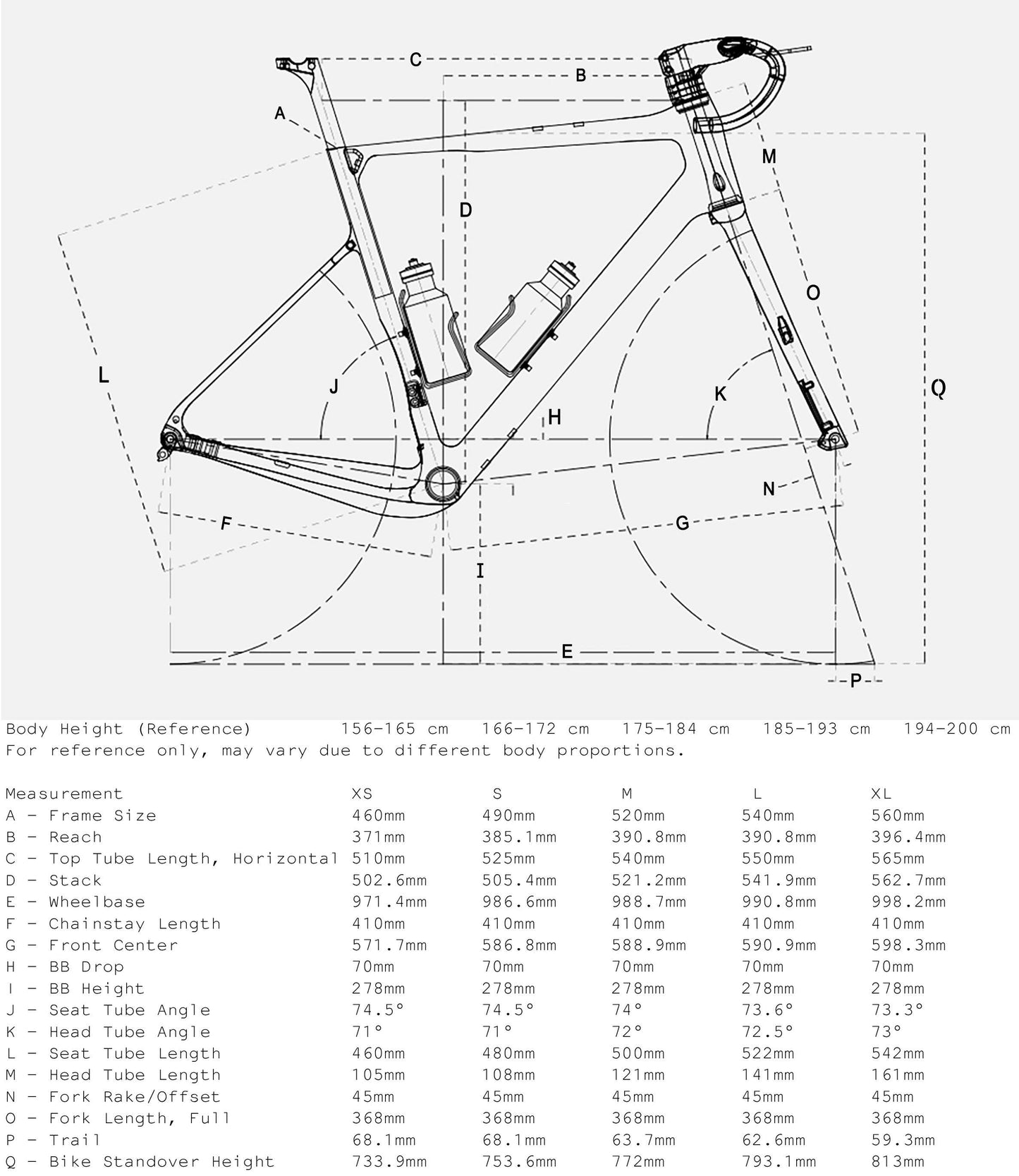

Rinos Road Bicycle Sizing
Geometry & Sizing Details
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height (Reference) | 152–165 cm | 166–172 cm | 175–184cm | 185–193 cm | 194–200 cm |
| For reference only, may vary due to different body proportions. | |||||
| A – Frame Size | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
| B – Seatpost Insert Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| C – Reach | 371 mm | 385.1 mm | 390.8 mm | 390.8 mm | 396.4 mm |
| D – Top Tube Length, Horizontal | 510 mm | 525 mm | 540 mm | 550 mm | 565 mm |
| E – Stack | 502.6 mm | 505.4 mm | 521.2 mm | 541.9 mm | 562.7 mm |
| F – Wheelbase | 971.4 mm | 986.6 mm | 988.7 mm | 990.8 mm | 998.2 mm |
| G – Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| H – Front Center | 571.7 mm | 586.8 mm | 588.9 mm | 590.9 mm | 598.3 mm |
| I – BB Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| J – BB Height | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| K – Seat Tube Angle | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
| L – Head Tube Angle | 71° | 71° | 72° | 72.5° | 73° |
| M – Seat Tube Length | 460 mm | 480 mm | 500 mm | 522 mm | 542 mm |
| N – Head Tube Length | 105 mm | 108 mm | 121 mm | 141 mm | 161 mm |
| Standover Height (700C×32C) | 733.9 mm | 753.6 mm | 772 mm | 793.1 mm | 813 mm |
| O – Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| P – Fork Length, Full | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
| P – Trail | 68.1 mm | 68.1 mm | 63.7 mm | 62.6 mm | 59.3 mm |
Engineered for Endurance
Every frame undergoes rigorous testing to ensure reliability you can depend on.
Built Different
Our approach to frame construction prioritizes long-term durability through careful material selection and precise engineering.
