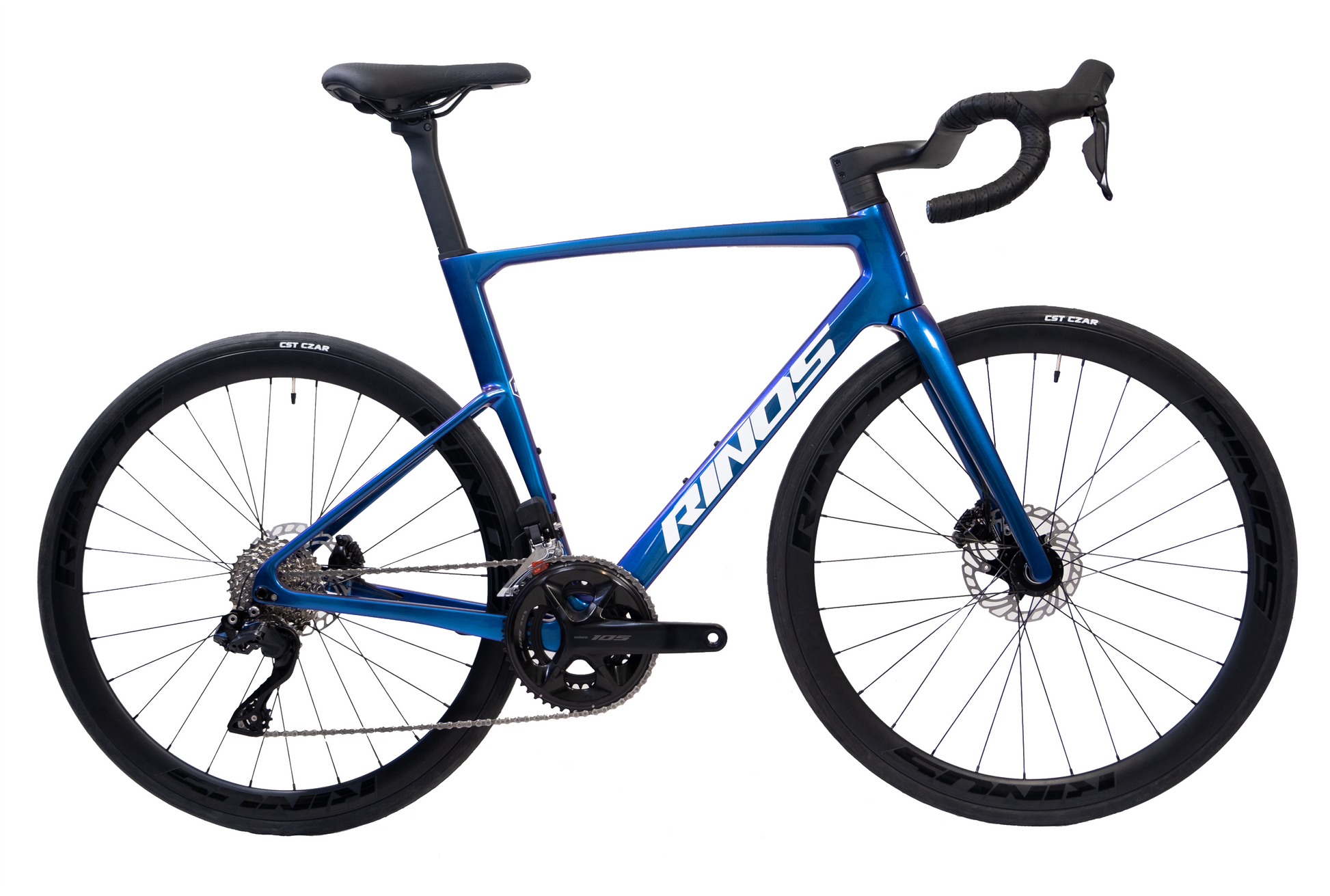

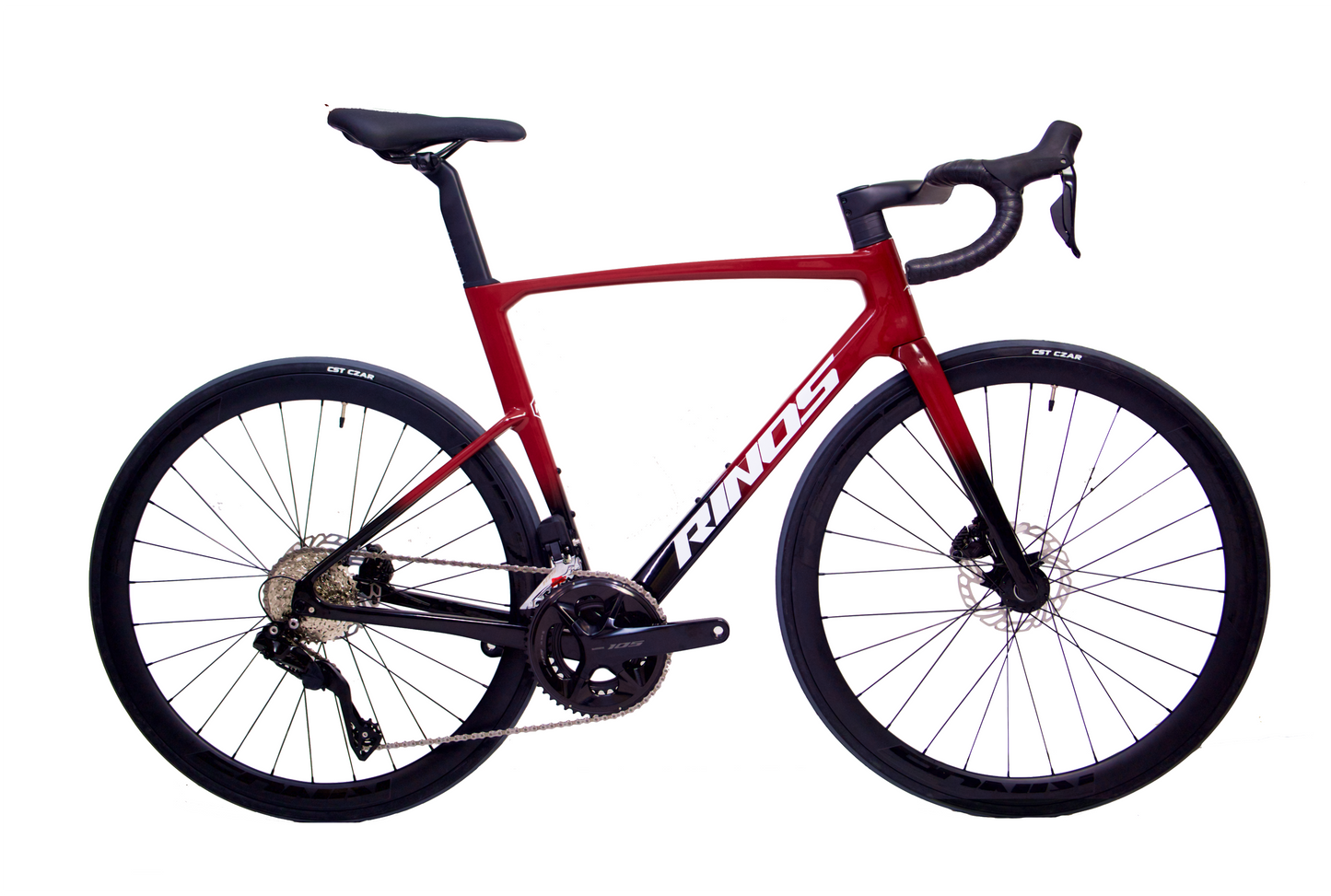

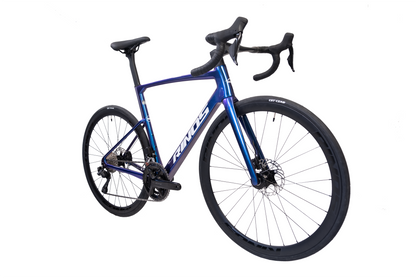

Odin 6
⚡ Key Features:
-
Shimano 105 Di2 Electronic Shifting: Instant, precise gear changes with no cables.
-
Full Carbon Frame & Fork: Premium Toray T800 carbon construction (Frame: 850g, Fork: 400g).
-
24-Speed Drivetrain (2×12): Perfect gear ratios for any terrain—climbs to high-speed descents.
-

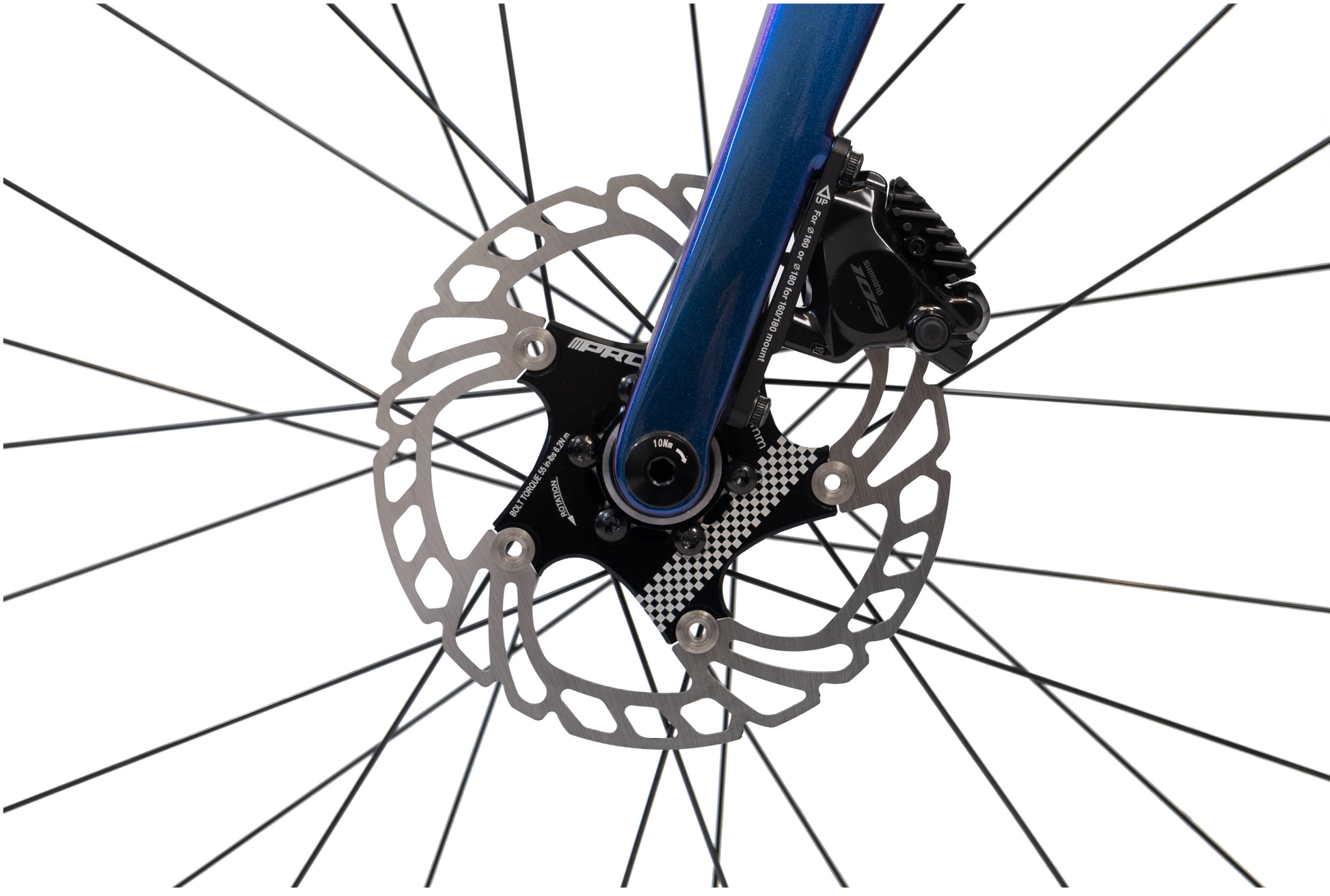

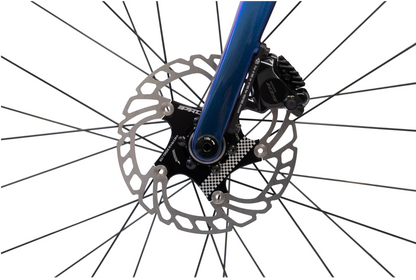

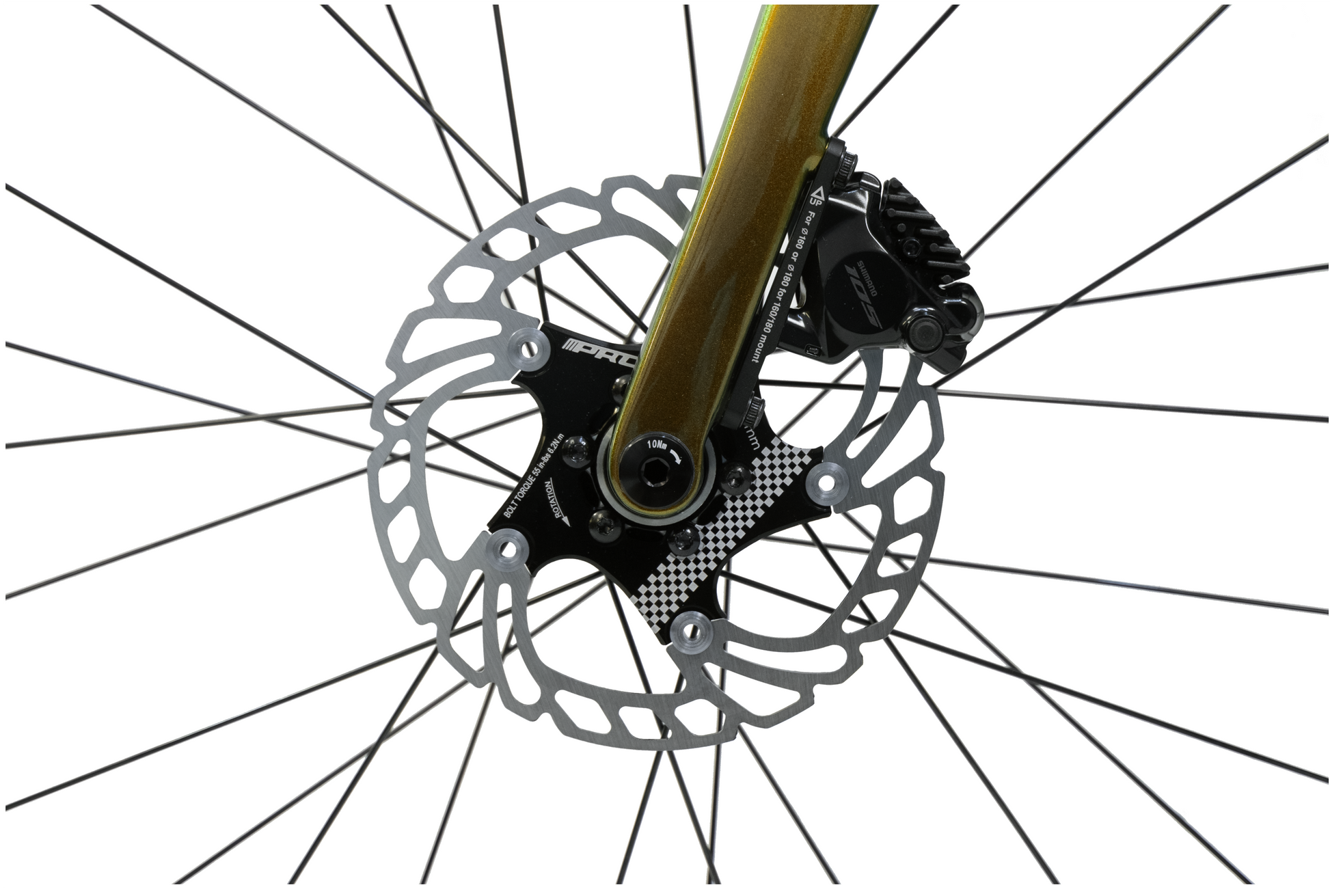

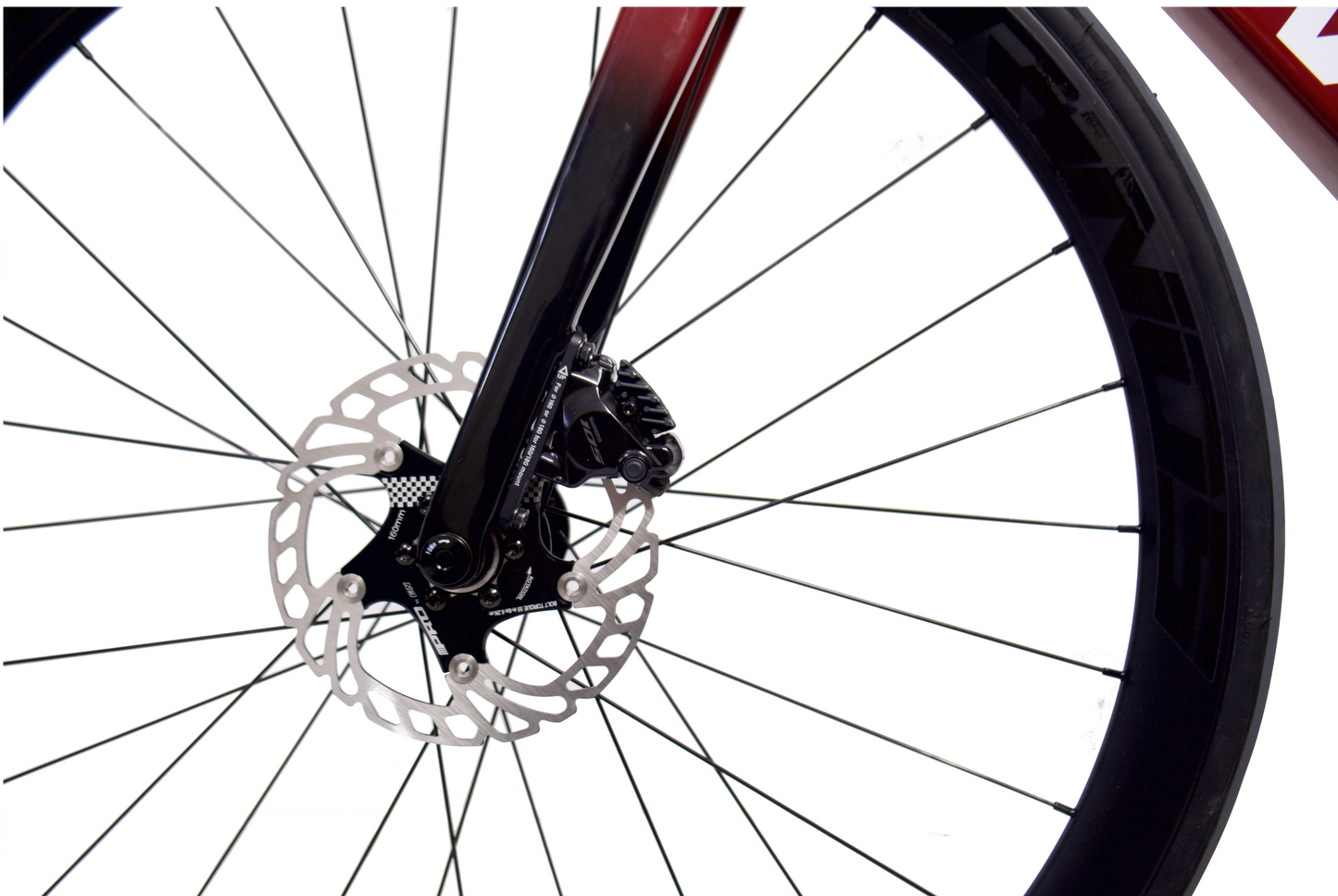

Hydraulic Disc Brakes: Reliable stopping power in all weather conditions.
-
Only 8.5 kg (Complete Bike): Built for speed and efficiency.
-
Weather-Proof Technology: Sealed electronics perform flawlessly in rain, snow, or dust.
📐 Geometry & Fit:
Available in sizes XS–XL — covering riders from 156 cm to 200 cm.
📦 What's Included:
-

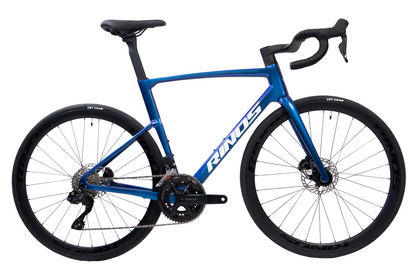

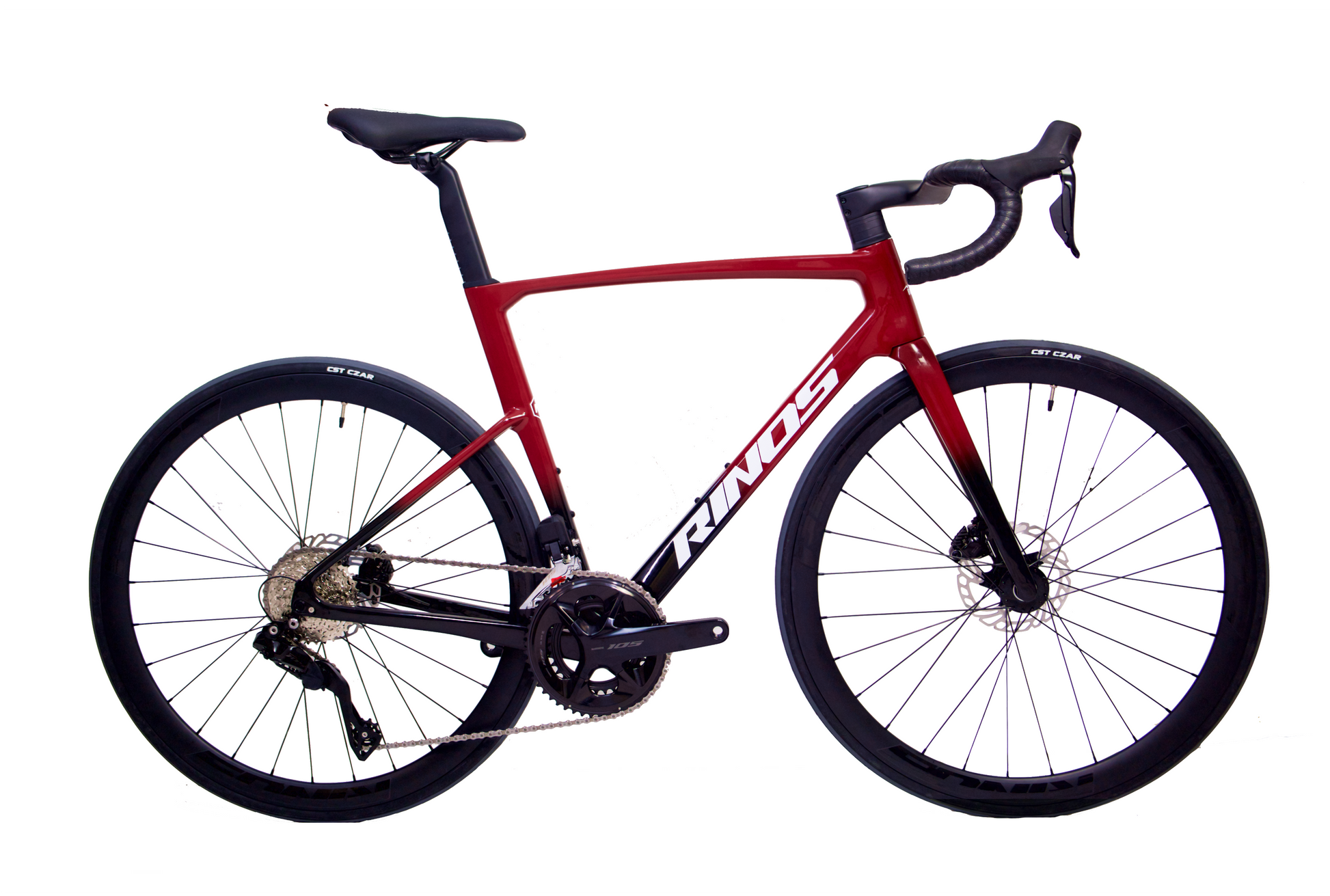

RINOS Odin 6.0 Complete Bike (8.5 kg)
-
Tools & Instruction Manual
-
Optional: Assembly service available upon request
💡 Ideal For:
-
Riders upgrading to electronic shifting technology
-
Competitive racing, training, and long-distance road cycling
-
Cyclists seeking effortless, precision shifting with minimal maintenance
🔍 Tech Specs Summary:
-

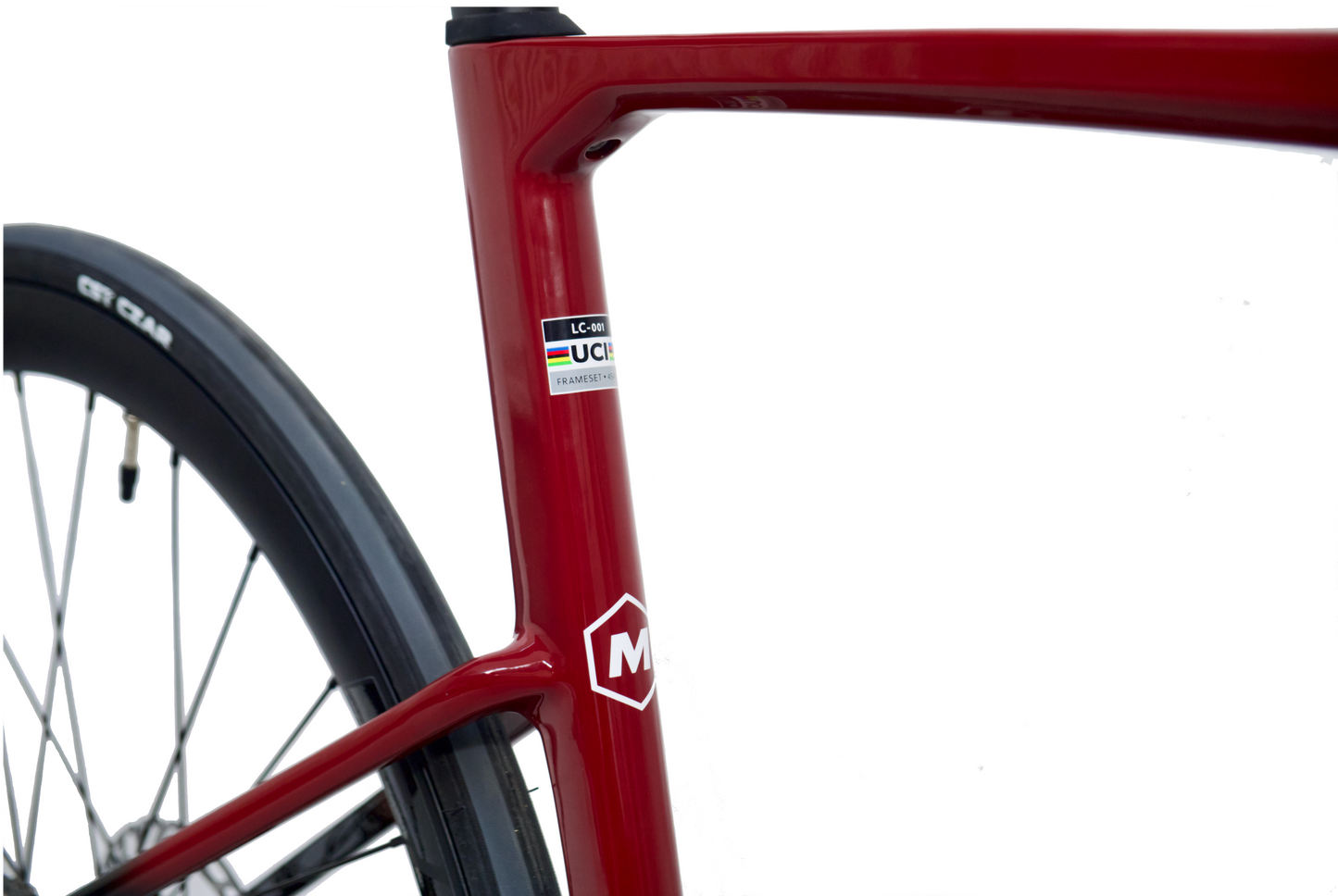

Frame/Fork: Toray T800 Carbon
-
Groupset: Shimano 105 Di2, 24-Speed (2×12)
-
Brakes: Hydraulic Disc Brakes
-

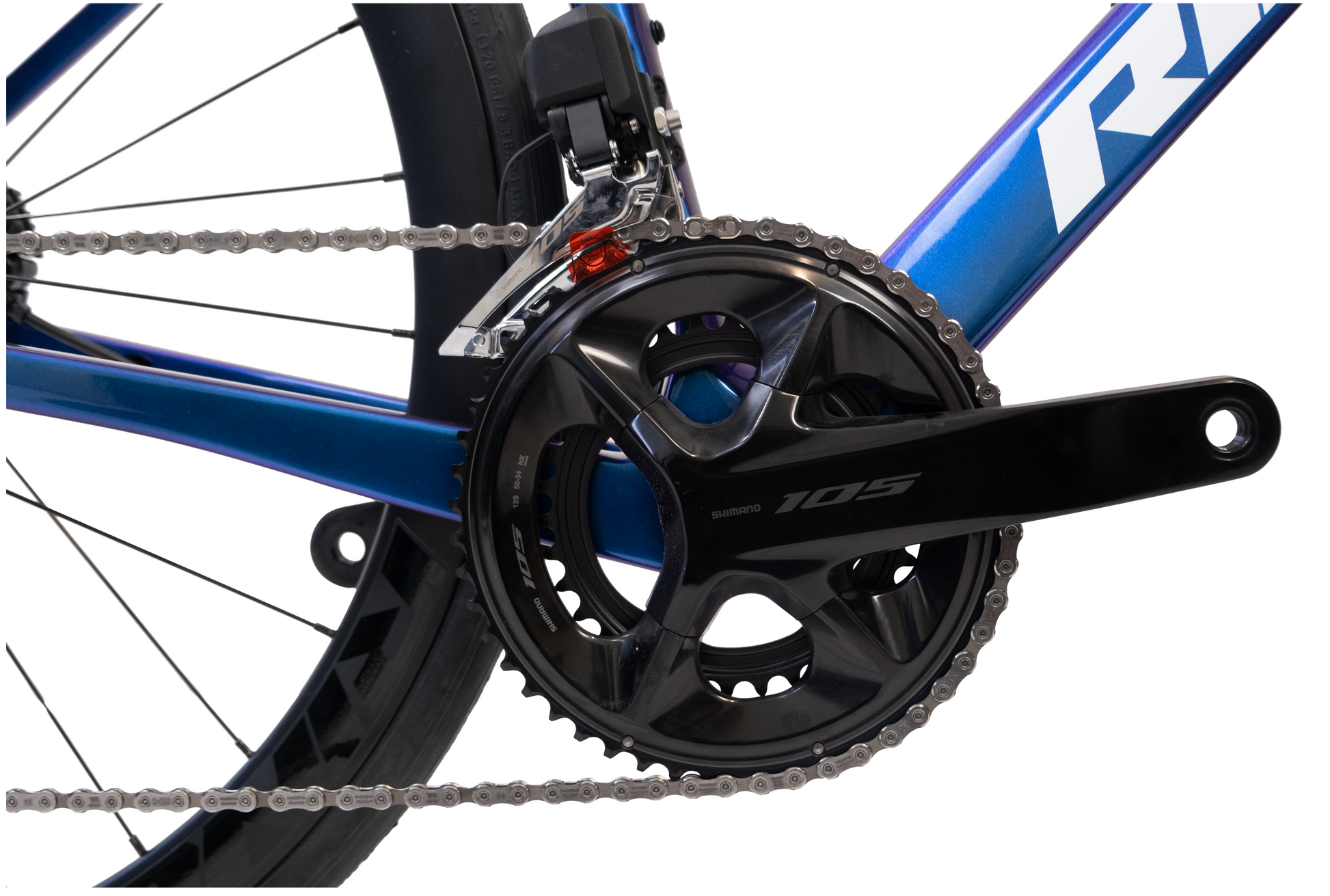

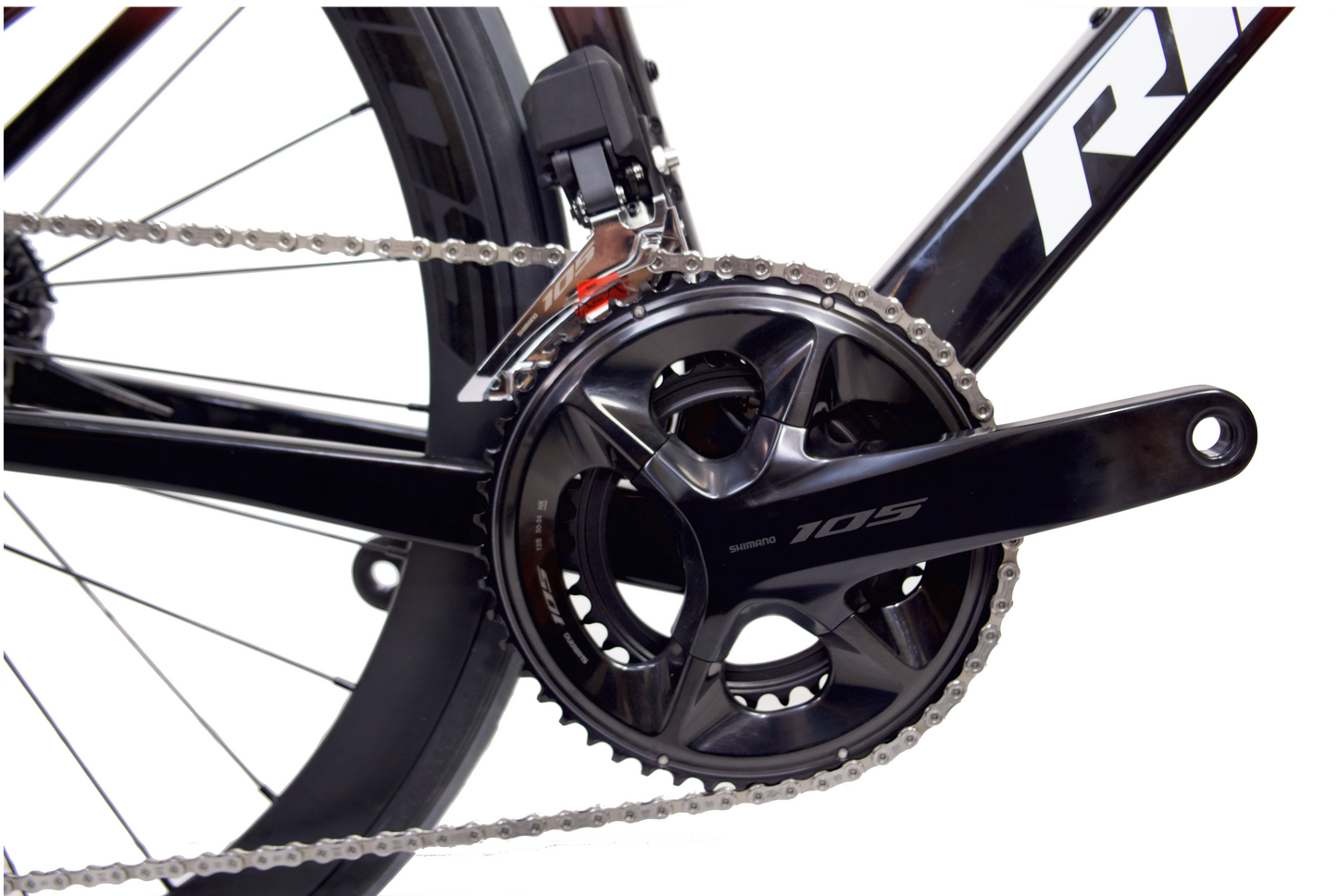

Crankset: 50/34T (Compact)
-
Cassette: 11-34T, 12-Speed
-
Wheels: 700C, 40 mm profile rims
-
Tyres: 700×25C
-

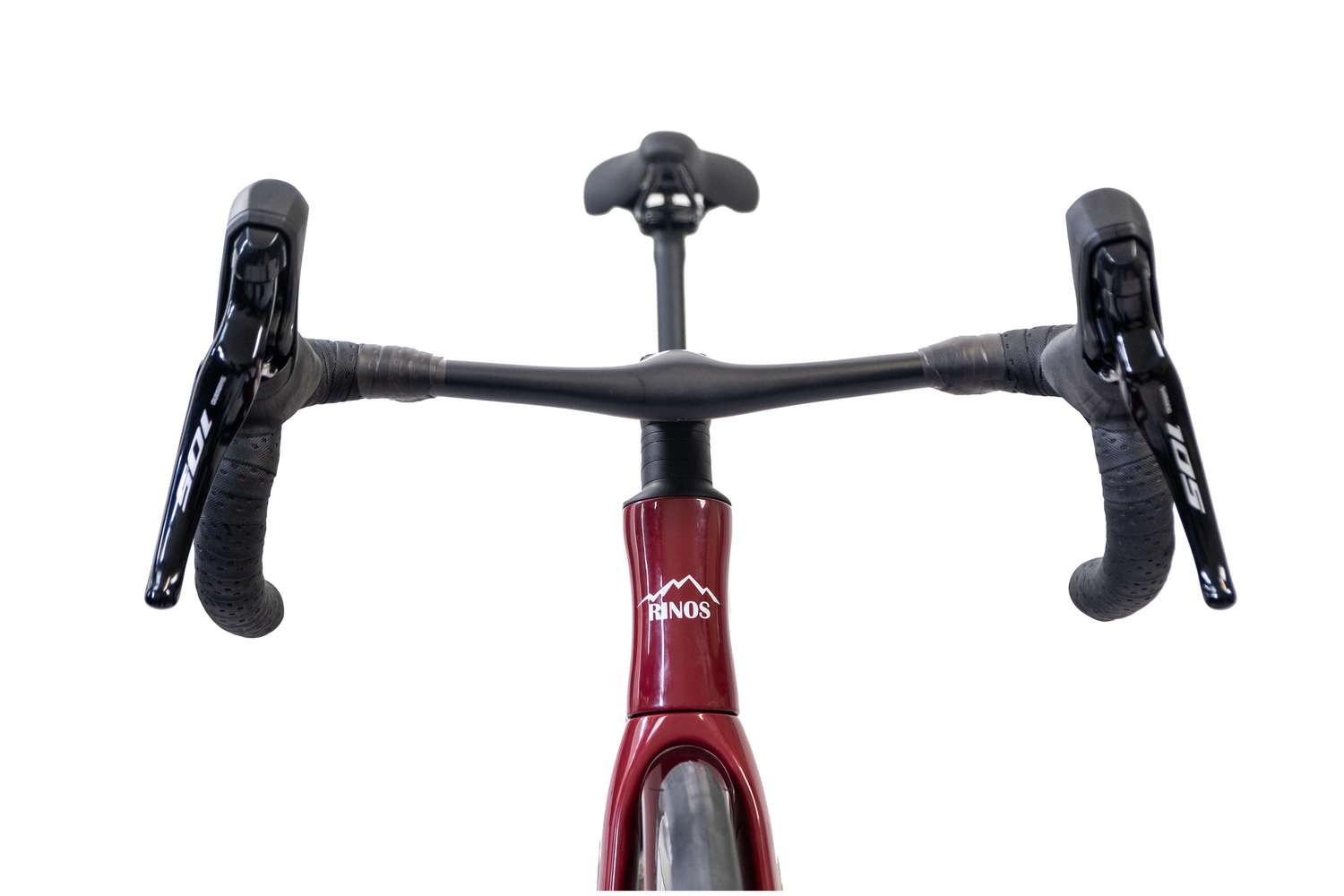

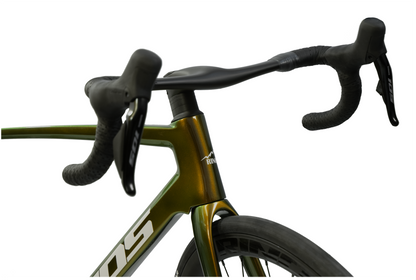

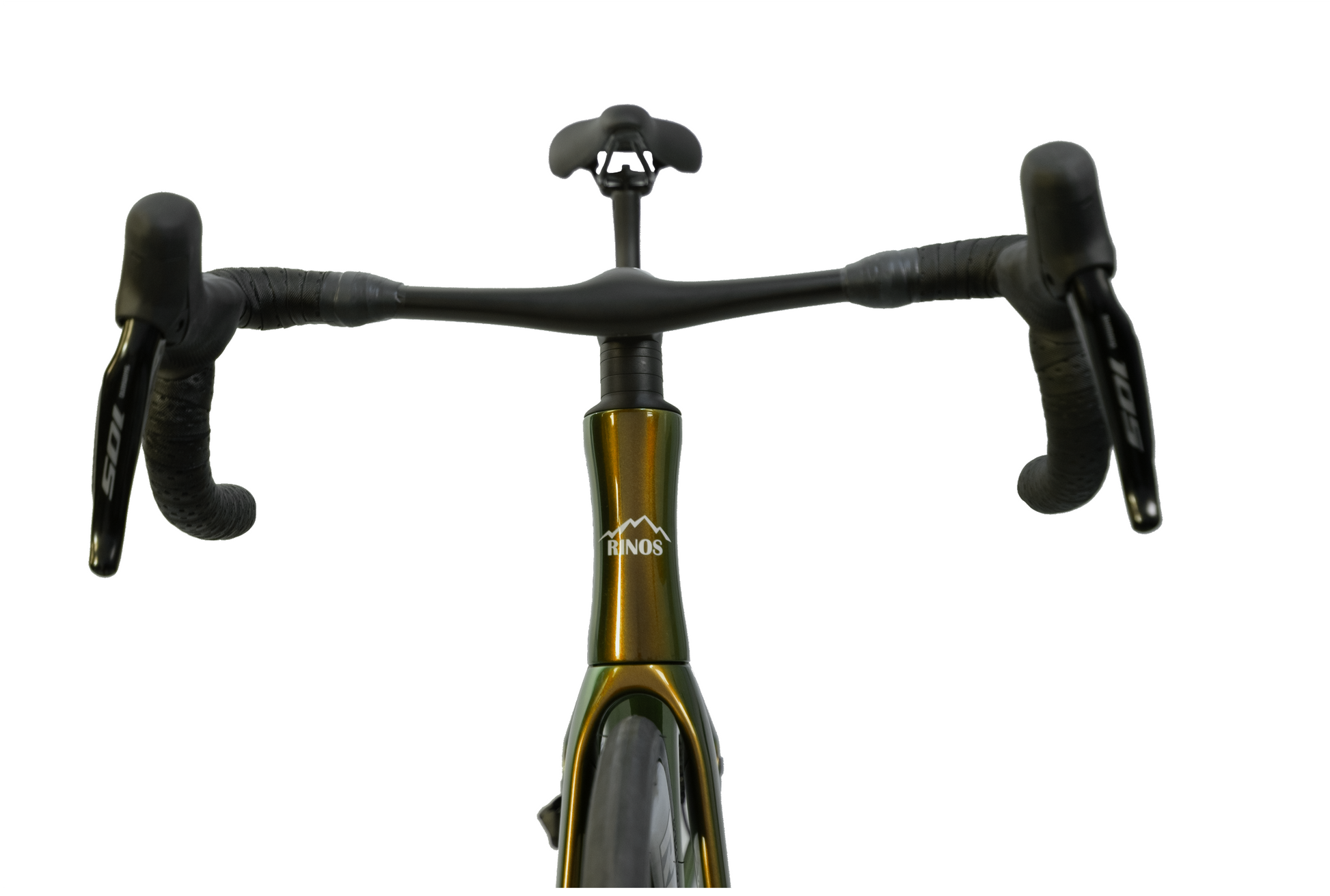

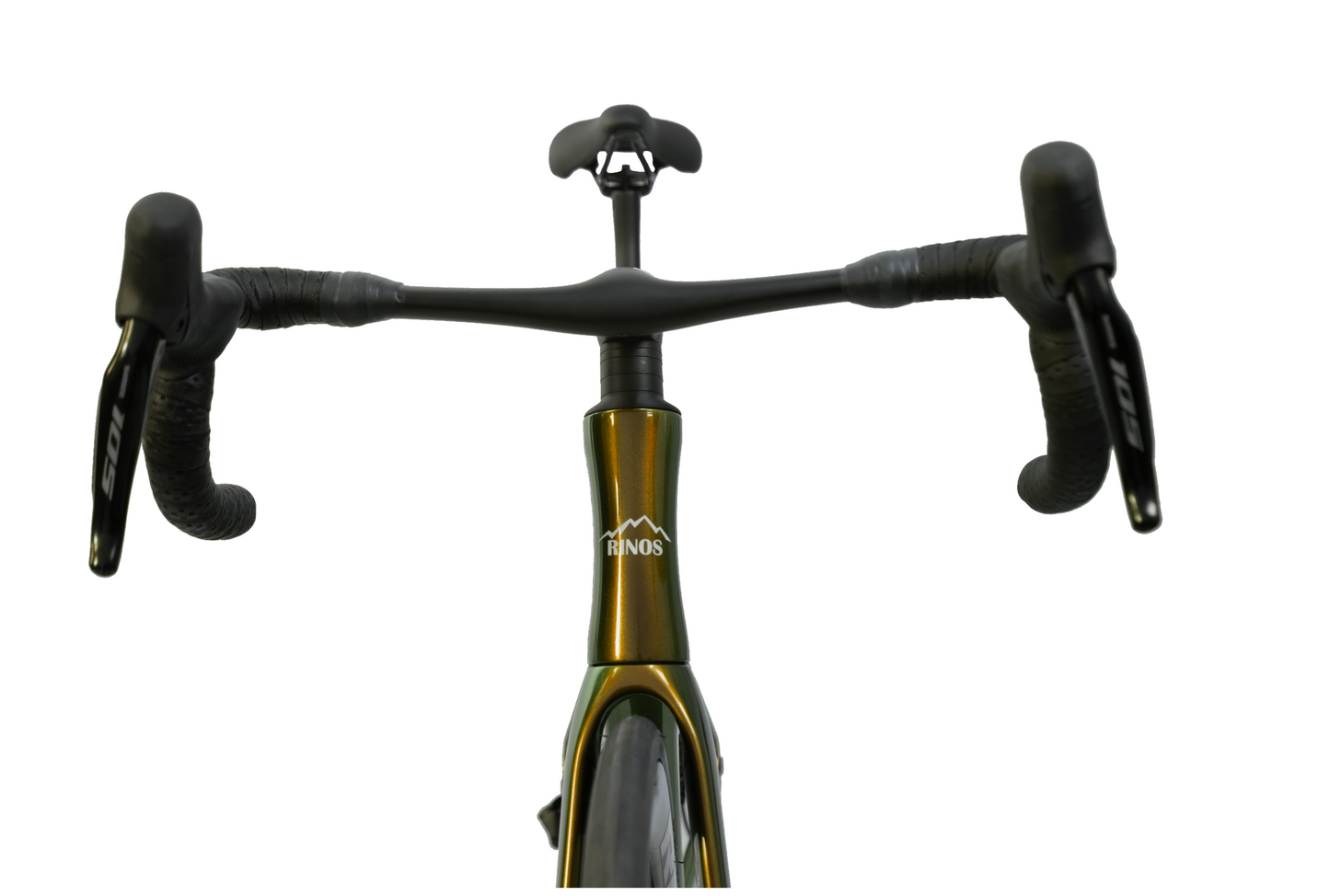

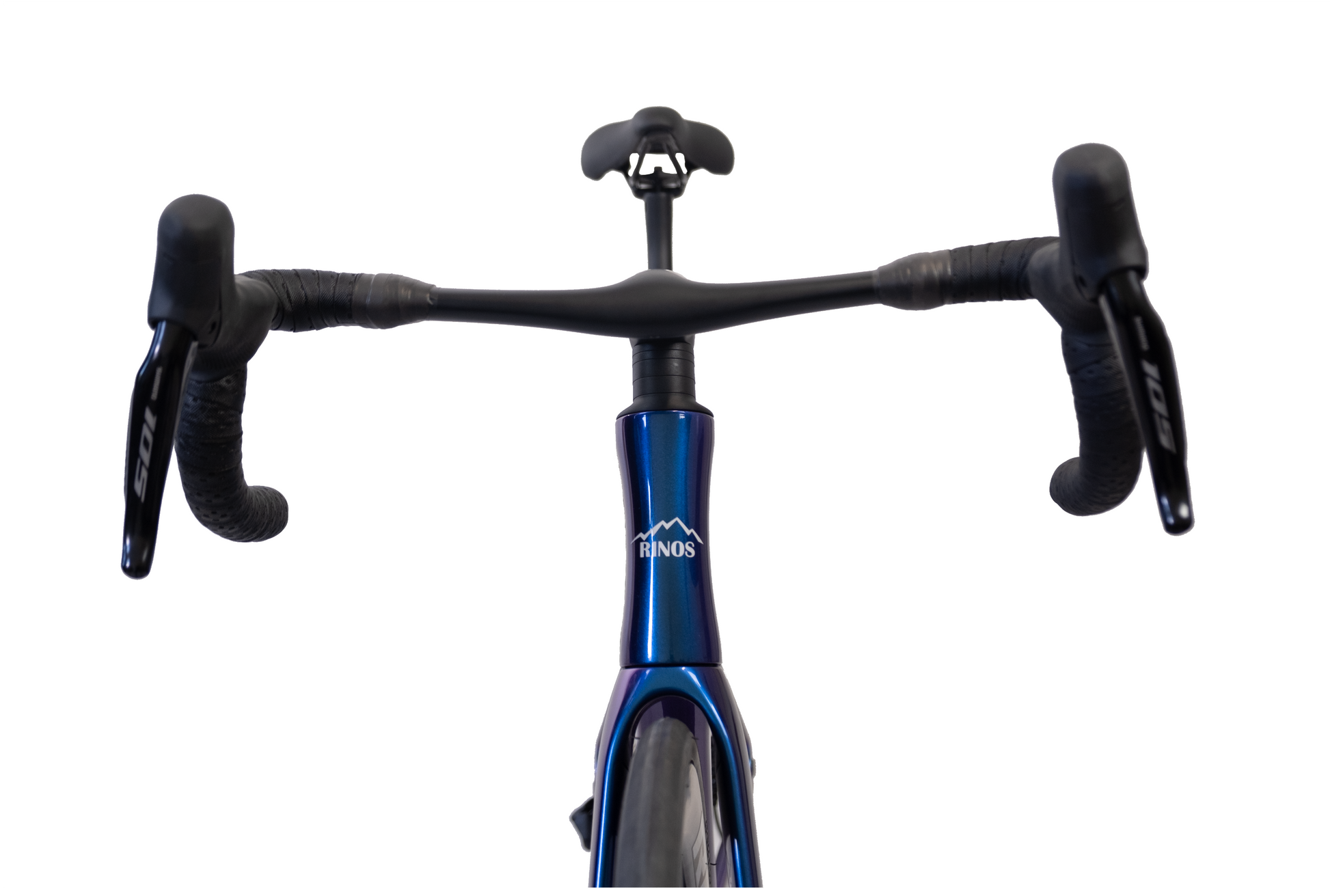

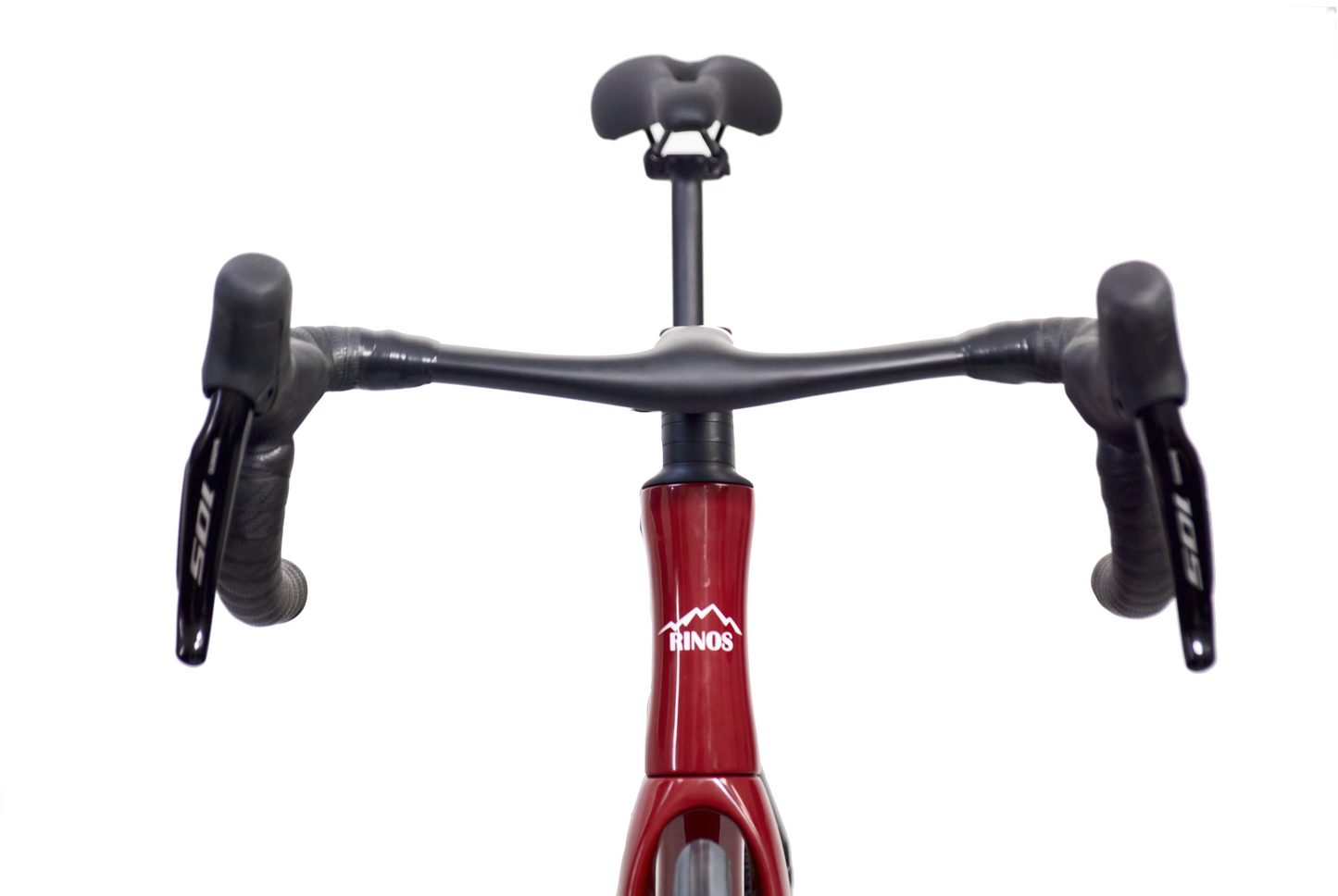

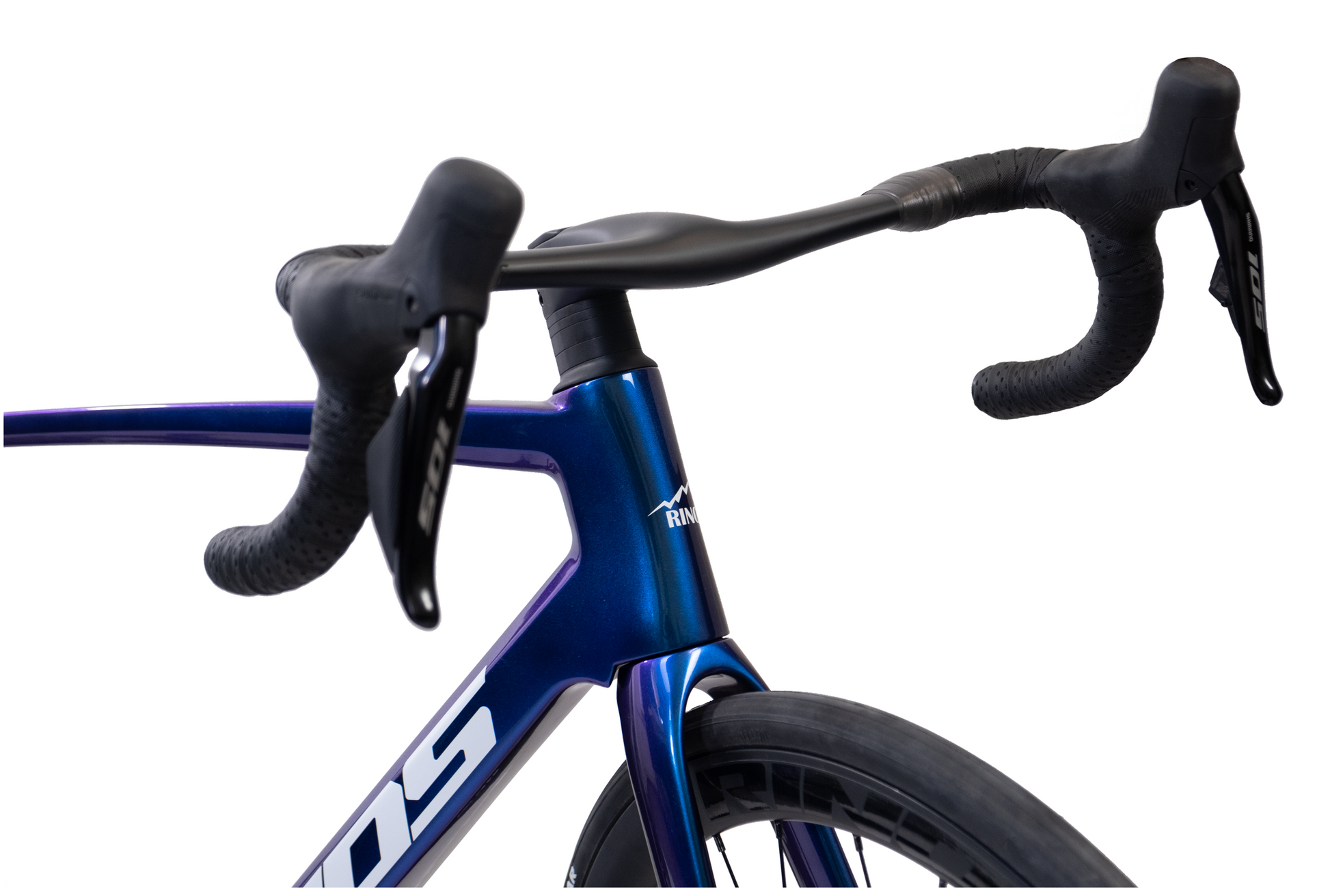

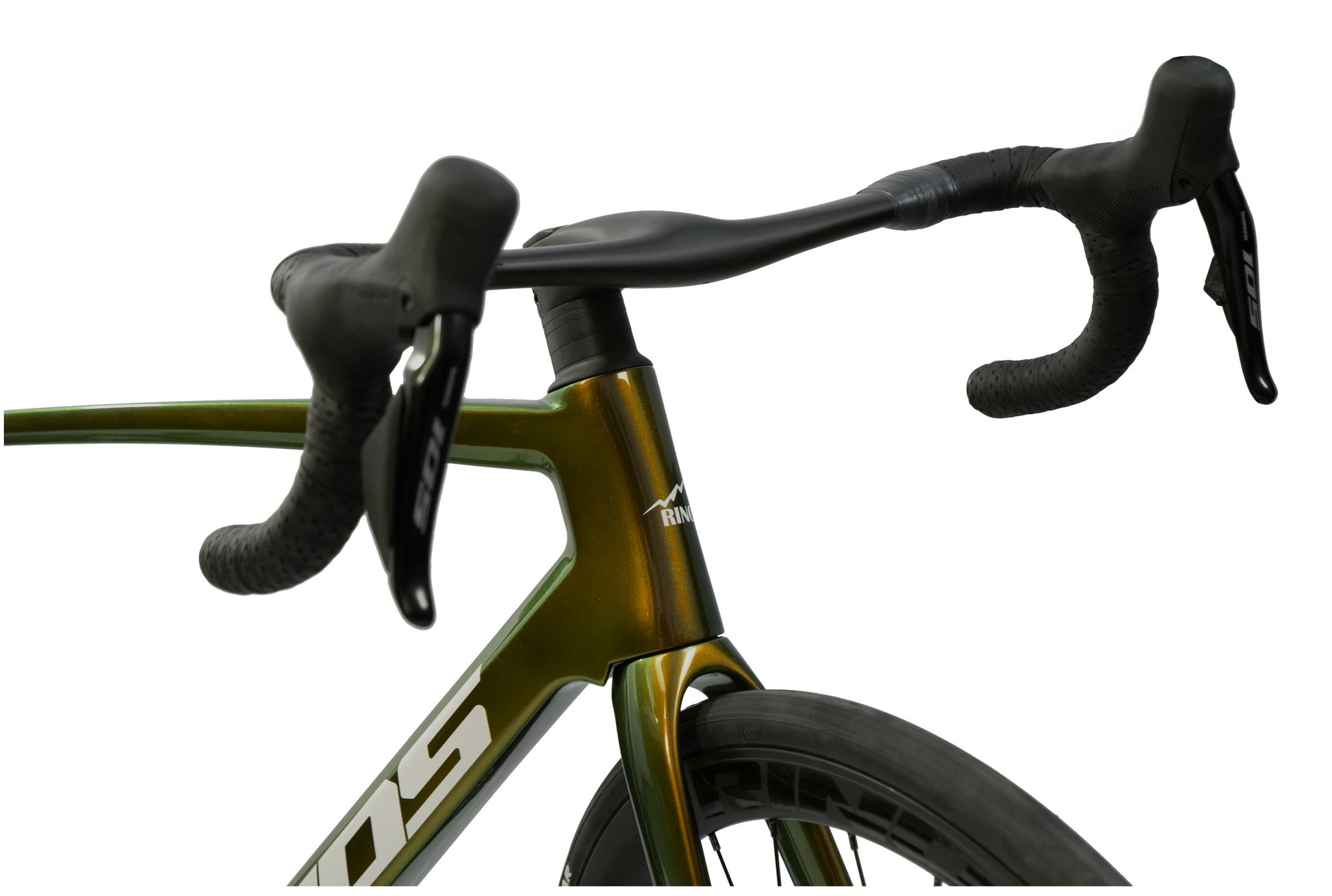

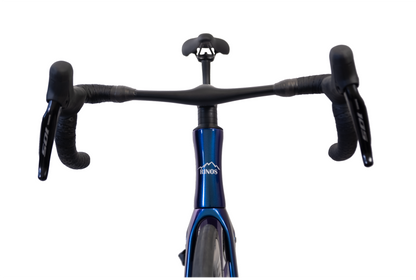

Handlebar: Rinos Carbon 400/420 mm (size-dependent)
-
Stem: 80/90/100/110 mm (size-dependent)
-
Weight: 8.5 kg (Bike)
-
Battery: 1000 km range, 2-hour charge via Micro USB
-
Warranty: 2 Years
📘 Full Technical Specifications
| Frame / Fork | Toray T800 Carbon |
|---|---|
| Groupset | Shimano 105 Di2, 24-Speed (2×12) |

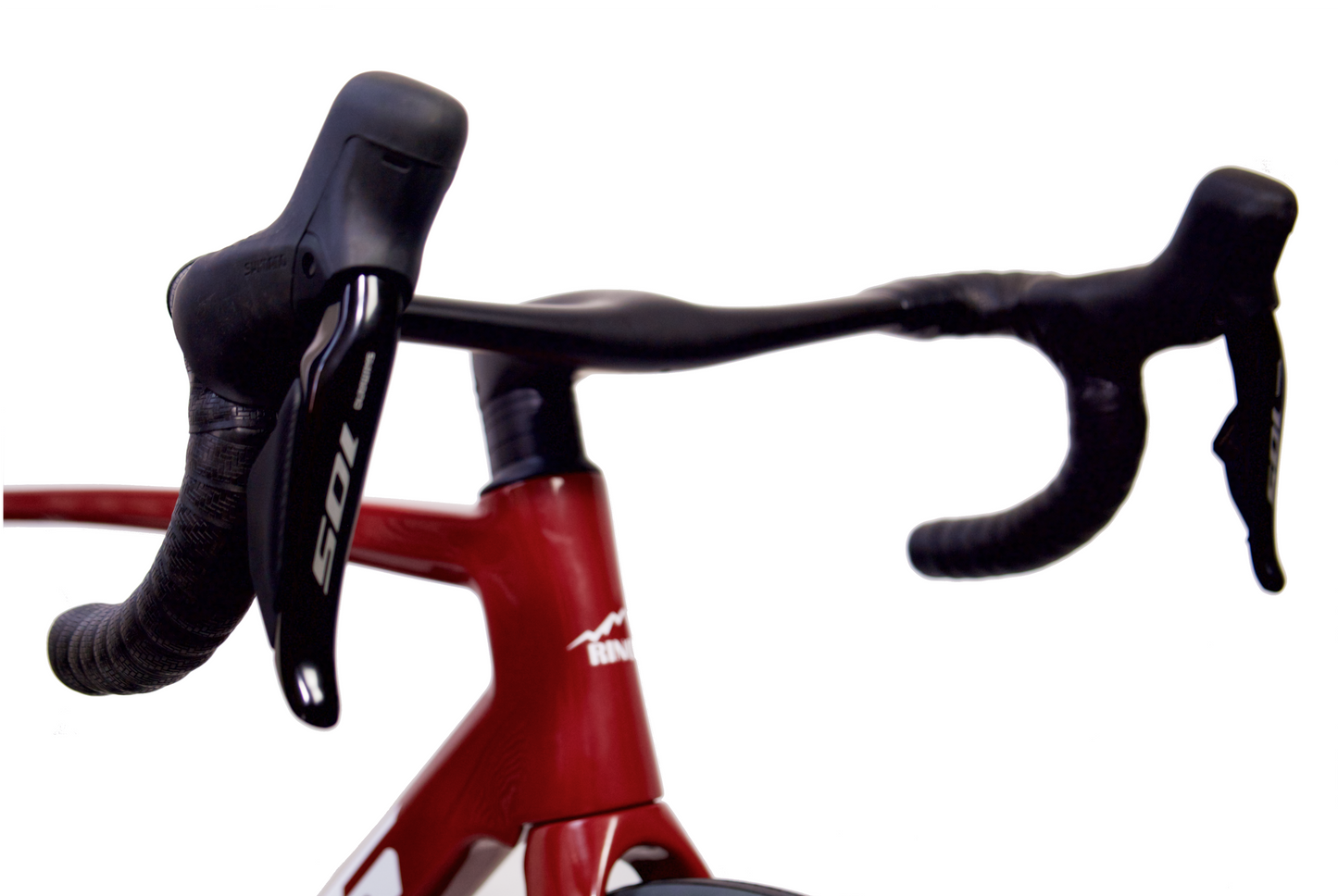

| Shifters | Shimano 105 Di2 |

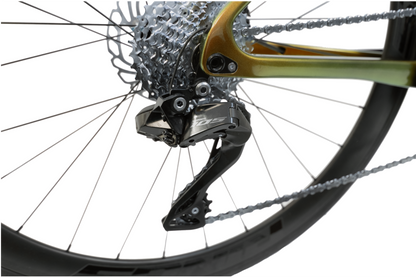

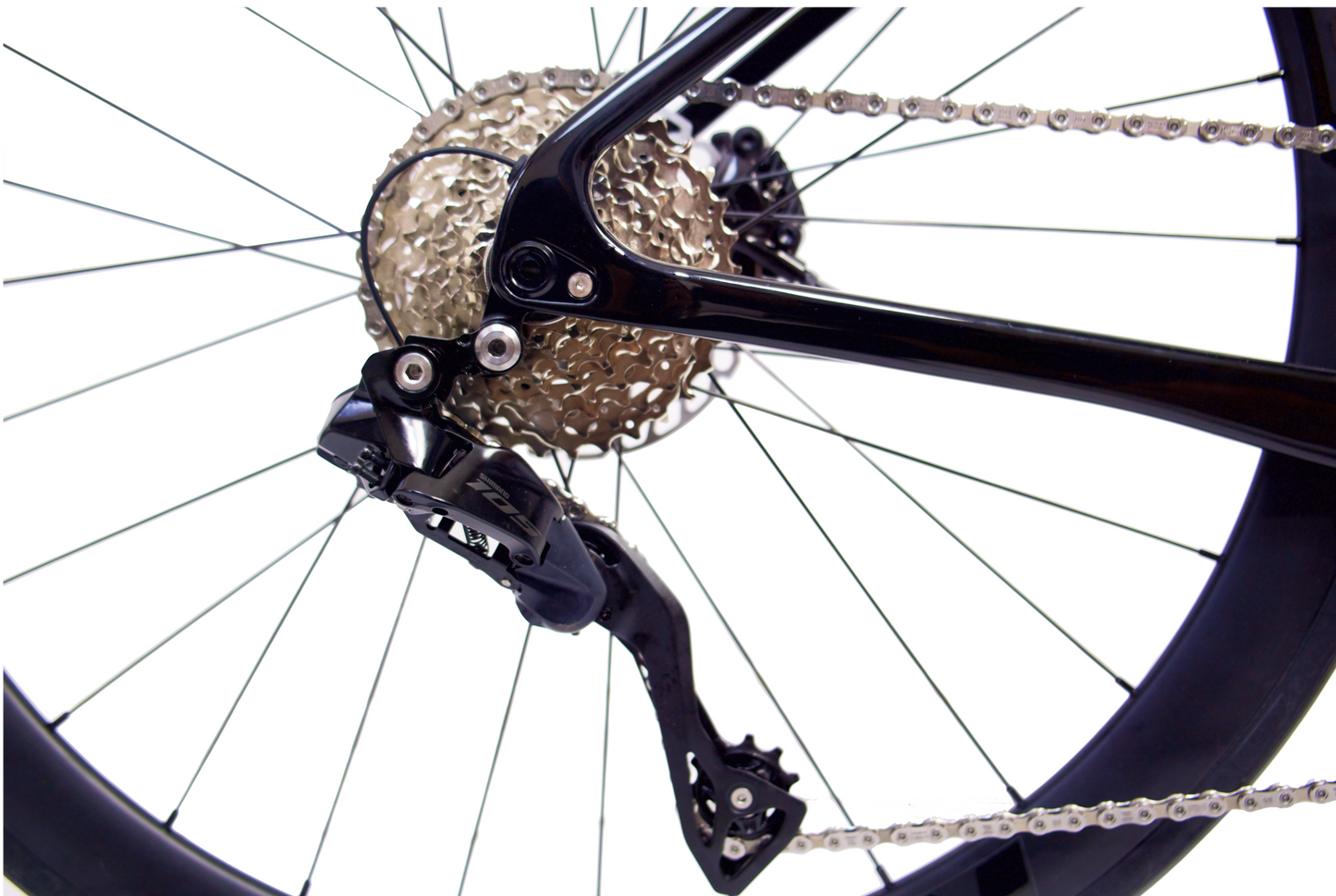

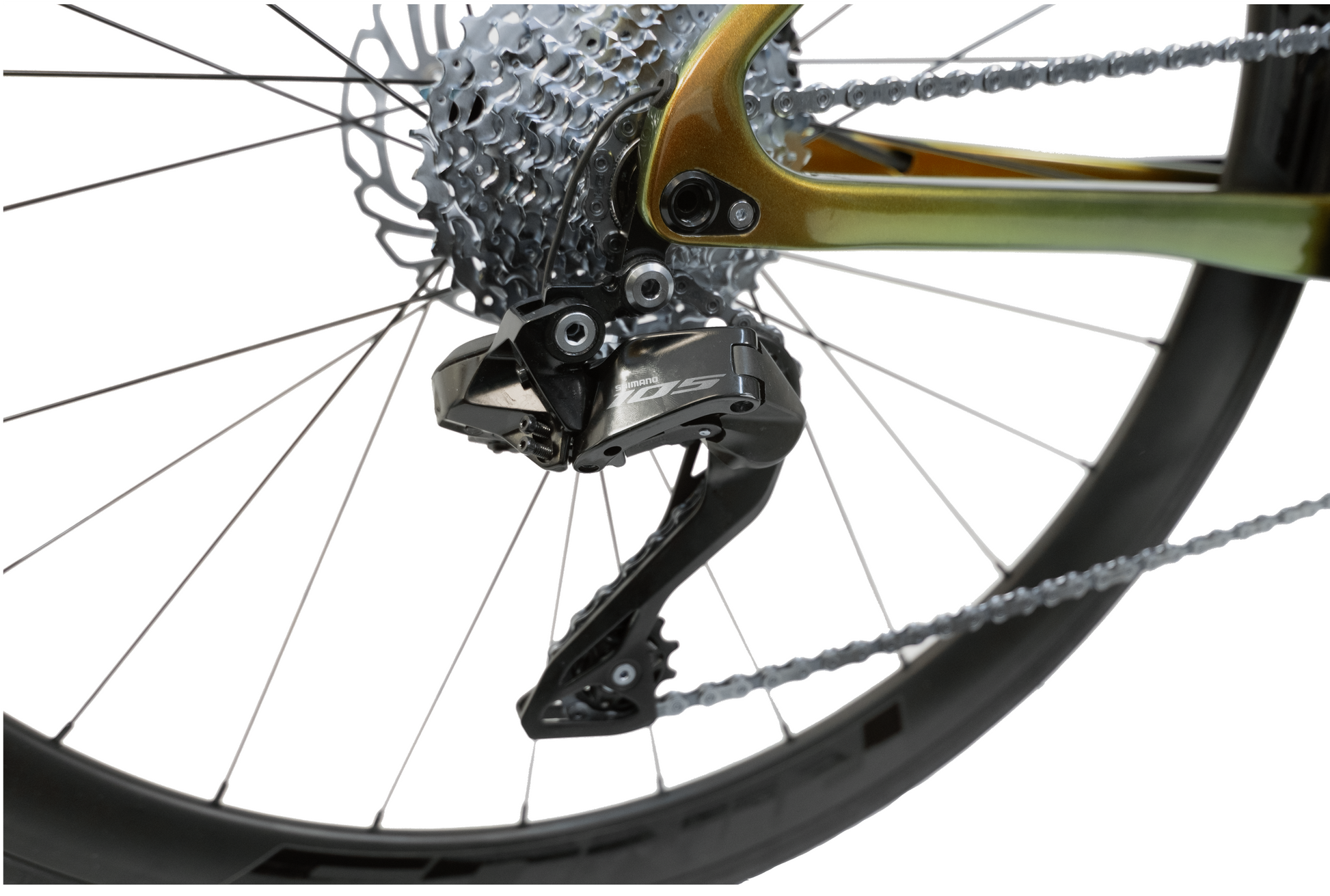

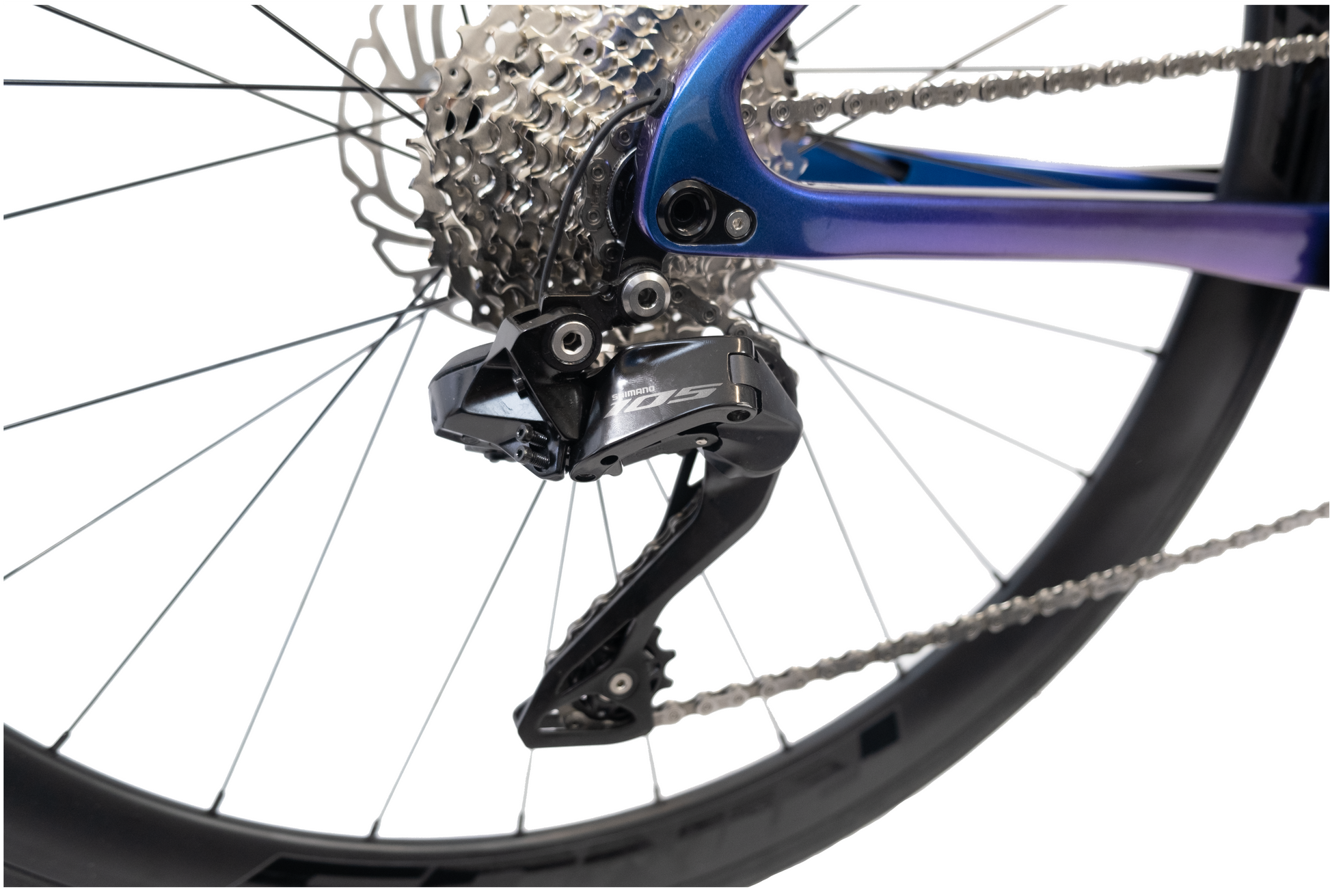

| Rear Derailleur | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Brakes | Hydraulic Disc Brakes |
| Crankset | 50/34T |
| Cassette | 11-34T, 12-Speed |
| Chain | 12-Speed |
| Wheels | 700C, 40 mm |
| Tyres | 700×25C |
| Handlebar | Rinos Carbon 400/420 mm |
| Stem | 80/90/100/110 mm (varies by size) |
| Seatpost | Carbon |
| Saddle | Rinos |
| Battery Life | 1000 km range, 2-hour charge (Micro USB) |
| Accessories Included | Tools, User Manual |
| Weight (Bike) | 8.5 kg |
| Warranty | 2 Years |
| Sizes / Rider Height | XS: 156–165 cm S: 166–172 cm M: 175–184 cm L: 185–193 cm XL: 194–200 cm |
🔧 Assembly Video Guide
Watch it done in 15 minutes. Tools included.
Find Your Perfect Fit
Choose based on your height. Between sizes? Go larger for comfort, smaller for agility.
📏 Sizing Guide & Geometry
How to Measure Yourself
💡 Tip: Between sizes with longer legs? Size up. Shorter torso? Size down.

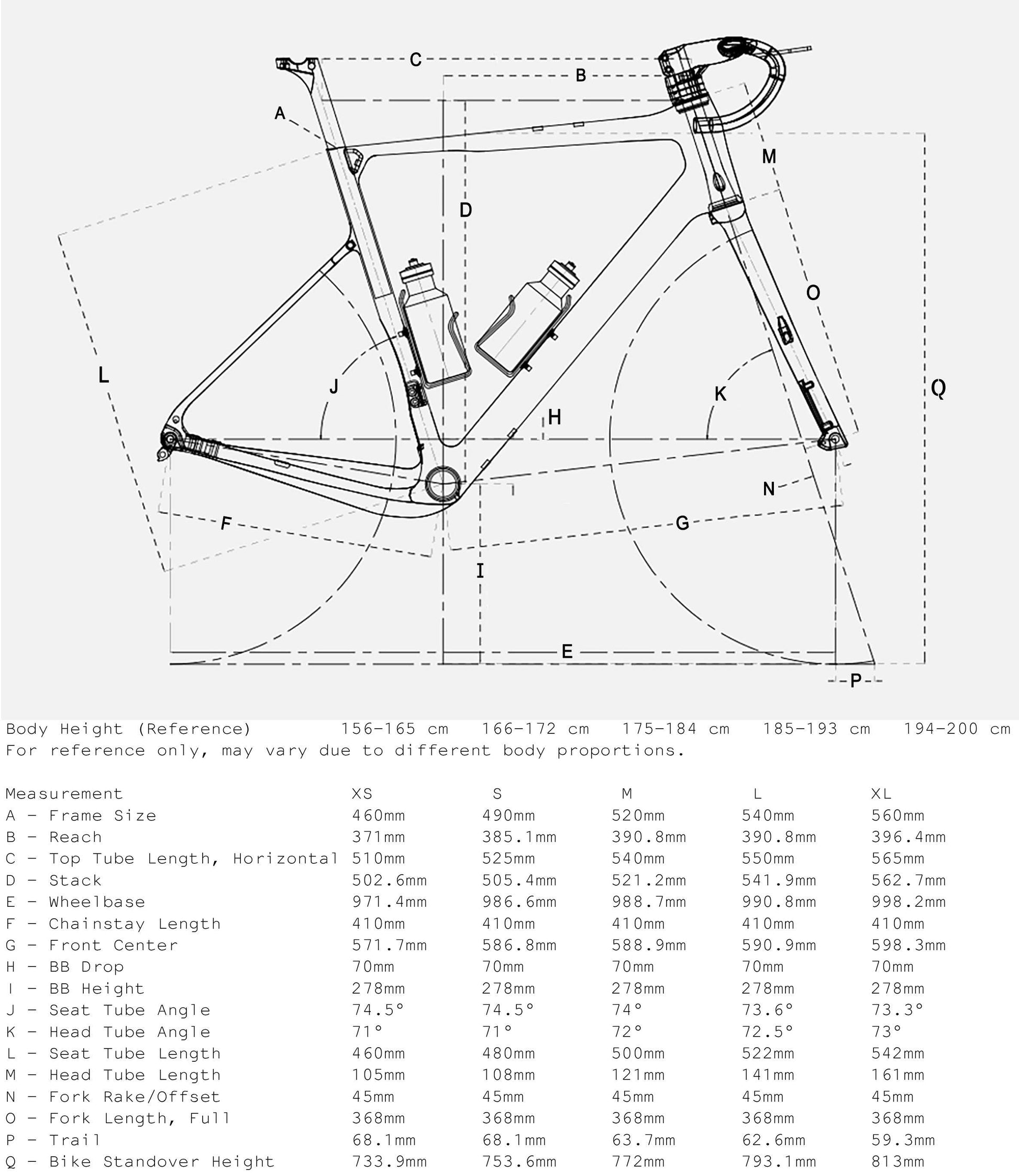

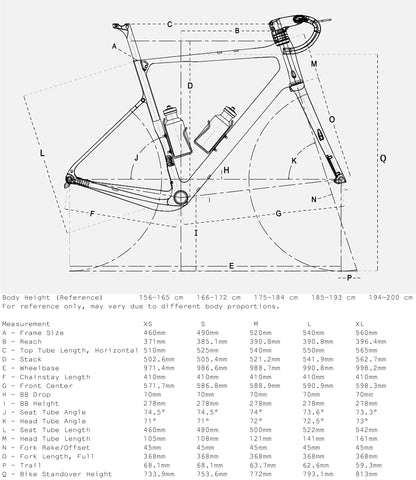

Frame Geometry
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | 152-165cm | 166-172cm | 175-184cm | 185-193cm | 194-200cm |
| Frame Size (A) | 460mm | 490mm | 520mm | 540mm | 560mm |
| Reach (C) | 371mm | 385mm | 391mm | 391mm | 396mm |
| Stack (E) | 503mm | 505mm | 521mm | 542mm | 563mm |
| Top Tube (D) | 510mm | 525mm | 540mm | 550mm | 565mm |
| Head Tube (N) | 105mm | 108mm | 121mm | 141mm | 161mm |
| Seat Tube (M) | 460mm | 480mm | 500mm | 522mm | 542mm |
| Standover | 734mm | 754mm | 772mm | 793mm | 813mm |
| Wheelbase (F) | 971mm | 987mm | 989mm | 991mm | 998mm |
| Chainstay (G) | 410mm | 410mm | 410mm | 410mm | 410mm |
| BB Drop (I) | 70mm | 70mm | 70mm | 70mm | 70mm |
| Seat Angle (K) | 74.5° | 74.5° | 74° | 73.6° | 73.3° |
| Head Angle (L) | 71° | 71° | 72° | 72.5° | 73° |
All measurements are approximate.
