tire size
28 inch

gear shifter
Shimano GRX 600

weight
9.8kg

frame material
Carbon

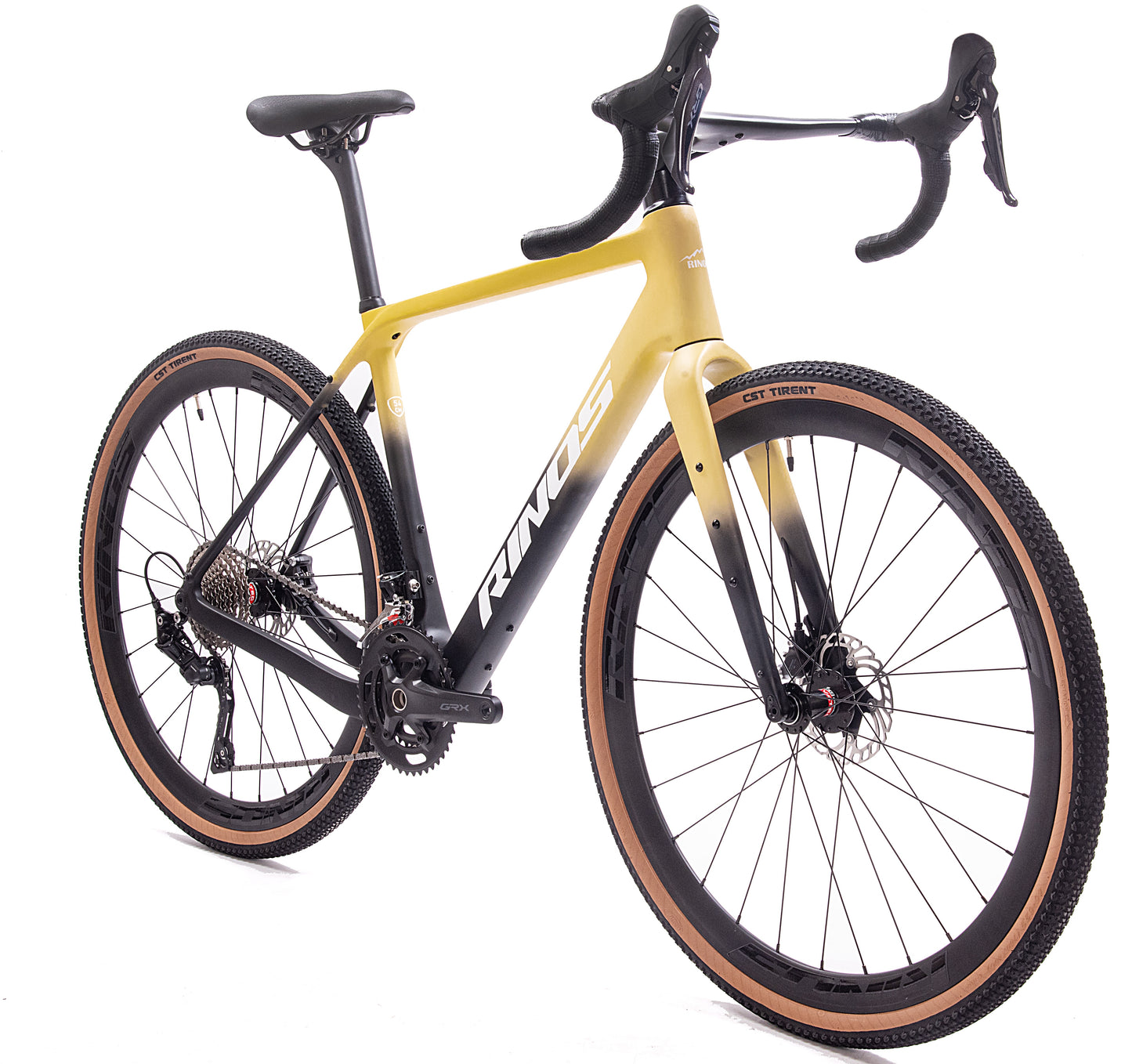

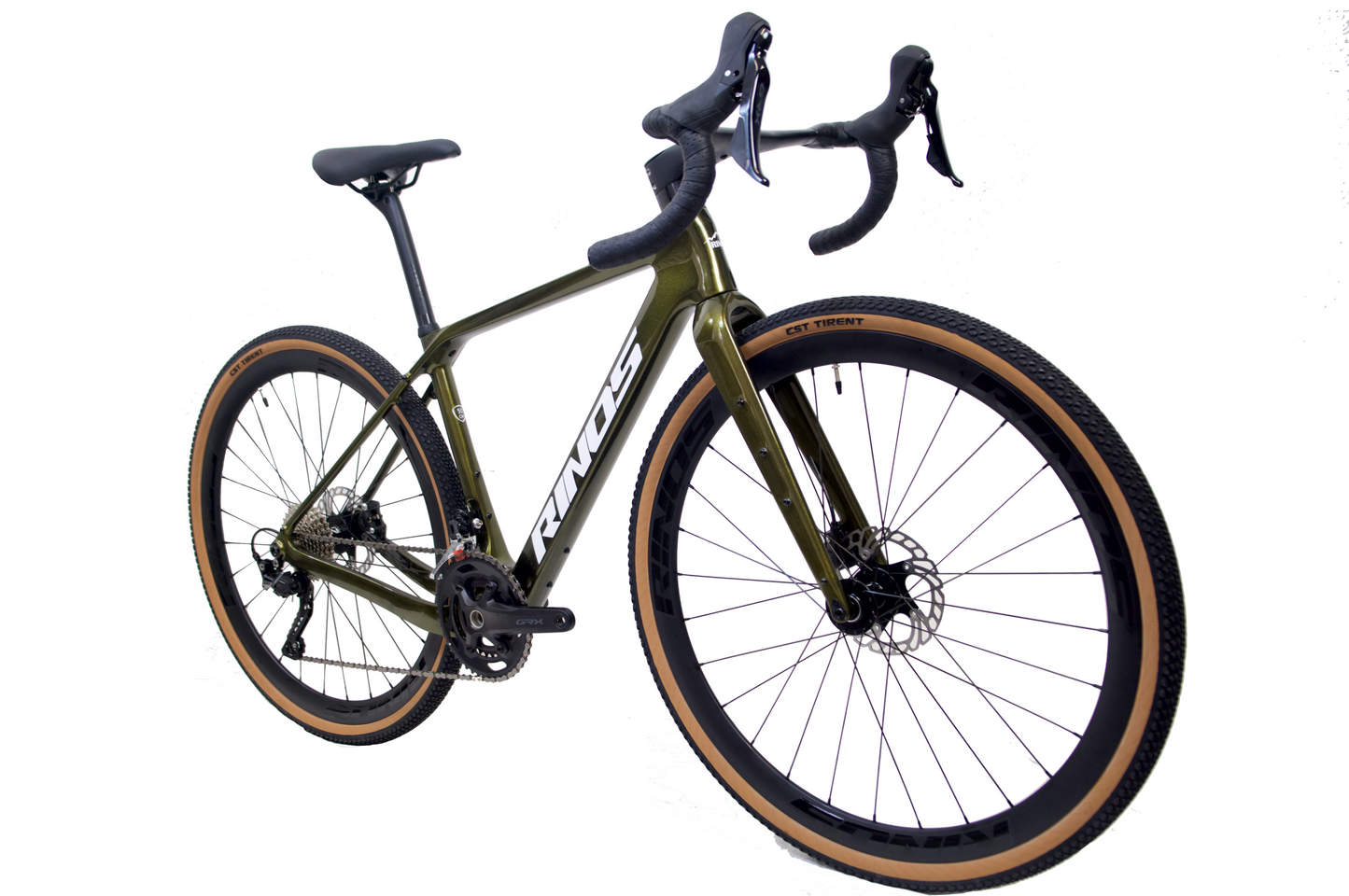

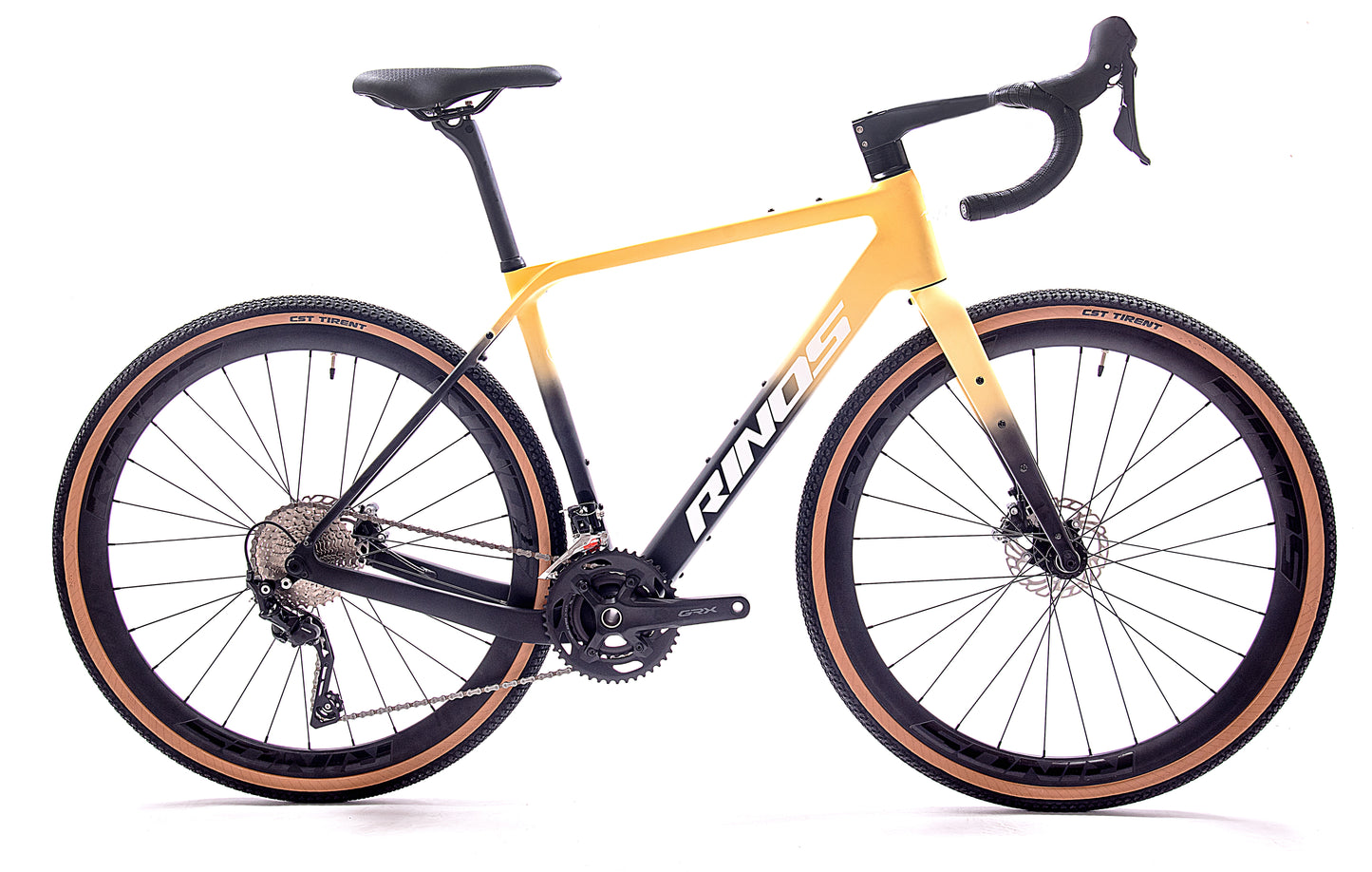

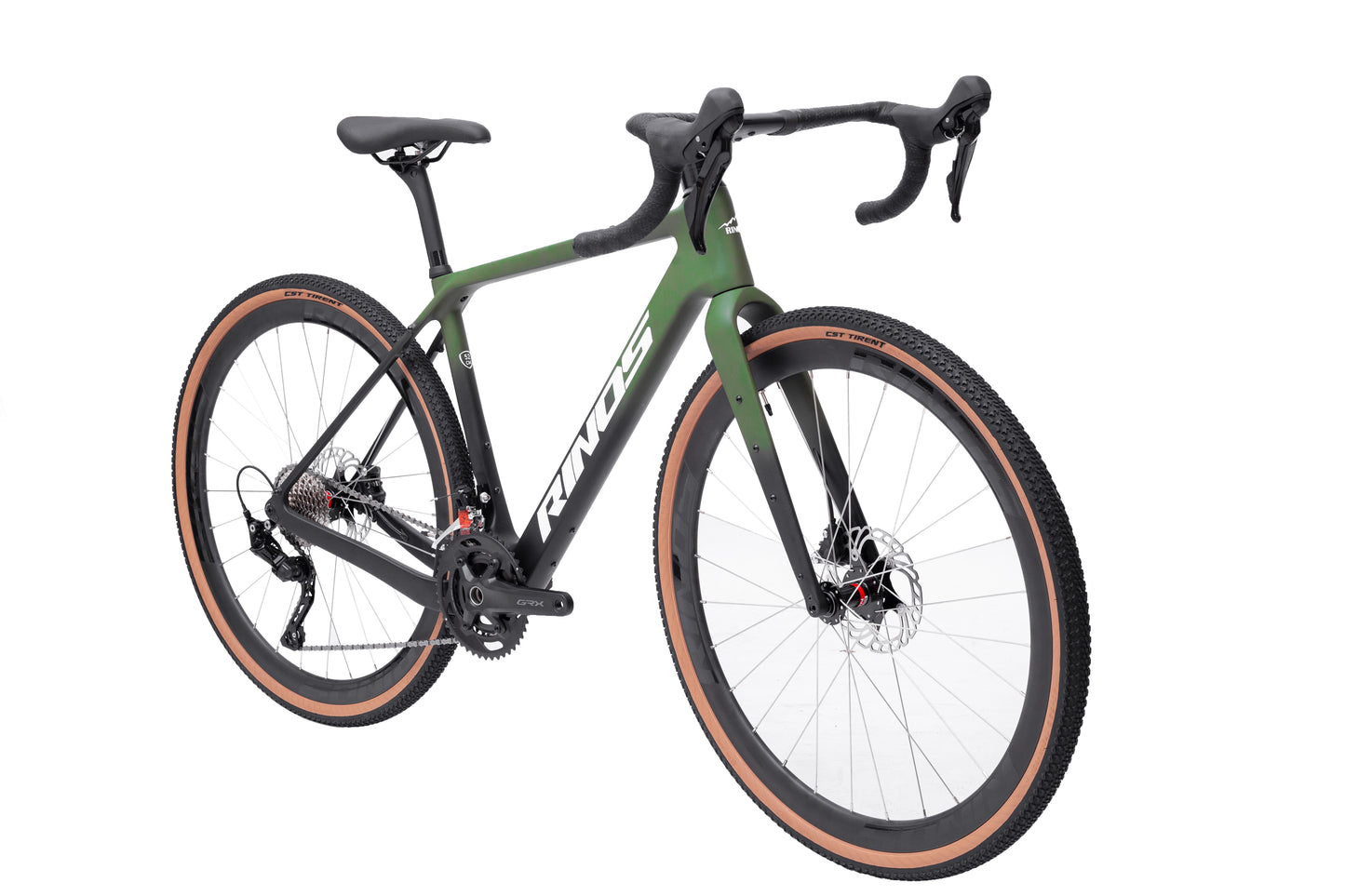

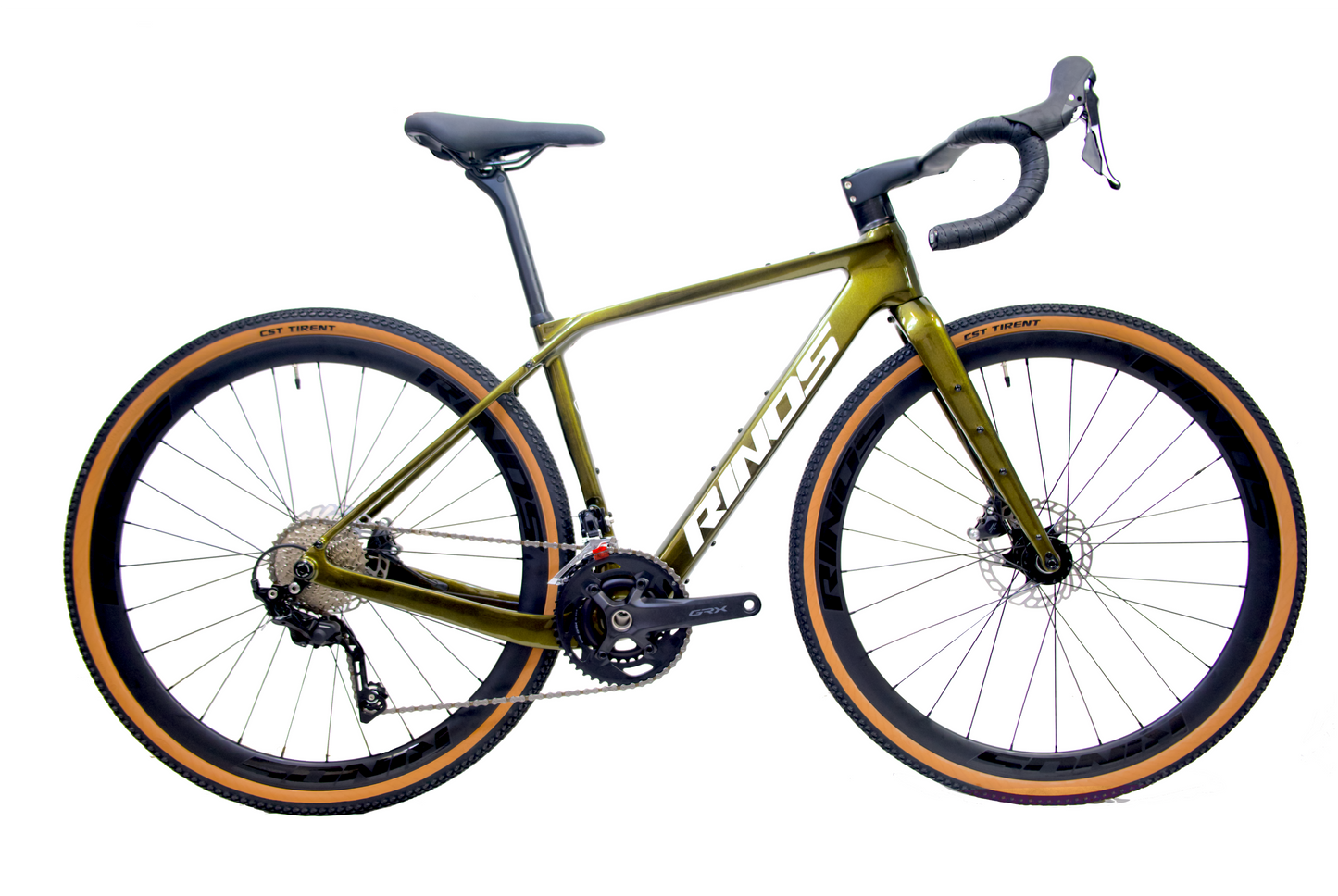

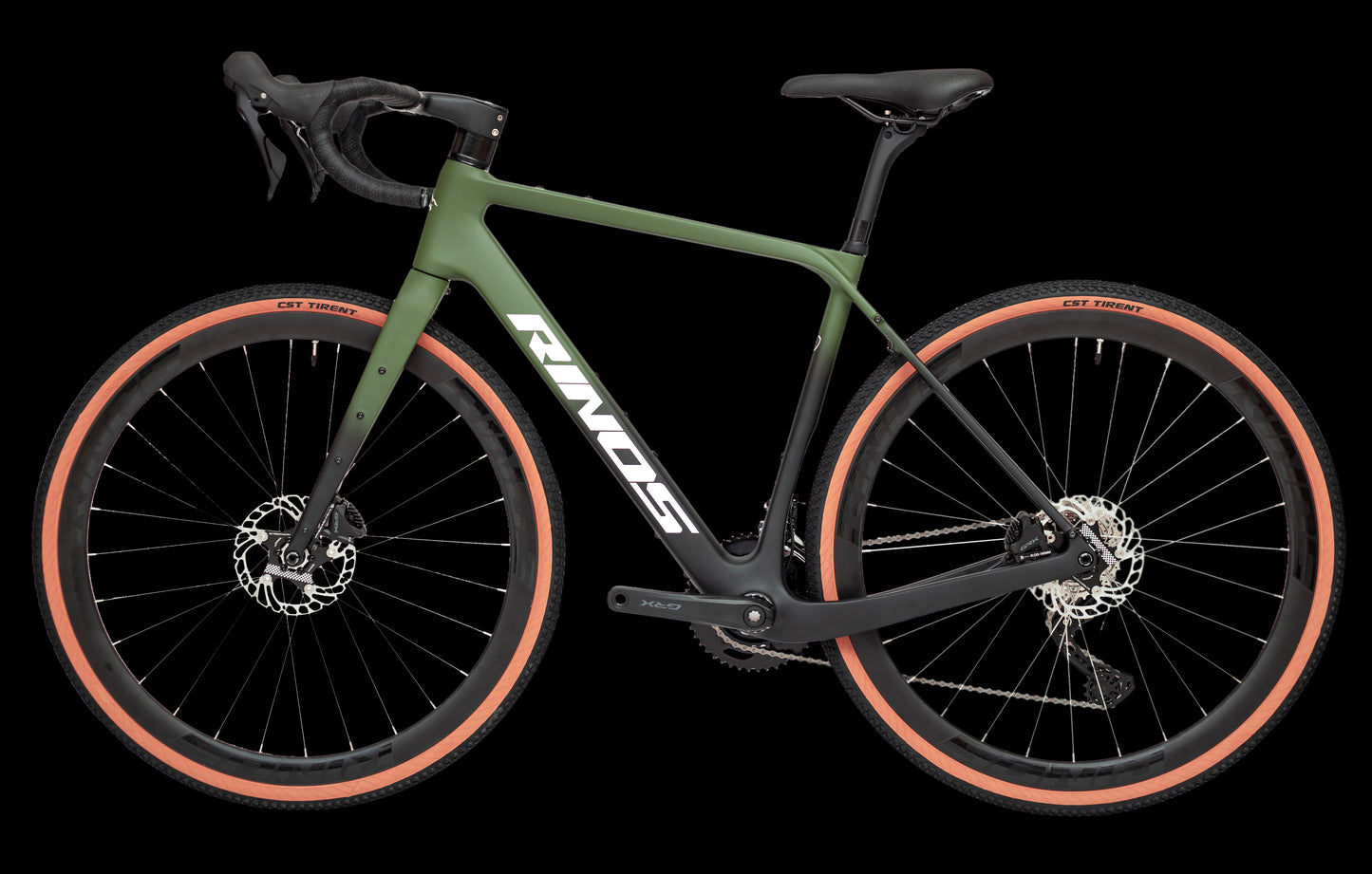

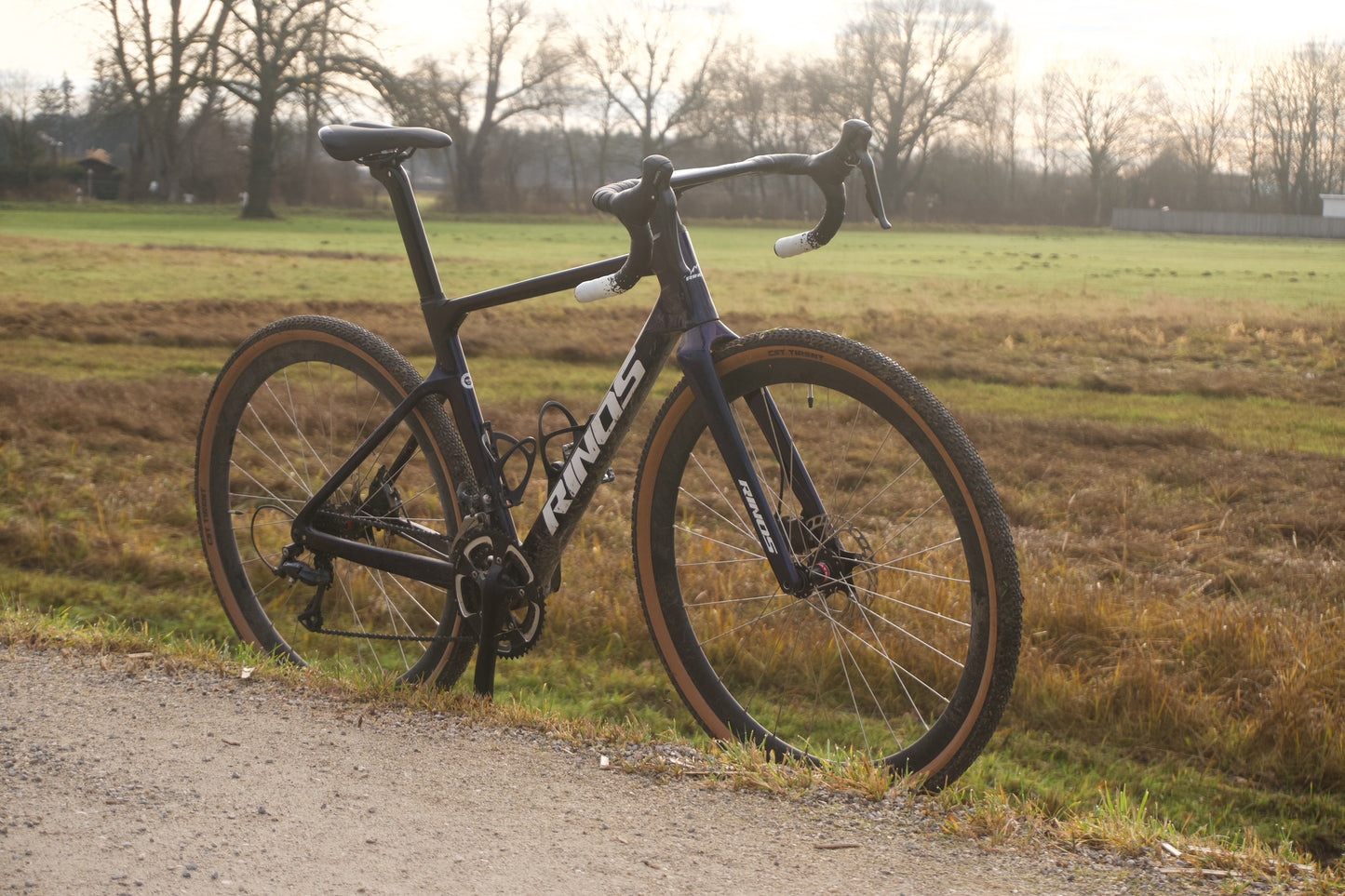

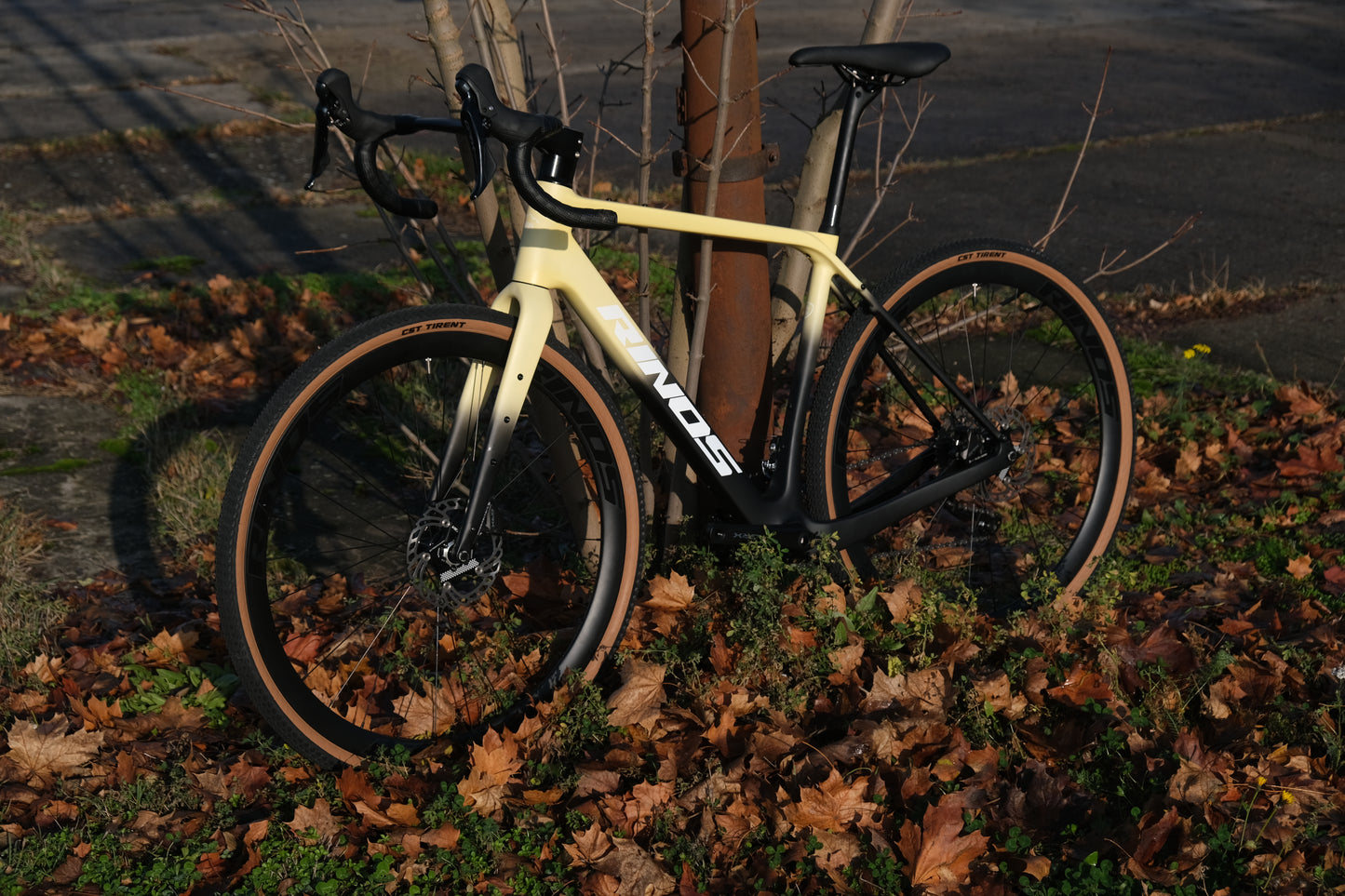

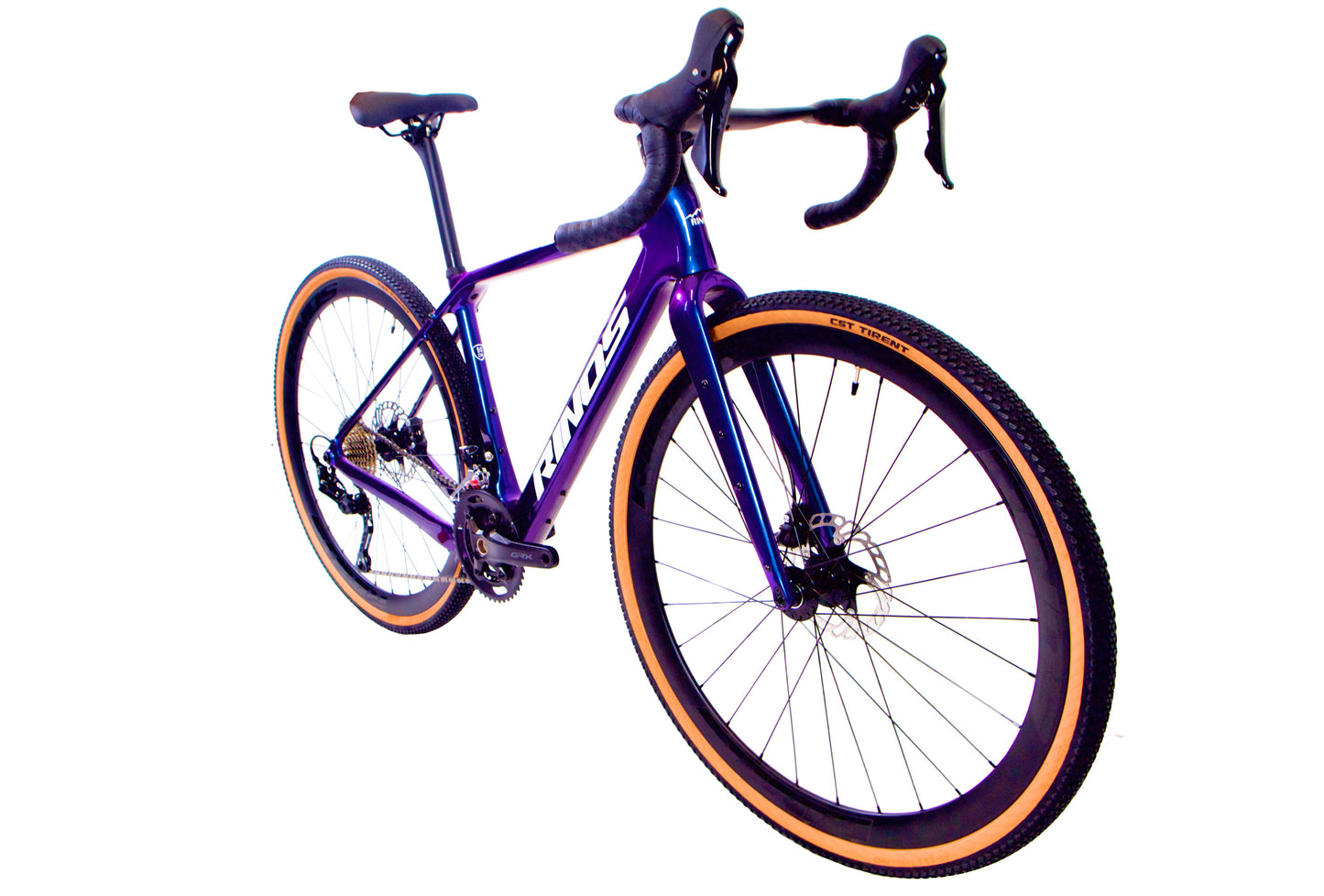

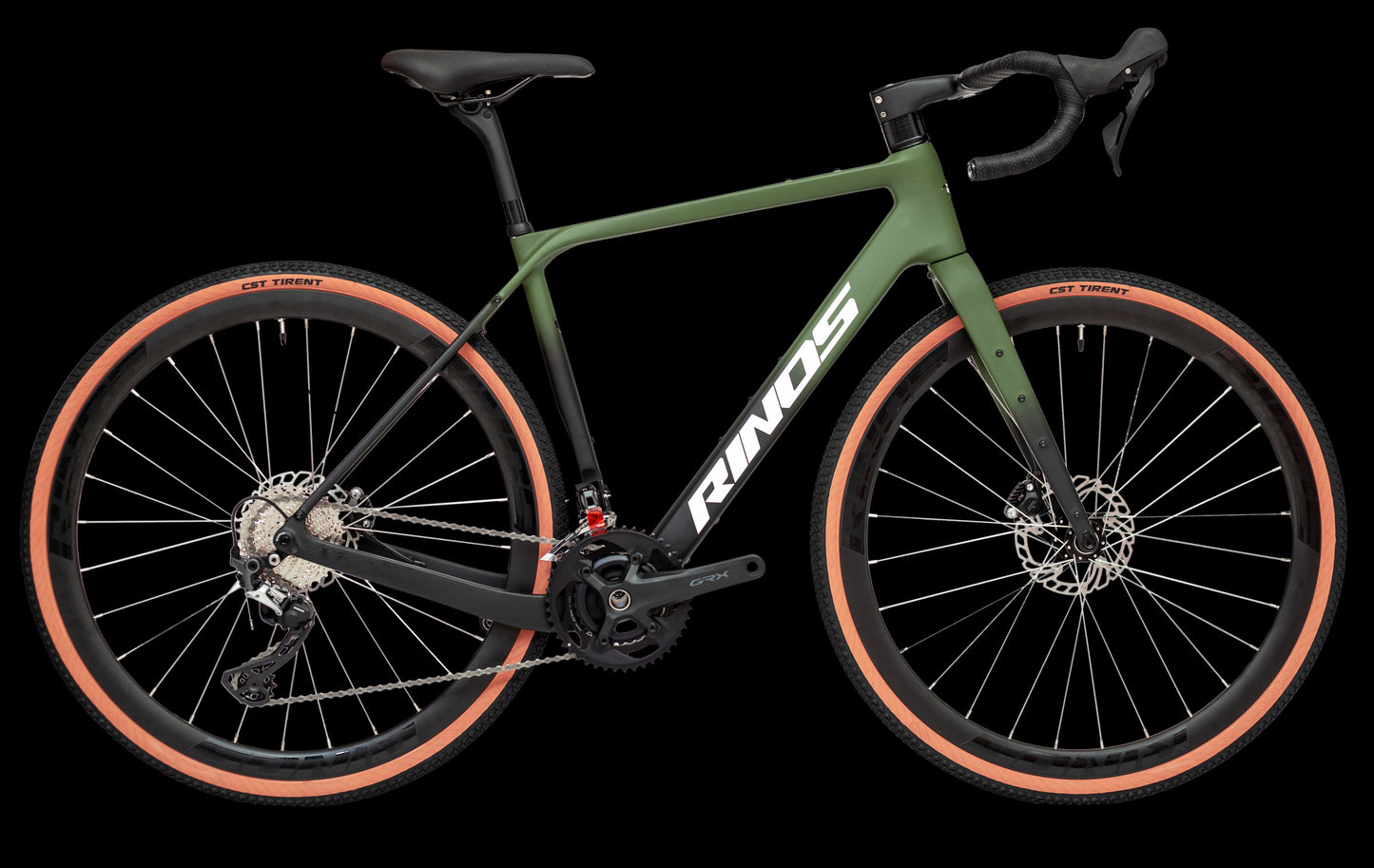

Made for Gravel. Discover Rinos Sandman 6
Bikepacking with the Sandman 6
Twenty-six mounting points across the frame give you tons of options for attaching bags, racks, extra water bottles, and whatever gear your adventure requires.
The wide 40mm tires come with reinforced sidewalls to protect against punctures on rough terrain.

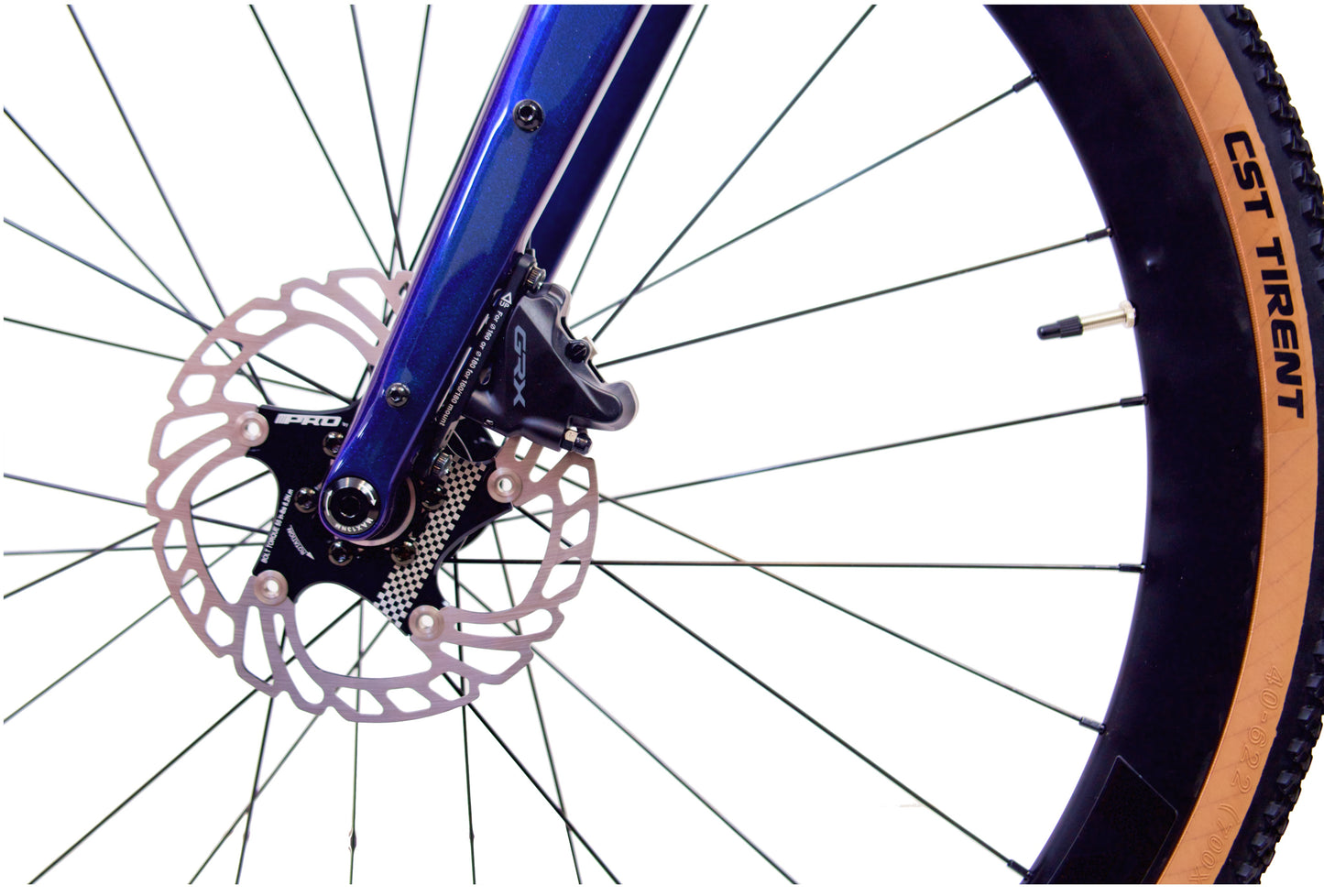

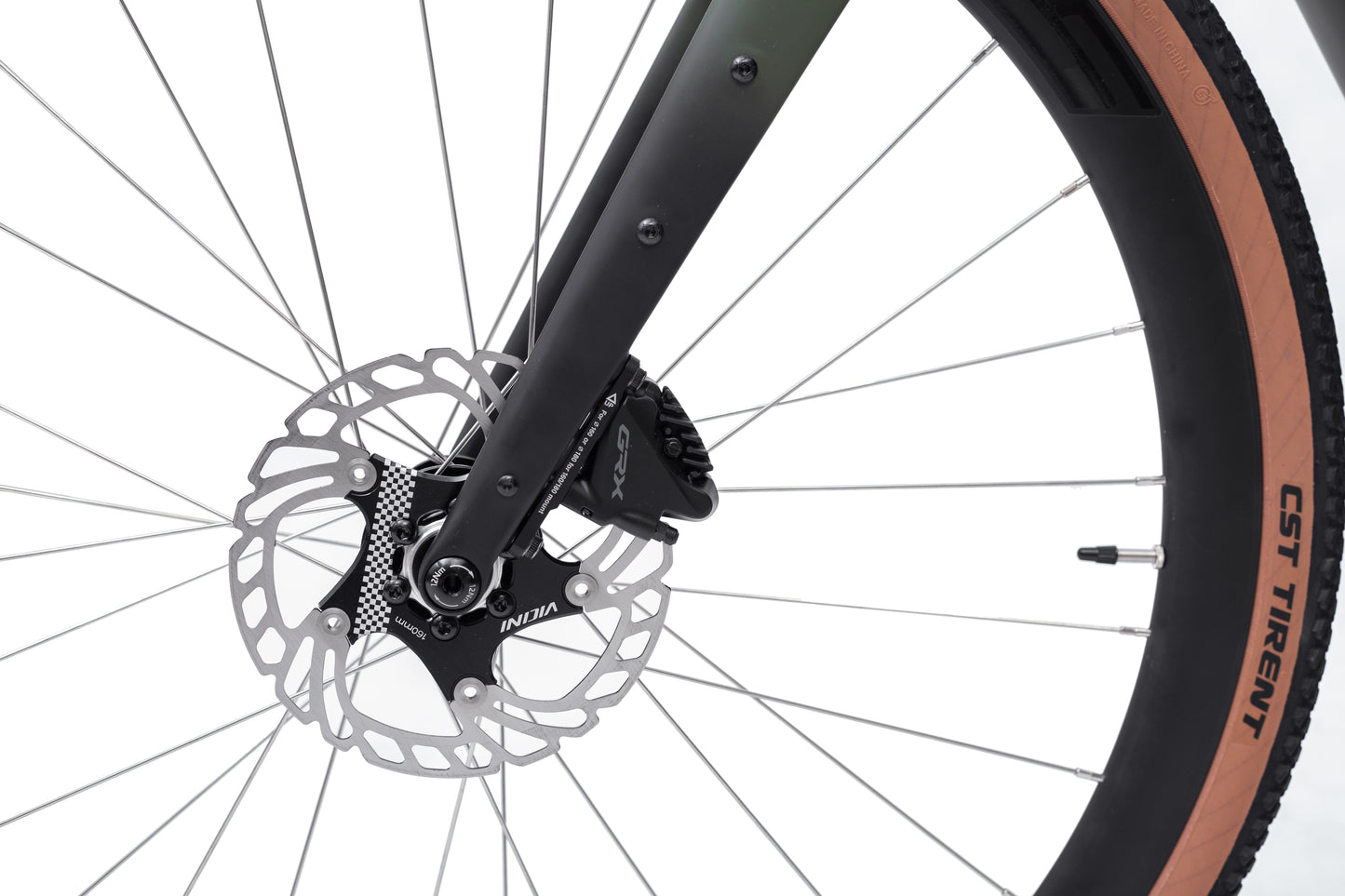

Hydraulic brakes give you confident stopping power even when the bike is fully loaded.
Proven reliable in rain, mud, dust, and everything in between.

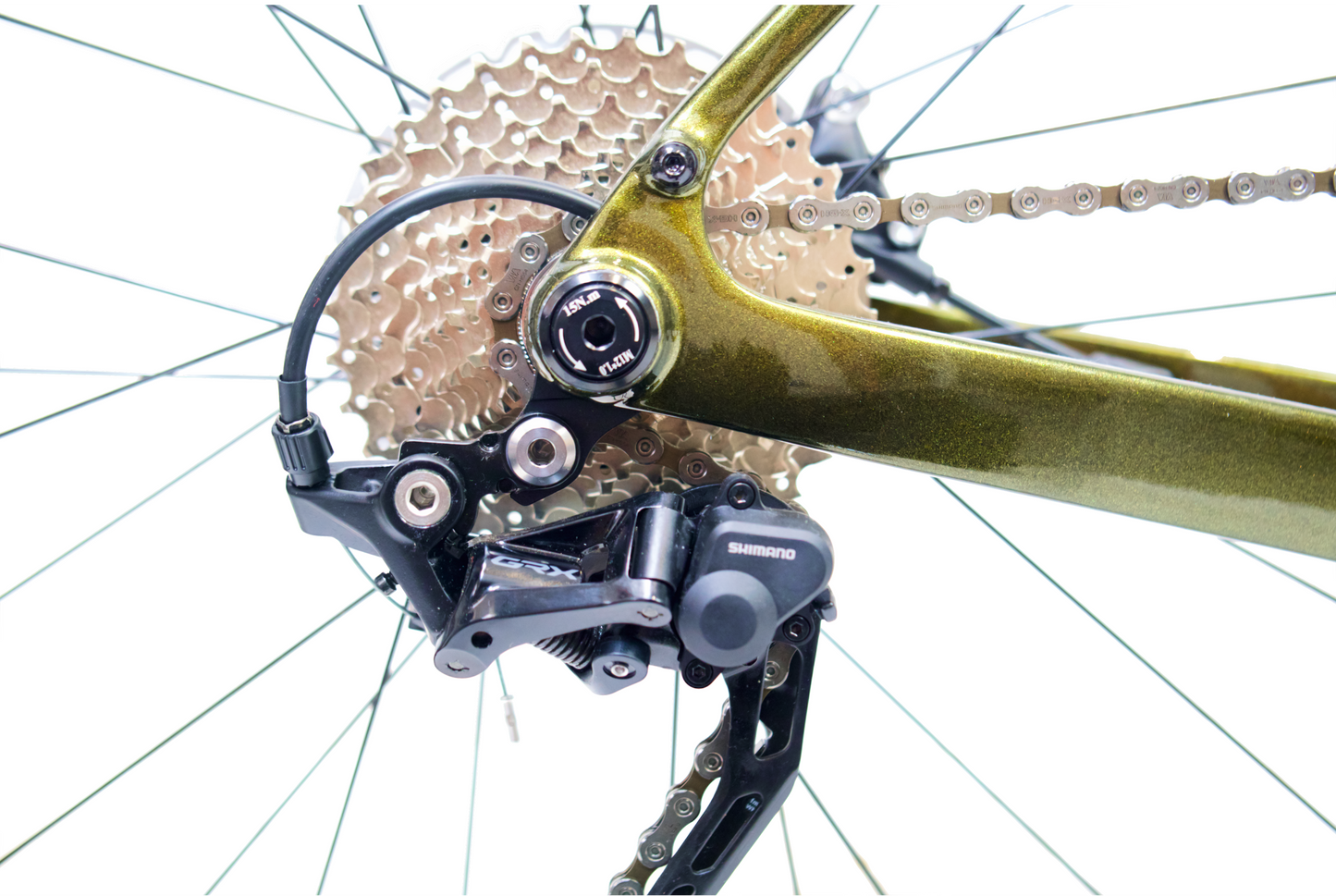

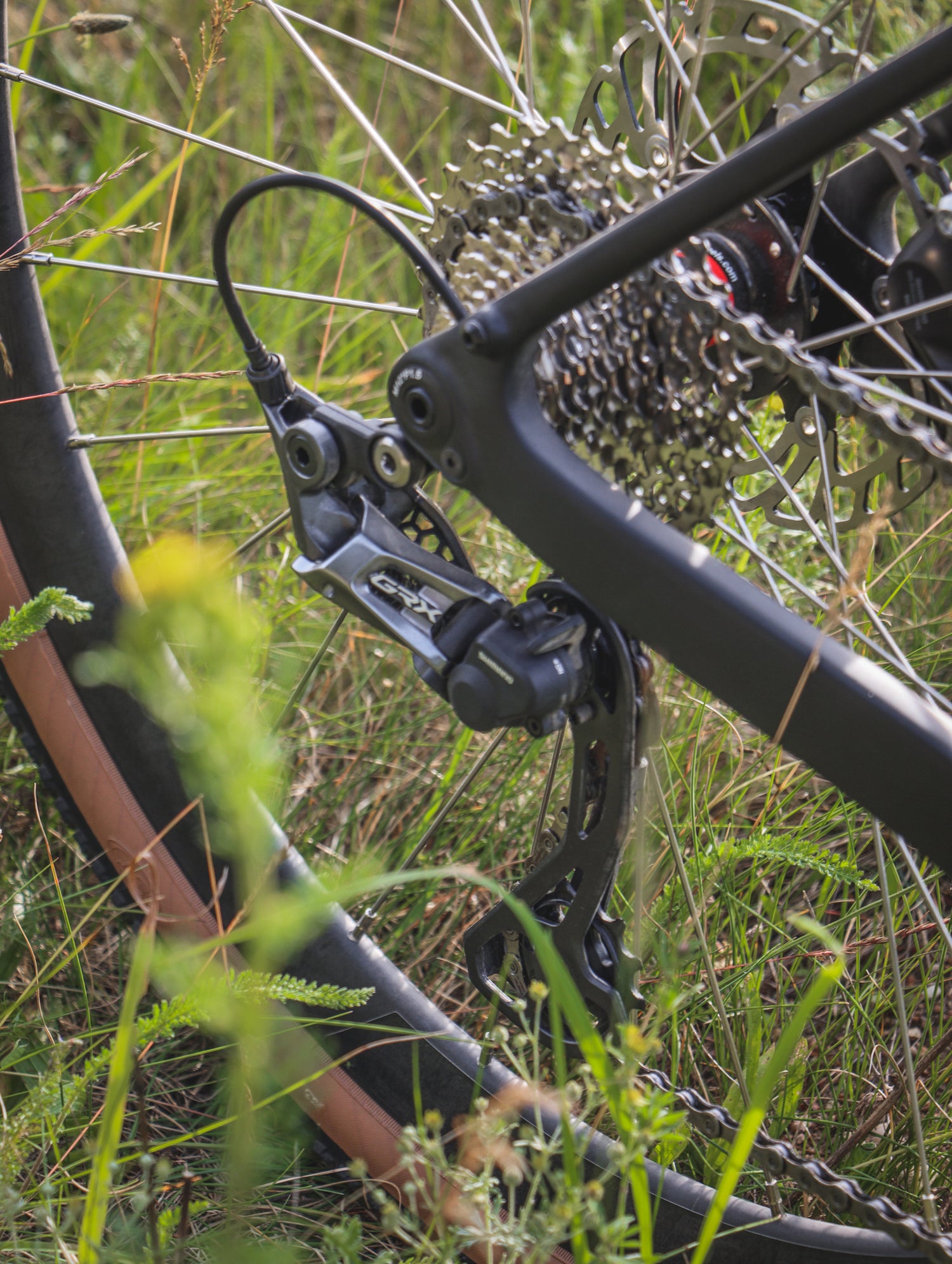

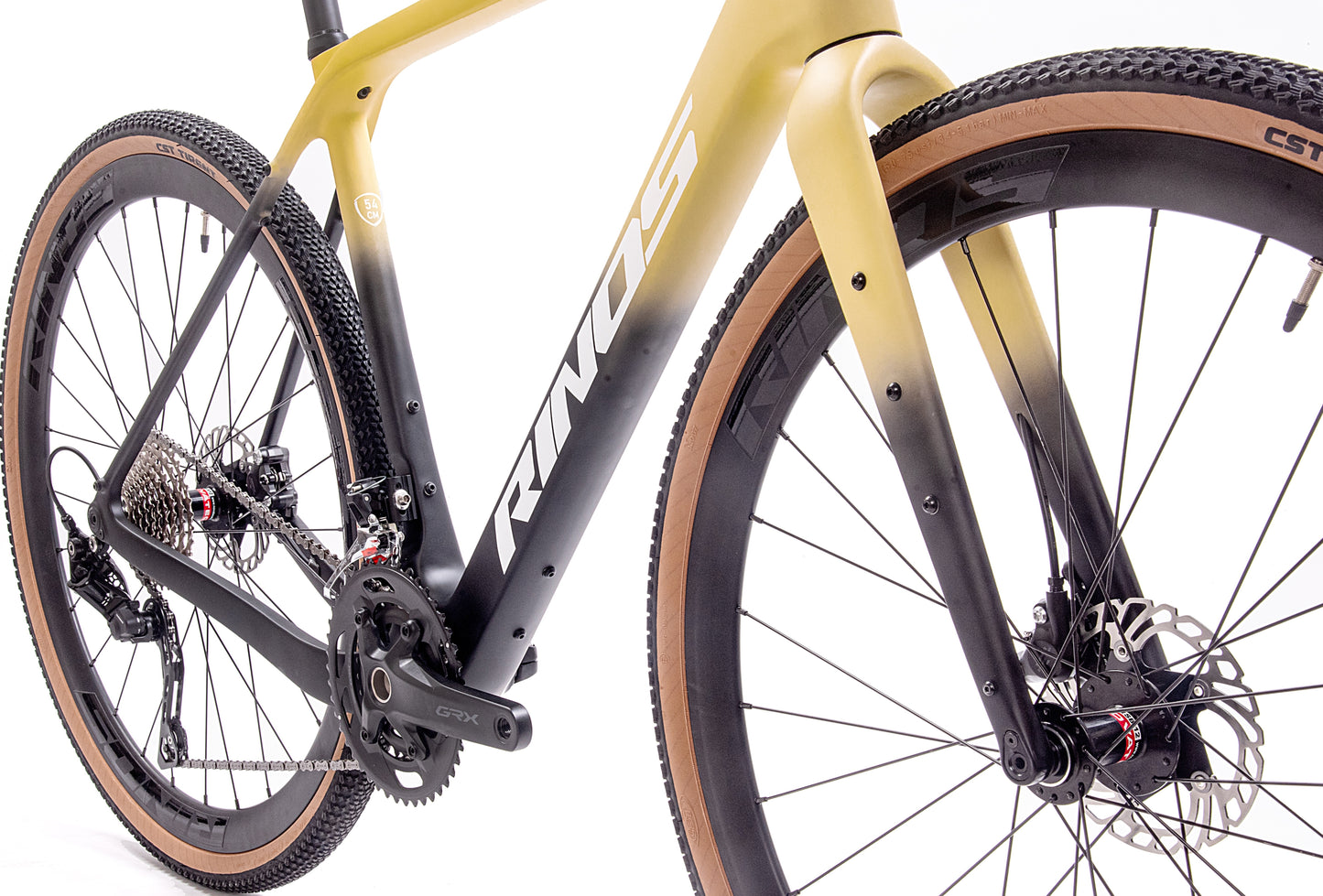

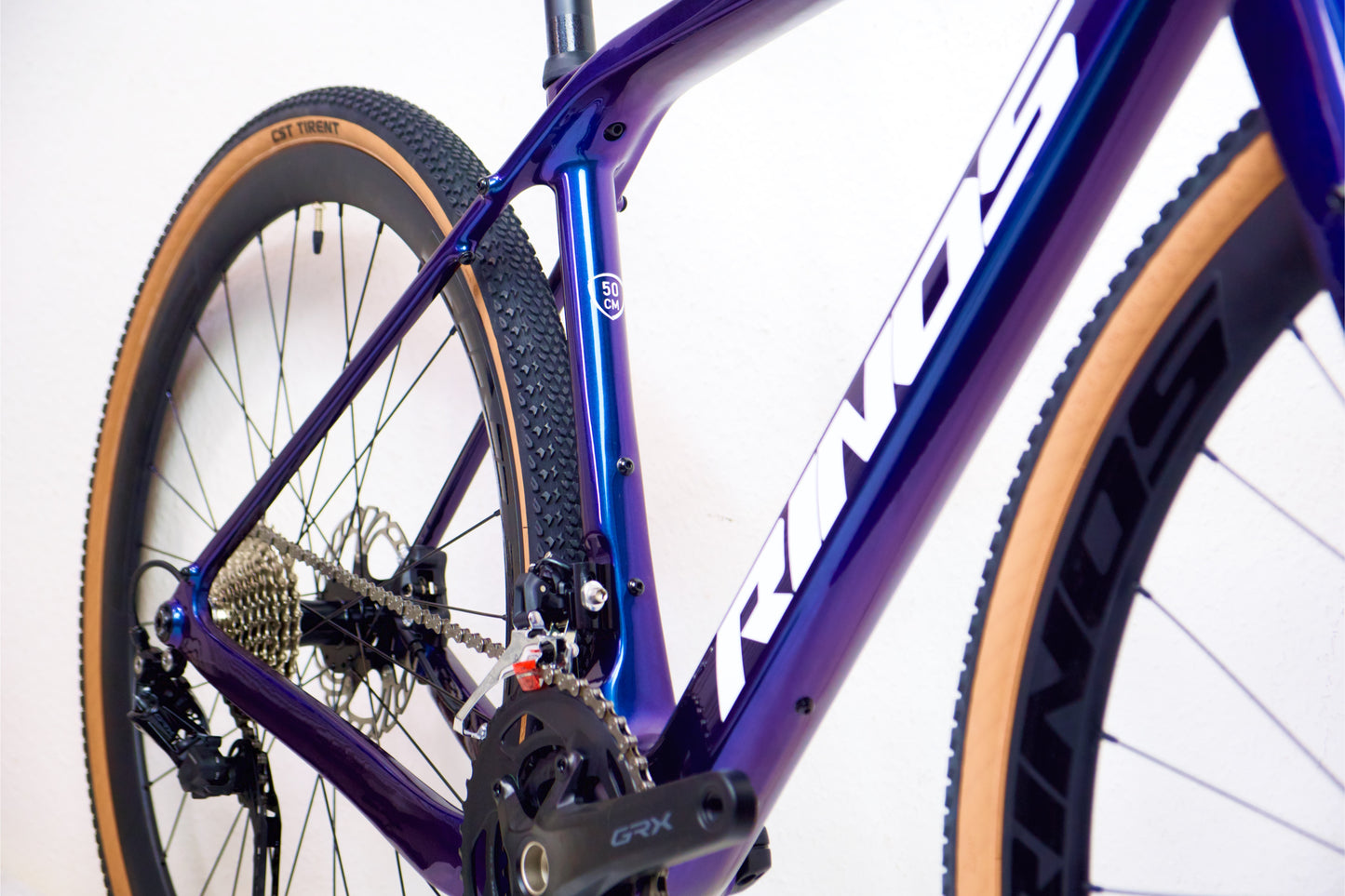

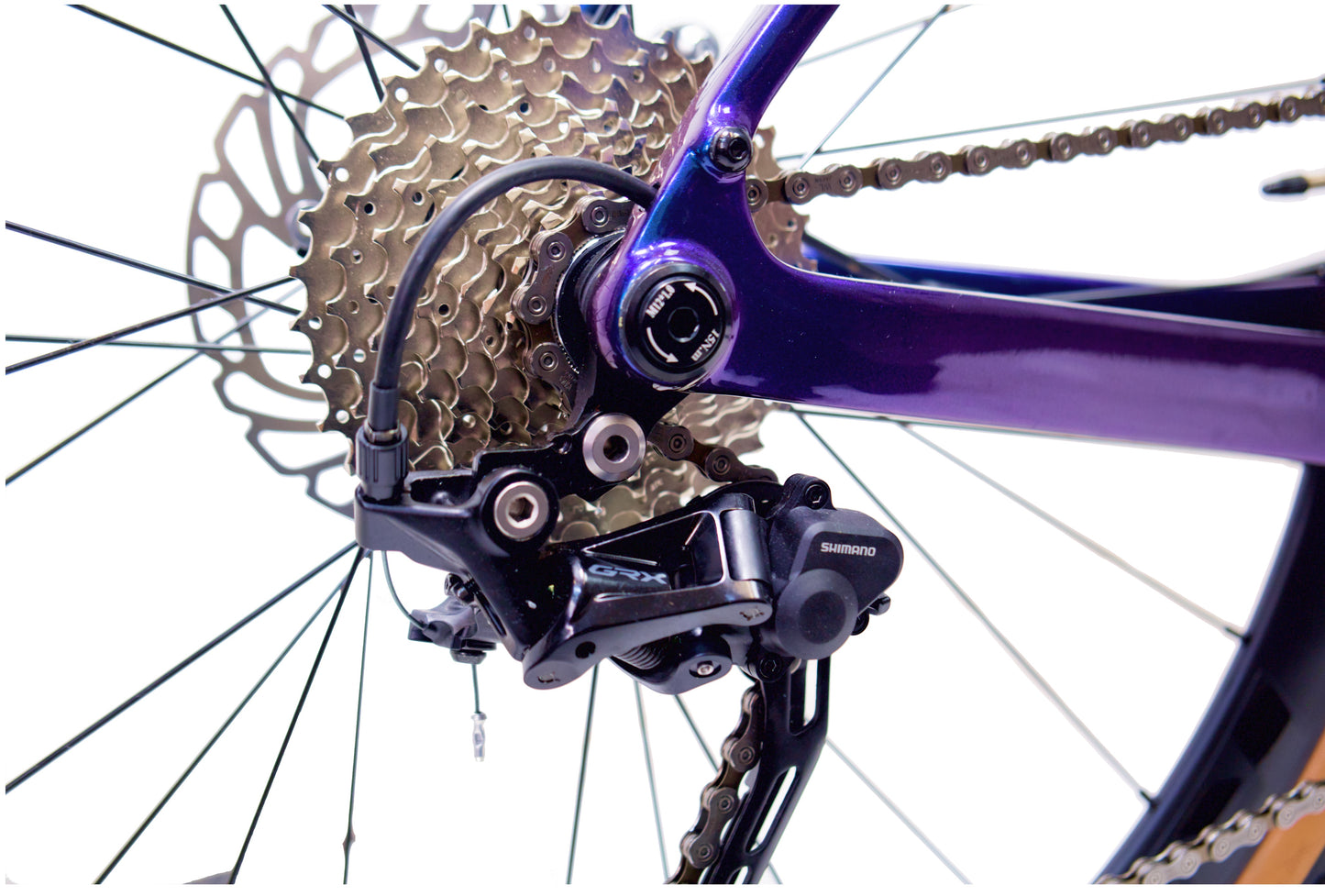

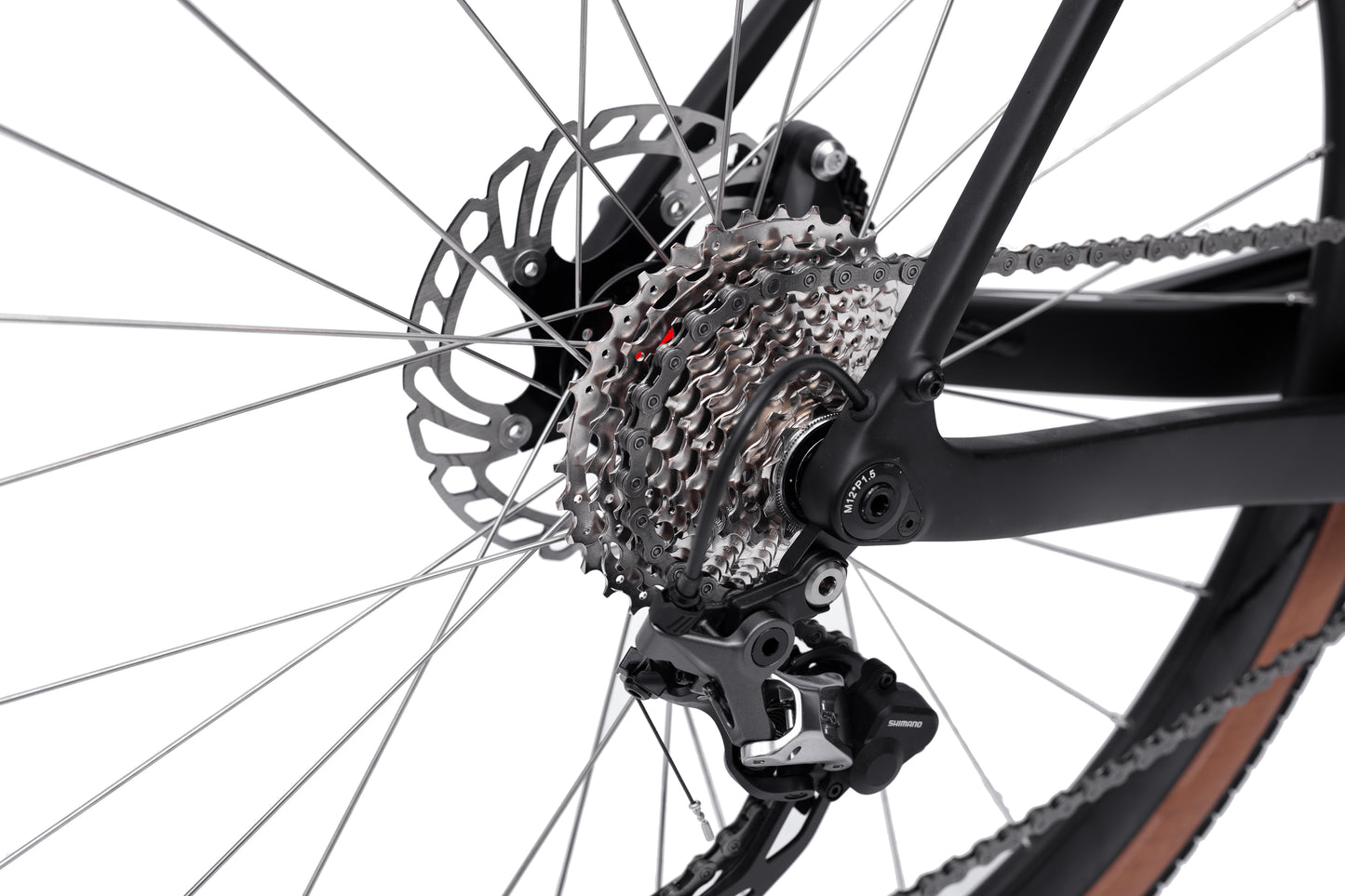

The Sandman 6 elevates gravel performance with Shimano's GRX600 groupset—a refined 22-speed (2×11) drivetrain that delivers wider gear range and more precise shifting than entry-level systems. The GRX RD-RX810 rear derailleur with its 11-34T cassette provides smooth transitions across technical climbs and fast descents. This is the groupset where Shimano's gravel-specific engineering becomes most apparent, with improved ergonomics and clutch technology that keeps your chain secure on the roughest surfaces.

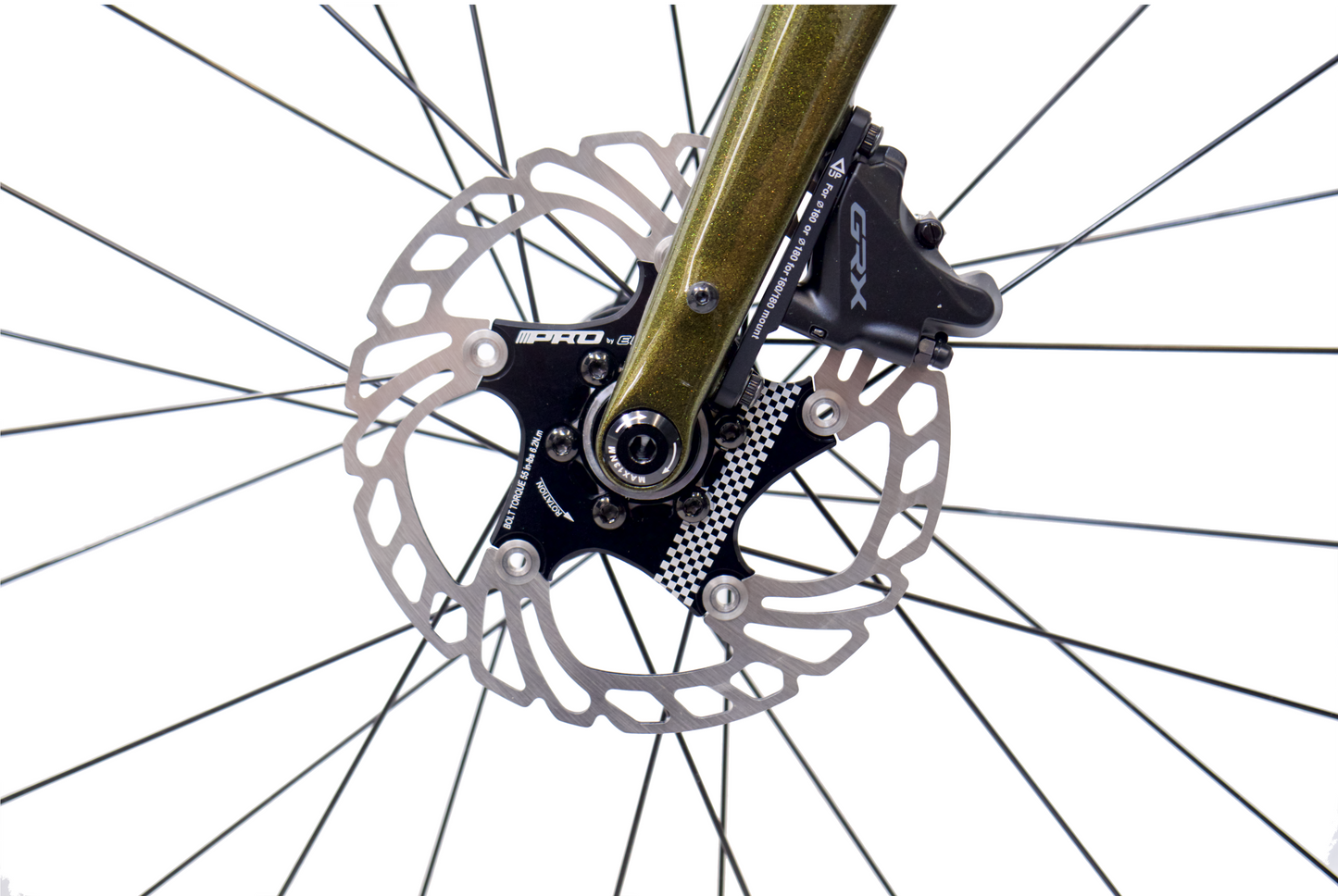

Built on the same TORAY T800 carbon frame as the Sandman 4, the Sandman 6 maintains the 9.8kg complete weight while upgrading the components that enhance ride quality and longevity. The GRX600 hydraulic disc brakes offer more consistent modulation and require less frequent maintenance than the 400-series. The upgraded Shimano 11-speed chain runs quieter and lasts longer under load. These refinements add up over hundreds of kilometers—less time adjusting your bike, more time riding it.

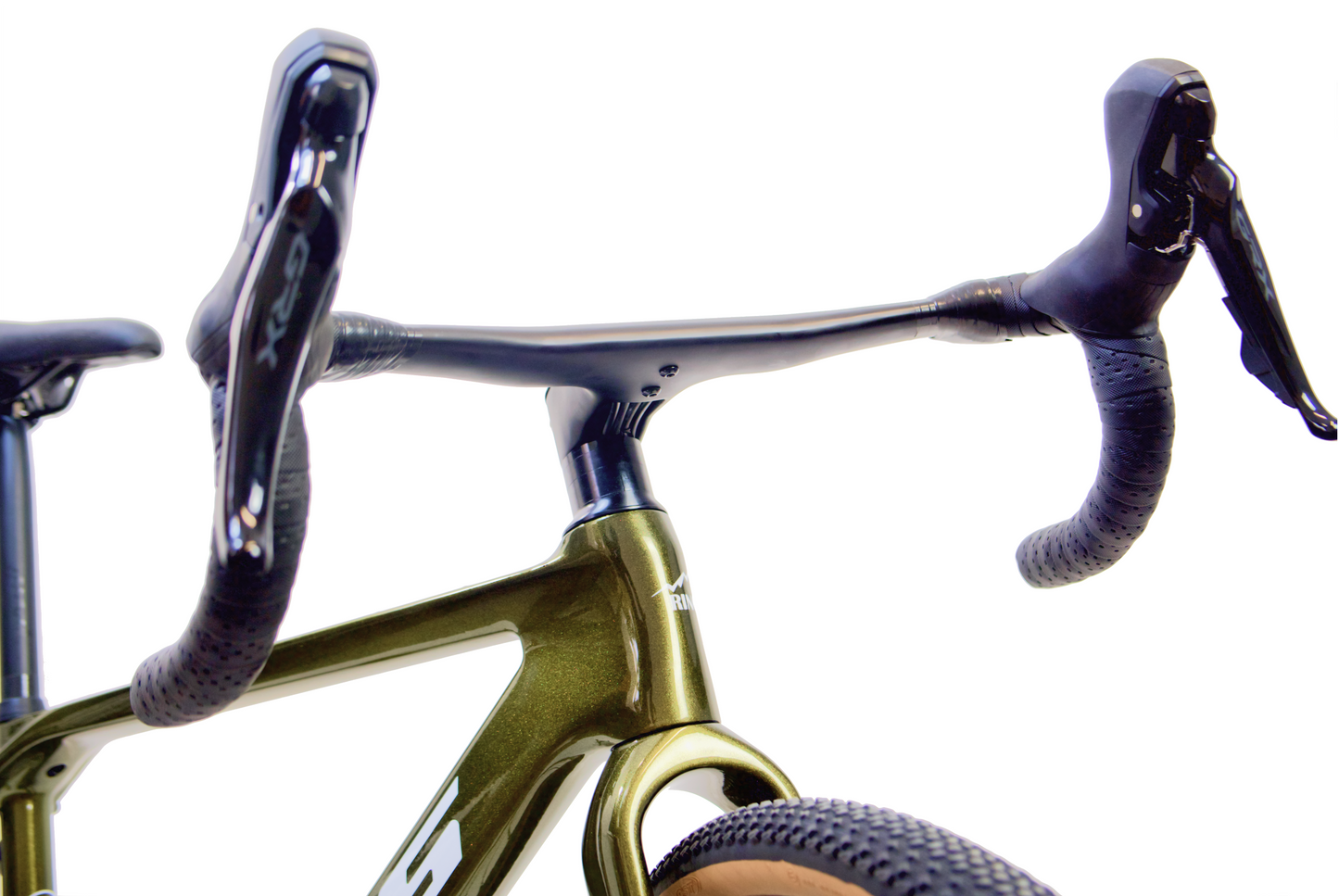

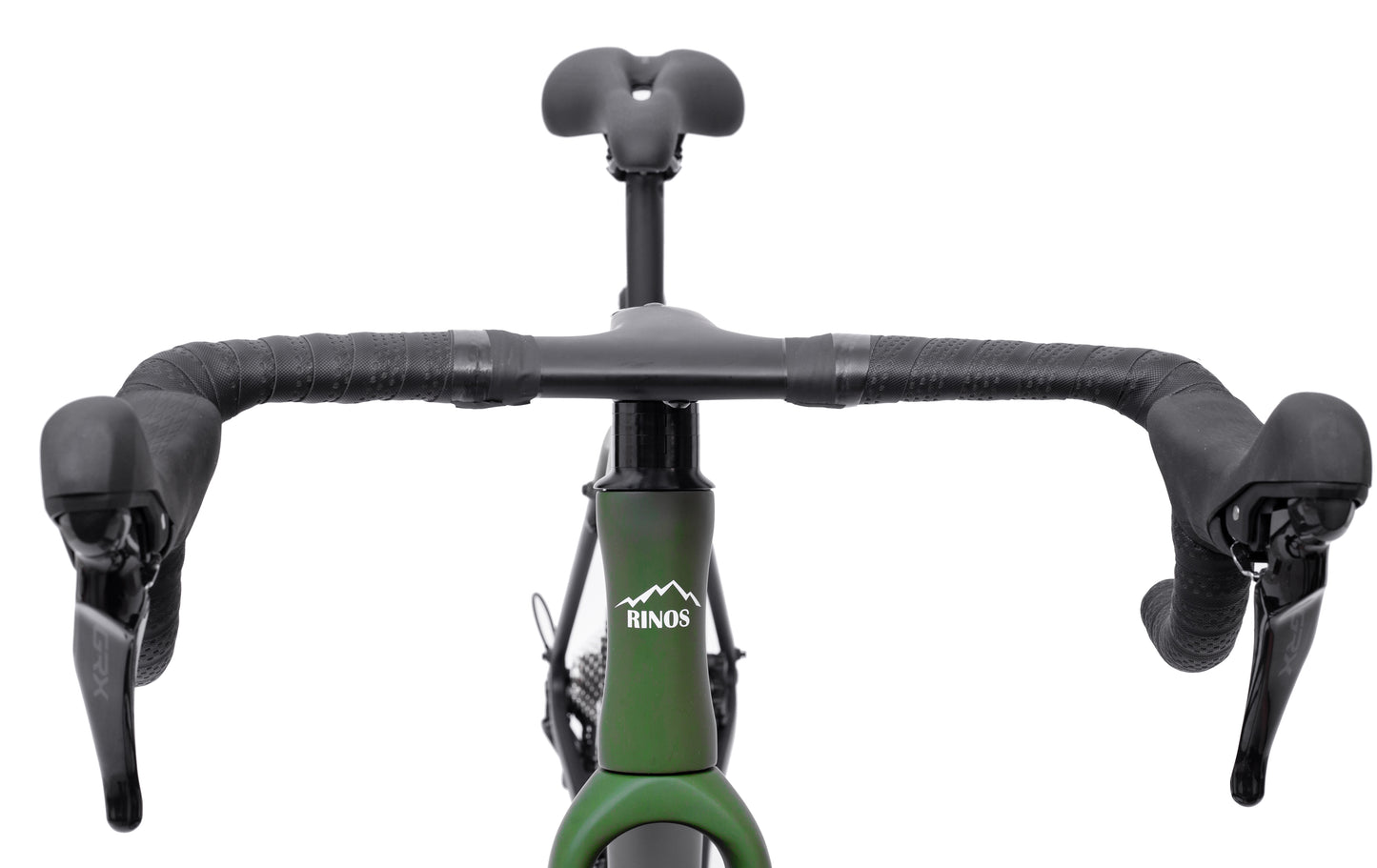

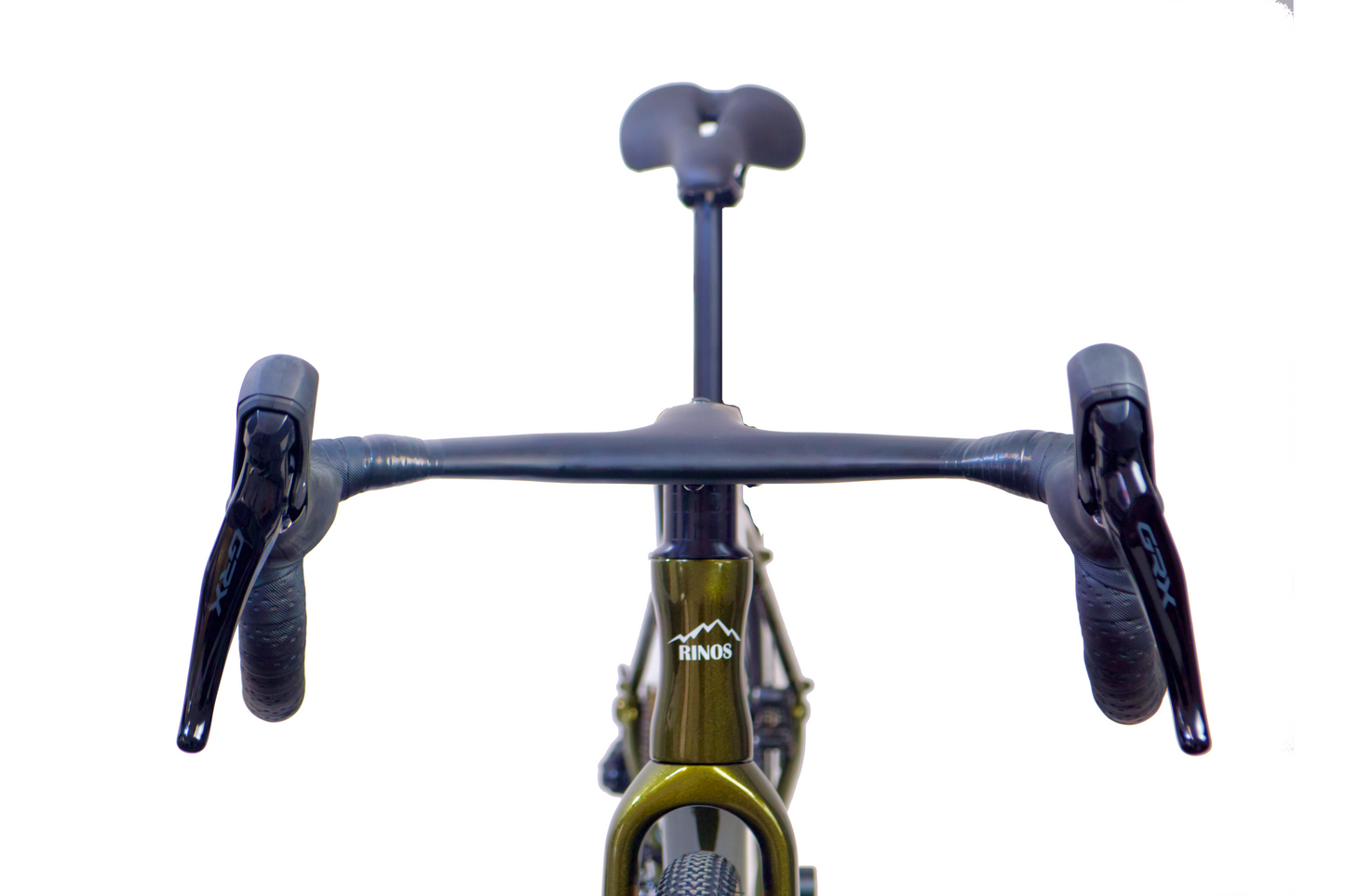

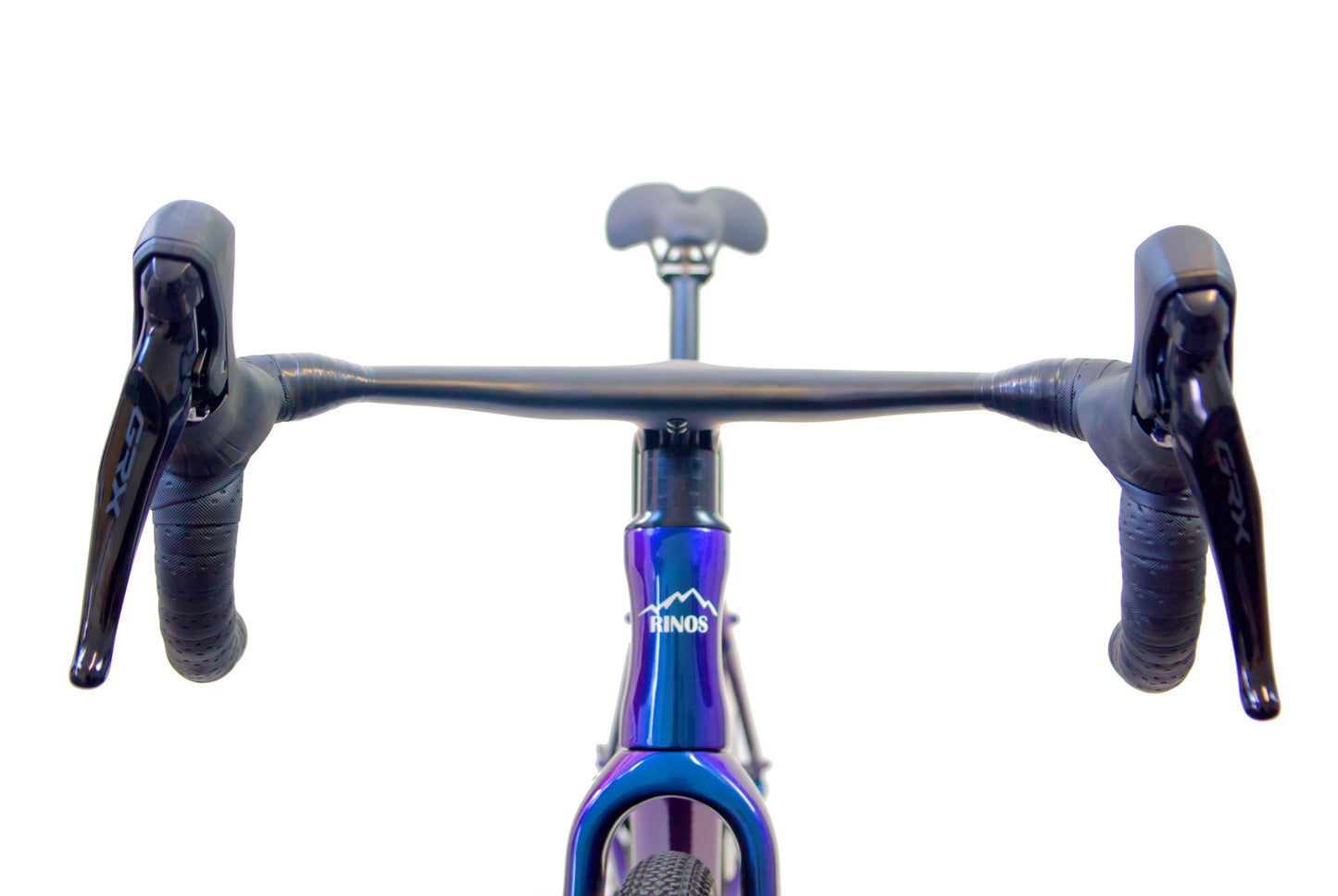

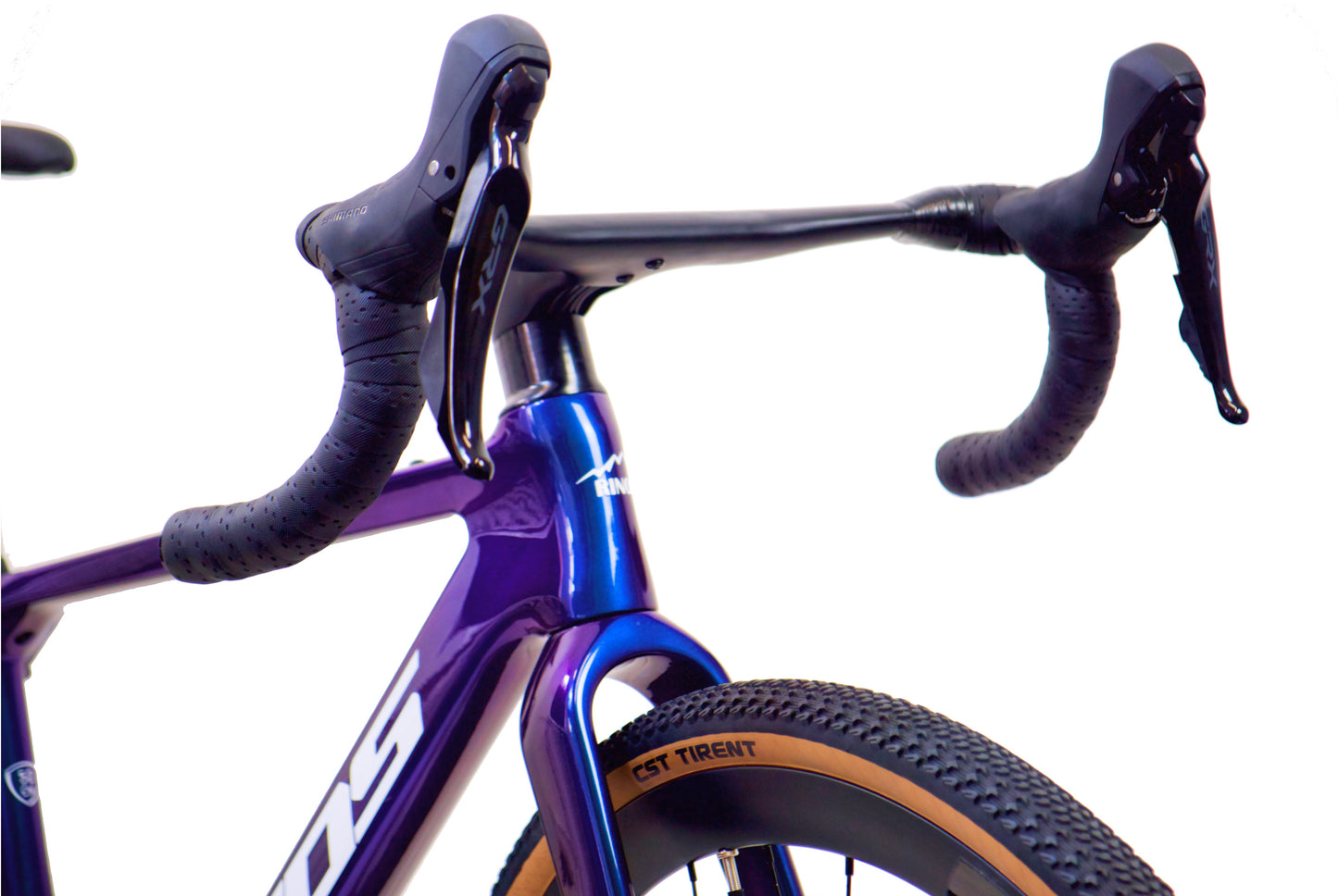

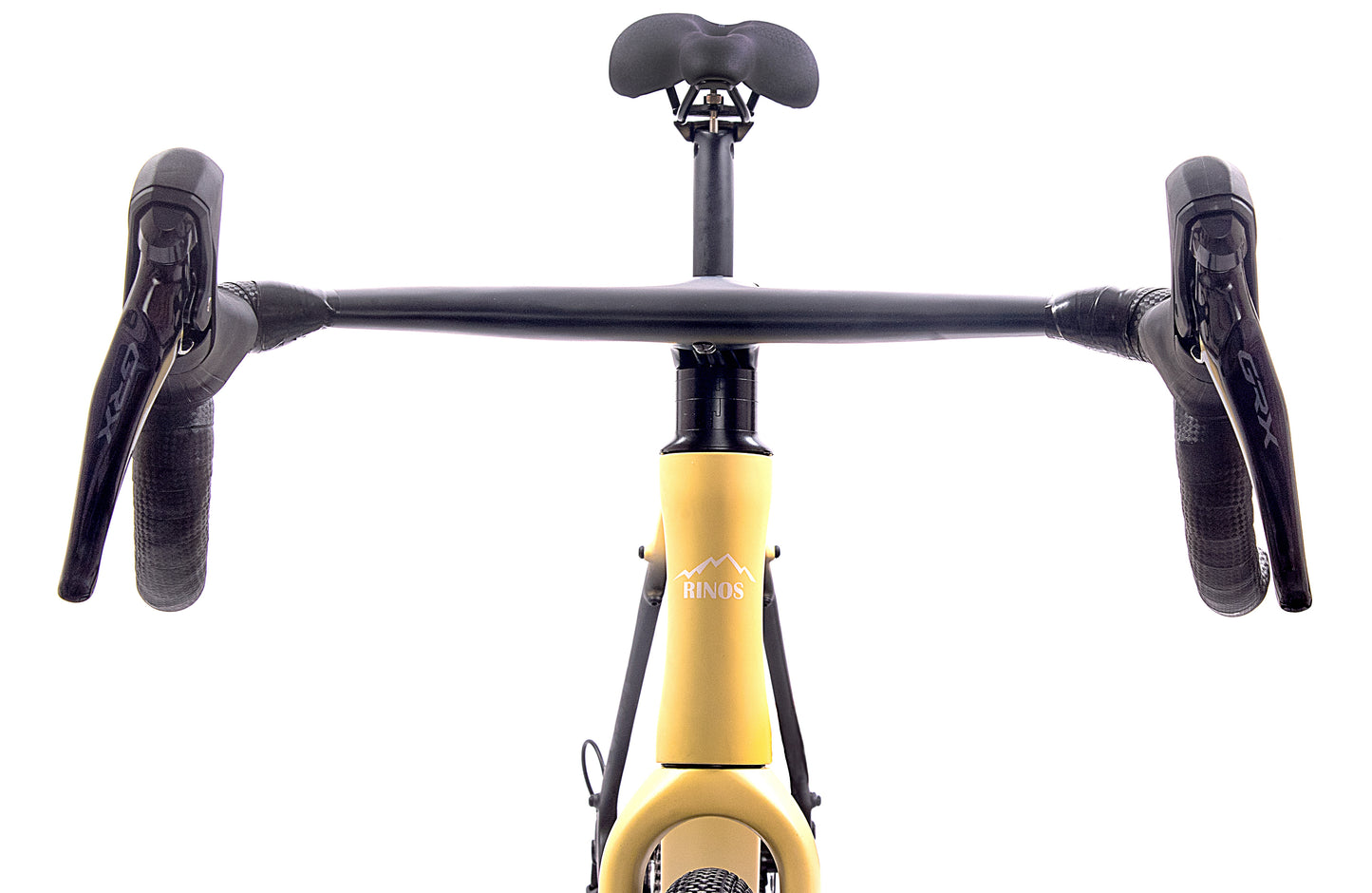

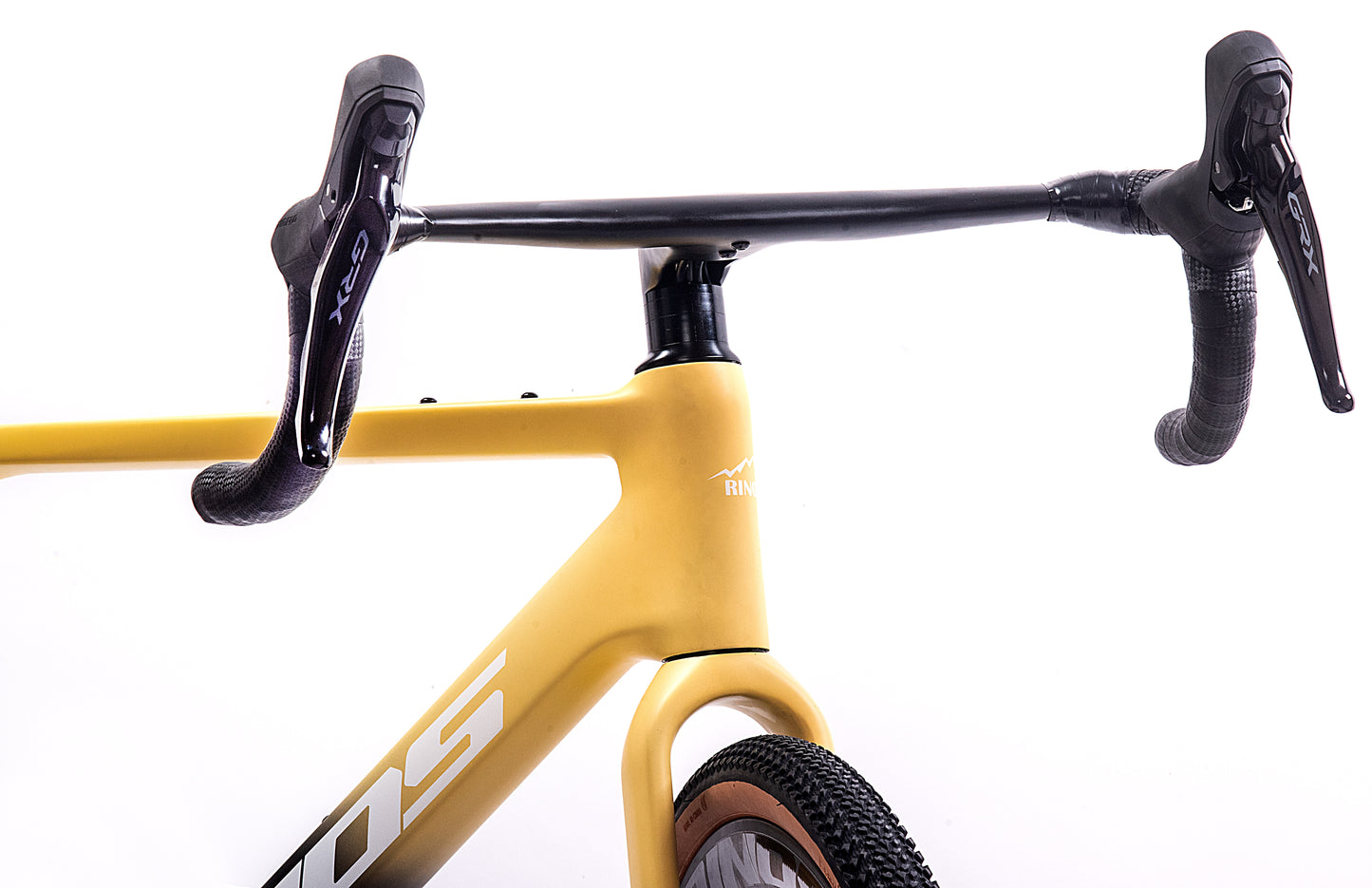

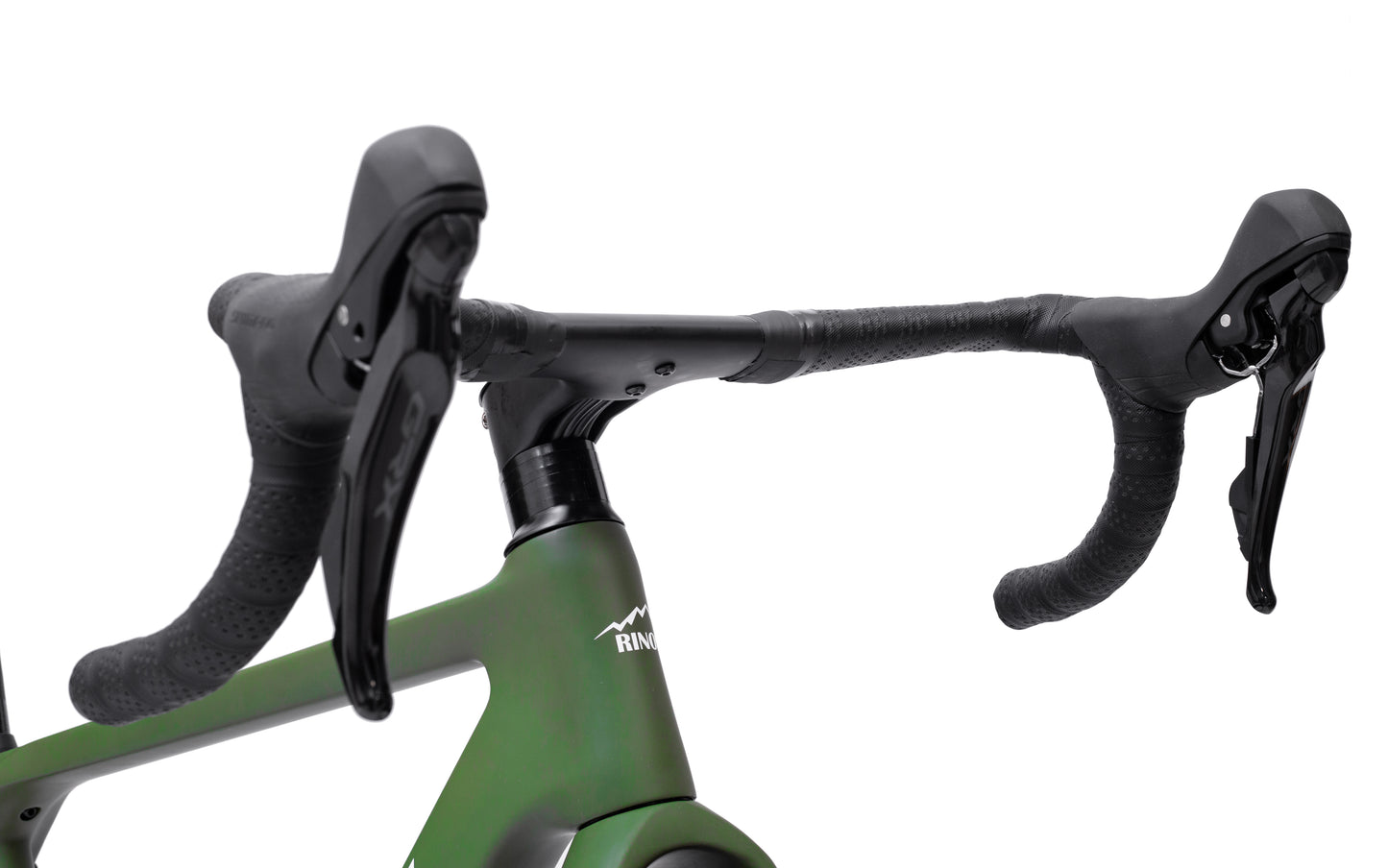

We've equipped the Sandman 6 with RINOS carbon components throughout—handlebar, seat post, and fork—creating a cohesive system that dampens vibration without sacrificing responsiveness. The aluminum headset provides a reliable interface between these carbon elements. The wider 38mm RINOS rims paired with Novatec 28H hubs create a wheelset that accelerates quickly yet remains stable when loaded with bikepacking gear. Every component choice reflects our focus on building a gravel bike that performs whether you're racing, touring, or simply exploring.
Available in four distinctive colorways and five frame sizes spanning 150 cm to over 200 cm rider heights, the Sandman 6 accommodates a wide range of riders. The bike's geometry balances stability with agility—confident on technical descents, responsive when navigating tight singletrack. Whether you're tackling multi-day bikepacking routes, competing in gravel events, training on mixed terrain, or seeking a capable all-road bike, the Sandman 6 delivers premium performance without the premium price tag. Manufactured in the EU to exacting standards, this bike is built for riders who demand more from their equipment.
Sizing Guide
Choose the frame size that matches your height for optimal comfort and performance.
Size 50 cm (XS)
150–160 cm
Size 52 cm (S)
160–170 cm
Size 54 cm (M)
170–180 cm
Size 56 cm (L)
180–190 cm
Size 58 cm (XL)
190–200+ cm
Technical Specs
Model | Sandman 6.0 |
Manufacturer | Rinos |

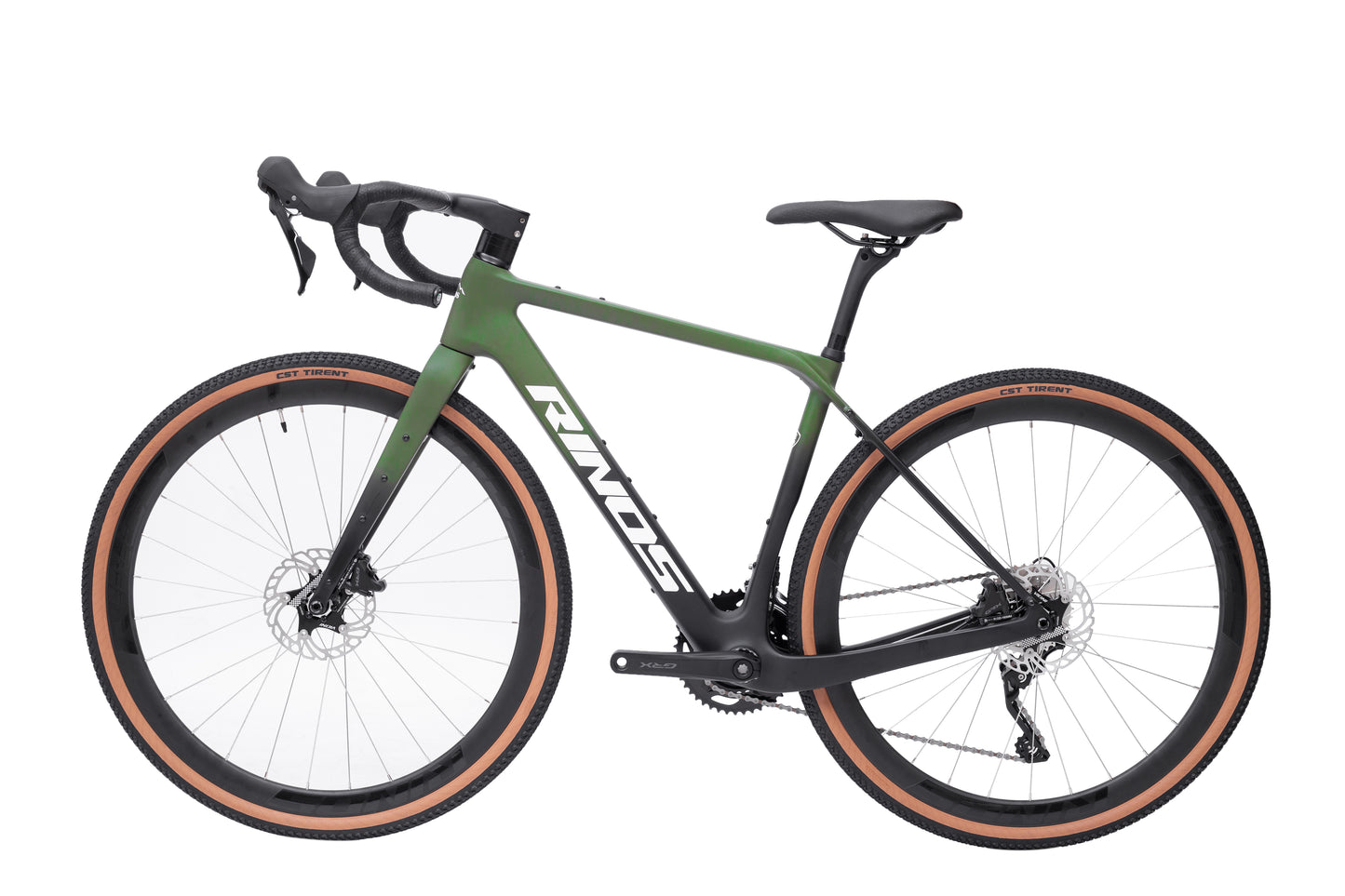

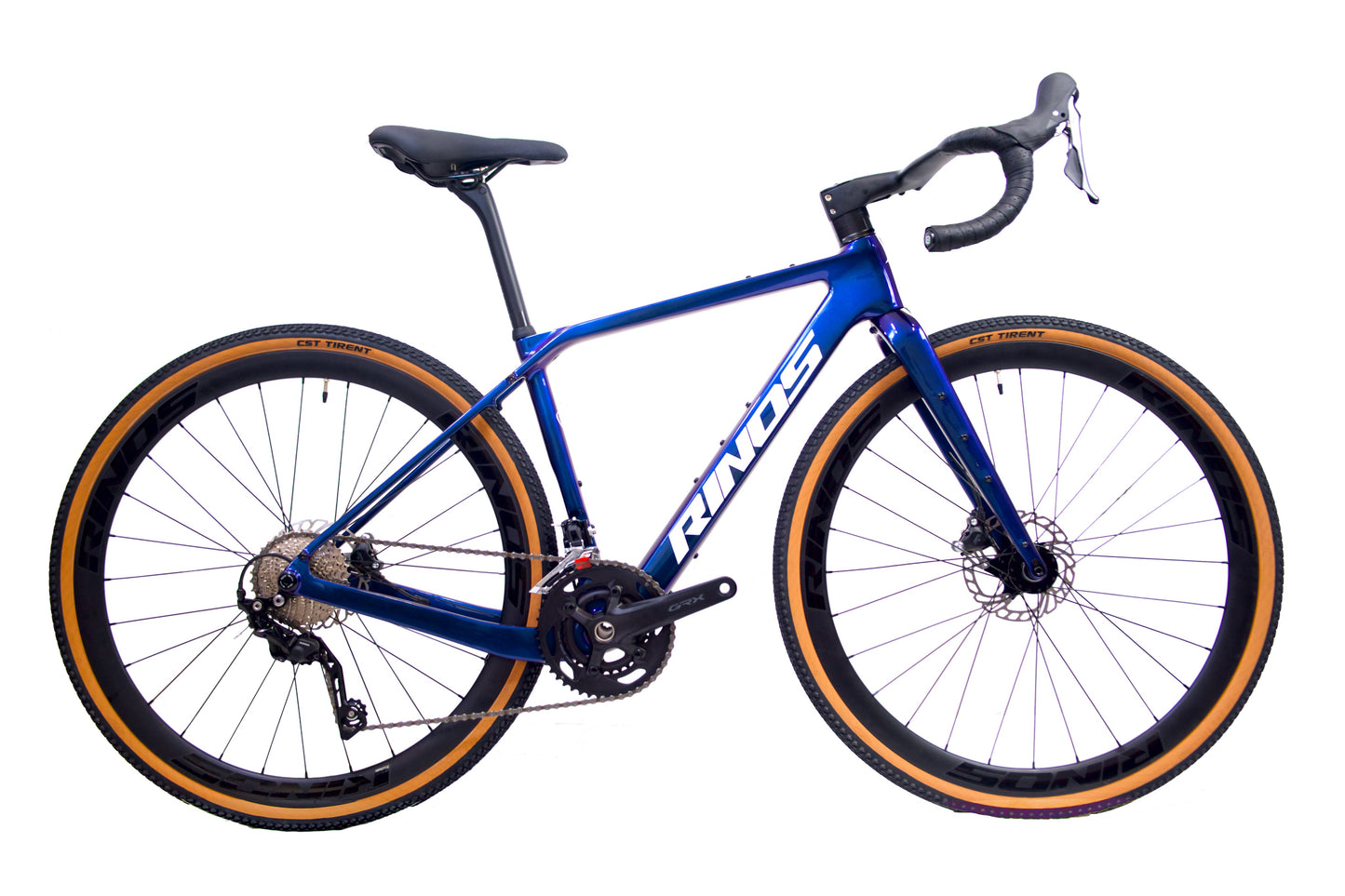

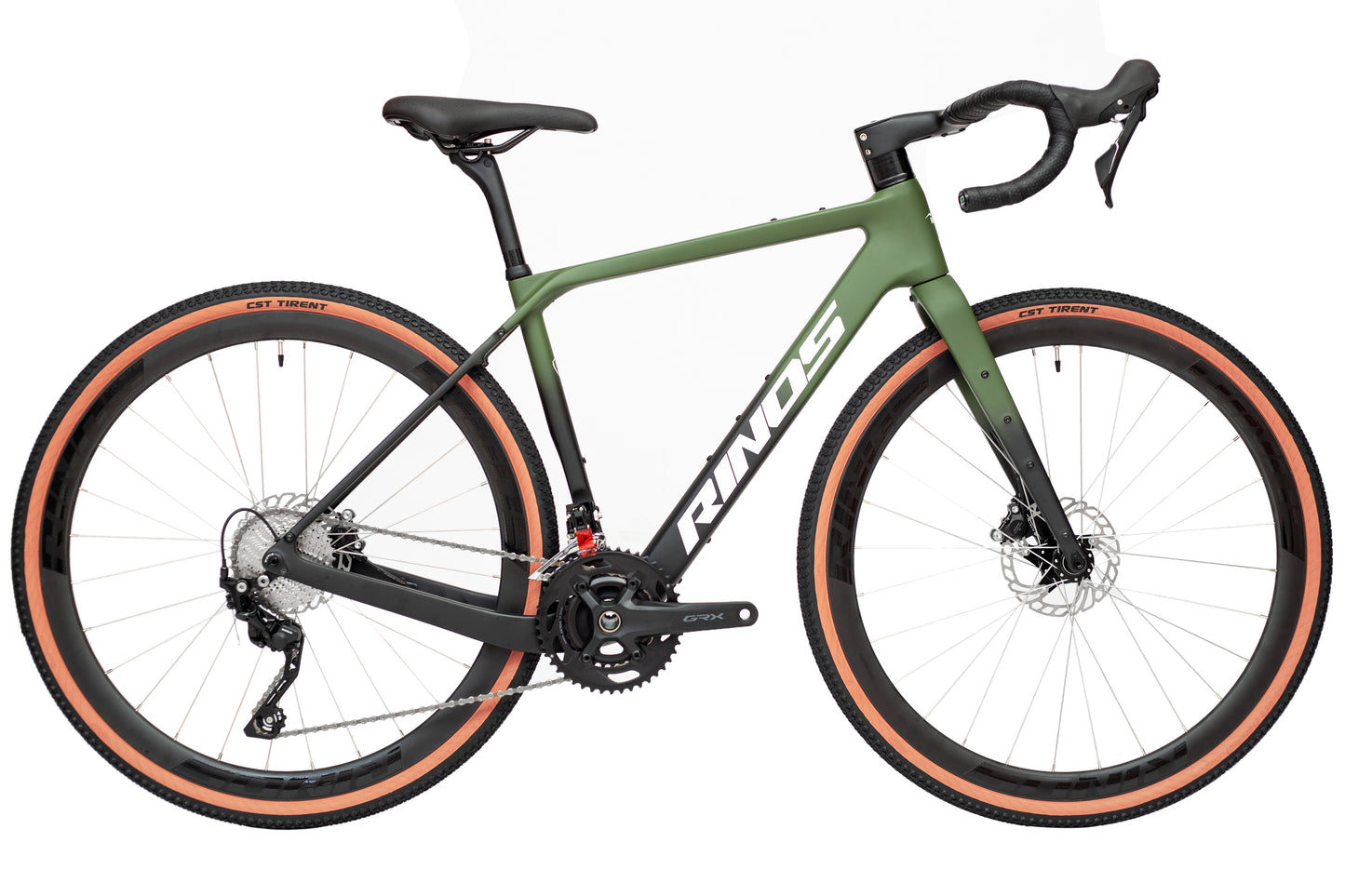

Color Options | Black/Green, Black/Sand (Ivory), Gold, Blue |
Wheel Size | 28 inch (700c) |
Frame Sizes Available | 50 cm (XS) / 52 cm (S) / 54 cm (M) / 56 cm (L) / 58 cm (XL) |
Rider Height for 50 cm (XS) | 155–170 cm |
Rider Height for 52 cm (S) | 171–175 cm |
Rider Height for 54 cm (M) | 176–180 cm |
Rider Height for 56 cm (L) | 181–190 cm |
Rider Height for 58 cm (XL) | 190+ cm |
Complete Bike Weight | 9.8 kg |
Shipping Weight | 13.8 kg |
Frame | Rinos, Toray T800 Carbon |
Fork | Rinos, Toray T800 Carbon |
Handlebar | Rinos Carbon, 420/440 × 28.6 mm |
Headset | Rinos Aluminum, 1-1/8" (28.6 × 52 × 52 × 39.8 mm) |
Stem | Rinos Carbon |
Seat Post | Rinos Carbon, 27.2 × 400 mm |
Saddle | ROCKBROS |
Shifters | Shimano GRX ST-RX600 (22-speed, 2×11) |
Rear Derailleur | Shimano GRX RD-RX810 (with Shadow RD+ clutch) |
Front Derailleur | Shimano GRX FD-RX600 |
Brakes | Shimano GRX ST-RX600/BR-RX400 Hydraulic Disc |

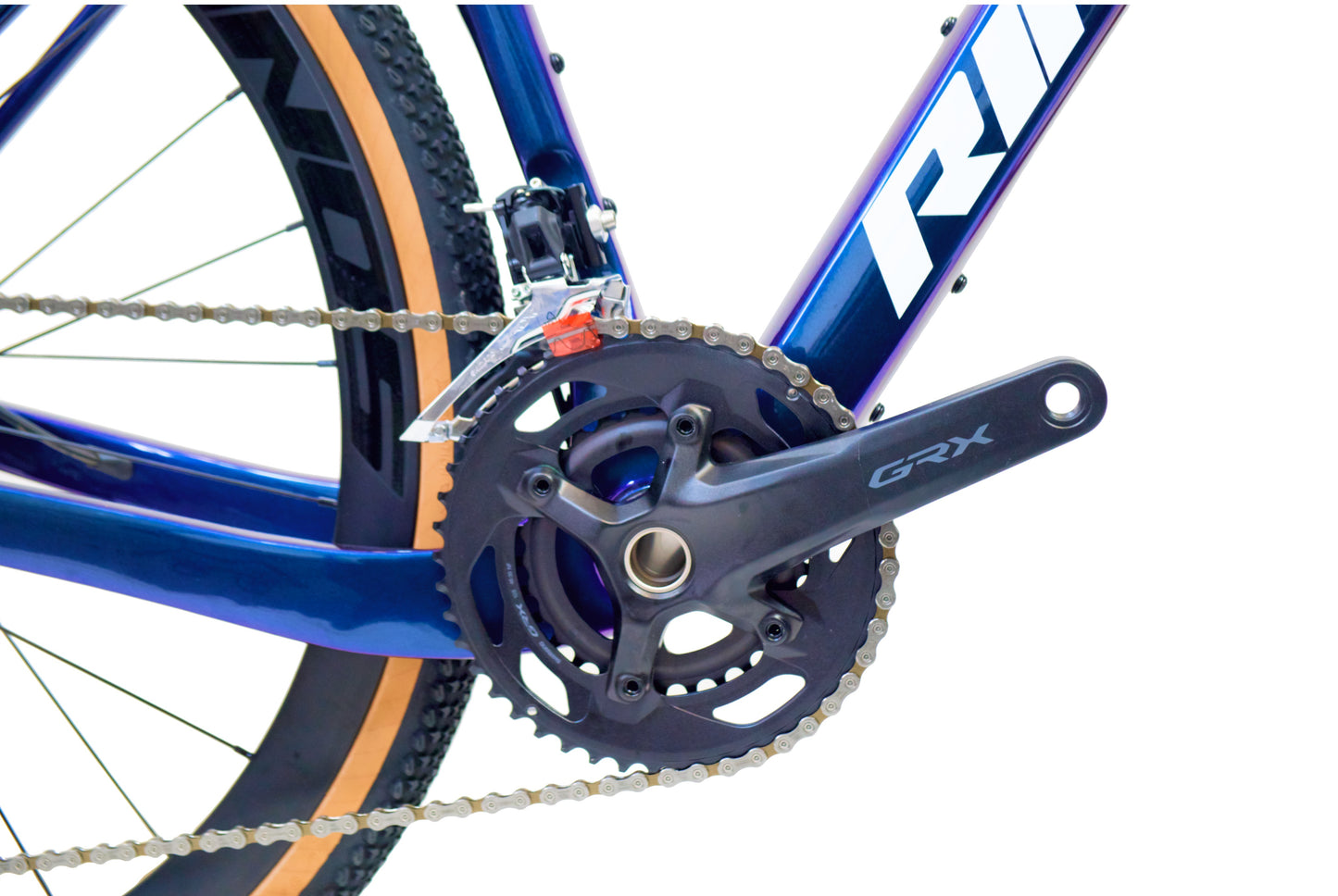

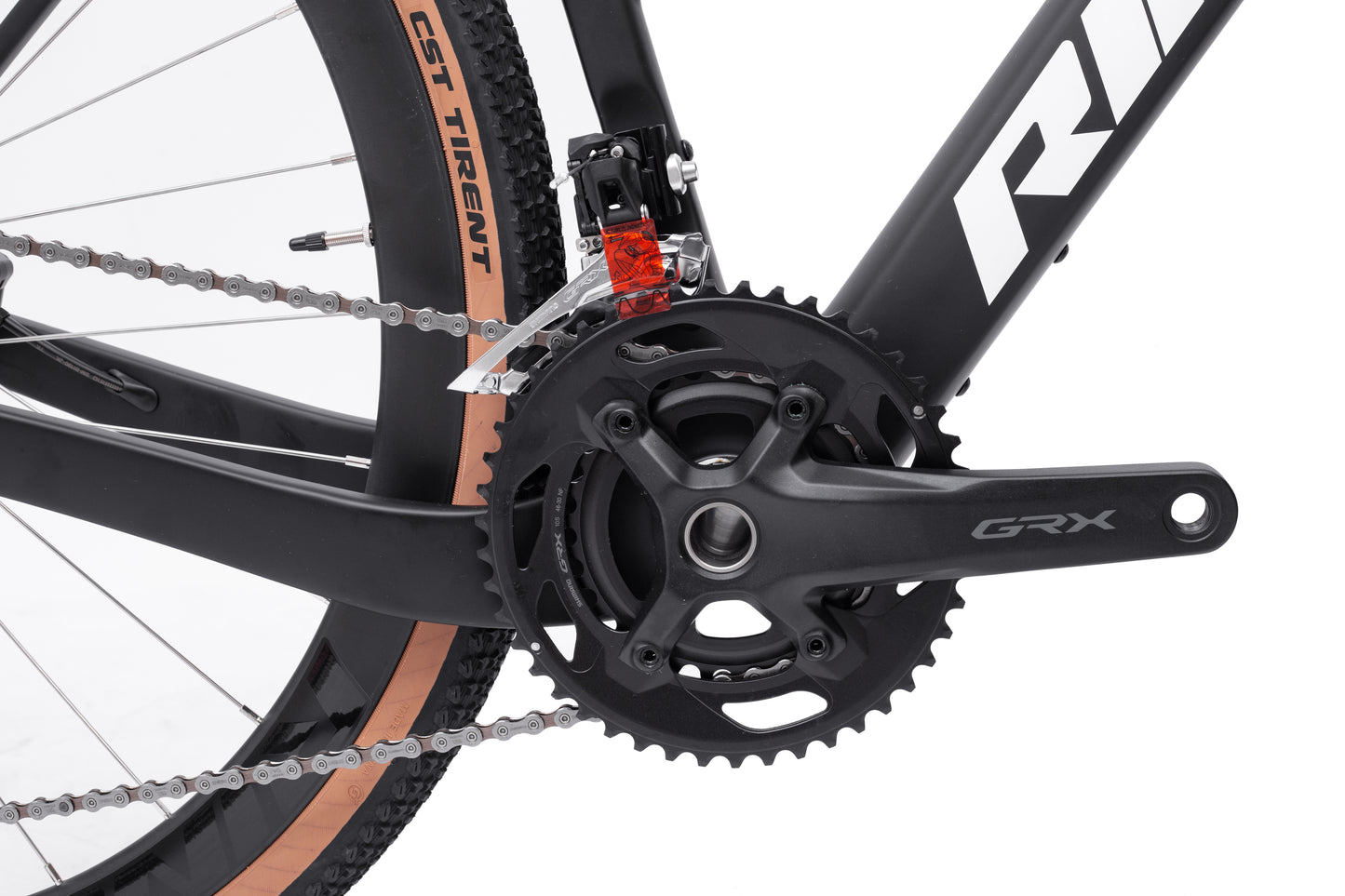

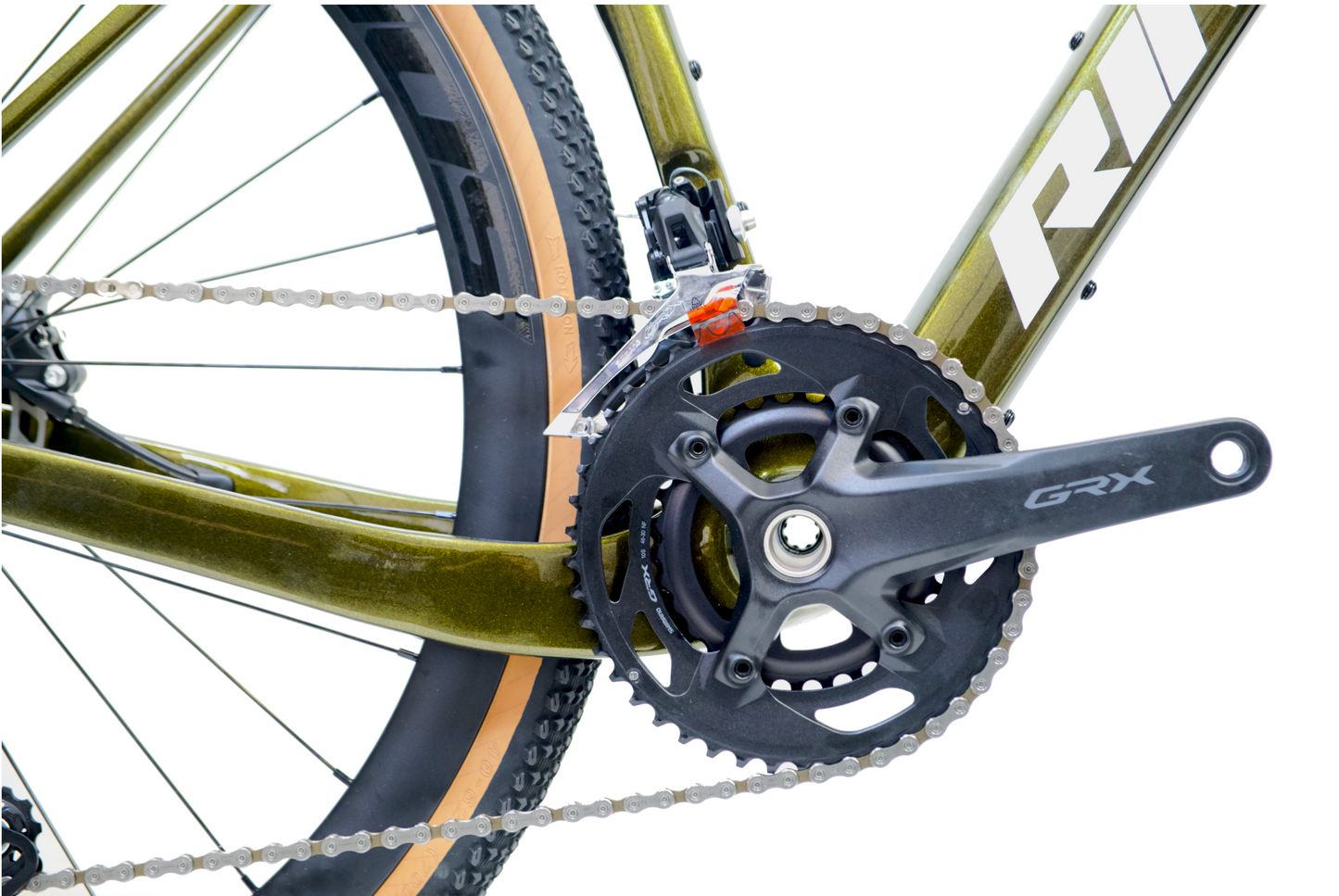

Crankset | Shimano GRX FC-RX600, 46-30T |
Cassette | Shimano CS-HG700, 11-34T (11-speed) |
Chain | Shimano 11-speed |
Pedals | None (not included) |
Wheels | Rinos 700C × 28H, 38 mm depth |
Rims | Aluminum 700C × 14G × 28H, 14 × 38 mm |
Hubs | Novatec 28H × 14G |
Tires | CST 700 × 40C with sidewall protection |
Valve | Presta 60mm |
Bikepacking Mounts | 26 mounting points for bags and accessories |
Accessories Included | Tools, Assembly Manual |
Installation Guide
Your Sandman 6 arrives nearly fully assembled. Simply attach the handlebar, seat post, pedals, and front wheel following the included manual. Fine-tune the hydraulic disc brakes and gear shifting to your preference, then head out for your first ride.
Built for riders who recognize the value of premium components without paying premium prices. The Sandman 6 bridges the gap between entry-level and high-end gravel bikes, delivering GRX600 performance with the reliability of proven carbon construction. Whether this complements your existing stable or represents your step up in gravel performance, the Sandman 6 is ready for serious miles on any surface.

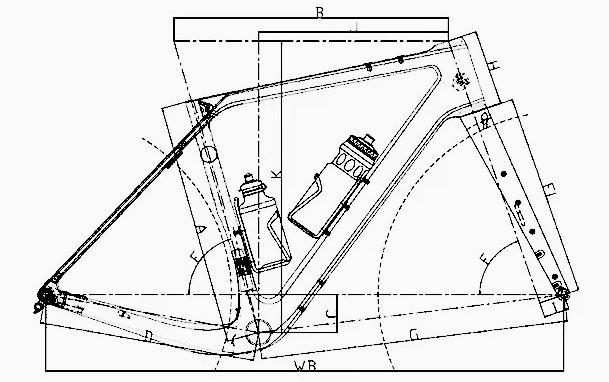

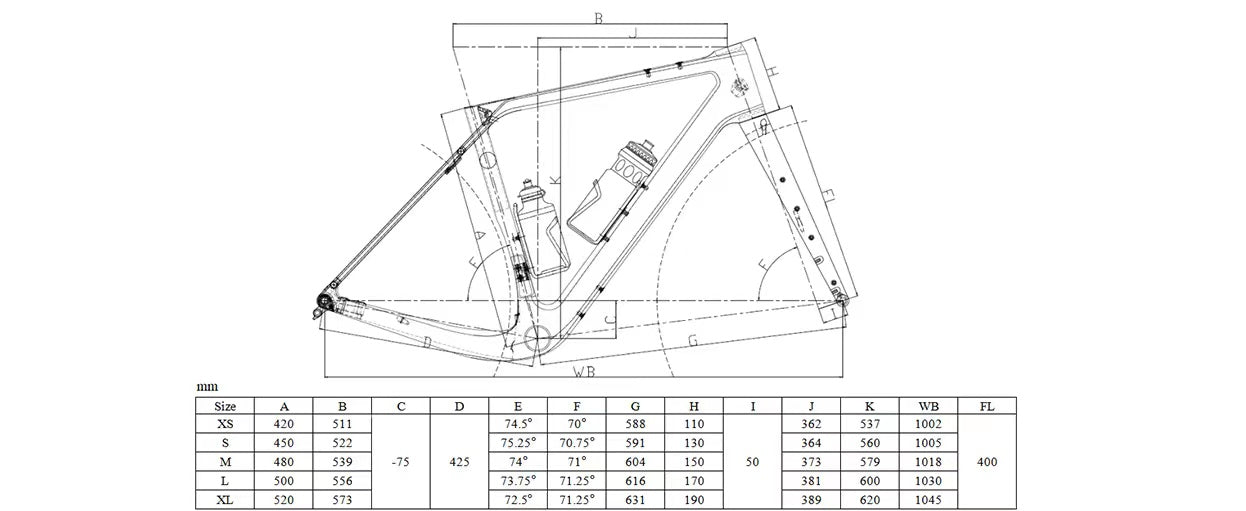

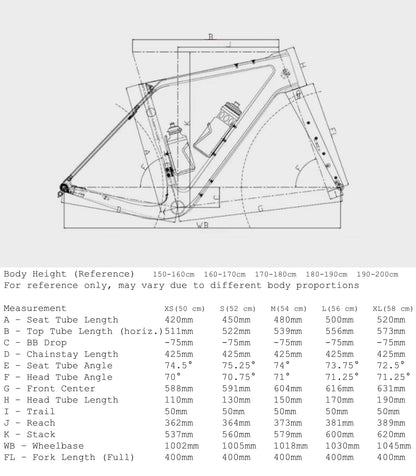

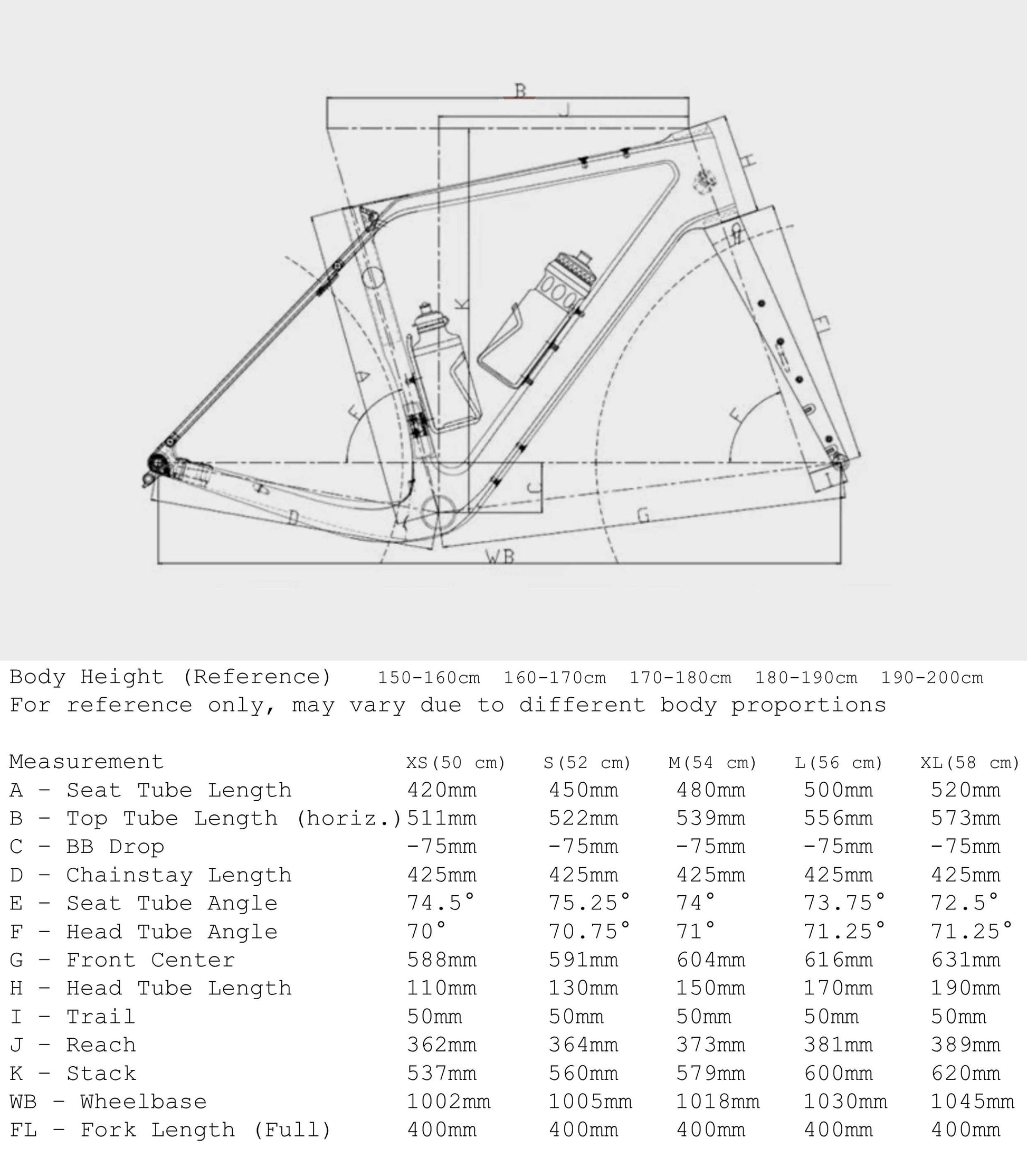

Gravel Frame Geometry

Size | A | B | C | D | E | F | G | H | I | J | K | WB | FL |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XS | 420 | 511 | - | - | 74.5° | 70° | 588 | 110 | - | 362 | 537 | 1002 | - |
S | 450 | 522 | - | - | 75.25° | 70.75° | 591 | 130 | - | 364 | 560 | 1005 | - |
M | 480 | 539 | -75 | 425 | 74° | 71° | 604 | 150 | 50 | 373 | 579 | 1018 | 400 |
L | 500 | 556 | - | - | 73.75° | 71.25° | 616 | 170 | - | 381 | 600 | 1030 | - |
XL | 520 | 573 | - | - | 72.5° | 71.25° | 631 | 190 | - | 389 | 620 | 1045 | - |
All measurements in millimeters (mm). Angles shown in degrees (°). When missing value, means all column is equivalent to existing one.
