tire size
28 inch

gear shifter
Shimano GRX 820

weight
9,6 kg

frame material
Carbon

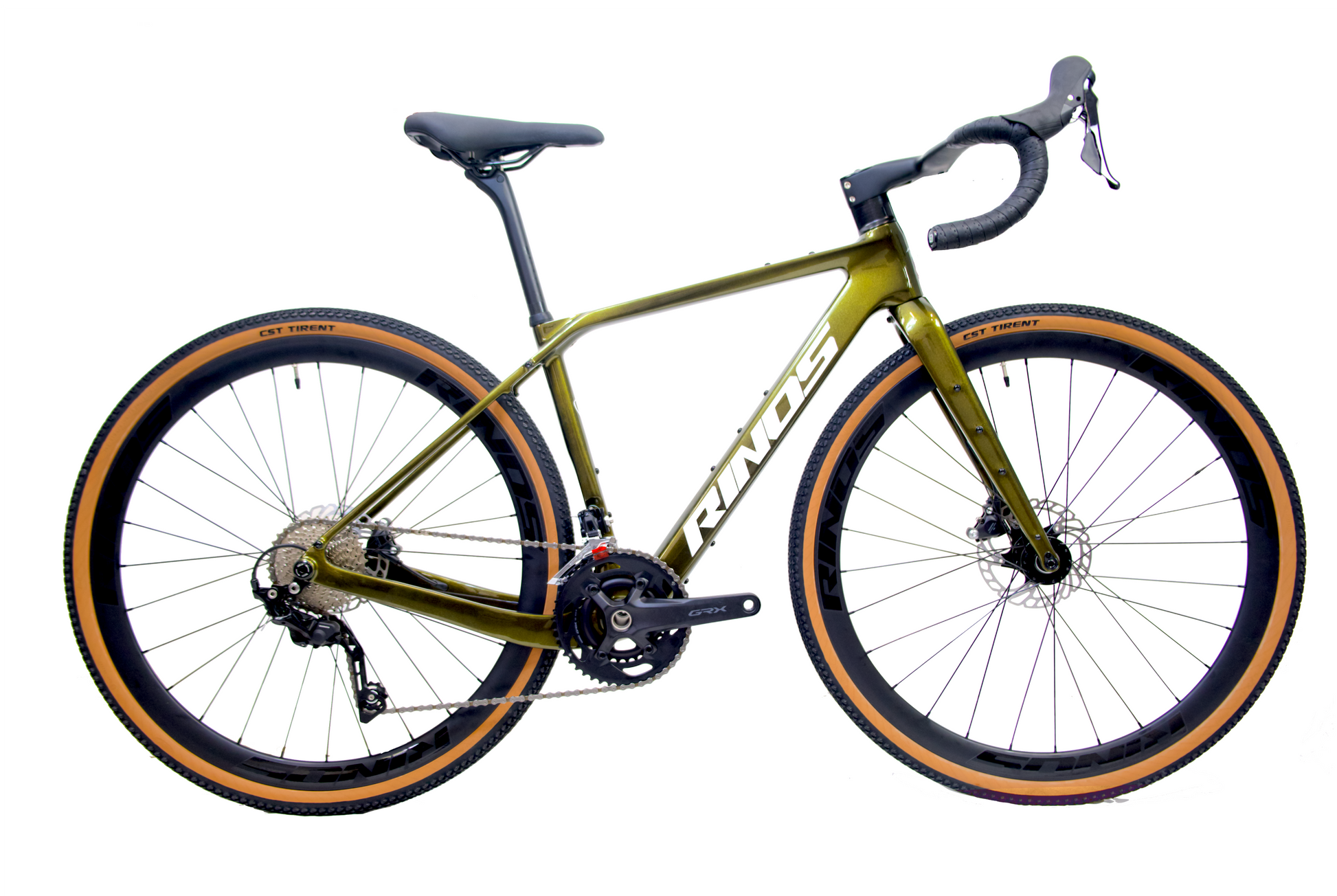

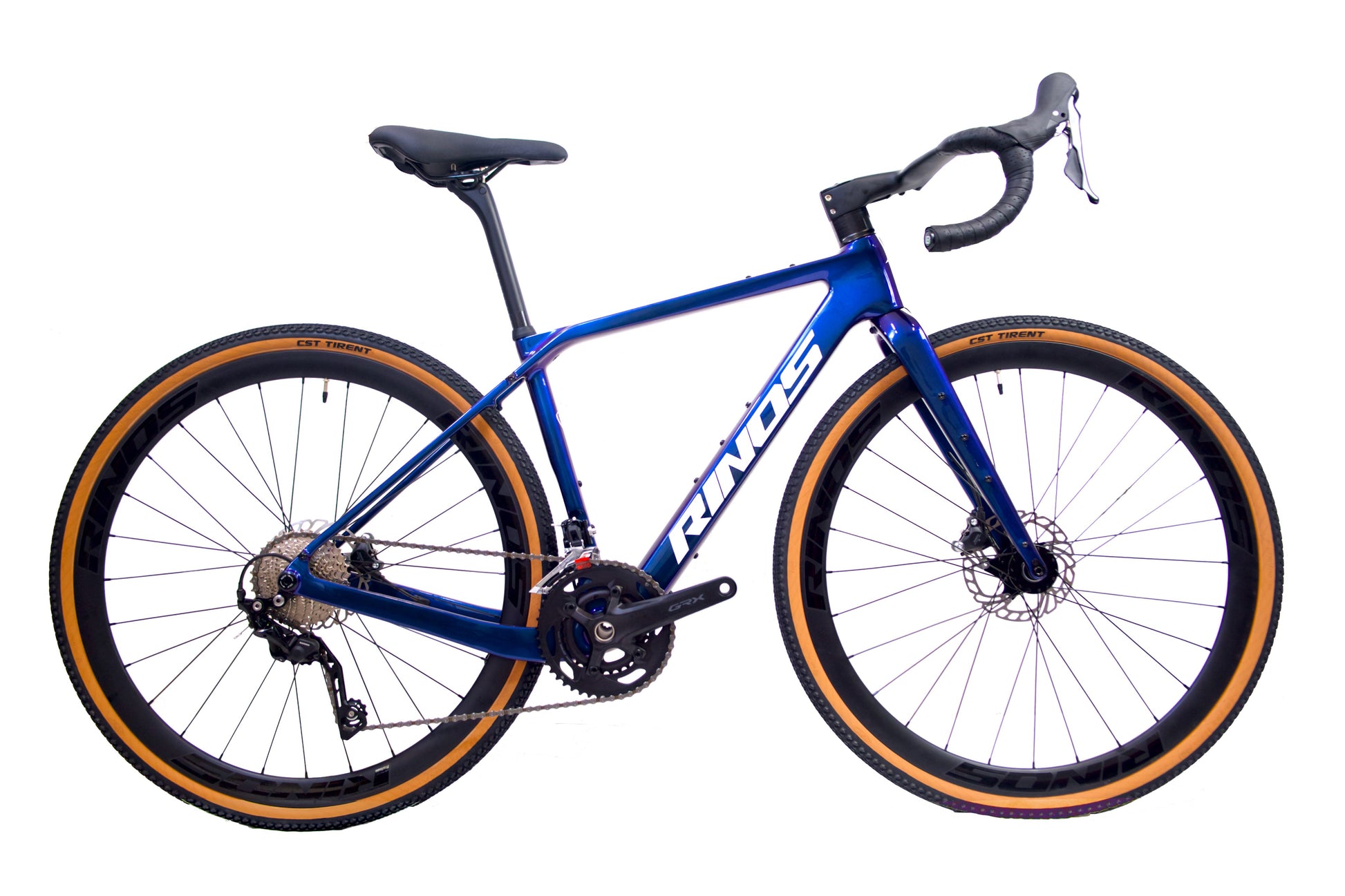

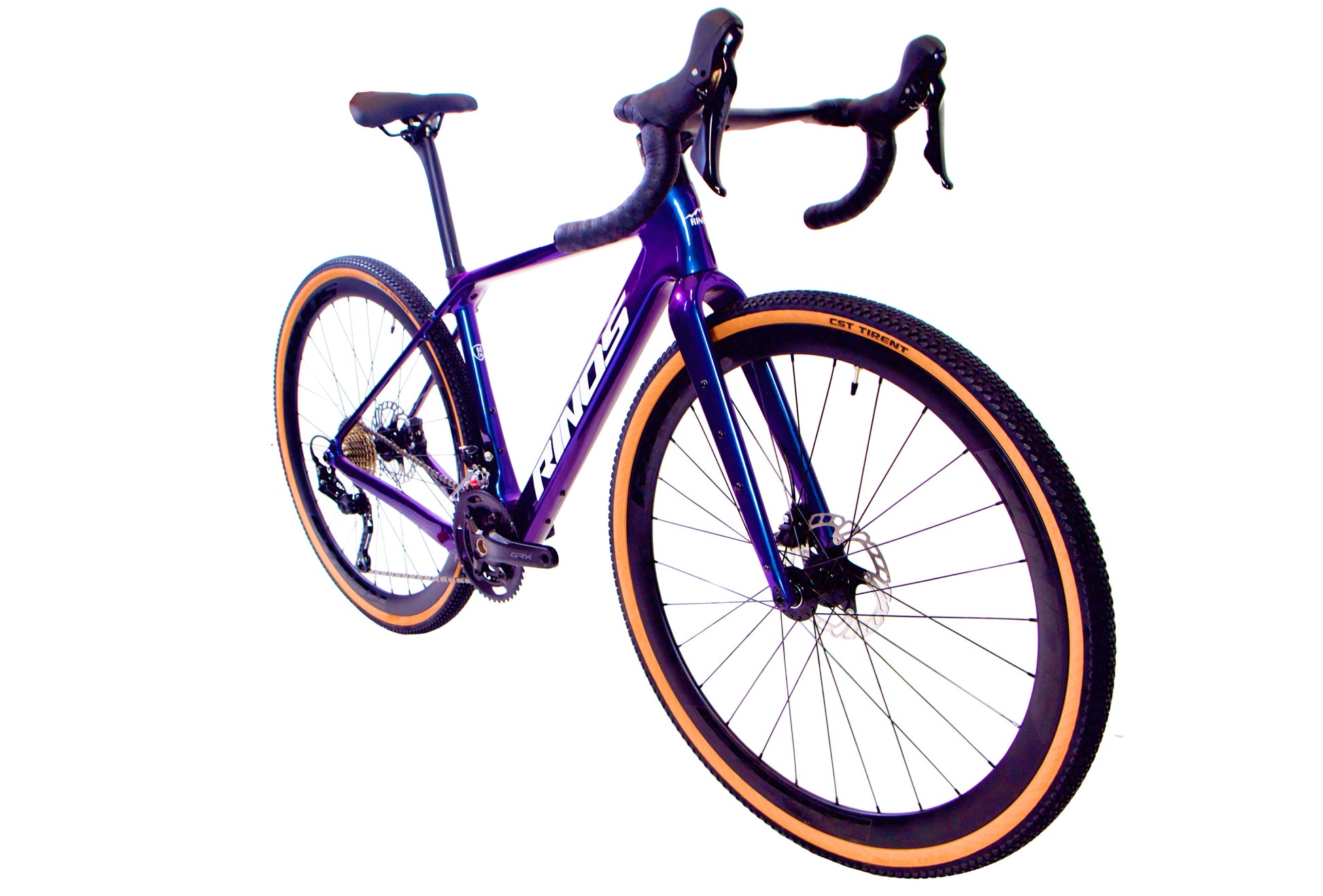

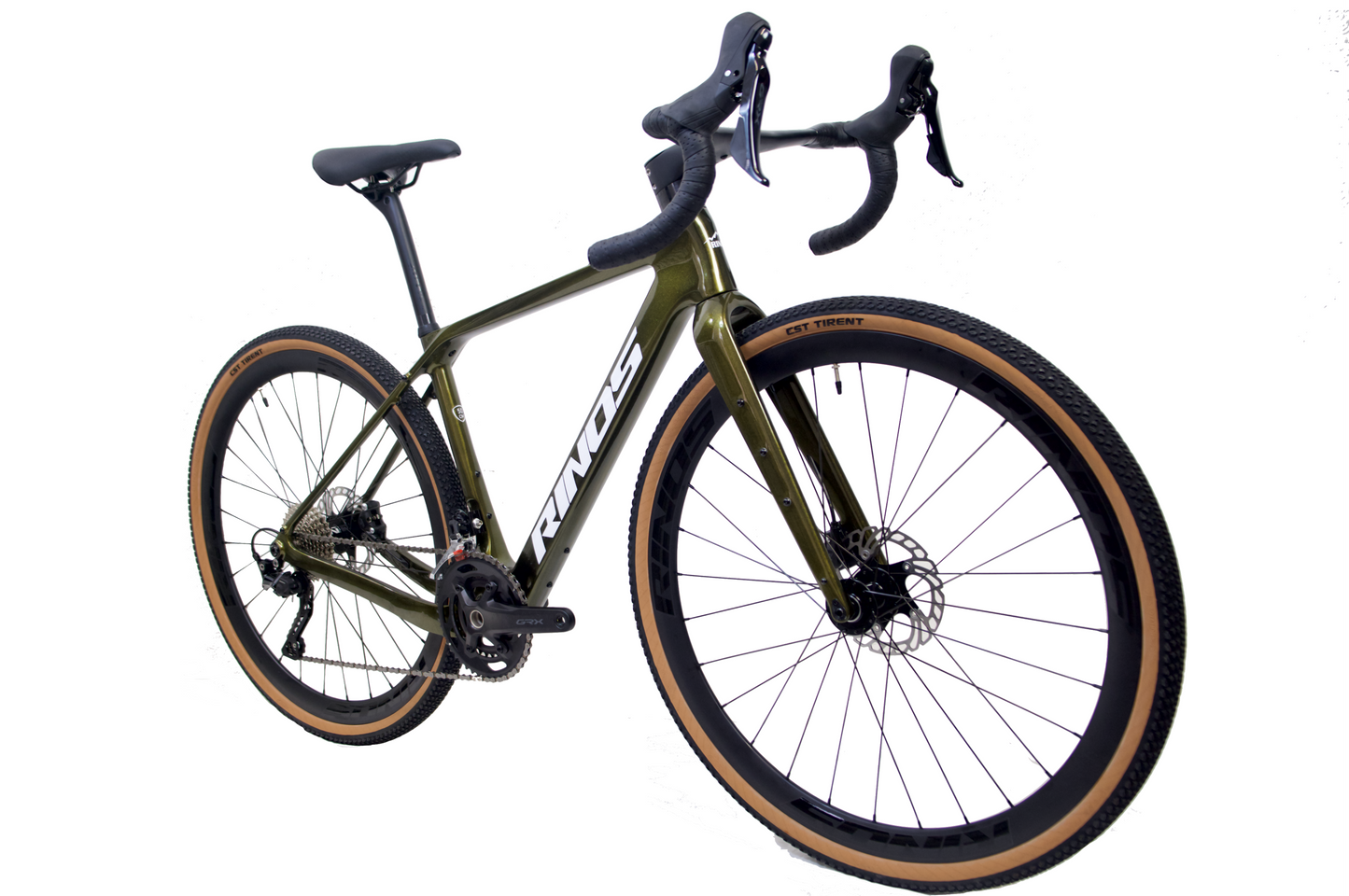

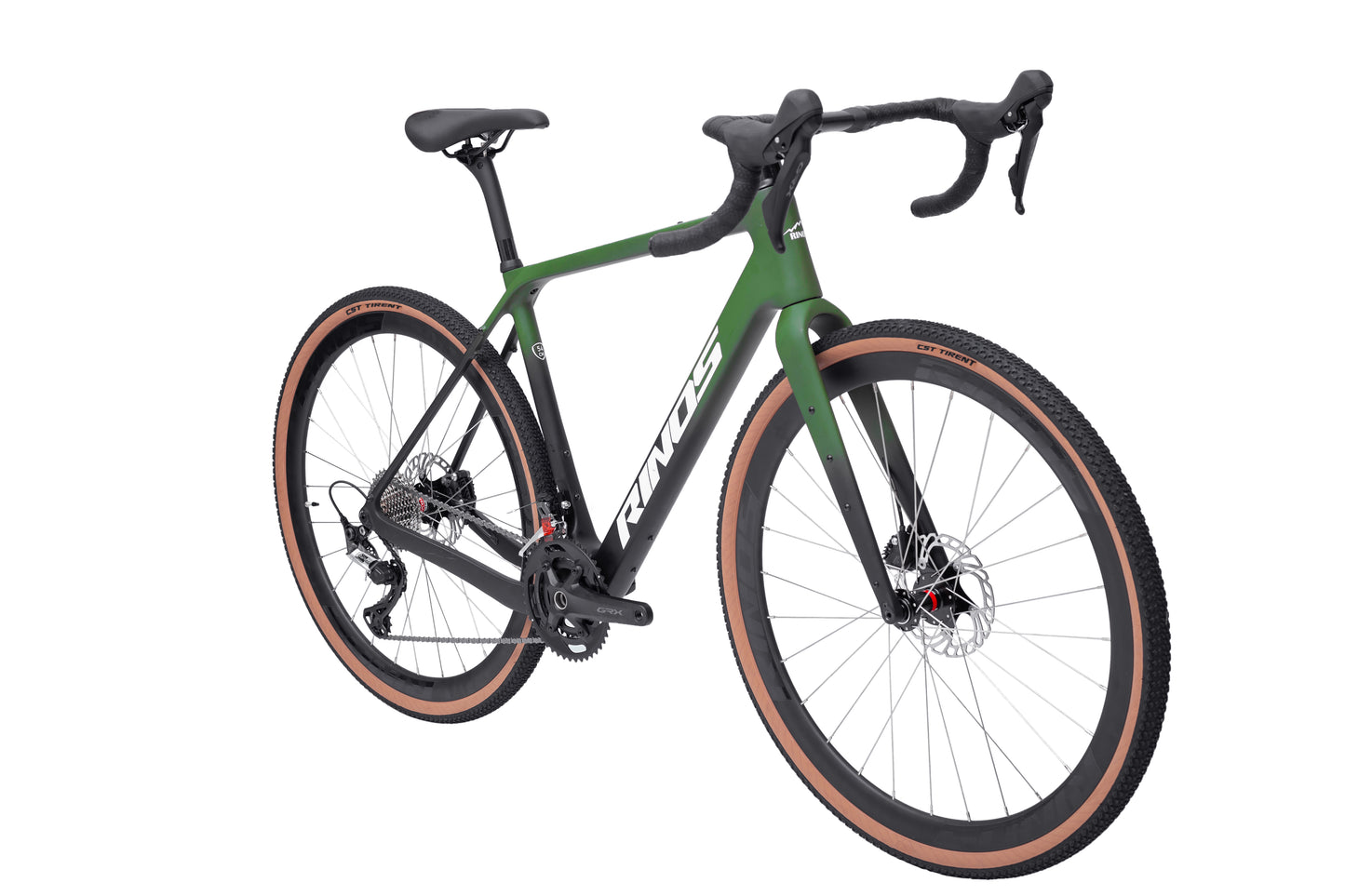

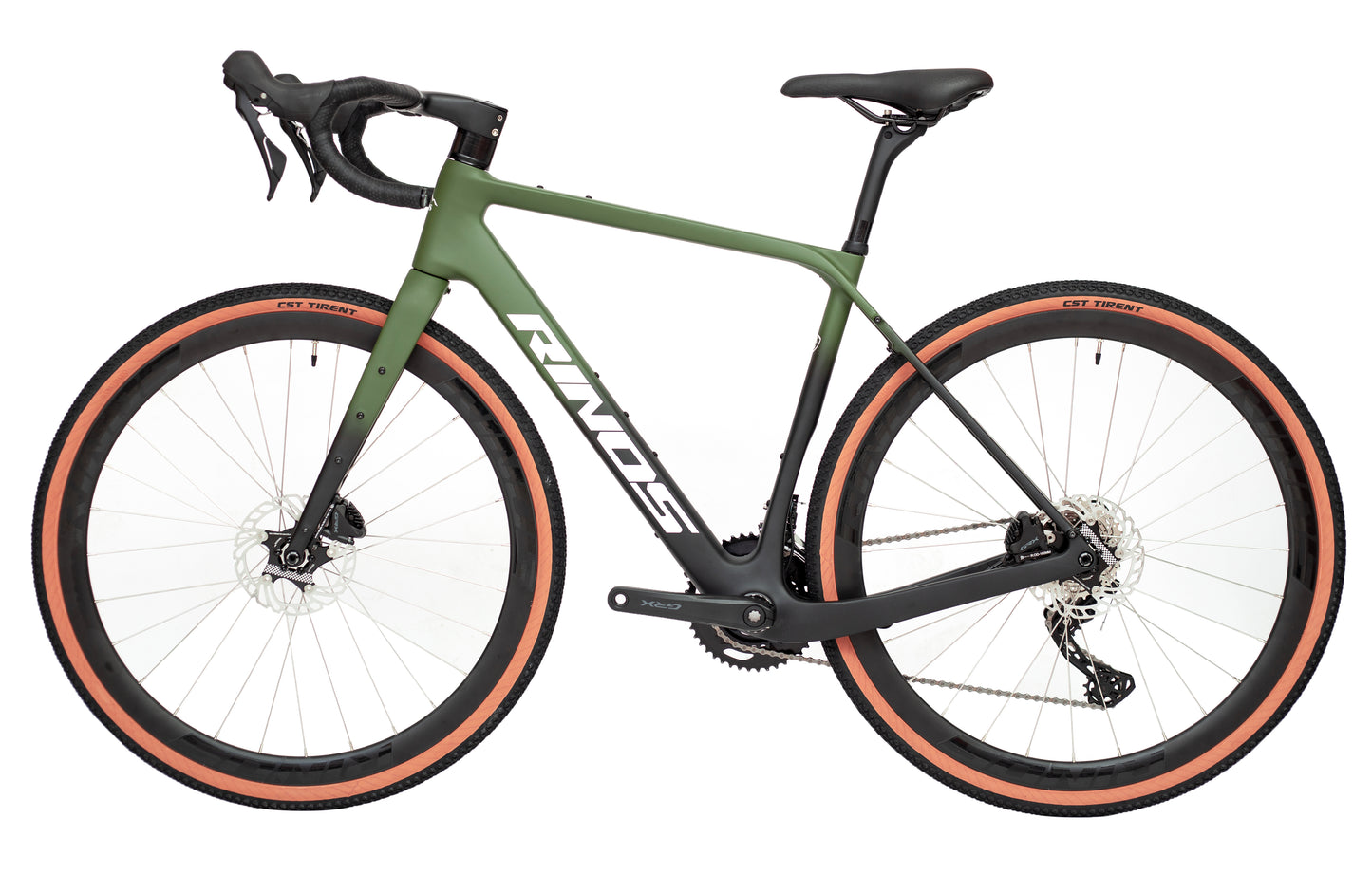

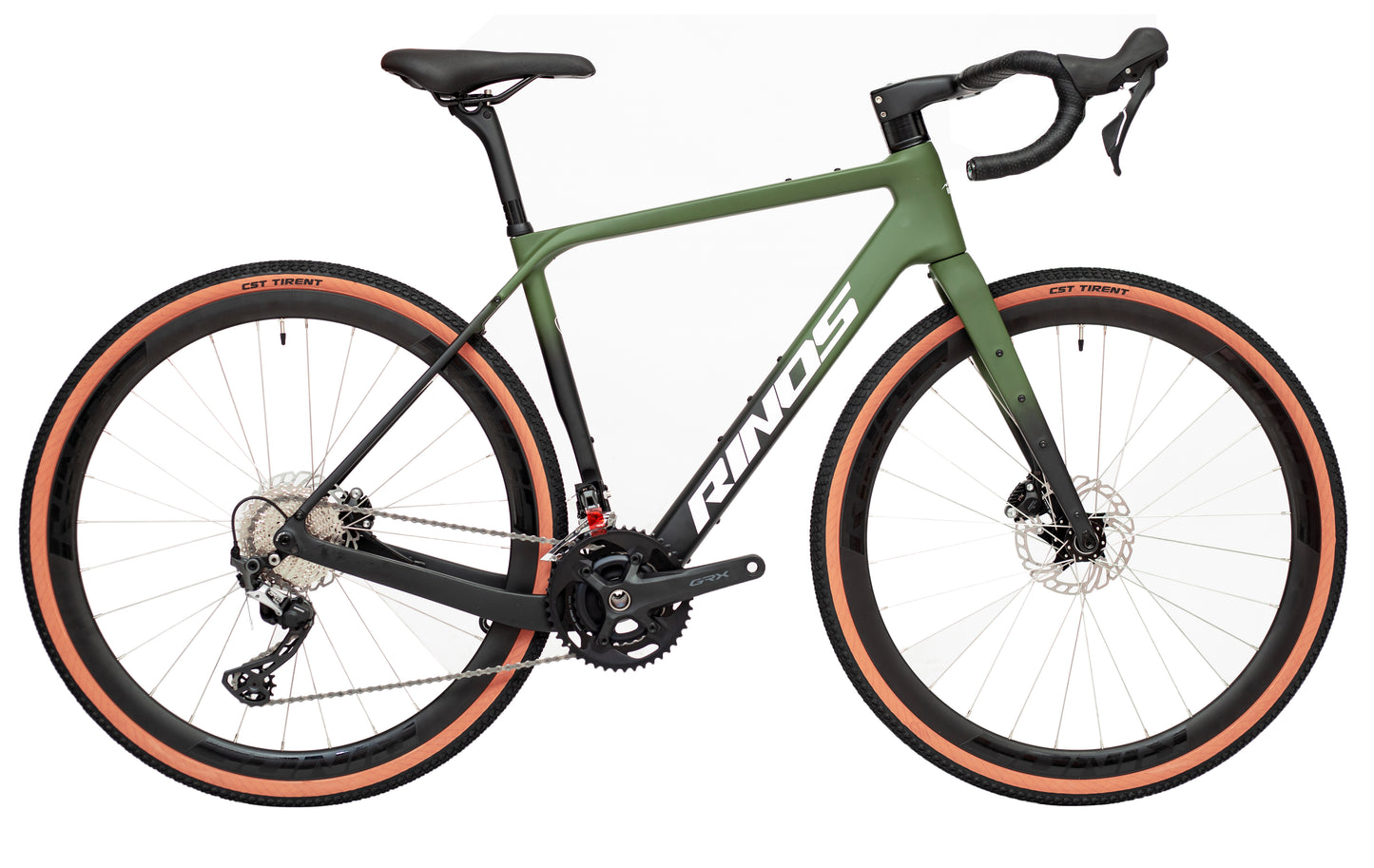

Made for Gravel. Discover Rinos Sandman 7

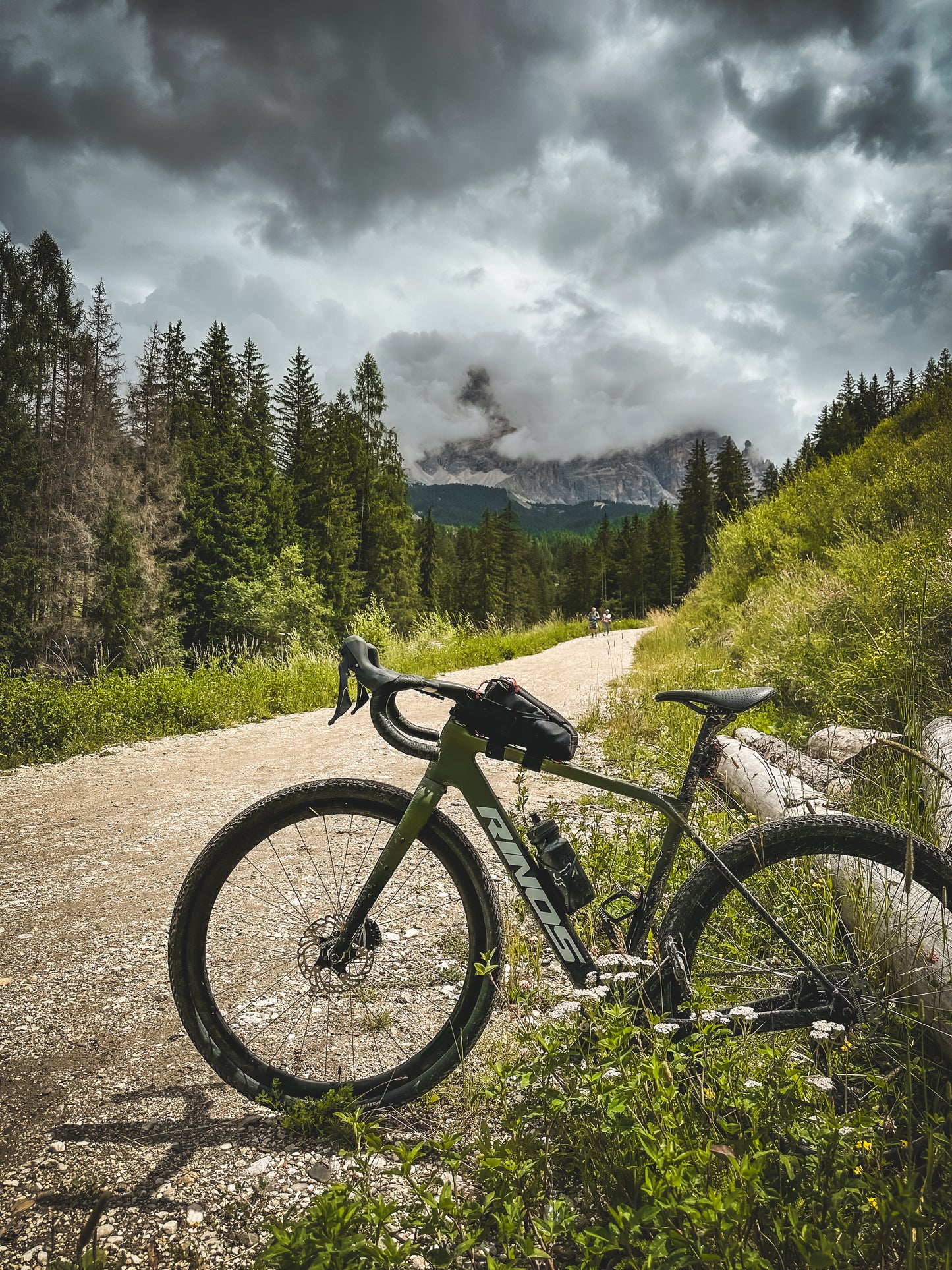

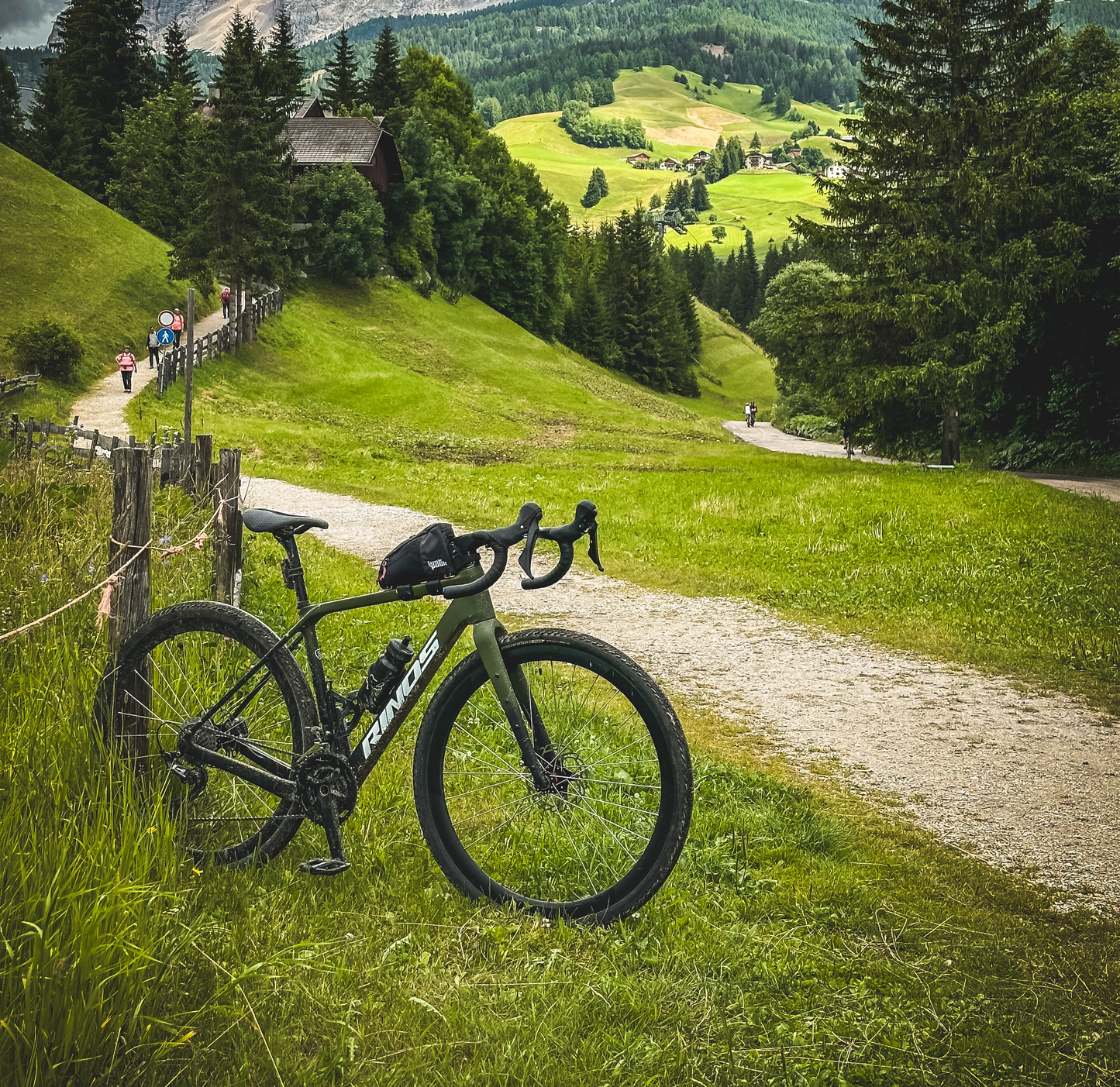

Bikepacking with the Sandman
Twenty-six mounting points across the frame give you tons of options for attaching bags, racks, extra water bottles, and whatever gear your adventure requires.
The wide 40mm tires come with reinforced sidewalls to protect against punctures on rough terrain.
Hydraulic brakes give you confident stopping power even when the bike is fully loaded.
Proven reliable in rain, mud, dust, and everything in between.

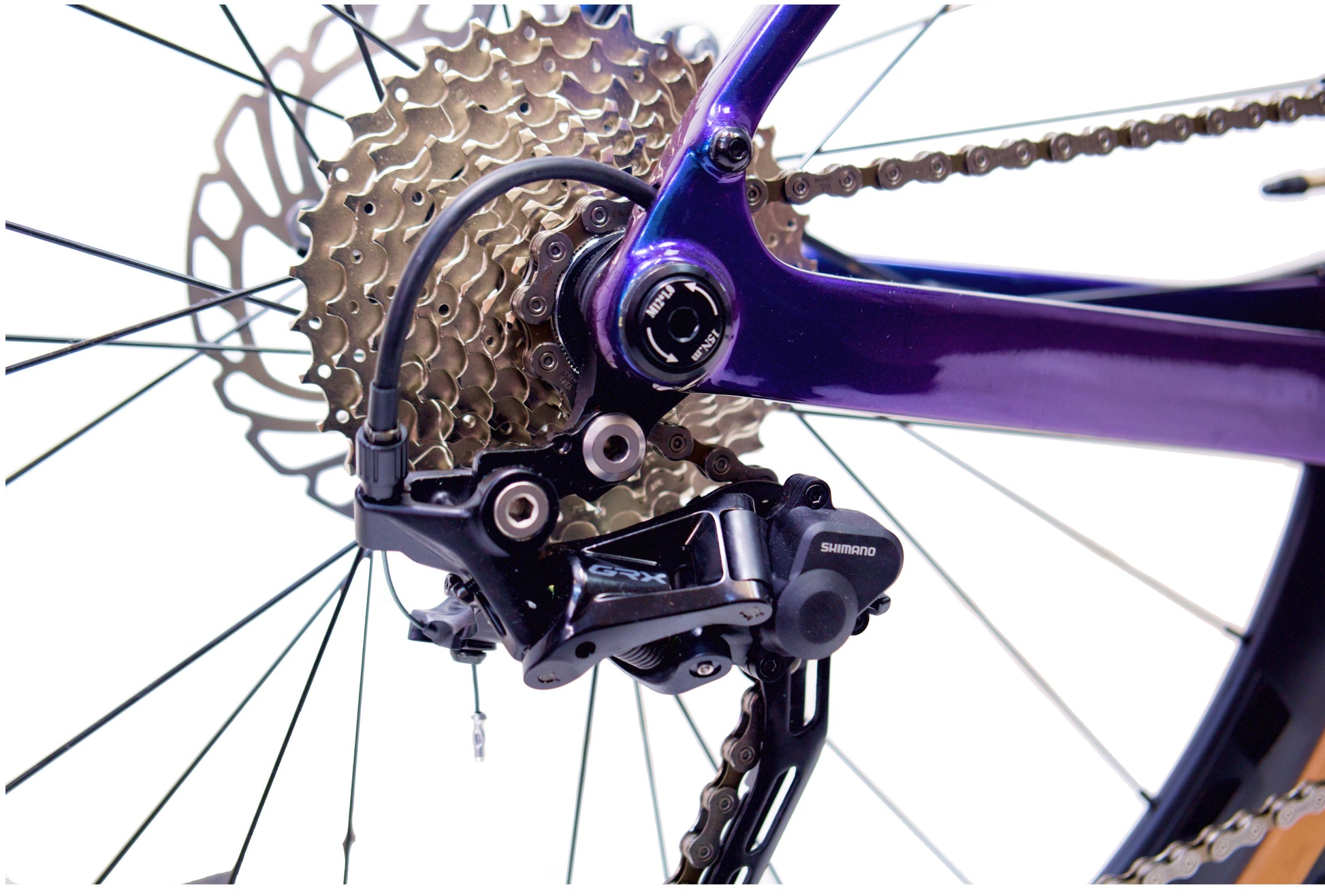

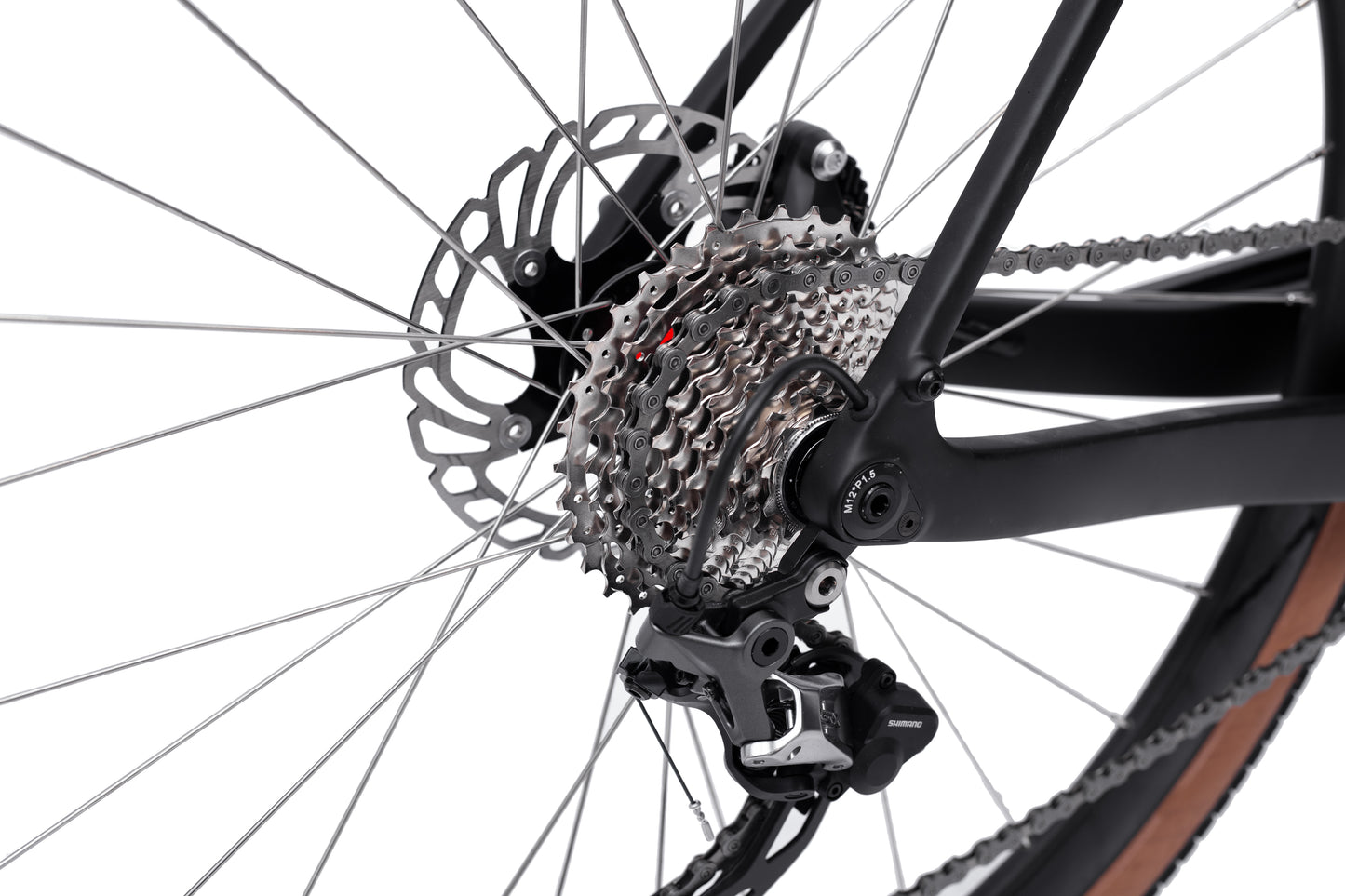

The Sandman 7 features Shimano's GRX820 12-speed mechanical groupset, part of Shimano's second-tier gravel component lineup that combines technologies from both their Ultegra road and Deore XT mountain bike families. The 2×12 drivetrain uses a gravel-optimized 48-31T crankset paired with the Shimano CS-R8100 11-34T cassette, providing 24 distinct gear combinations. This configuration prioritizes closely-spaced gear steps for maintaining consistent cadence across varied terrain—whether cruising flat gravel roads, navigating rolling hills, or tackling steep climbs. The GRX RD-RX820 rear derailleur incorporates Shadow RD+ chain stabilization technology, using an adjustable clutch mechanism to minimize chain slap and improve chain retention on rough surfaces.

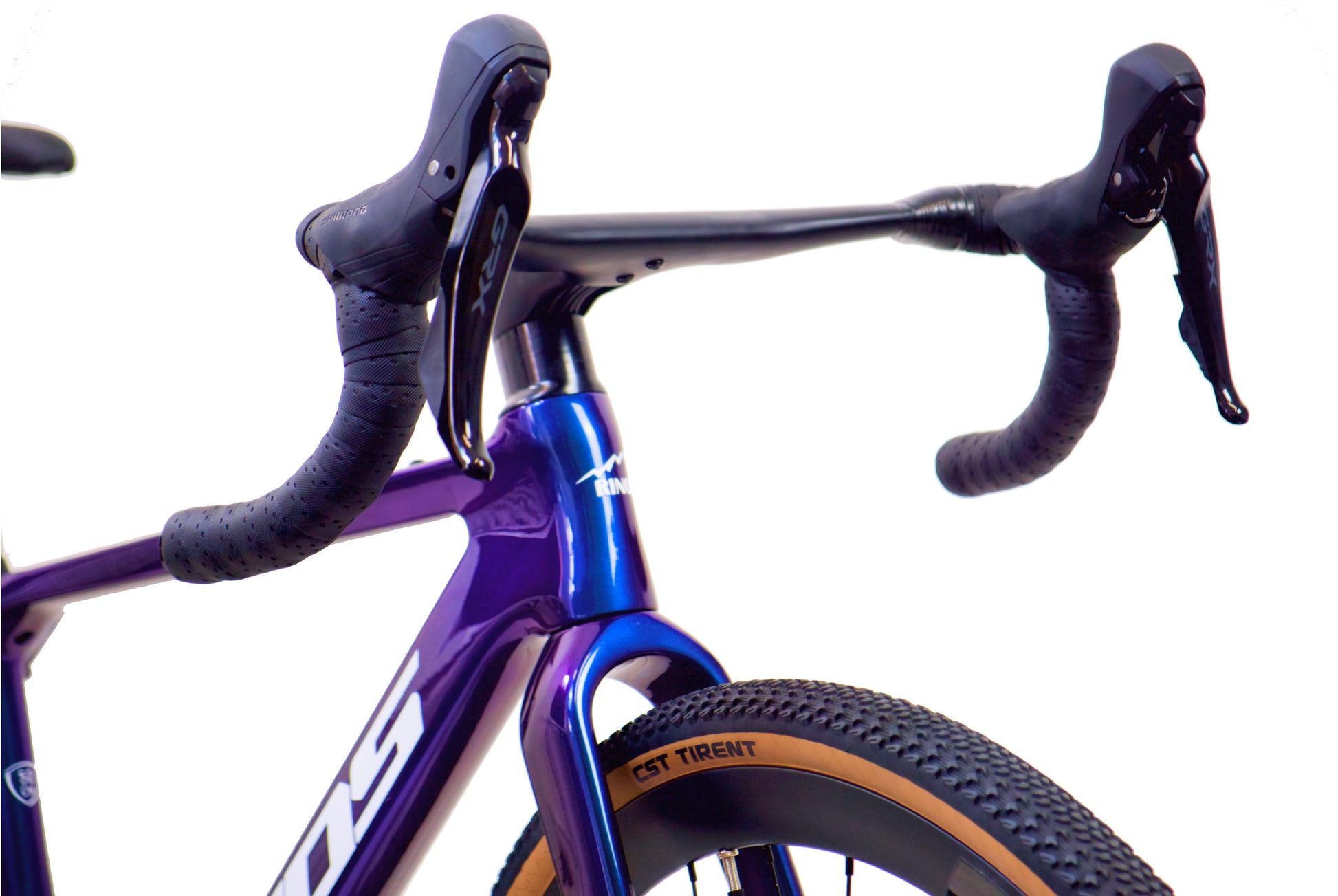

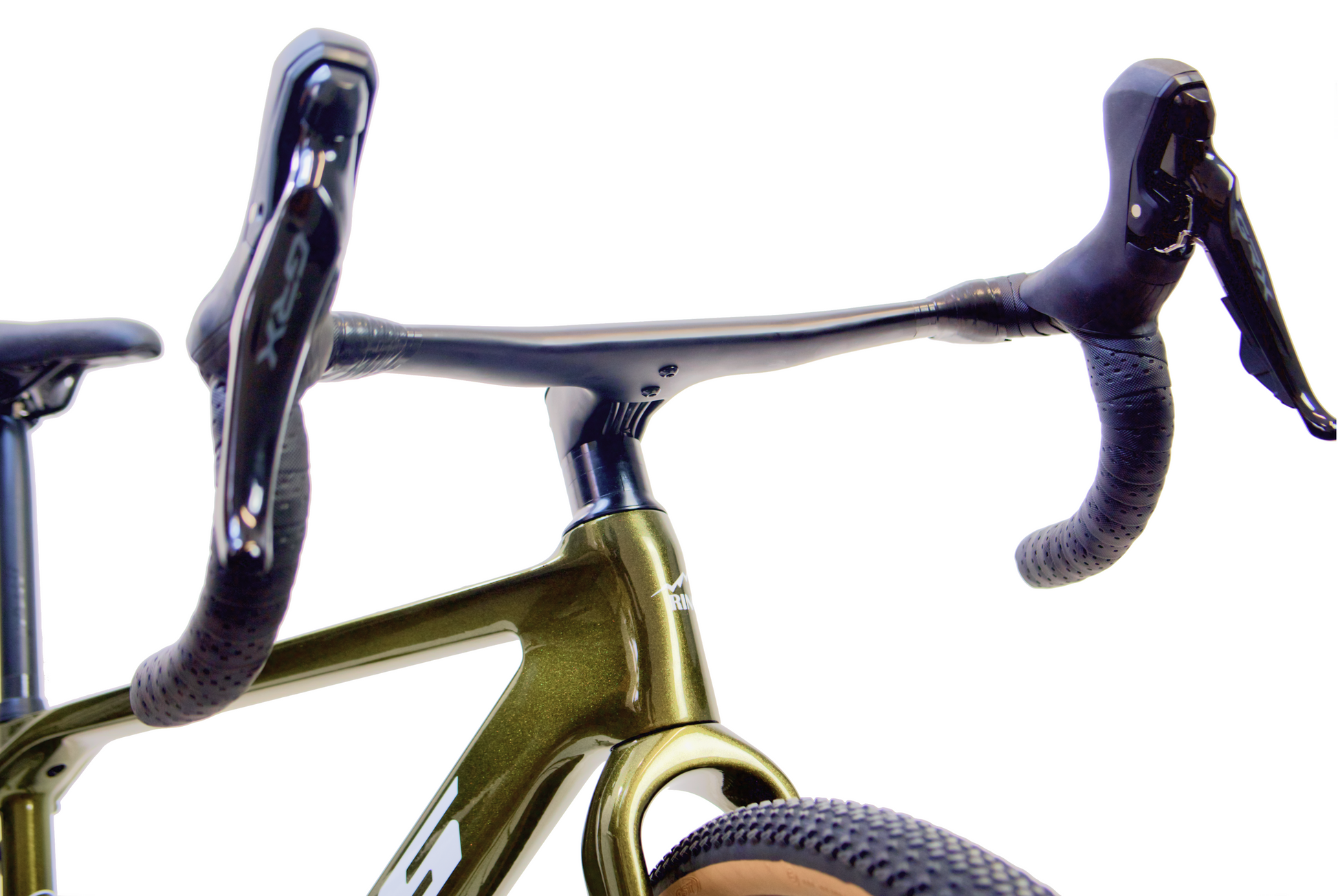

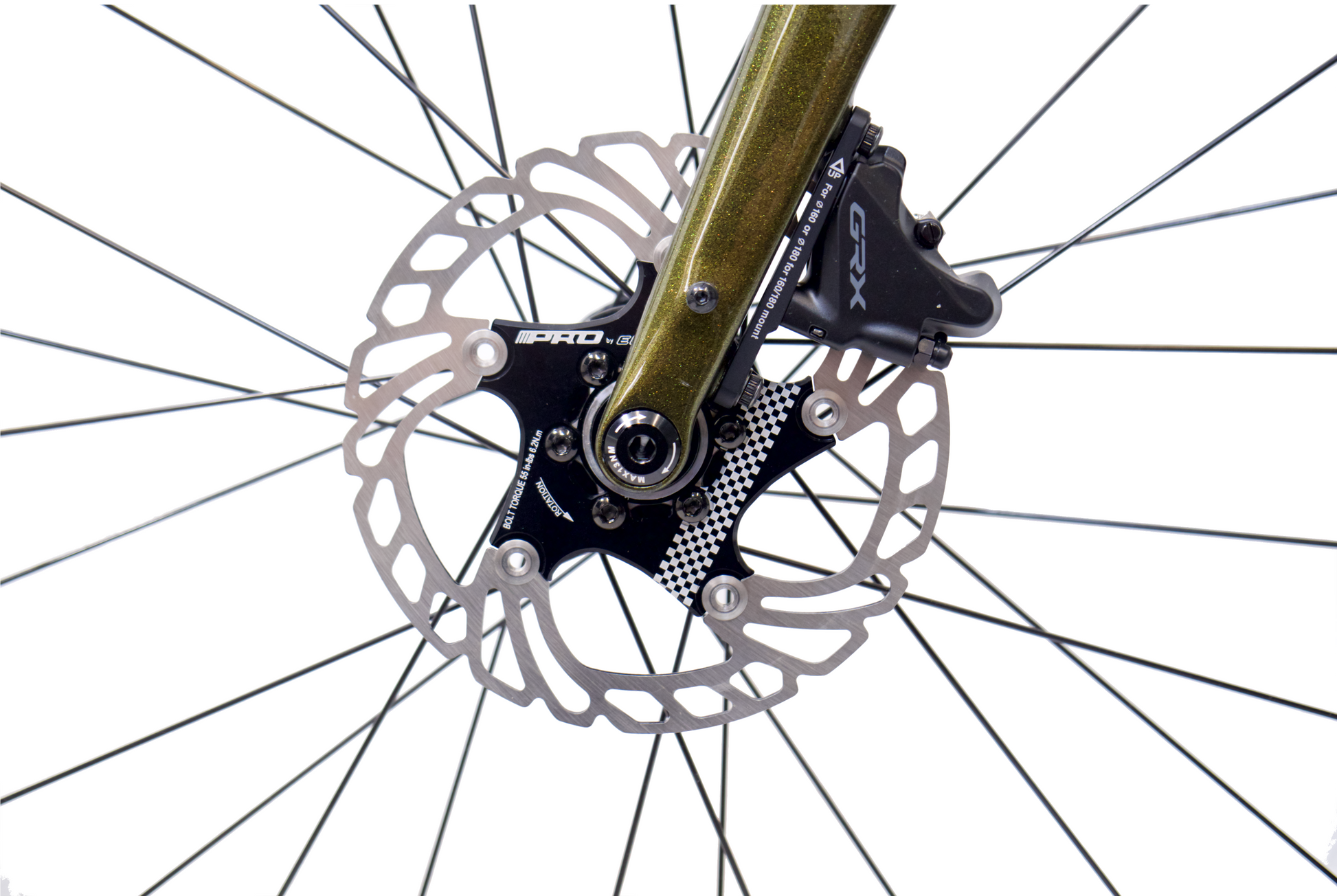

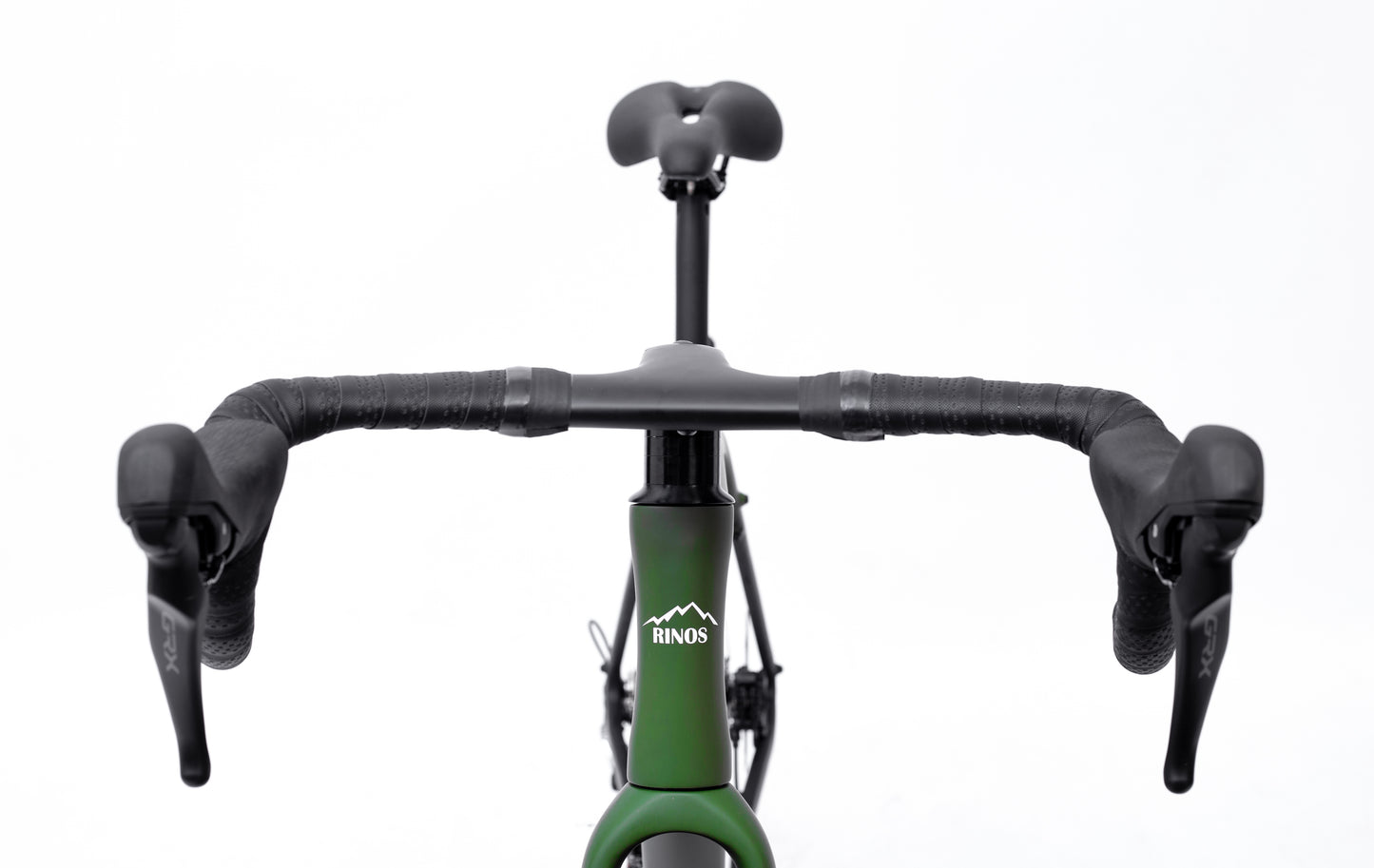

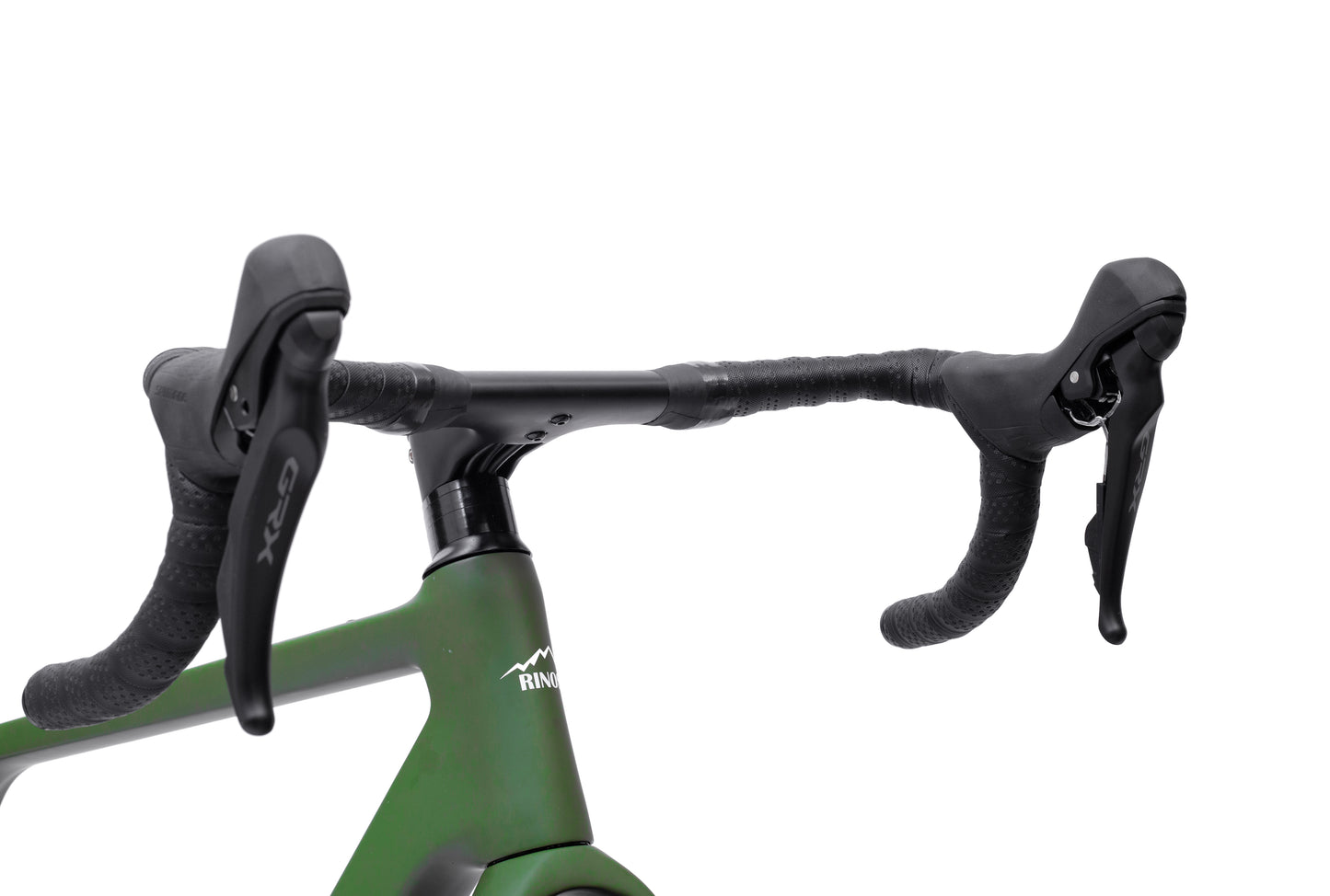

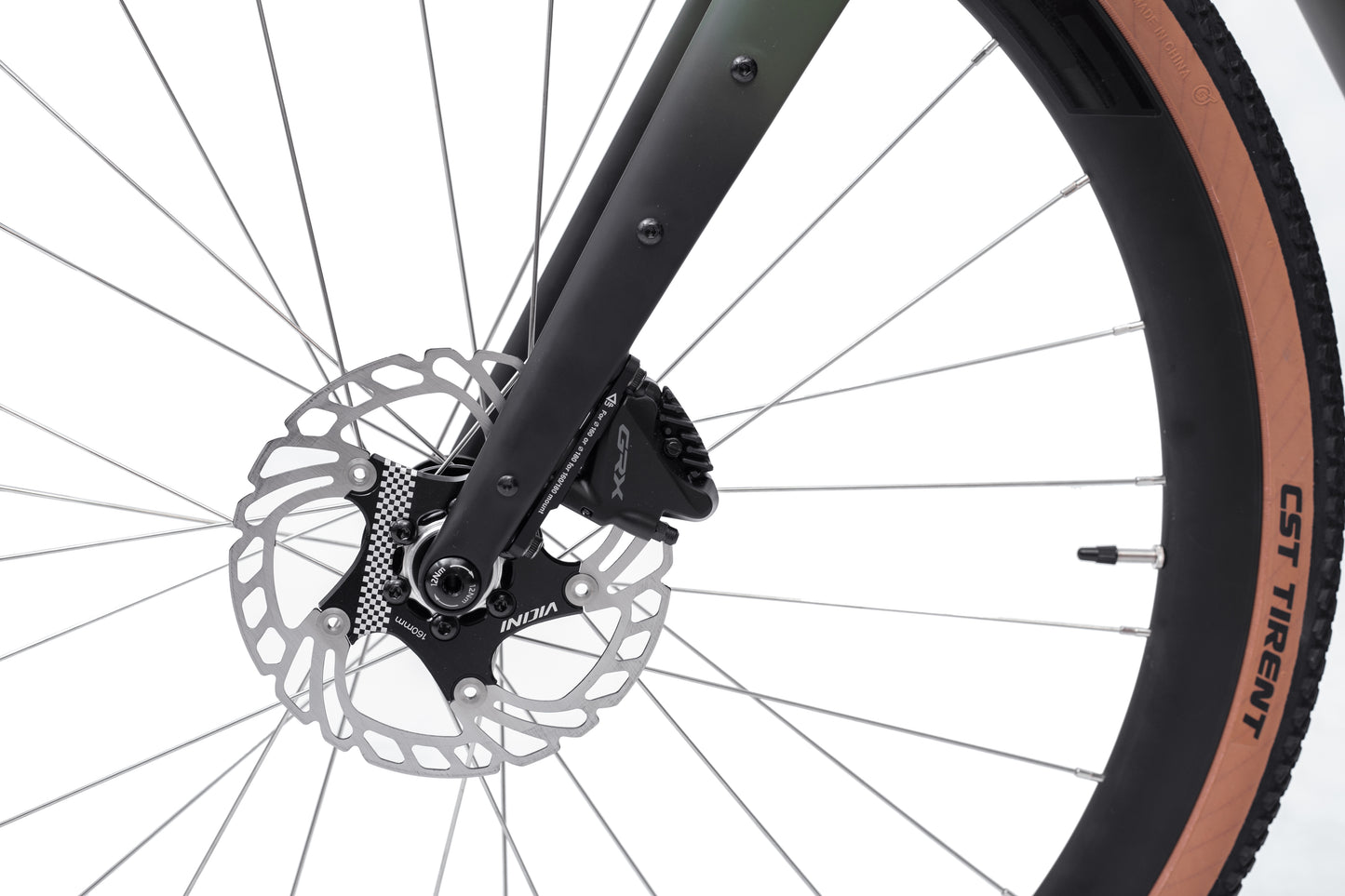

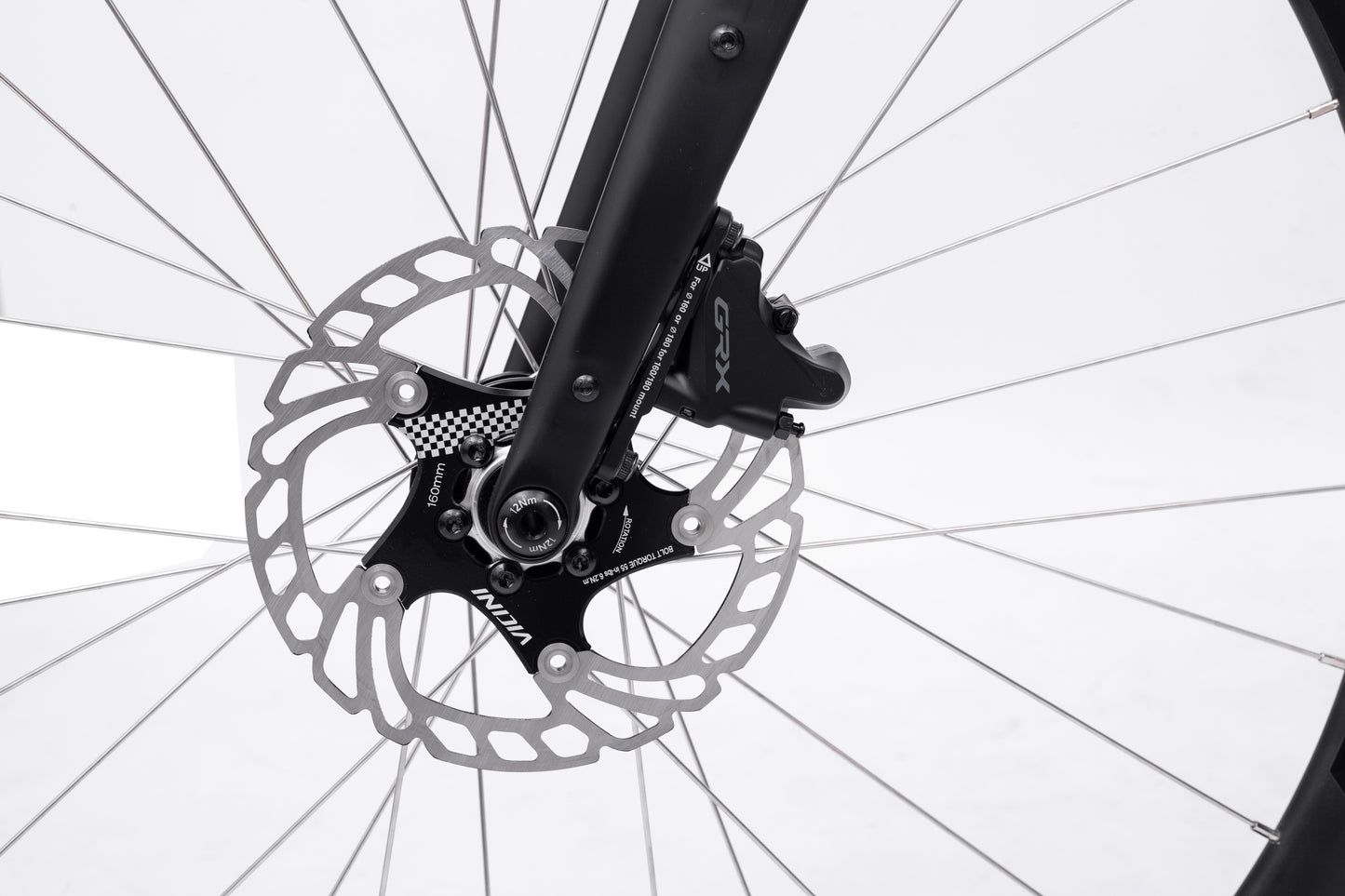

The complete GRX820 hydraulic brake system uses ST-RX820 dual-control levers integrated with BR-RX820 calipers, matched with Shimano's RT-CL800 rotors featuring Ice Technologies Freeza construction. These rotors use an aluminum carrier designed to resist heat deformation during extended braking. The brake calipers include increased pad clearance compared to previous GRX generations, reducing brake rub after heavy use. The GRX820 shifters feature Shimano's textured anti-slip coating on the lever blades and hoods, borrowed from their fishing product division for improved grip in wet conditions. The lever shape has been refined with a marginally narrower body to accommodate a wider range of hand sizes, particularly optimized for flared handlebars common in gravel cycling.

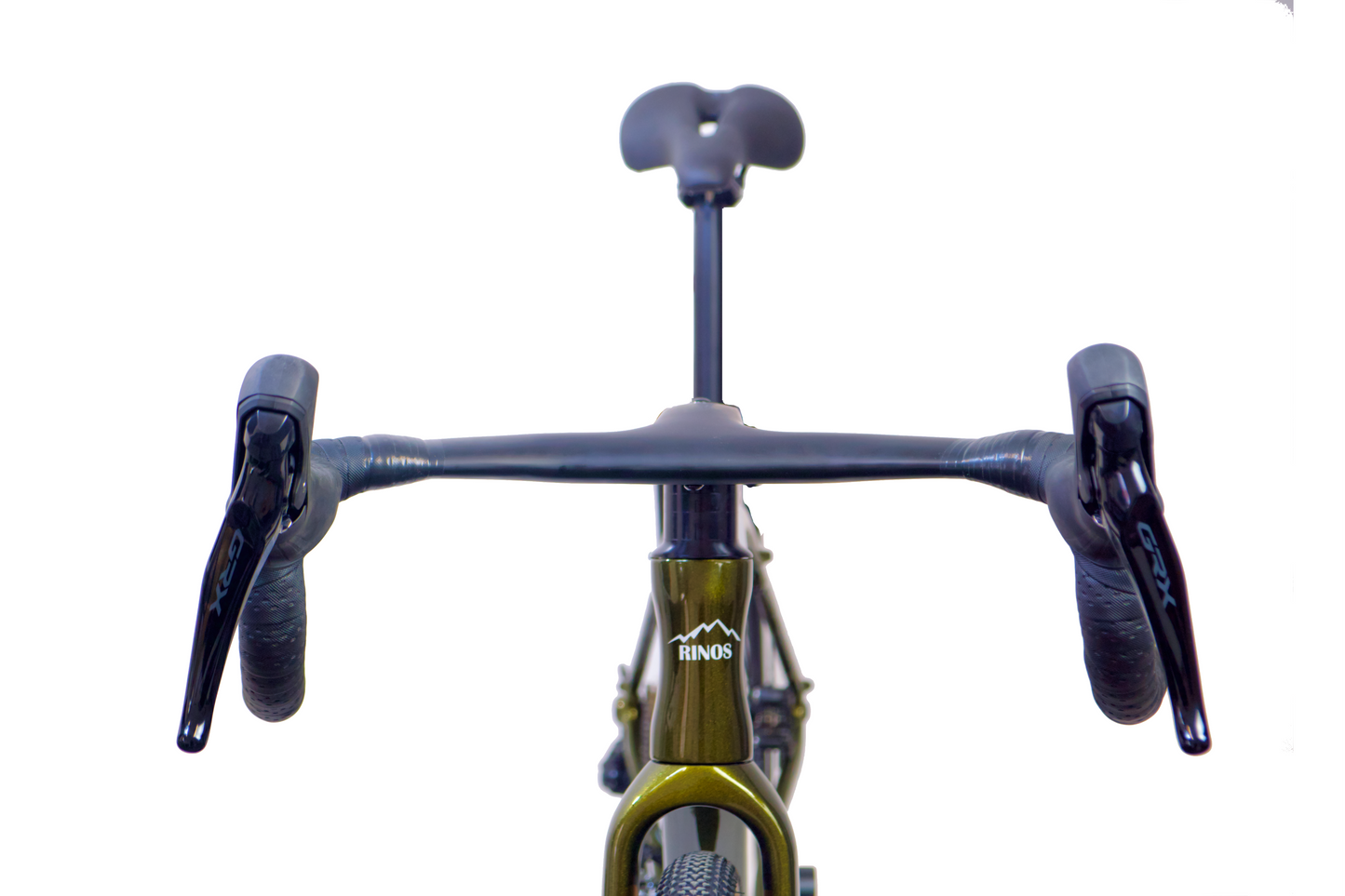

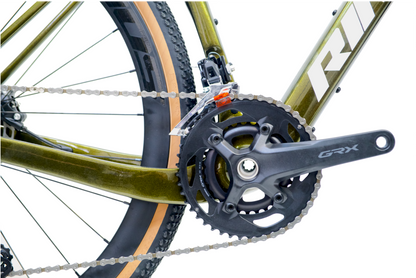

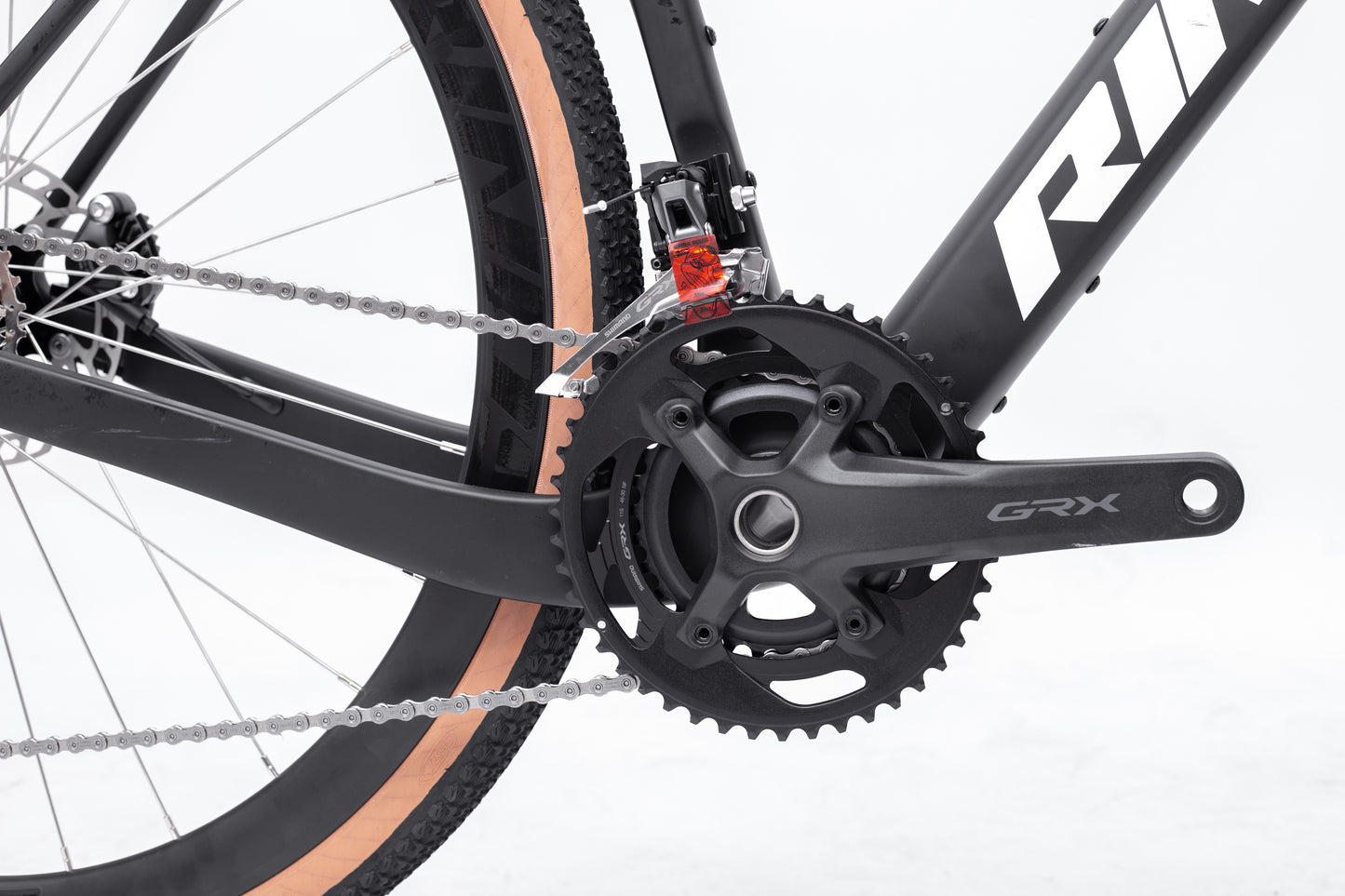

Built on a TORAY T800 carbon frame and fork, the Sandman 7 achieves a complete weight of 9.6 kg. The RINOS carbon handlebar and seat post work with the aluminum headset to create structural integrity while managing vibration transmission. The GRX820 crankset uses Shimano's Hollowtech II technology—a construction method that provides stiffness and power transfer efficiency while minimizing weight. The 48-31T chainring combination uses a +2.5mm wider chainline compared to standard road groupsets, specifically designed to accommodate wider gravel tires and improve mud clearance. The drivetrain runs on a Shimano CN-M8100 12-speed chain, originally developed for mountain bike use, featuring extended link plates for enhanced chain engagement and retention.
The wheelset pairs 38mm deep aluminum rims with Novatec 28H hubs, wrapped in CST 700×40C tires with sidewall protection and 60mm Presta valves. The bike includes 26 mounting points distributed across the frame for bikepacking bags and accessories. Available in five frame sizes (50-58 cm) across four colorways, the Sandman 7 accommodates riders from 155 cm to over 190 cm in height. The GRX820 groupset delivers mechanical shifting precision without electronic complexity or battery requirements, making it well-suited for multi-day gravel adventures, competitive events, or mixed-terrain training rides. Manufactured in the EU with included assembly tools and manual.
Sizing Guide
Choose the frame size that matches your height for optimal comfort and performance.
Size 50 cm (XS)
150–160 cm
Size 52 cm (S)
160–170 cm
Size 54 cm (M)
170–180 cm
Size 56 cm (L)
180–190 cm
Size 58 cm (XL)
190–200+ cm
Technical Specs
Model | Sandman 7.0 |
Manufacturer | Rinos |
Color Options | Black/Green, Black/Sand (Ivory), Gold, Blue |
Wheel Size | 28 inch (700c) |
Frame Sizes Available | 50 cm (XS) / 52 cm (S) / 54 cm (M) / 56 cm (L) / 58 cm (XL) |
Rider Height for 50 cm (XS) | 155–170 cm |
Rider Height for 52 cm (S) | 171–175 cm |
Rider Height for 54 cm (M) | 176–180 cm |
Rider Height for 56 cm (L) | 181–190 cm |
Rider Height for 58 cm (XL) | 190+ cm |
Complete Bike Weight | 9.6 kg |
Shipping Weight | 13.8 kg |
Frame | Rinos, Toray T800 Carbon |
Fork | Rinos, Toray T800 Carbon |
Handlebar | Rinos Carbon, 420/440 × 28.6 mm |
Headset | Rinos Aluminum, 1-1/8" (28.6 × 52 × 52 × 39.8 mm) |
Stem | Rinos Carbon |
Seat Post | Rinos Carbon, 27.2 × 400 mm |
Saddle | ROCKBROS |
Shifters | Shimano GRX ST-RX820 (24-speed, 2×12) |
Rear Derailleur | Shimano GRX RD-RX820 (with Shadow RD+ clutch) |
Front Derailleur | Shimano GRX FD-RX820 |
Brakes | Shimano GRX ST-RX820/BR-RX820 Hydraulic Disc |

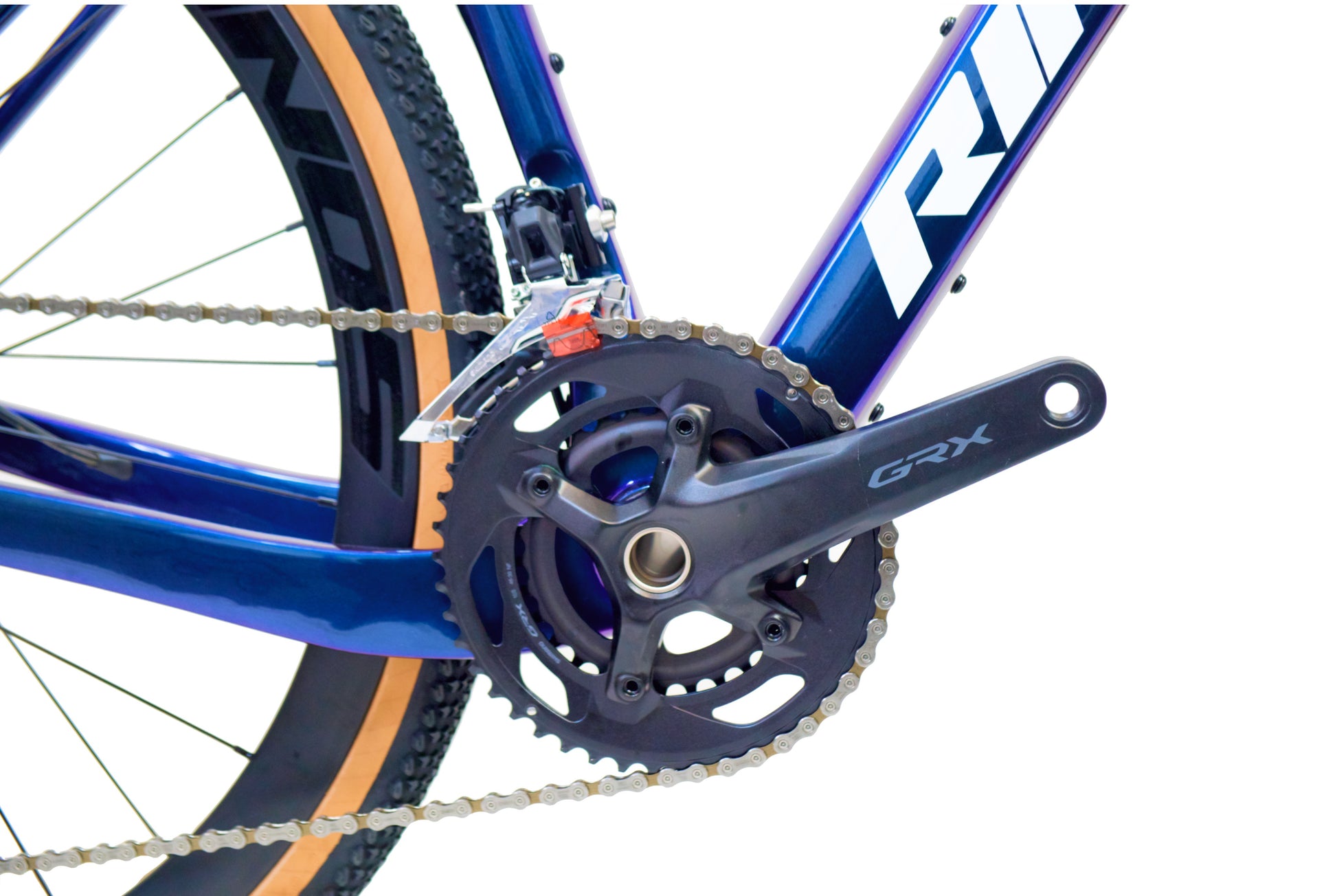

Crankset | Shimano GRX FC-RX820, 48-31T (Hollowtech II) |
Cassette | Shimano CS-R8100, 11-34T (12-speed) |
Chain | Shimano CN-M8100 12-speed |
Pedals | None (not included) |
Wheels | Rinos 700C × 28H, 38 mm depth |
Rims | Aluminum 700C × 14G × 28H, 14 × 38 mm |
Hubs | Novatec 28H × 14G |
Tires | CST 700 × 40C with sidewall protection |
Valve | Presta 60mm |
Bikepacking Mounts | 26 mounting points for bags and accessories |
Accessories Included | Tools, Assembly Manual |
Installation Guide
Your Sandman 7 arrives nearly fully assembled. Simply attach the handlebar, seat post, pedals, and front wheel following the included manual. Fine-tune the hydraulic disc brakes and gear shifting to your preference, then head out for your first ride.
The Sandman 7 combines Shimano's proven GRX820 mechanical drivetrain technology with lightweight carbon construction and practical componentry. The 2×12 configuration provides versatile gearing for varied terrain, while the mechanical shifting system offers straightforward maintenance and reliable performance without electronic dependencies. Well-suited for riders seeking a capable gravel bike with quality components at a competitive price point.

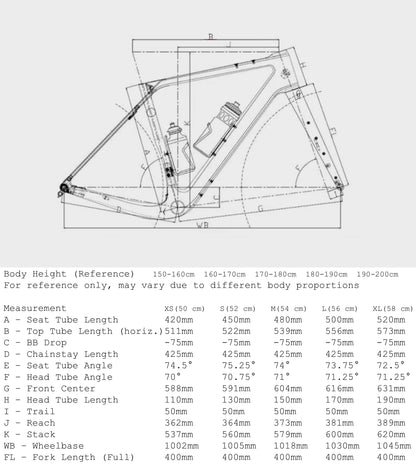

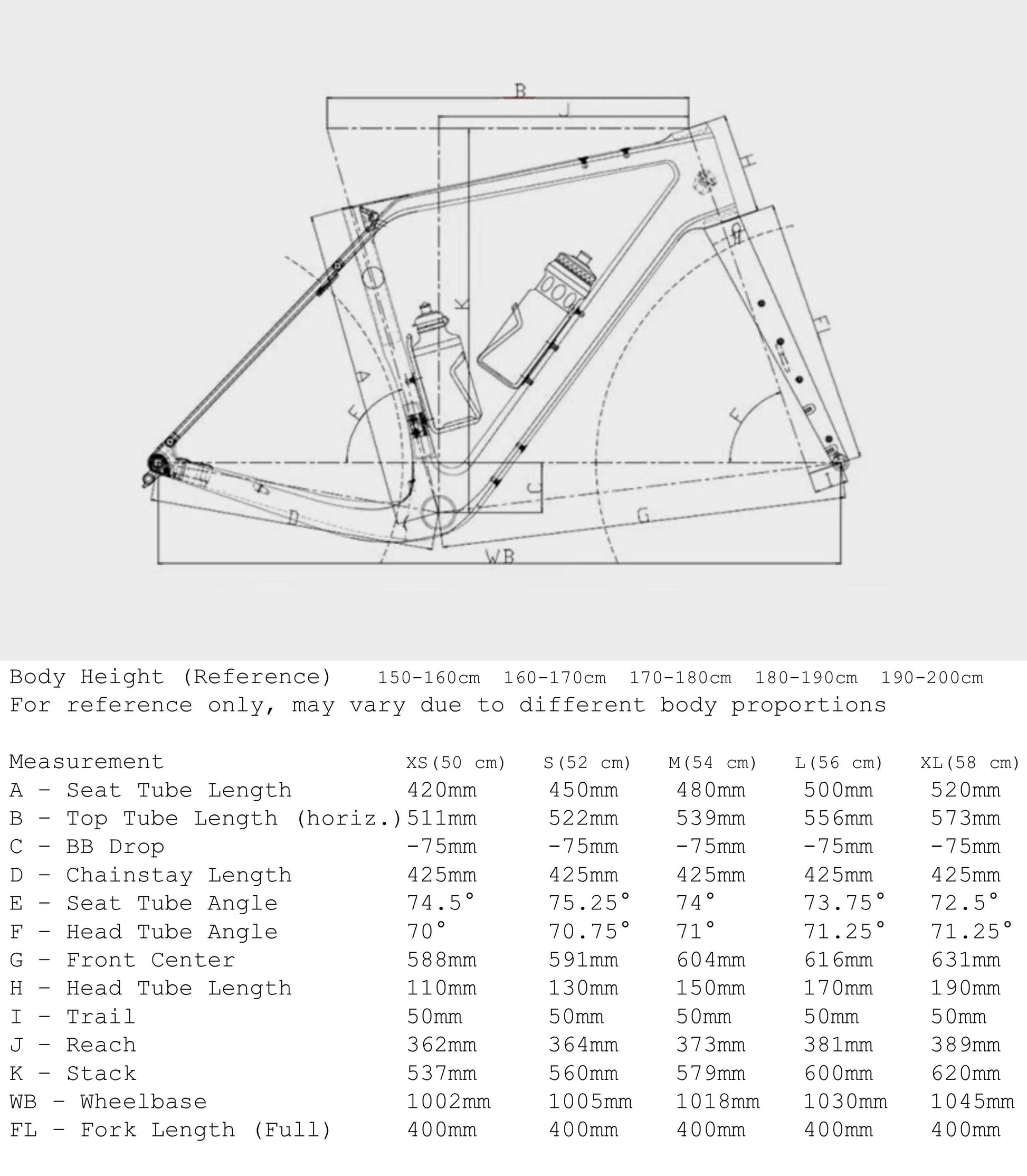

Gravel Frame Geometry

Size | A | B | C | D | E | F | G | H | I | J | K | WB | FL |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XS | 420 | 511 | - | - | 74.5° | 70° | 588 | 110 | - | 362 | 537 | 1002 | - |
S | 450 | 522 | - | - | 75.25° | 70.75° | 591 | 130 | - | 364 | 560 | 1005 | - |
M | 480 | 539 | -75 | 425 | 74° | 71° | 604 | 150 | 50 | 373 | 579 | 1018 | 400 |
L | 500 | 556 | - | - | 73.75° | 71.25° | 616 | 170 | - | 381 | 600 | 1030 | - |
XL | 520 | 573 | - | - | 72.5° | 71.25° | 631 | 190 | - | 389 | 620 | 1045 | - |
All measurements in millimeters (mm). Angles shown in degrees (°). When missing value, means all column is equivalent to existing one.
